1. What is the primary role of the 21747-070-01 extension cable in a monitoring system?

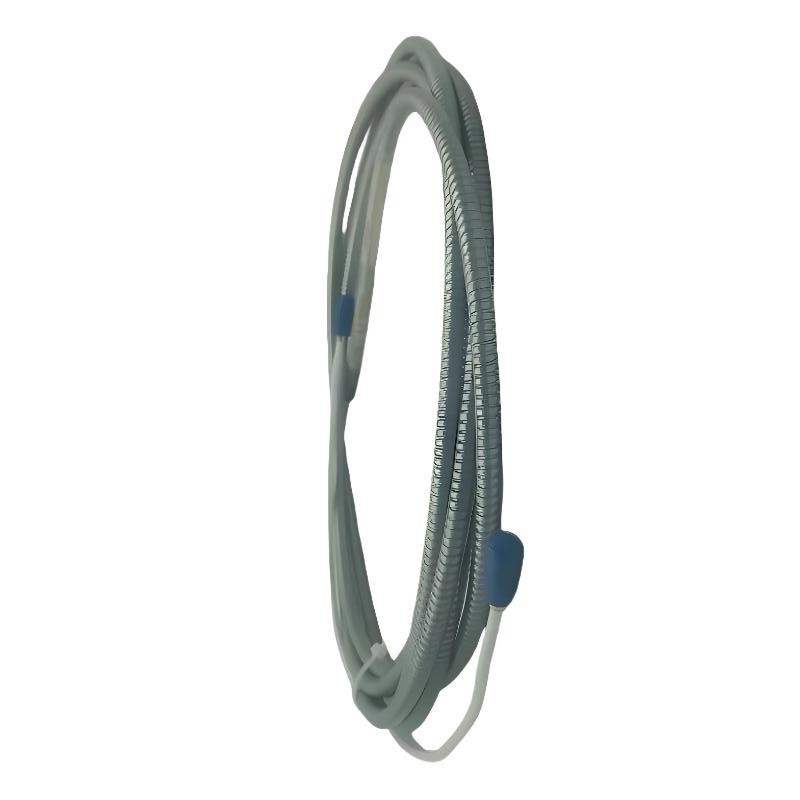

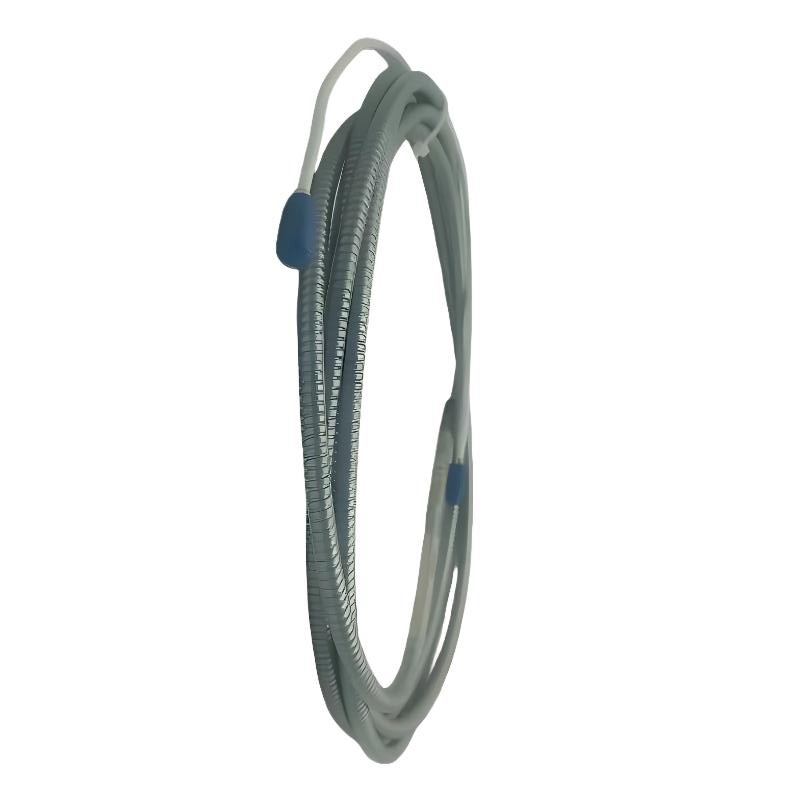

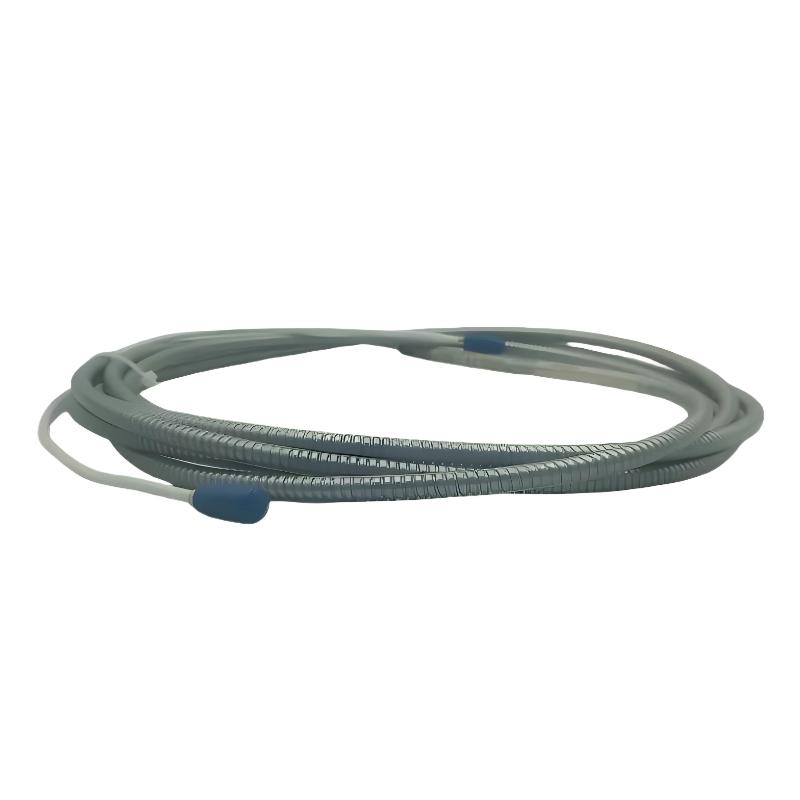

The 21747-070-01 extension cable serves as a critical link between an eddy current proximity probe and a proximitor (preamplifier) within a vibration monitoring system. Its primary role is not just physical connection but also signal preservation over distance. In real-world industrial installations, probes are often mounted in harsh or physically constrained locations such as turbine housings, compressor casings, or pump assemblies, where environmental conditions are too severe for sensitive electronics. The proximitor, on the other hand, is typically installed in a more protected and accessible control cabinet. This cable bridges that gap, ensuring that the extremely low-level measurement signals generated by the probe are transmitted accurately and consistently without degradation, distortion, or excessive noise pickup.

2. What type of signal does this cable carry and why is it sensitive?

This cable carries low-level analog signals generated by eddy current proximity probes. These signals represent precise measurements of shaft vibration, radial displacement, and axial movement. The signal itself is extremely sensitive because it is based on micro-scale variations in electromagnetic fields between the probe tip and the rotating shaft. Even small amounts of electrical noise, impedance mismatch, or shielding degradation can introduce measurement errors. For this reason, the cable must maintain strict electrical characteristics, including controlled impedance, stable capacitance, and continuous shielding integrity. Any compromise in these parameters can directly affect the accuracy of vibration analysis and machinery health assessment.

3. Can this cable operate reliably in harsh industrial environments?

Yes, the cable is specifically designed for demanding industrial environments where mechanical stress, thermal variation, and electromagnetic interference are common. In power generation plants, petrochemical facilities, and heavy manufacturing sites, equipment is often surrounded by high-voltage cables, large motors, variable frequency drives, and switching systems that generate significant electromagnetic noise. The 21747-070-01 addresses these challenges through a multi-layer shielding system that isolates the signal conductors from external interference. Additionally, its rugged mechanical construction allows it to withstand vibration-induced fatigue, long-term routing stress, and environmental exposure, making it suitable for continuous industrial duty cycles.

4. What systems is this cable compatible with and how is it integrated?

The cable is fully compatible with Bently Nevada 7200 and 3300 series vibration monitoring systems. It is designed as part of a complete measurement chain consisting of three key components: the proximity probe, the extension cable, and the proximitor module. Integration is straightforward through standardized industrial connectors that ensure proper mating and electrical continuity. Once installed, the system operates as a unified measurement loop where the probe generates the signal, the cable preserves and transmits it, and the proximitor conditions it for further processing and analysis. This modular design allows flexibility in system layout while maintaining measurement consistency across different industrial configurations.

5. What installation practices are critical for maintaining performance?

Proper installation is essential to ensure long-term signal integrity and system reliability. The cable should be routed carefully to avoid sharp bends, crushing forces, or excessive tension that could damage internal conductors or shielding layers. It should also be physically separated from high-voltage power cables, motor leads, and switching devices to minimize electromagnetic coupling. In addition, correct grounding of the shielding system is critical; improper grounding can result in ground loops or noise ingress that significantly degrade measurement quality. In industrial practice, cable routing plans are often carefully engineered to maintain separation between signal and power infrastructure for this reason.

6. Is this cable suitable for continuous 24/7 monitoring applications?

Yes, the cable is designed specifically for continuous operation in industrial monitoring systems that run 24 hours a day, 7 days a week. Unlike general-purpose cabling, it is engineered to withstand long-term exposure to vibration, thermal cycling, and environmental stress without significant degradation in performance. Once installed in a monitoring system, it typically remains in service for extended operational lifecycles, often matching the service life of the machinery it monitors. This makes it particularly suitable for critical assets where downtime is costly and continuous condition monitoring is required for operational safety.

7. How does the cable maintain signal integrity over long distances?

Signal integrity is maintained through a combination of engineering design factors. First, the conductors are manufactured with precise electrical characteristics to ensure consistent impedance along the entire length. Second, the multi-layer shielding system blocks both radiated and conducted electromagnetic interference from external sources. Third, the insulation materials are selected to minimize signal loss and maintain stable capacitance characteristics under varying environmental conditions. Finally, proper system grounding ensures that any residual noise is safely dissipated. Together, these factors ensure that the weak analog signals generated by the probe arrive at the proximitor with minimal distortion or loss of fidelity.

8. Why is this extension cable considered critical in vibration monitoring systems?

In a vibration monitoring system, measurement accuracy depends on the integrity of the entire signal chain, not just the sensor itself. The extension cable is a critical intermediary component because it directly influences how faithfully the probe’s signal is preserved during transmission. Any noise, attenuation, or impedance mismatch introduced by the cable will propagate through the system and affect diagnostic accuracy. Since condition monitoring decisions—such as detecting imbalance, misalignment, or bearing wear—are based on subtle signal variations, even small distortions can lead to incorrect assessments. Therefore, this cable is not just a passive connector but an essential part of ensuring reliable machinery diagnostics and long-term operational safety.
