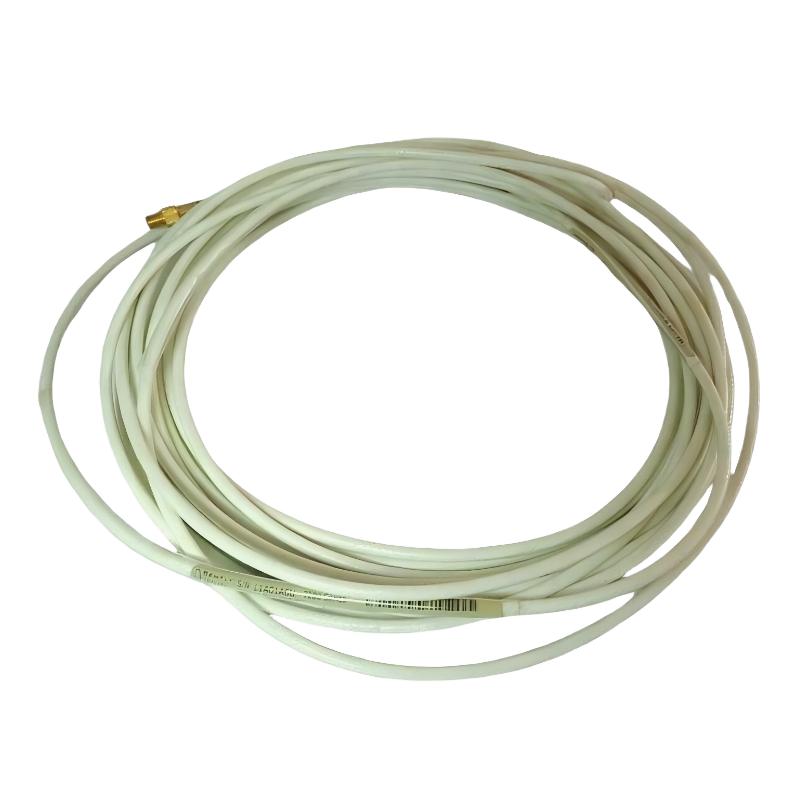

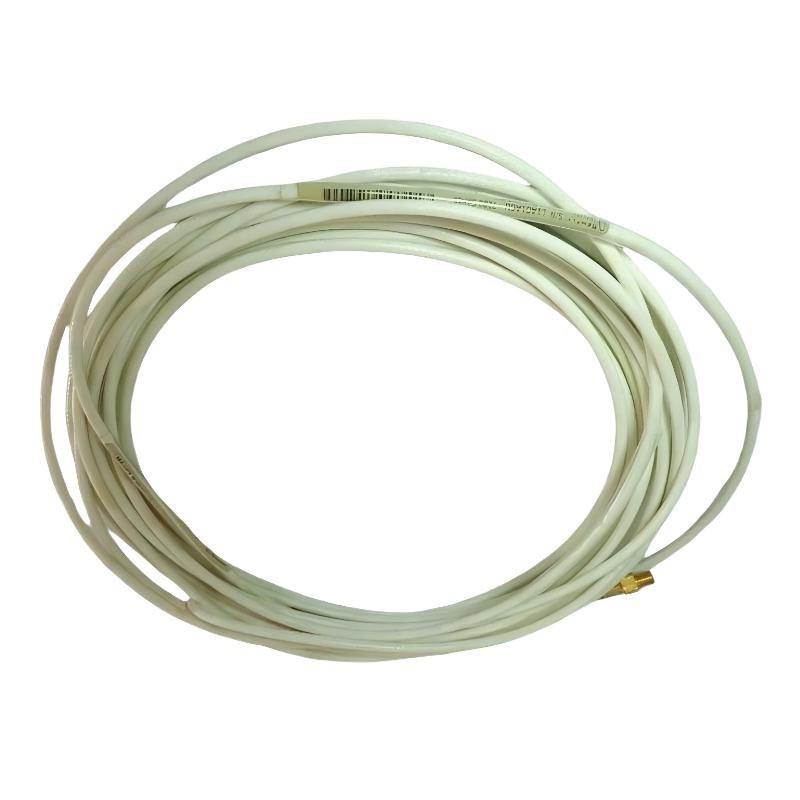

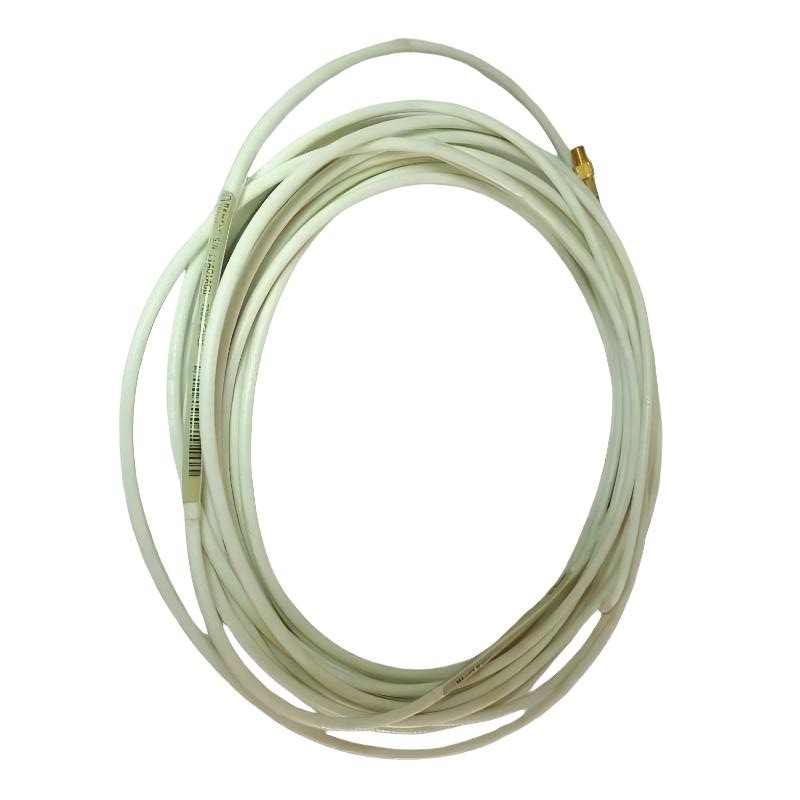

1. What is the main purpose of the 21747-075-00 extension cable?

The 21747-075-00 extension cable is used to connect an eddy current proximity probe to a proximitor (preamplifier) in vibration monitoring systems. Its main purpose is to extend the physical distance between the sensing point and the signal conditioning electronics without compromising signal quality. In industrial machinery installations, probes are often mounted in locations that are exposed to heat, vibration, oil mist, or confined mechanical spaces. The proximitor, however, is typically installed in a protected control cabinet. This cable ensures that the extremely low-level measurement signals generated by the probe are transmitted reliably and accurately over longer distances, maintaining system integrity and measurement precision.

2. What type of signal does this cable carry and why is it sensitive?

This cable carries low-level analog signals generated by eddy current proximity probes. These signals represent highly sensitive measurements of shaft vibration, displacement, and position. Because the signal is derived from small variations in electromagnetic fields, it is extremely susceptible to noise, impedance mismatch, and signal attenuation. Even minor interference can distort measurement accuracy. Therefore, the cable is engineered with strict electrical characteristics, including controlled impedance, stable capacitance, and continuous shielding, to ensure that the signal remains clean and stable throughout transmission.

3. Is this cable suitable for harsh industrial environments?

Yes, the cable is specifically designed for harsh industrial environments where mechanical stress and electromagnetic interference are common. It is widely used in power plants, petrochemical facilities, compressor stations, and heavy manufacturing industries. These environments typically include high-voltage equipment, large rotating machines, and variable frequency drives that generate significant electrical noise. The cable’s multi-layer shielding system helps isolate the signal conductors from these disturbances, while its rugged mechanical construction ensures resistance to vibration, abrasion, and long-term environmental exposure.

4. Which monitoring systems is this cable compatible with?

The 21747-075-00 extension cable is compatible with Bently Nevada 7200 and 3300 series vibration monitoring systems. It is designed as part of a complete measurement chain consisting of the proximity probe, extension cable, and proximitor module. This standardized architecture ensures seamless integration and consistent measurement performance across different industrial installations. It is commonly used in turbine systems, compressors, pumps, and other critical rotating machinery applications.

5. What are the key installation considerations for this cable?

Proper installation is essential to ensure long-term performance. The cable should be routed to avoid sharp bends, excessive tension, or mechanical compression, as these can damage internal conductors or shielding layers. It should also be physically separated from high-voltage power cables, motor leads, and switching equipment to reduce electromagnetic interference. In addition, correct grounding of the shielding system is essential to prevent noise coupling and ensure stable signal transmission.

6. Can this cable operate continuously in 24/7 monitoring systems?

Yes, the cable is designed for continuous industrial operation and is suitable for 24/7 monitoring environments. It is built using industrial-grade materials that can withstand long-term exposure to vibration, temperature variations, and mechanical stress. Once installed, it typically remains in service for extended periods without requiring replacement, making it suitable for mission-critical machinery monitoring applications where uninterrupted data acquisition is required.

7. How does the cable maintain signal integrity over distance?

Signal integrity is maintained through a combination of precise electrical design and physical shielding. The conductors are manufactured with controlled impedance to ensure consistent signal transmission characteristics. Multi-layer shielding protects against both radiated and conducted electromagnetic interference. Additionally, high-quality insulation materials reduce signal loss and maintain stable electrical properties over time. Proper system grounding further enhances noise rejection, ensuring that the signal arriving at the proximitor accurately represents the original probe output.

8. Why is this extension cable critical in a vibration monitoring system?

In a vibration monitoring system, the accuracy of diagnostic results depends on the integrity of the entire signal chain. The extension cable is a critical component because it directly affects how faithfully the probe’s signal is transmitted to the monitoring electronics. Any degradation, noise intrusion, or impedance mismatch can lead to incorrect vibration readings. Since machinery condition assessments rely on subtle signal variations, even small distortions can affect fault detection accuracy. Therefore, this cable plays a vital role in ensuring reliable condition monitoring and protecting critical industrial assets from unexpected failures.
