1. What is the main purpose of the Bently Nevada 2789-144 Probe Extension Cable?

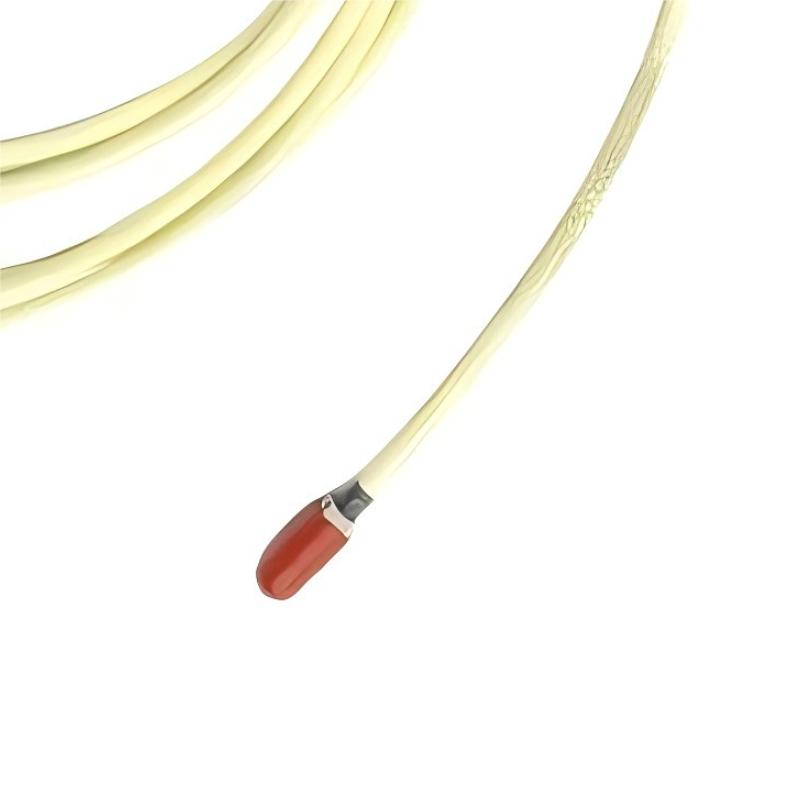

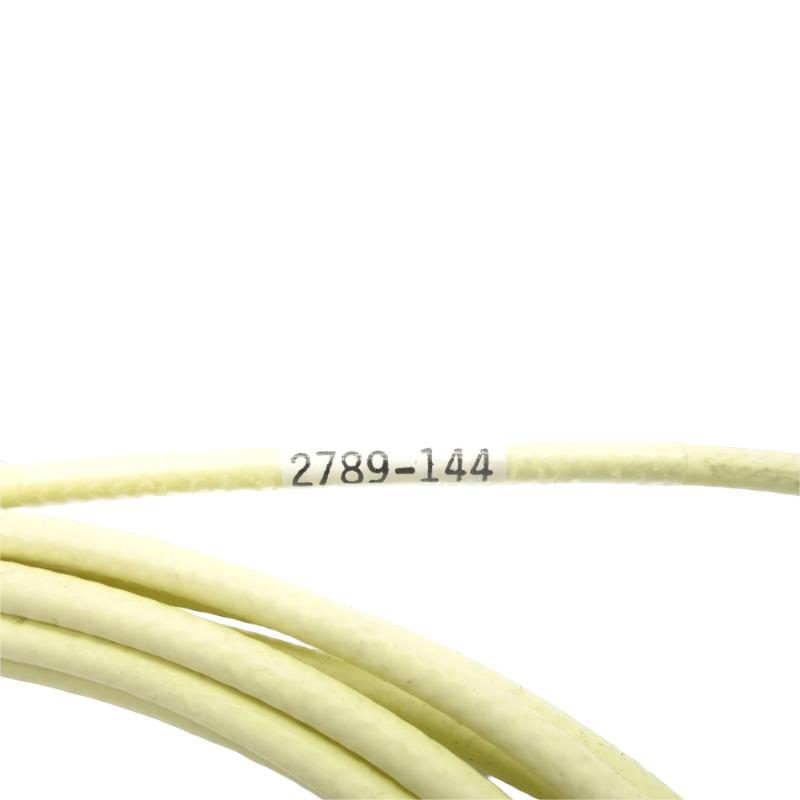

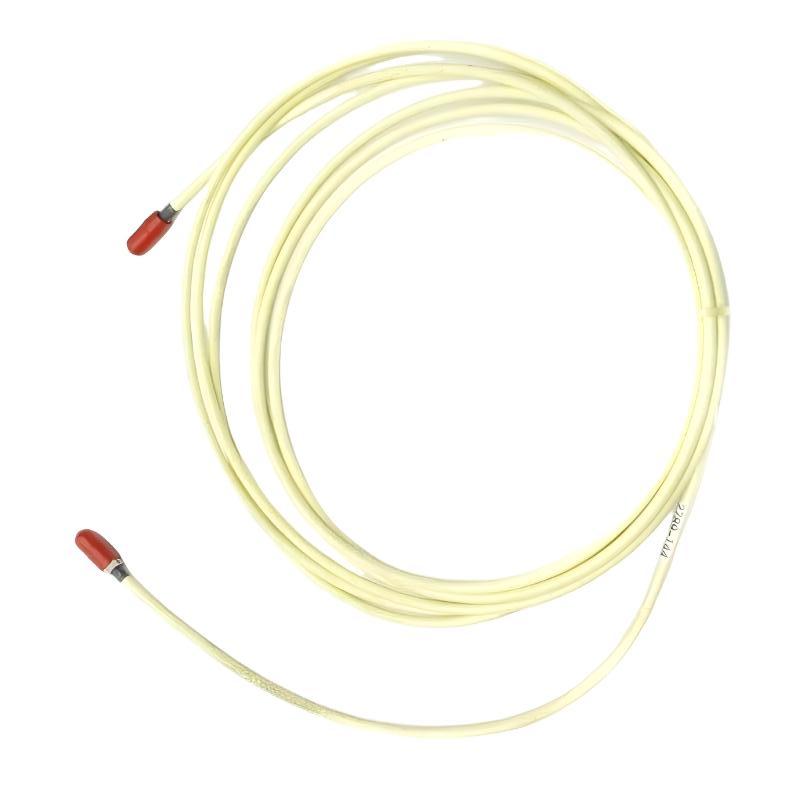

The Bently Nevada 2789-144 Probe Extension Cable is designed to extend the connection distance between a proximity probe and its corresponding Proximitor sensor or monitoring module. In rotating machinery monitoring systems, the proximity probe is often installed close to the machine shaft, while the signal processing electronics may be located in a safer or more accessible control area. This extension cable provides a reliable electrical connection between these components, allowing accurate transmission of vibration and displacement measurement signals. It is commonly used in monitoring systems for turbines, compressors, generators, pumps and other critical rotating equipment. By maintaining stable signal transmission, the cable helps ensure accurate machinery condition monitoring and supports predictive maintenance activities.

2. How does the 2789-144 extension cable work with a proximity probe system?

The 2789-144 extension cable works as an intermediate connection component between the proximity probe and the Proximitor sensor. The proximity probe detects changes in the distance between the probe tip and the rotating shaft using eddy current technology. The electrical signal generated by the probe is transmitted through the extension cable to the Proximitor module, where it is processed into usable vibration or displacement information. A properly matched extension cable is essential because the complete probe system is calibrated based on the electrical characteristics of the probe, cable and Proximitor module combination. Using the correct cable ensures accurate measurement performance and prevents signal errors caused by compatibility issues.

3. What equipment applications commonly use the Bently Nevada 2789-144 cable?

The 2789-144 Probe Extension Cable is commonly used in industrial rotating equipment monitoring applications, including steam turbines, gas turbines, compressors, generators, pumps and other large mechanical systems. These machines require continuous monitoring of shaft vibration and displacement because abnormal mechanical conditions can lead to serious failures. The extension cable allows sensors to be installed at the correct measurement location while keeping signal processing equipment positioned in a suitable control environment. It is widely used in industries such as power generation, oil and gas, petrochemical processing and manufacturing plants where equipment reliability and uptime are critical.

4. What should be considered when installing the 2789-144 Probe Extension Cable?

During installation, the 2789-144 cable should be routed carefully to avoid mechanical damage, excessive bending, strong vibration areas and sources of electrical interference. The cable connections must be properly secured to prevent loose connections that could cause unstable signals or intermittent faults. It is also important to ensure that the extension cable is used with compatible Bently Nevada proximity probes and Proximitor sensors because the measurement system depends on correct electrical matching. After installation, the monitoring system should be tested to confirm that vibration and displacement signals are stable and accurate. Proper installation practices help improve measurement reliability and reduce maintenance issues.

5. What problems can occur if the wrong extension cable is used in a proximity monitoring system?

Using an incorrect extension cable in a proximity monitoring system can affect measurement accuracy and system reliability. The probe, extension cable and Proximitor module operate as a calibrated measurement chain, and changes in cable characteristics may cause signal sensitivity errors, incorrect gap readings or inaccurate vibration measurements. In some cases, an incompatible cable may result in unstable signals, false alarms or incorrect equipment condition assessments. For this reason, it is important to select the correct extension cable model according to the installed probe type and monitoring system configuration. Proper component matching ensures that the monitoring system maintains the expected performance.

6. How can you troubleshoot signal problems related to the 2789-144 cable?

When signal problems occur, troubleshooting should begin by checking the complete sensor circuit. First, inspect the cable connections between the proximity probe, extension cable and Proximitor module to confirm that all connections are secure. Next, check the cable condition for physical damage, contamination, broken sections or signs of electrical interference. If the cable appears normal, the probe and Proximitor module should also be tested to determine whether the issue comes from another part of the measurement chain. Monitoring data trends can provide additional information because sudden signal loss may indicate a connection problem, while gradual changes may be related to actual machine conditions. A systematic inspection helps identify the source of signal abnormalities quickly.

7. Why is cable compatibility important in Bently Nevada proximity monitoring systems?

Cable compatibility is important because Bently Nevada proximity monitoring systems are designed as precisely matched measurement systems. The electrical characteristics of the probe, extension cable and Proximitor sensor together determine the accuracy of the final measurement signal. If an incorrect cable is installed, the system may not provide accurate vibration or displacement readings, which can affect machinery protection decisions. Correct cable selection ensures that the monitoring system maintains proper calibration, signal stability and measurement accuracy. For critical rotating machinery, maintaining the correct sensor configuration is essential for reliable condition monitoring and early fault detection.

8. What maintenance practices are recommended for the Bently Nevada 2789-144 Probe Extension Cable?

To maintain reliable operation of the 2789-144 extension cable, regular inspection should be included in the equipment maintenance schedule. Technicians should check cable connections, routing conditions and external protection to ensure that the cable has not been damaged by vibration, heat, chemicals or mechanical stress. The monitoring system data should also be reviewed periodically to identify unusual signal behavior that may indicate cable or sensor issues. During equipment shutdowns, checking cable integrity and connection quality can help prevent future monitoring failures. Proper maintenance of the extension cable contributes to stable vibration monitoring performance and improves the overall reliability of rotating machinery protection systems.
