1. What is the Bently Nevada 330907-05-30-10-10-02 3300 NSv Reverse-Mount Probe mainly used for?

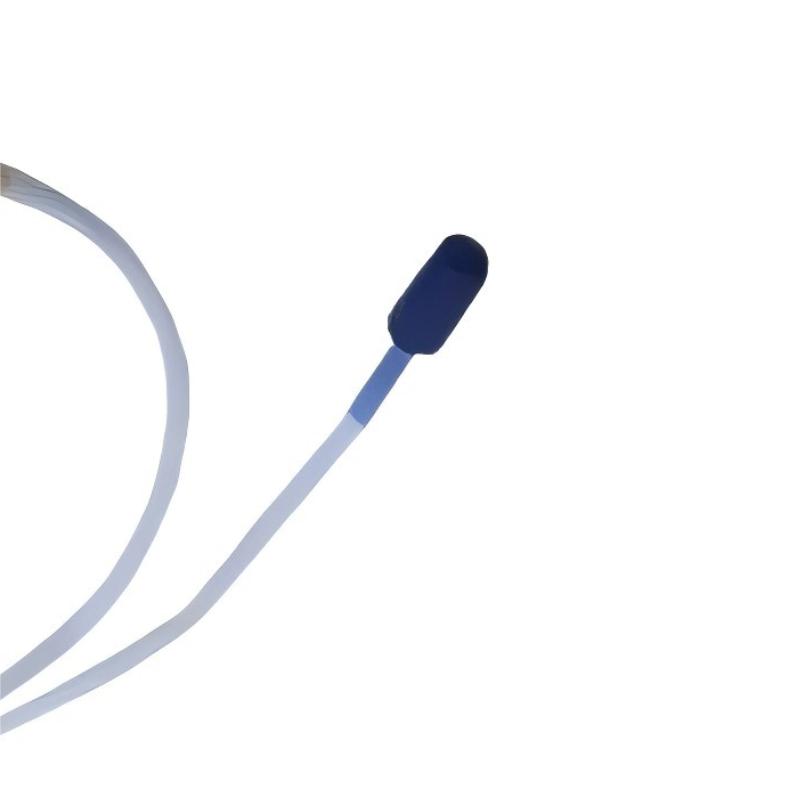

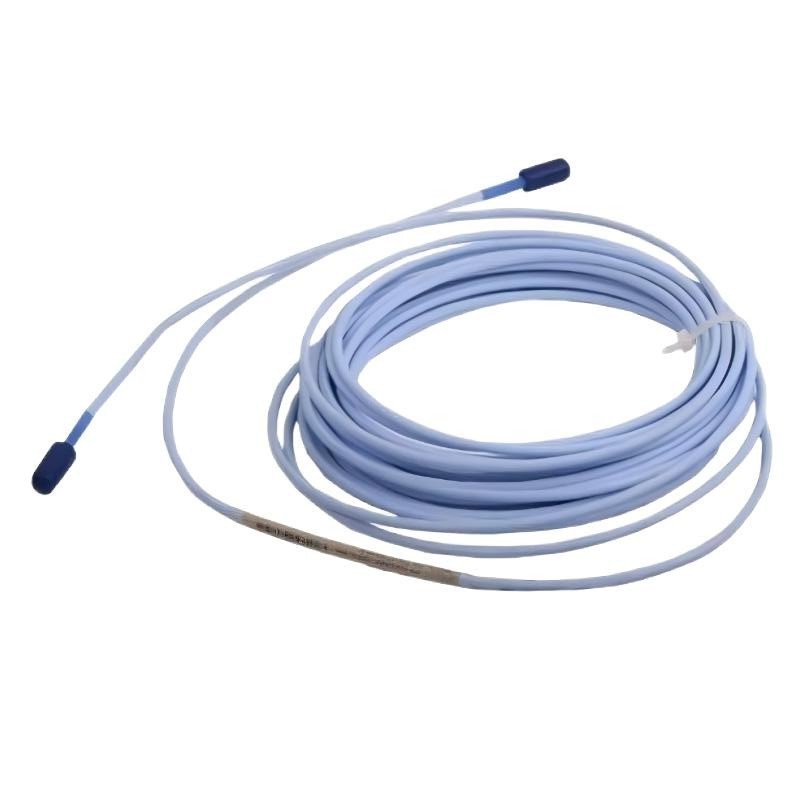

The Bently Nevada 330907-05-30-10-10-02 is a 3300 NSv series reverse-mount proximity probe designed for monitoring the operating condition of rotating machinery. It uses non-contact eddy current technology to measure shaft vibration, shaft displacement and rotor movement. The probe is commonly used in applications where installation space is limited, such as gas turbines, steam turbines, compressors, pumps and other high-speed rotating equipment. The reverse-mount design allows the probe to be installed from the rear side of the mounting location, providing greater flexibility in equipment design and maintenance. By continuously monitoring shaft movement, the probe helps maintenance teams identify abnormal operating conditions, improve predictive maintenance strategies and reduce the risk of unexpected equipment failures.

2. How does the Bently Nevada 330907-05-30-10-10-02 operate?

The 330907-05-30-10-10-02 operates using eddy current sensing technology, which provides accurate non-contact measurement of shaft movement. The probe generates a high-frequency electromagnetic field at the sensing tip. When the conductive shaft surface moves within this field, the electromagnetic characteristics change, and the system converts these changes into electrical signals representing displacement or vibration. Because the probe does not physically touch the rotating shaft, there is no mechanical wear during operation. This allows the sensor to maintain stable performance in high-speed rotating machinery environments. The measurement signal is processed through a compatible Proximitor sensor and monitoring system to provide reliable machine condition data.

3. What are the advantages of the 3300 NSv Reverse-Mount Probe design?

The reverse-mount design of the 330907-05-30-10-10-02 provides installation advantages in applications where traditional front-mounted probes are difficult to install. This design allows engineers to position the probe from the opposite mounting direction, making it suitable for compact machinery structures and locations with limited access space. The 3300 NSv series is designed for applications requiring accurate shaft vibration and displacement measurement while maintaining flexible installation options. The compact design helps simplify installation and maintenance work, especially in modern rotating equipment where available mounting space is often restricted.

4. What systems can the 330907-05-30-10-10-02 be used with?

The Bently Nevada 330907-05-30-10-10-02 is designed to operate with compatible 3300 NSv Proximitor sensors and monitoring systems. The probe detects changes in the distance between the sensor tip and the rotating shaft, while the Proximitor module converts the raw signal into usable vibration and displacement information. The processed data can be monitored through machinery protection systems, vibration analysis equipment, PLC systems or other industrial monitoring platforms. Proper matching between the probe, extension cable, Proximitor sensor and monitoring equipment is important to ensure accurate measurement performance and reliable protection functions.

5. What types of faults can be detected using the 330907-05-30-10-10-02 proximity probe?

The 330907-05-30-10-10-10-02 proximity probe can help detect various mechanical problems related to rotating equipment operation. It is commonly used to identify shaft vibration changes, abnormal shaft displacement, rotor imbalance, coupling misalignment, bearing-related problems and mechanical instability. In critical equipment such as turbines and compressors, early detection of abnormal shaft movement is essential because many failures develop gradually before causing major damage. By analyzing long-term vibration trends and displacement changes, maintenance personnel can evaluate equipment health and schedule corrective maintenance before serious failures occur.

6. How should signal problems with the 330907-05-30-10-10-02 be diagnosed?

When abnormal signals occur, troubleshooting should begin with checking the complete monitoring circuit. First, confirm that the probe is installed correctly and that the connection between the probe, extension cable and Proximitor sensor is secure. Next, inspect the cable condition for damage, loose connections, contamination or electrical interference. If the hardware connections are normal, check the Proximitor module and monitoring system configuration. It is also important to compare the signal trend with actual machine operating conditions because abnormal readings may be caused by either sensor system issues or real mechanical problems. A step-by-step troubleshooting process helps determine the actual source of the problem and restore reliable monitoring performance.

7. Why is the Bently Nevada 330907-05-30-10-10-02 suitable for compact rotating equipment applications?

The 330907-05-30-10-10-02 is suitable for compact rotating equipment applications because its reverse-mount configuration provides greater installation flexibility. Many modern machines have limited internal space, making conventional probe installation difficult. The reverse-mount design allows engineers to install the probe in locations where access from the rear side is more practical. Combined with eddy current measurement technology, the probe provides accurate shaft vibration and displacement monitoring without requiring physical contact with rotating components. This makes it an effective solution for machinery protection applications where space limitations and measurement accuracy are both important factors.

8. What maintenance recommendations should be followed for the Bently Nevada 330907-05-30-10-10-02?

To maintain reliable operation of the 330907-05-30-10-10-02, regular inspection of the probe system should be included in equipment maintenance procedures. Technicians should check the probe installation condition, cable connections and monitoring signal stability during scheduled maintenance activities. The vibration and displacement trends from the monitoring system should also be reviewed regularly to identify gradual changes in machine condition. If abnormal signal fluctuations, unstable readings or unusual vibration patterns occur, the probe installation, cable condition and associated electronic modules should be inspected. Proper maintenance helps ensure accurate monitoring performance, improves machinery protection reliability and supports long-term operation of critical rotating equipment.
