Technical Specifications

FAQ

1. What is the main function of the Bently Nevada 31000-16-10-00-119-03-02 Proximity Probe Housing Assembly?

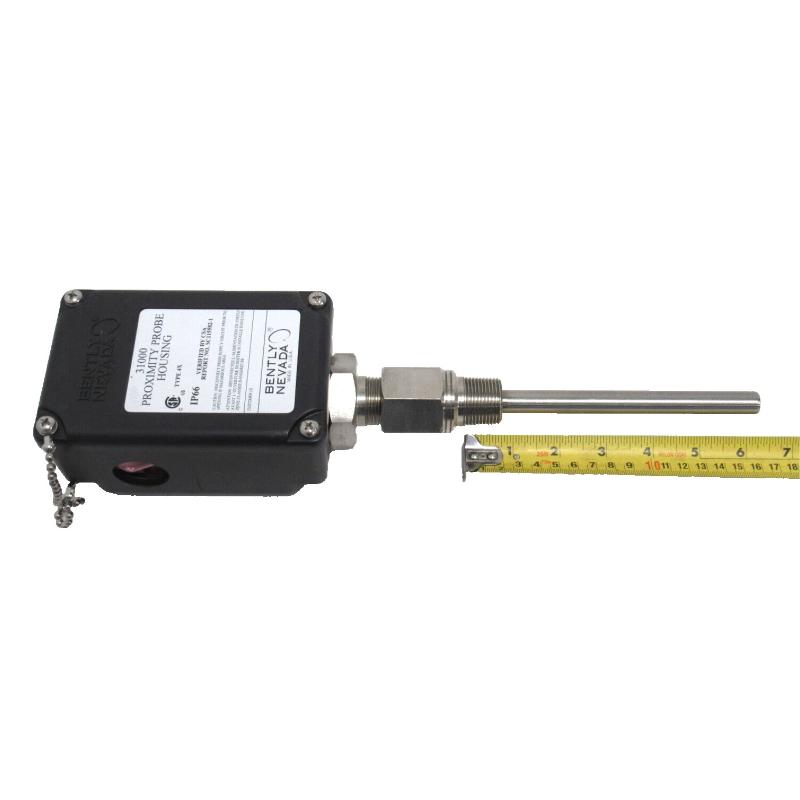

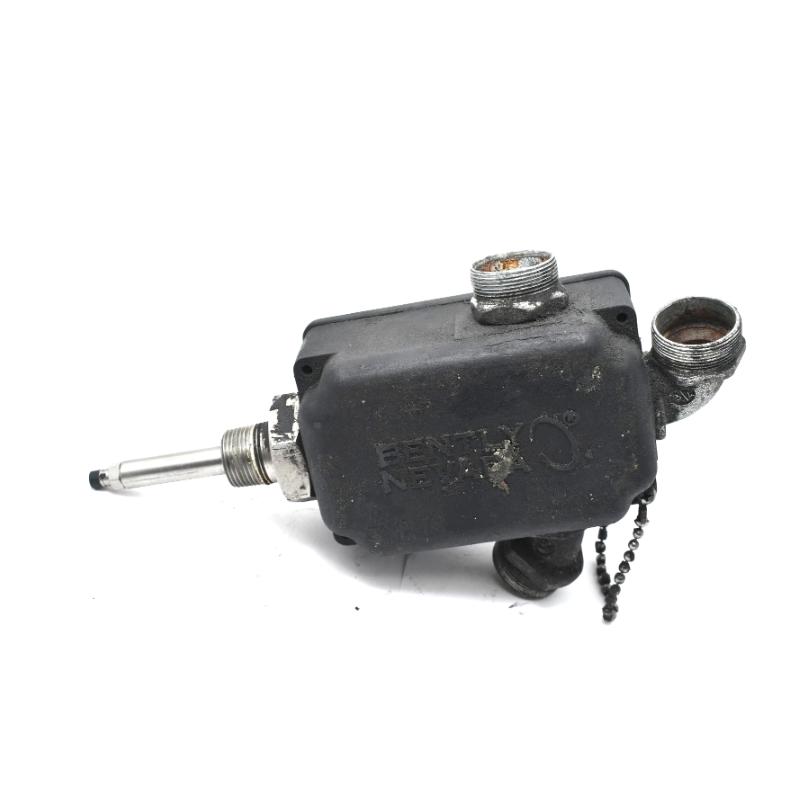

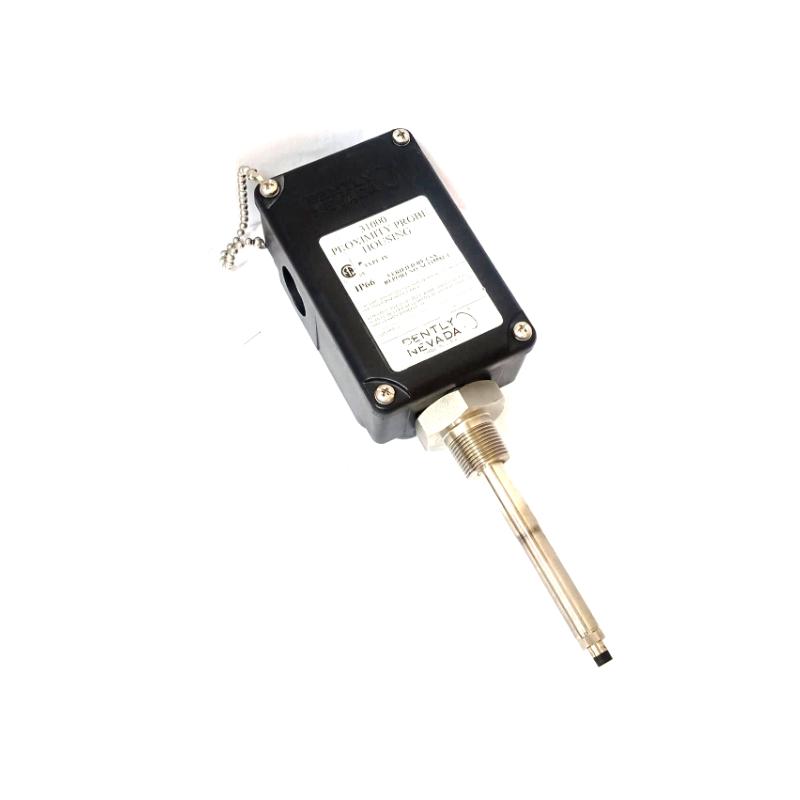

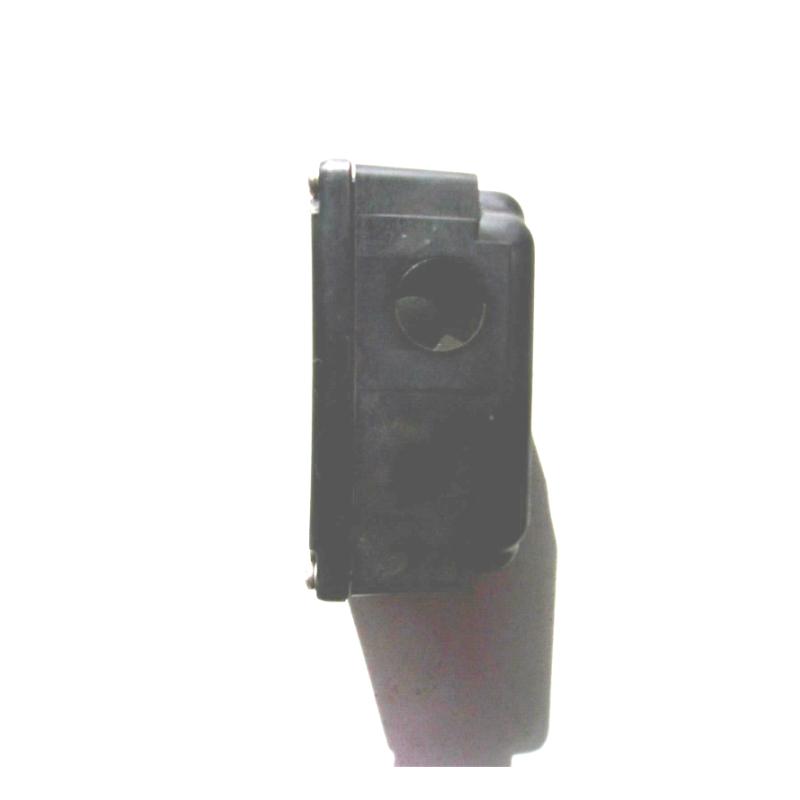

This probe housing assembly is designed to securely mount and protect eddy current proximity probes used in rotating machinery monitoring systems. Its main function is to ensure the probe maintains a stable and accurate position relative to the shaft or target surface, enabling precise measurement of vibration and displacement signals during continuous operation.

2. Why is a stable probe housing important in condition monitoring systems?

A stable housing is essential because even minor mechanical movement or misalignment can introduce measurement errors. The housing minimizes vibration transfer, structural movement, and environmental disturbances, ensuring that the probe signal accurately reflects the true mechanical condition of the equipment rather than installation variability.

3. What industrial equipment typically uses this product?

This component is commonly used in steam turbines, gas turbines, centrifugal compressors, generators, and large pump systems. These machines operate under continuous load and require reliable vibration and shaft displacement monitoring to ensure safe and efficient operation.

4. How does an eddy current proximity probe system work?

The probe generates a high-frequency electromagnetic field at its tip. When a conductive target such as a rotating shaft enters this field, eddy currents are induced in the surface. Changes in the distance between the probe and the target modify these eddy currents, which are then converted into electrical signals representing vibration or displacement.

5. Is this housing assembly suitable for continuous industrial operation?

Yes, it is designed for long-term continuous use in harsh industrial environments. It can withstand sustained vibration, thermal variation, and mechanical stress while maintaining stable probe positioning and reliable signal transmission performance.

6. What installation considerations are important?

Correct alignment between the probe and the target surface is critical for accurate measurement. The housing must be firmly mounted to a stable structure to avoid loosening under vibration. Proper grounding and careful cable routing are also necessary to minimize electromagnetic interference and maintain signal integrity.

7. How can potential issues with the assembly be identified?

Common signs of issues include unstable vibration readings, signal drift, or intermittent data loss. These may result from loose mounting, probe misalignment, or cable connection problems, and should be checked promptly during maintenance inspections.

8. Why are dedicated probe housing assemblies important in monitoring systems?

Dedicated housing assemblies provide a stable and repeatable installation environment for proximity probes. This reduces the impact of vibration, temperature changes, and electromagnetic interference, ensuring consistent measurement accuracy and supporting reliable predictive maintenance strategies for critical rotating machinery.
