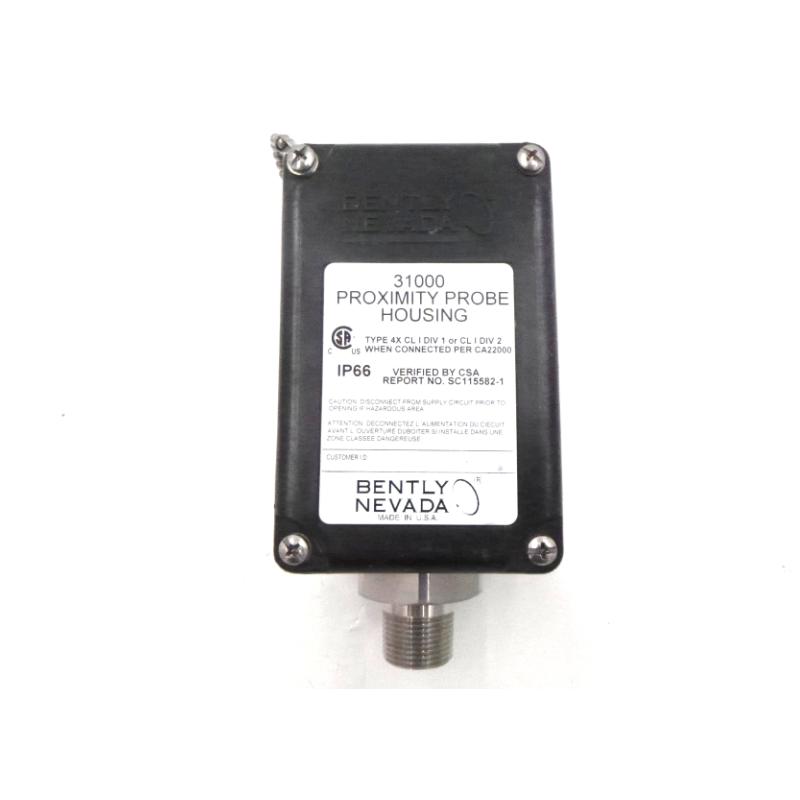

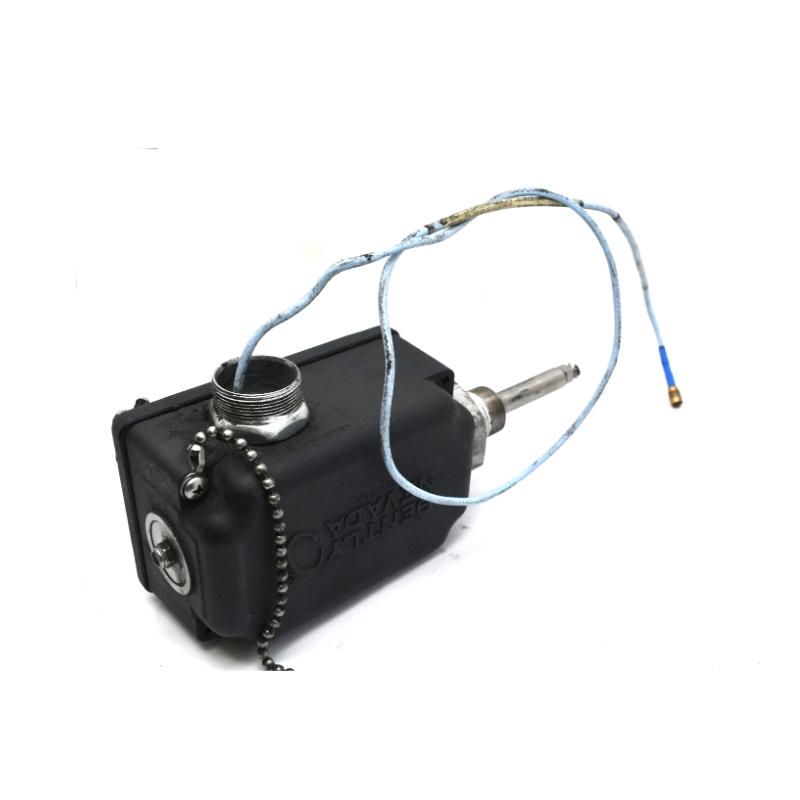

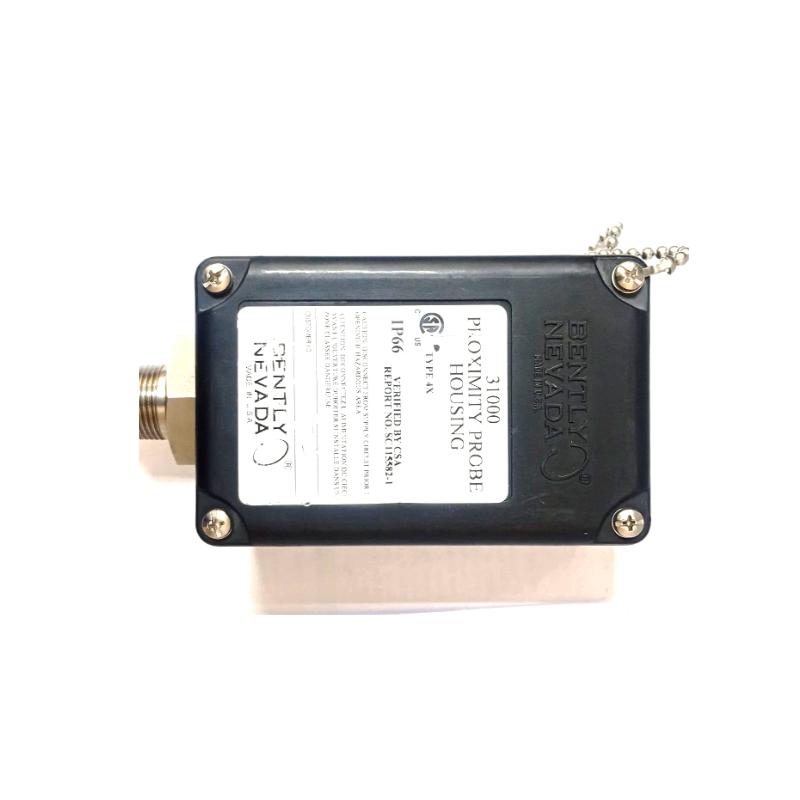

Q1: What is the primary function of the Bently Nevada 31000-16-10-00-156-00-02 Proximity Probe Housing Assembly?

A: The main function of this housing assembly is to provide a secure, stable, and precisely aligned mounting structure for proximity probes used in vibration and shaft position monitoring systems. It ensures that the probe maintains correct positioning relative to the target surface, which is essential for accurate eddy current measurement. By stabilizing the probe, the housing helps maintain signal consistency and measurement reliability in industrial machinery applications.

Q2: How does this housing assembly contribute to vibration monitoring accuracy?

A: In proximity-based vibration monitoring systems, even slight misalignment or mechanical instability can significantly affect measurement accuracy. This housing assembly minimizes mechanical movement, vibration-induced displacement, and installation variability. As a result, it helps ensure that the probe maintains a consistent gap relative to the rotating shaft, allowing the monitoring system to accurately capture vibration amplitude, phase, and displacement data.

Q3: What types of machinery typically use this probe housing assembly?

A: The assembly is commonly used in critical rotating machinery such as turbines, compressors, pumps, motors, and generators. These machines require continuous condition monitoring to detect early signs of imbalance, misalignment, bearing wear, or other mechanical faults. The housing assembly provides a reliable mounting solution for proximity probes in these demanding industrial environments.

Q4: Is the 31000-16-10-00-156-00-02 an active electronic component?

A: No, it is not an active electronic device. The housing assembly is a purely mechanical component designed to support and protect the proximity probe. It does not process signals or perform any electrical functions. Its role is to ensure correct probe positioning and environmental protection, while the actual measurement is performed by the connected proximity probe and monitoring system.

Q5: Why is proper probe mounting important in condition monitoring systems?

A: Proper mounting is critical because proximity probe measurements are highly sensitive to distance changes between the probe tip and the target surface. Incorrect installation can lead to inaccurate vibration readings, false alarms, or missed fault conditions. A stable housing assembly ensures consistent probe positioning, which directly impacts the reliability and repeatability of monitoring data.

Q6: What factors should be considered during installation of this housing assembly?

A: Installation should ensure mechanical stability, correct alignment with the rotating shaft, and secure fastening to the machine casing. Care must be taken to avoid excessive mechanical stress or vibration at the mounting point. Additionally, proper routing of the probe cable is important to prevent signal interference or physical damage during operation.

Q7: How does this assembly support long-term reliability in industrial environments?

A: The housing is designed for durability in harsh industrial conditions, including exposure to vibration, temperature variations, and mechanical stress. Its robust construction helps protect the probe from misalignment and physical damage over time. This contributes to long-term measurement stability and reduces maintenance requirements in continuous monitoring applications.

Q8: Can this housing assembly be used with different Bently Nevada probe systems?

A: It is designed to be compatible with specific Bently Nevada proximity probe configurations, particularly within the 3300 and 3300 XL series ecosystems, depending on system setup. However, compatibility depends on the exact probe type, mounting requirements, and system configuration. Proper verification is required before integration to ensure correct mechanical and measurement alignment.
