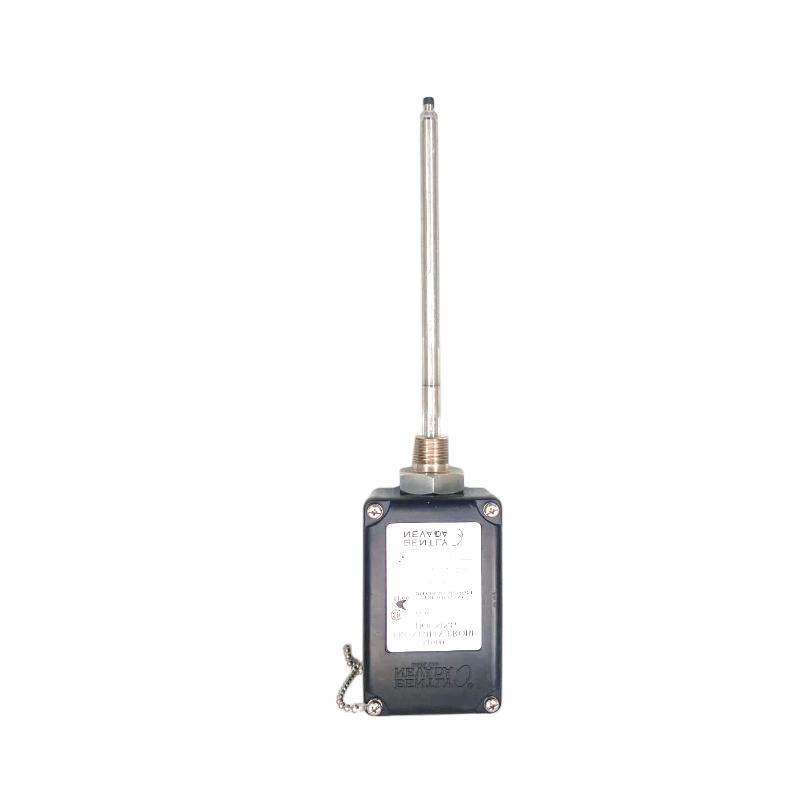

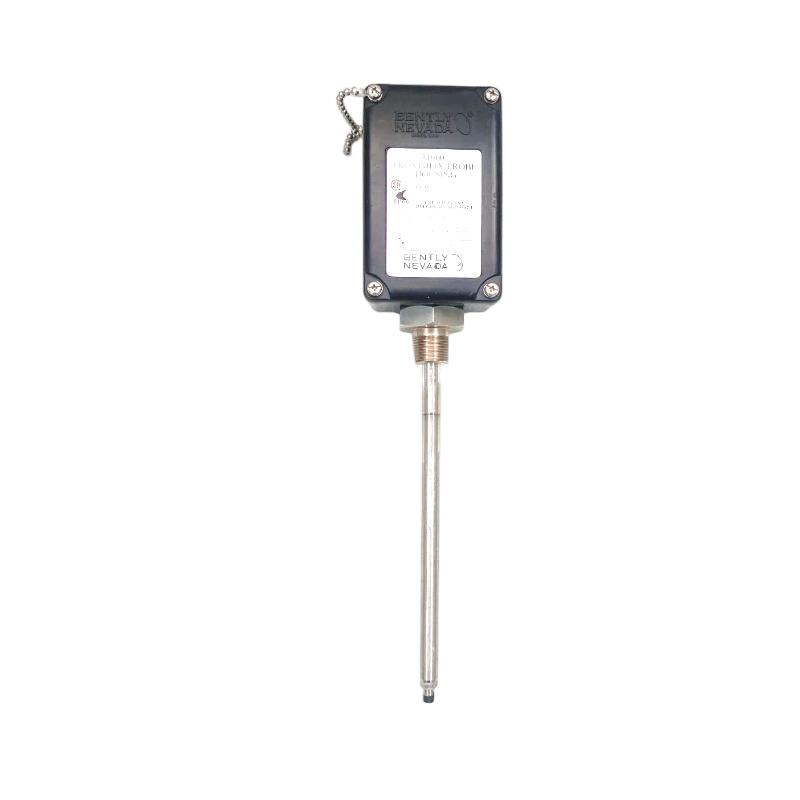

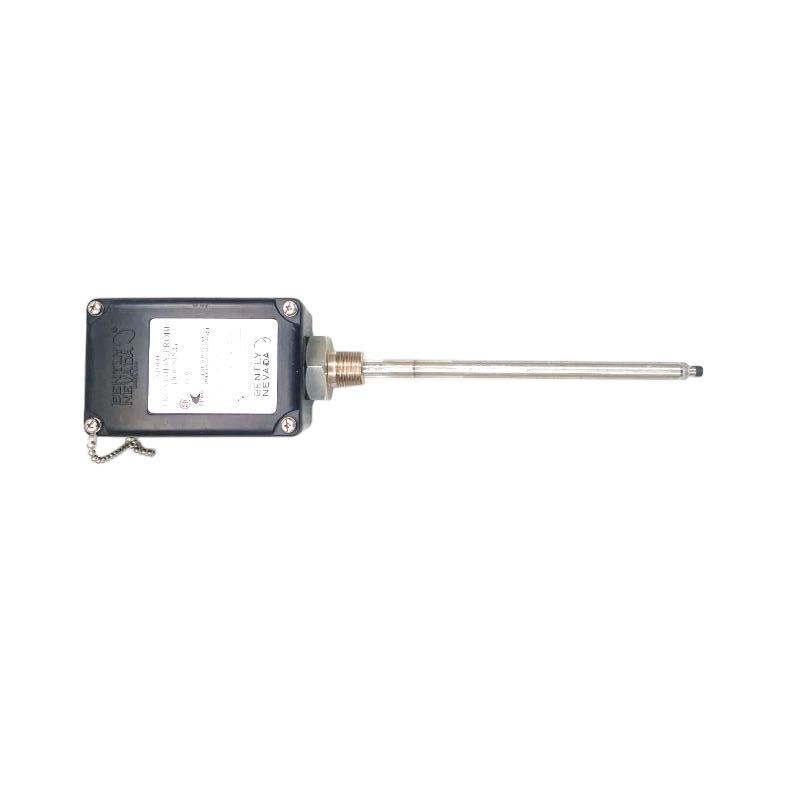

Q1: What is the primary function of the Bently Nevada 31000-16-10-00-206-00-02 Proximity Probe Housing Assembly?

A: This housing assembly provides a stable mechanical platform for mounting proximity probes used in vibration and shaft position monitoring systems. Its core function is to maintain precise alignment between the probe tip and the rotating shaft surface, ensuring consistent eddy current measurement accuracy. It does not process signals but ensures the mechanical stability required for reliable monitoring performance.

Q2: Why is a dedicated housing necessary for proximity probe systems?

A: Proximity probes measure very small changes in distance between the probe tip and the shaft surface. Without a rigid and stable housing, mechanical vibration, misalignment, or installation variation can introduce significant measurement errors. The housing assembly ensures consistent positioning and minimizes external mechanical influences on the probe.

Q3: How does this housing improve vibration monitoring accuracy?

A: By securing the probe in a fixed and vibration-resistant position, the housing reduces signal disturbances caused by mechanical movement. This allows the monitoring system to capture more stable vibration amplitude, phase, and displacement data, which improves the detection of mechanical issues such as imbalance, misalignment, or bearing wear.

Q4: What types of industrial equipment use this housing assembly?

A: It is commonly used in critical rotating machinery such as turbines, compressors, pumps, generators, and large industrial motors. These assets rely on continuous condition monitoring systems to ensure operational safety and early fault detection.

Q5: Does this housing assembly contain any electronic components?

A: No, it is a purely passive mechanical component. It contains no electronics, requires no electrical power, and does not perform any signal processing. Its function is strictly structural, focusing on probe support, alignment, and protection.

Q6: What are key installation considerations for this assembly?

A: Installation should ensure rigid mechanical mounting to the machine structure, correct alignment with the monitored shaft, and proper routing of the probe cable. It is also important to minimize external vibration influence at the mounting point to maintain long-term measurement stability and accuracy.

Q7: How does this assembly perform in harsh industrial environments?

A: The housing is designed for demanding industrial conditions, including continuous vibration, thermal variation, and mechanical stress. Its robust construction helps maintain probe alignment over time and reduces measurement drift, supporting reliable long-term monitoring performance.

Q8: Is this housing compatible with all Bently Nevada proximity probes?

A: Compatibility depends on the specific probe model and system configuration. While it is intended for use within Bently Nevada proximity monitoring systems such as the 3300 and 3300 XL series, proper verification is required to ensure correct mechanical fit and system integration before installation.
