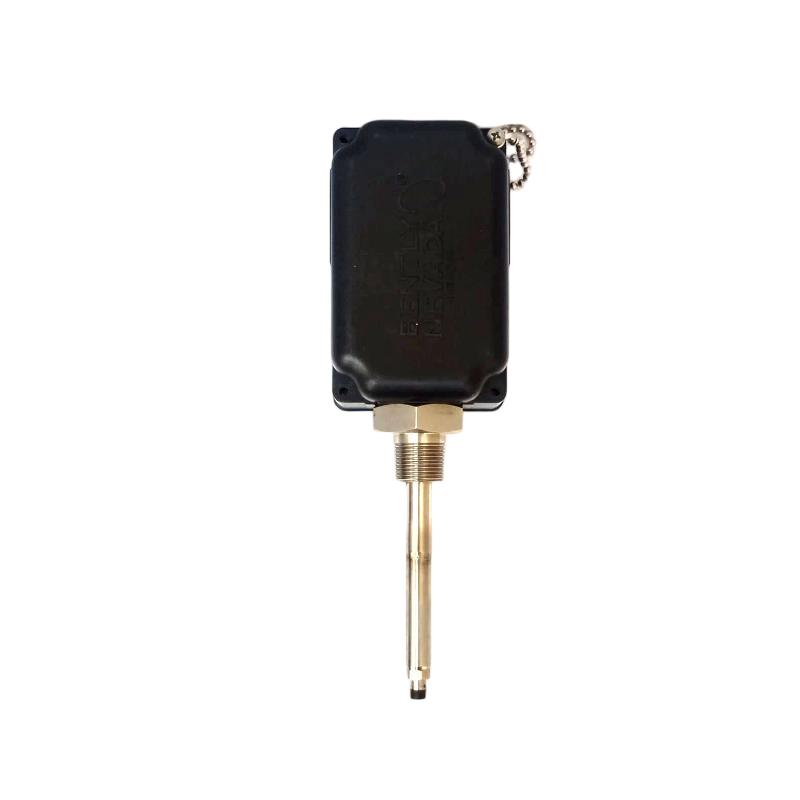

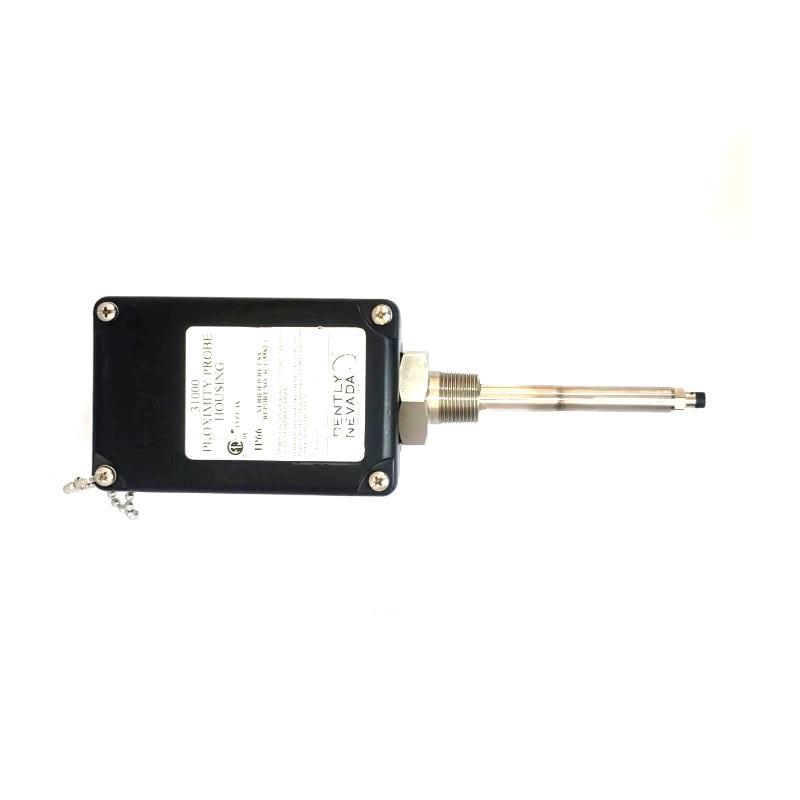

Q1: What is the primary function of the Bently Nevada 31000-16-10-15-040-03-02 Proximity Probe Housing Assembly?

A: This housing assembly is designed to provide a rigid and precisely aligned mounting structure for proximity probes used in vibration and shaft position monitoring systems. Its main function is to ensure stable probe positioning relative to the rotating shaft, which is critical for accurate eddy current-based measurements. It does not process signals but provides the mechanical stability required for reliable monitoring.

Q2: Why is mechanical stability critical in proximity probe applications?

A: Proximity probes measure very small changes in the distance between the probe tip and the shaft surface. Any mechanical instability, such as vibration, looseness, or misalignment, can introduce measurement errors. A stable housing ensures consistent probe positioning, minimizing signal fluctuations and improving measurement reliability over time.

Q3: How does this housing improve condition monitoring accuracy?

A: By maintaining a fixed and stable probe position, the housing reduces external mechanical disturbances that could affect the probe signal. This allows condition monitoring systems to accurately track vibration amplitude, phase, and displacement, enabling early detection of faults such as imbalance, misalignment, or bearing wear.

Q4: What types of machinery typically use this housing assembly?

A: It is commonly applied in critical rotating equipment such as steam turbines, gas turbines, compressors, pumps, generators, and large industrial motors. These machines require continuous monitoring to ensure operational safety and to detect early signs of mechanical degradation.

Q5: Does this housing assembly contain electronic components?

A: No, it is a fully passive mechanical component. It contains no electronics, requires no power supply, and does not perform any signal processing. Its sole function is to provide structural support, alignment, and protection for the proximity probe.

Q6: What are key considerations during installation?

A: Installation requires secure mechanical fastening to the machine structure, correct alignment with the monitored shaft, and proper cable routing to avoid strain or interference. It is also important to ensure that the mounting location minimizes external vibration effects to maintain long-term measurement stability.

Q7: How does this assembly perform in harsh industrial environments?

A: The housing is engineered for demanding industrial conditions, including continuous vibration, temperature variation, and mechanical stress. Its robust construction helps maintain probe alignment over long operating periods, reducing measurement drift and improving reliability.

Q8: Is this housing compatible with all Bently Nevada proximity probes?

A: Compatibility depends on the specific probe model and system configuration. While it is designed for use within Bently Nevada proximity measurement ecosystems such as the 3300 and 3300 XL series, proper verification is required before installation to ensure correct mechanical fit and system compatibility.
