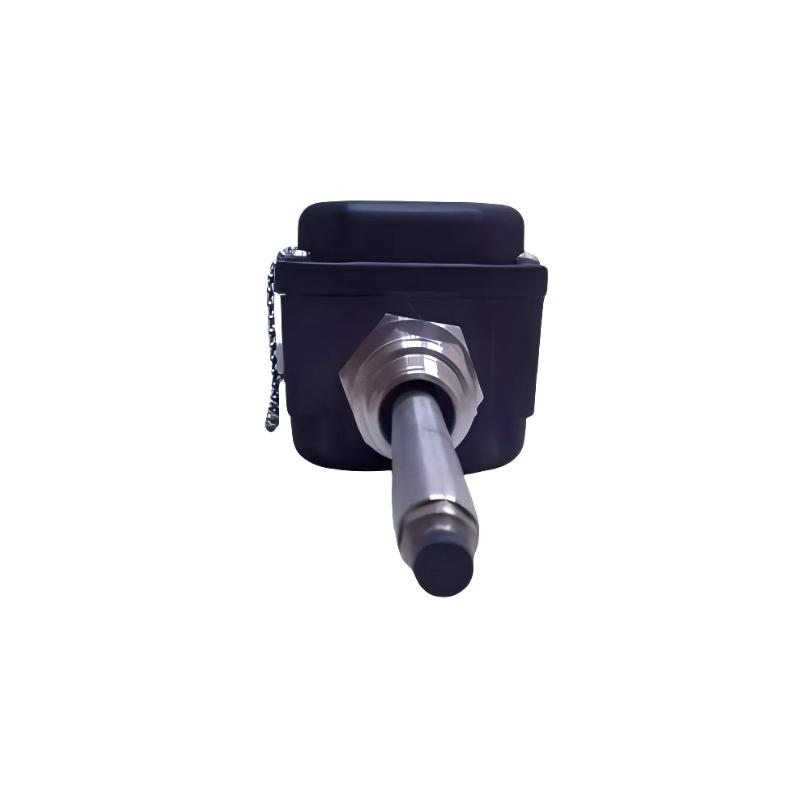

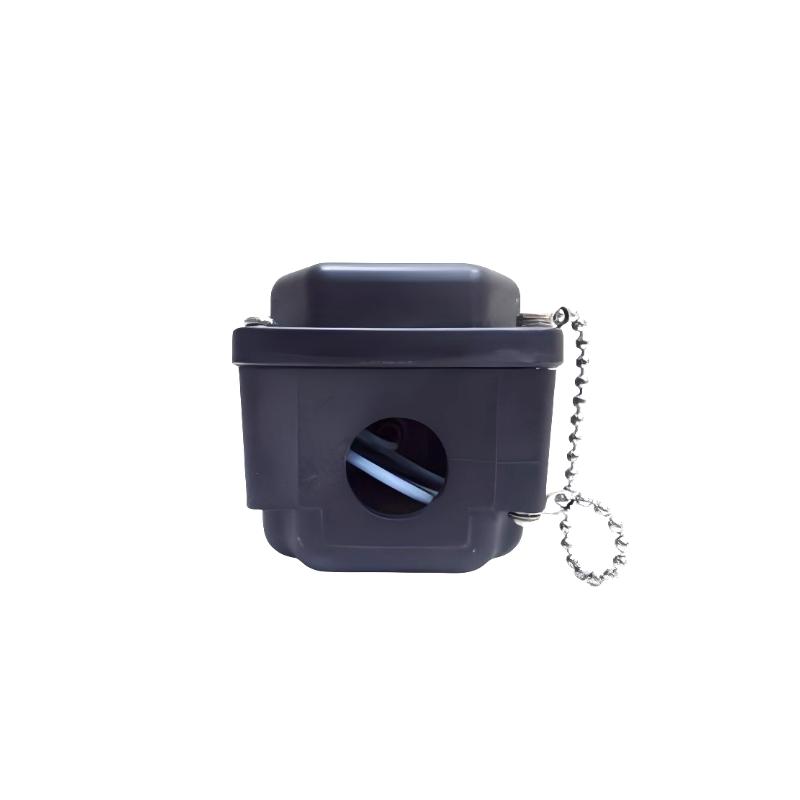

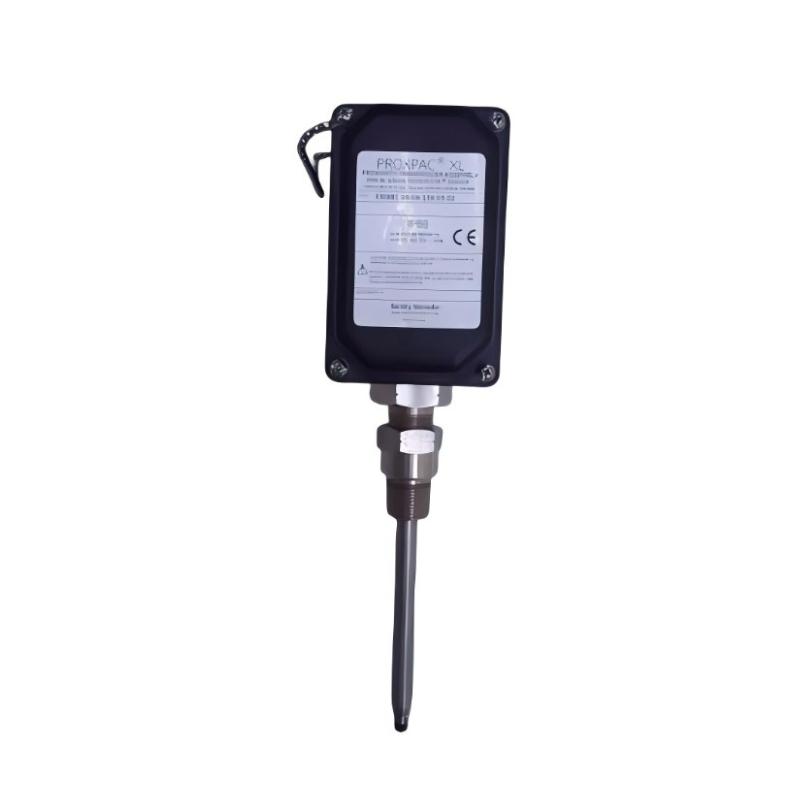

Q1: What is the primary function of the Bently Nevada 31000-16-10-15-041-03-02 Proximity Probe Housing Assembly?

A: This housing assembly provides a rigid and accurately aligned mounting structure for proximity probes used in vibration and shaft position monitoring systems. Its core function is to ensure that the probe maintains a stable and repeatable gap relative to the rotating shaft surface, which is essential for reliable eddy current signal measurement. It does not process signals but provides the mechanical stability required for precise monitoring.

Q2: Why is a stable housing critical for proximity probe performance?

A: Proximity probes detect extremely small changes in distance between the probe tip and the shaft surface. Any mechanical instability, vibration, or misalignment can directly affect signal accuracy. A stable housing reduces these influences by maintaining consistent probe positioning, ensuring measurement repeatability and long-term reliability.

Q3: How does this assembly improve condition monitoring accuracy?

A: By securing the probe in a fixed position, the housing minimizes external mechanical disturbances that can distort vibration signals. This allows condition monitoring systems to accurately capture amplitude, phase, and displacement data, improving the detection of early-stage faults such as imbalance, misalignment, or bearing wear.

Q4: What types of machinery commonly use this housing assembly?

A: It is typically used in critical rotating equipment such as steam turbines, gas turbines, compressors, pumps, generators, and large industrial motors. These machines rely on continuous vibration monitoring to ensure safe operation and early fault detection.

Q5: Is this housing an electronic component?

A: No, it is a fully passive mechanical component. It contains no electronics, requires no power supply, and does not process any signals. Its function is purely structural, focusing on probe alignment, support, and protection.

Q6: What should be considered during installation?

A: Installation requires secure mechanical mounting, correct alignment with the monitored shaft, and careful routing of the probe cable. It is also important to minimize external vibration influence at the mounting point to maintain stable long-term measurement performance.

Q7: How does this housing perform in harsh industrial environments?

A: The housing is designed for continuous operation in demanding industrial conditions, including vibration, temperature variation, and mechanical stress. Its robust structure helps maintain probe alignment over time, reducing measurement drift and supporting reliable monitoring performance.

Q8: Is this housing compatible with all Bently Nevada proximity probe systems?

A: Compatibility depends on the specific probe model and system configuration. While it is designed for use within Bently Nevada proximity monitoring systems such as the 3300 and 3300 XL series, proper verification is required before installation to ensure correct mechanical fit and system compatibility.
