Technical Specifications

FAQ

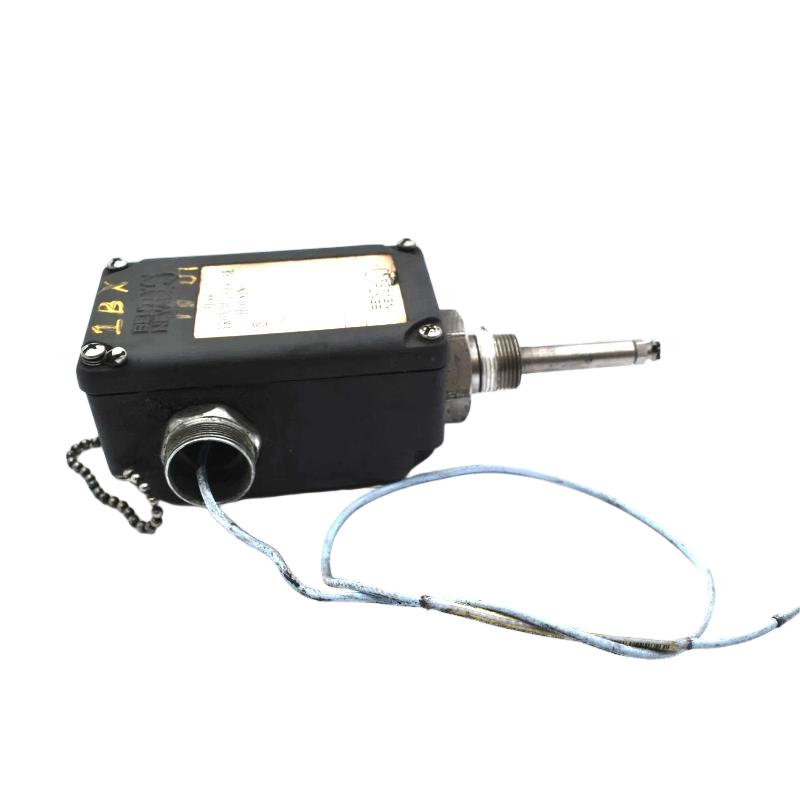

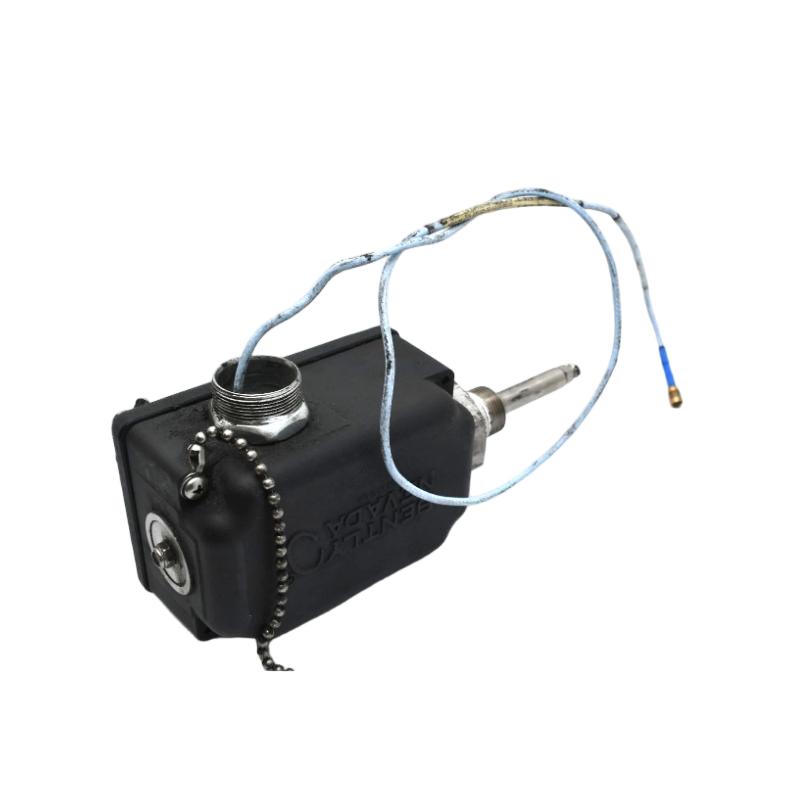

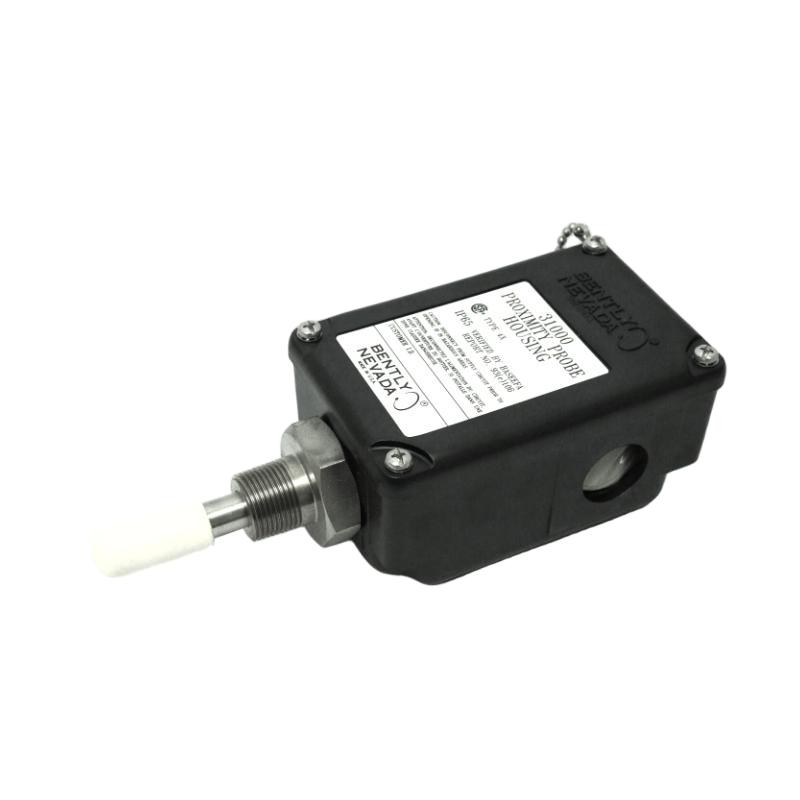

Q1: What is the primary function of the Bently Nevada 31000-16-10-15-070-03-02 Proximity Probe Housing Assembly?

A: This housing assembly provides a rigid and precisely aligned mounting structure for proximity probes used in vibration and shaft position monitoring systems. Its main function is to ensure stable and repeatable positioning of the probe relative to the rotating shaft surface, which is essential for accurate eddy current measurement. It does not perform any electronic processing but supports reliable mechanical installation and signal consistency.

Q2: Why is stable probe mounting important in vibration monitoring systems?

A: Proximity probes detect extremely small changes in distance between the probe tip and the shaft. Any mechanical instability, such as vibration, looseness, or misalignment, can introduce measurement errors. A stable housing minimizes these effects by maintaining consistent probe positioning, ensuring accurate and repeatable monitoring results over time.

Q3: How does this housing improve condition monitoring performance?

A: By securing the probe in a fixed and vibration-resistant position, the housing reduces external mechanical disturbances that could distort measurement signals. This enables the monitoring system to capture more reliable vibration amplitude, phase, and displacement data, which is critical for detecting early signs of mechanical faults such as imbalance, misalignment, or bearing wear.

Q4: What types of industrial equipment use this housing assembly?

A: It is widely used in critical rotating machinery such as steam turbines, gas turbines, compressors, pumps, generators, and large industrial motors. These assets rely on continuous condition monitoring to ensure safe, efficient, and reliable operation in demanding environments.

Q5: Is this housing assembly an electronic device?

A: No, it is a fully passive mechanical component. It contains no electronics, requires no power supply, and does not process signals. Its role is strictly structural, focusing on probe support, alignment, and protection within the monitoring system.

Q6: What should be considered during installation?

A: Installation requires secure mechanical mounting to the machine structure, correct alignment with the monitored shaft, and proper routing of the probe cable. It is also important to minimize external vibration influence at the mounting point to maintain long-term measurement stability and accuracy.

Q7: How does this assembly perform in harsh industrial environments?

A: The housing is designed for continuous operation in demanding industrial conditions, including vibration, temperature variation, and mechanical stress. Its robust construction helps maintain probe alignment over time, reducing measurement drift and ensuring stable monitoring performance.

Q8: Is this housing compatible with all Bently Nevada proximity probe systems?

A: Compatibility depends on the specific probe model and system configuration. While it is intended for use within Bently Nevada proximity monitoring systems such as the 3300 and 3300 XL series, proper verification is required before installation to ensure correct mechanical fit and system integration.
