Technical Specifications

FAQ

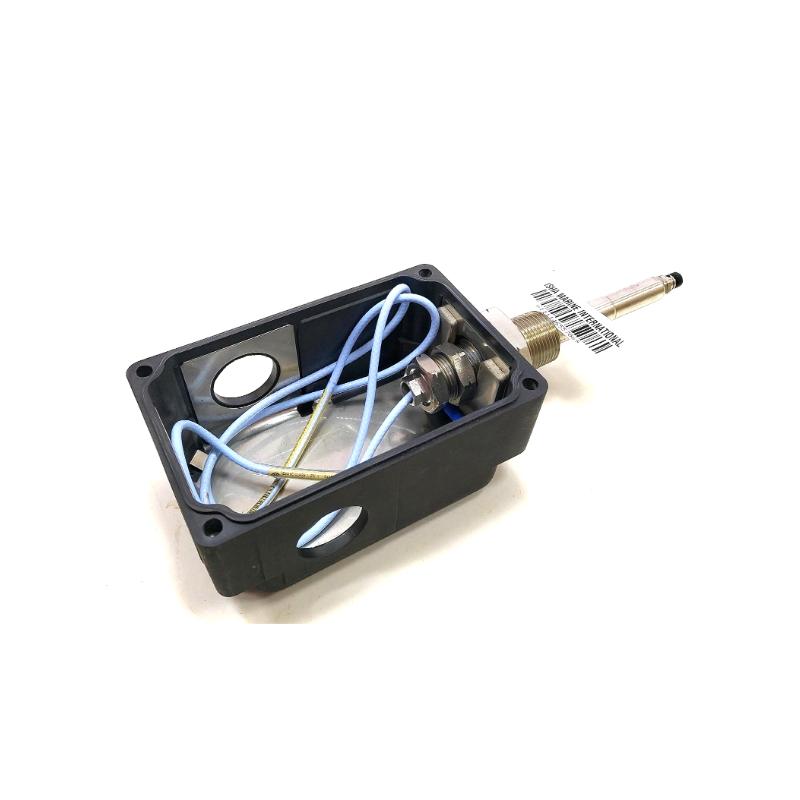

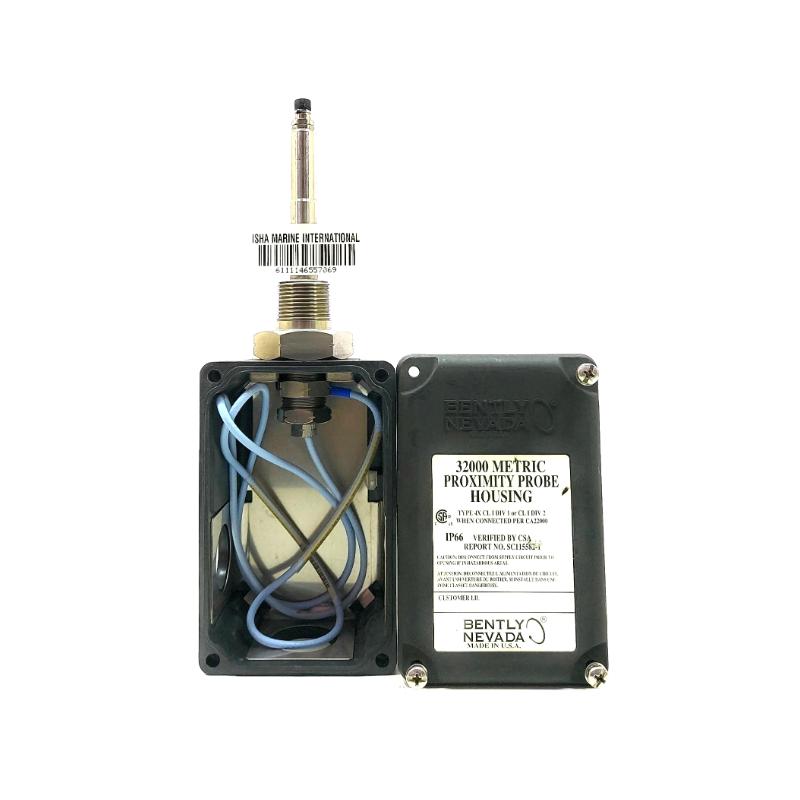

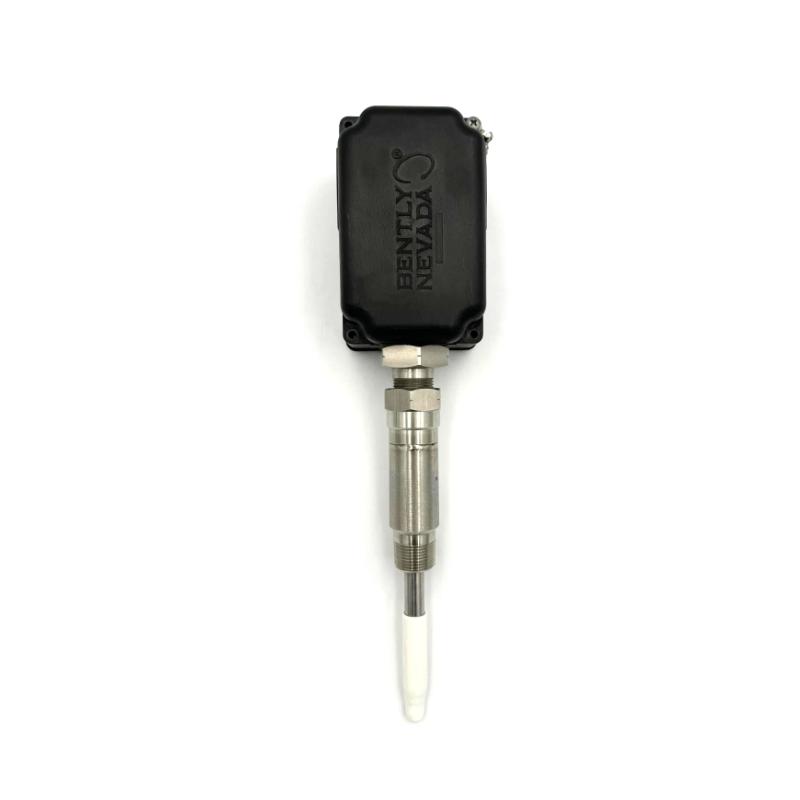

Q1: What is the primary function of the Bently Nevada 32000-00-00-04-420-01-02 Proximity Probe Housing Assembly?

A: The primary function of this housing assembly is to provide a stable, precisely aligned, and mechanically secure mounting environment for proximity probes used in vibration and displacement monitoring systems. In rotating machinery applications, proximity probes must maintain a very accurate and consistent gap between the probe tip and the target shaft surface. This housing ensures that the probe remains fixed in the correct position despite vibration, thermal expansion, and mechanical stress. By maintaining this stability, it directly supports accurate measurement of shaft vibration, axial position, and dynamic movement, which are essential parameters in condition monitoring and predictive maintenance systems.

Q2: Where is this housing assembly typically installed?

A: This component is typically installed on critical rotating equipment such as steam turbines, gas turbines, compressors, large pumps, and other high-speed industrial machinery. It is used in conjunction with Bently Nevada proximity probe systems as part of a complete vibration monitoring solution. In these environments, the housing is mounted on machine casings or bearing housings, where it provides a fixed reference point for the probe. Its role is particularly important in continuous monitoring applications where even small mechanical deviations can affect measurement accuracy and equipment protection logic.

Q3: Why is a dedicated housing assembly necessary for proximity probes?

A: Proximity probes operate based on extremely small gap measurements between the probe tip and the rotating target surface. Without a dedicated housing assembly, it would be very difficult to maintain the required mechanical precision in real-world industrial environments. Machines are subject to vibration, thermal growth, and structural movement, all of which can distort probe alignment if it is not properly supported. The housing assembly eliminates these risks by providing a rigid and standardized mounting structure. It ensures repeatable positioning, reduces installation variability, and maintains long-term measurement consistency, which is critical for reliable condition monitoring and machinery protection.

Q4: What should be carefully considered during installation?

A: During installation, mechanical alignment and structural rigidity are the most critical factors. The housing must be securely mounted to a stable machine surface capable of withstanding operational vibration without shifting. The probe must be positioned according to precise gap specifications defined by the monitoring system, as even small deviations can lead to measurement drift or false alarms. It is also important to avoid applying mechanical stress directly to the probe or its cable, as this may affect signal integrity or damage the sensing element. Proper routing of cables away from heat sources and high electromagnetic interference areas is also recommended to ensure stable long-term operation.

Q5: Does this housing assembly affect measurement accuracy?

A: While the housing assembly does not directly generate or process measurement signals, it plays a critical indirect role in measurement accuracy. The proximity probe’s output is highly dependent on maintaining a stable and consistent physical gap between the probe and the target surface. Any movement, loosening, or misalignment in the housing can introduce errors into this gap measurement. Over time, even minor mechanical instability can lead to signal drift or inaccurate vibration readings. Therefore, the mechanical integrity of the housing is directly linked to the reliability of the entire monitoring system.

Q6: How does this component perform in harsh industrial environments?

A: This housing assembly is engineered specifically for demanding industrial environments where rotating machinery operates under continuous load, vibration, and exposure to contaminants such as oil mist, dust, and moisture. Its rugged metal construction provides high mechanical strength, while its sealed design helps protect internal components from environmental intrusion. In high-vibration or high-temperature environments, periodic inspection is recommended to ensure that mounting fasteners remain tight and that no structural deformation or contamination buildup is affecting performance. When properly maintained, it provides long-term stability even under severe operating conditions.

Q7: Is recalibration required after replacing the housing assembly?

A: In most cases, full system recalibration is not required if the probe position relative to the shaft remains unchanged during replacement. However, it is strongly recommended to perform a detailed verification of probe gap settings and baseline signal levels after installation. This ensures that no subtle mechanical shifts occurred during maintenance that could affect measurement accuracy. In critical machinery applications, a short validation period is often used to compare new readings against historical baseline data to confirm that the system continues to operate within expected parameters.

Q8: What role does this housing assembly play in predictive maintenance systems?

A: In predictive maintenance systems, the housing assembly serves as a foundational mechanical structure that ensures the long-term reliability of vibration and displacement data collection. Accurate predictive analytics depend entirely on stable and consistent sensor input. By keeping the proximity probe securely positioned under real operating conditions, the housing enables continuous monitoring of machine health indicators such as shaft vibration, eccentricity, and axial displacement. This stable data stream allows maintenance teams to detect early signs of imbalance, misalignment, bearing wear, or other developing faults. Ultimately, it supports condition-based maintenance strategies, reduces unplanned downtime, and improves overall equipment reliability and operational safety.
