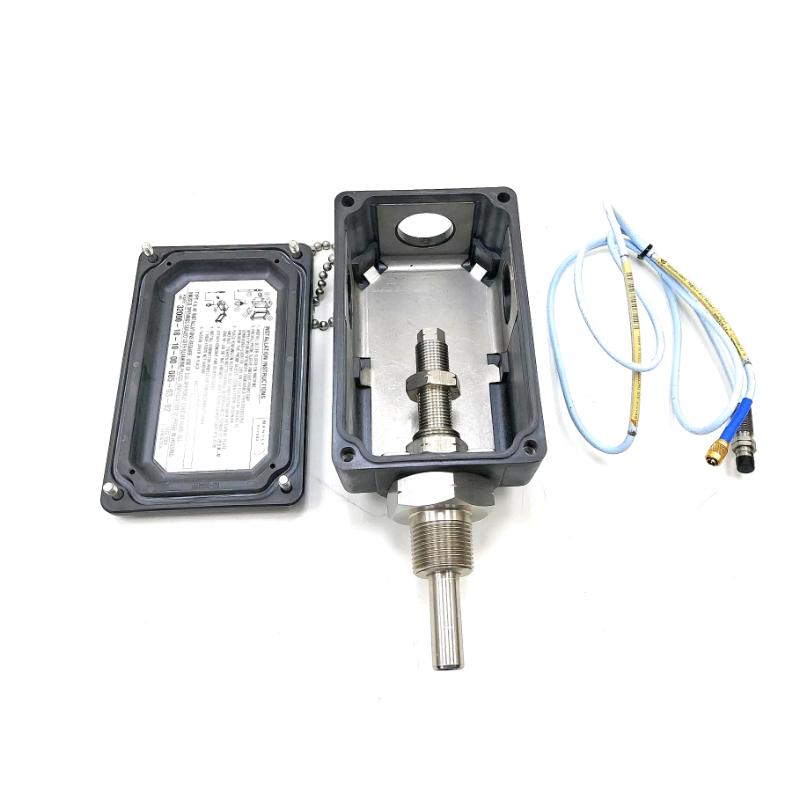

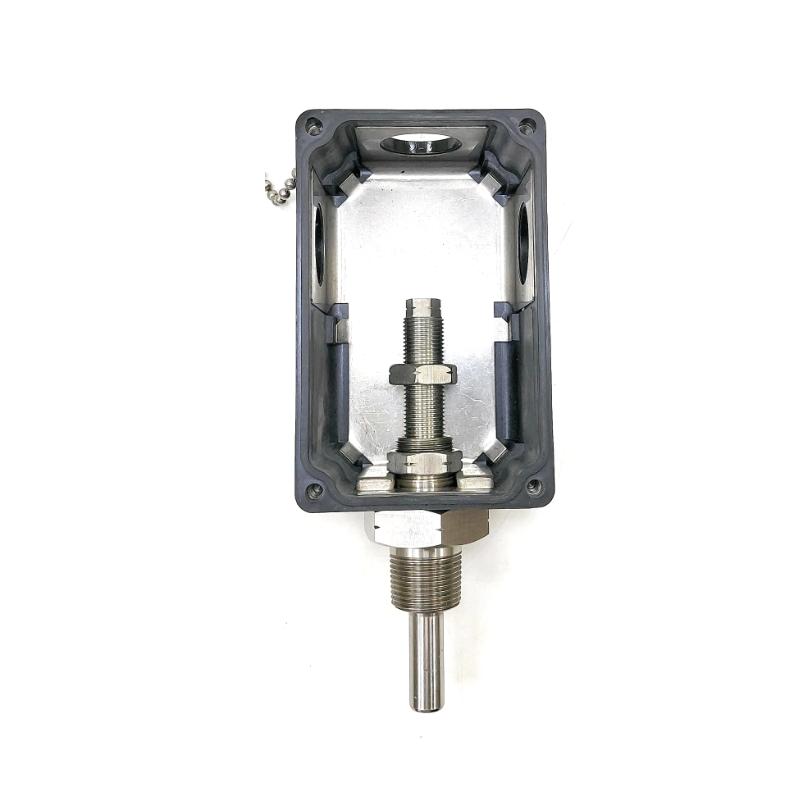

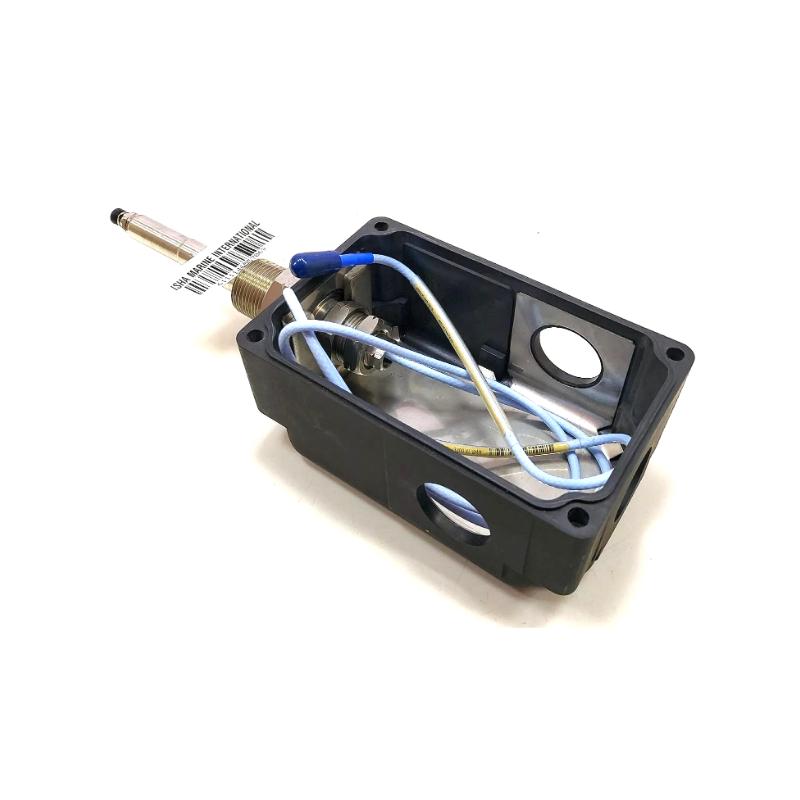

Q1: What is the primary function of the Bently Nevada 32000-00-00-04-470-01-02 Proximity Probe Housing Assembly?

A: The primary function of this housing assembly is to provide a rigid, stable, and precisely aligned mechanical mounting structure for proximity probes used in vibration and shaft displacement monitoring systems. In rotating machinery applications, even extremely small changes in probe position or alignment can significantly affect measurement accuracy. This housing ensures that the probe maintains a consistent geometric relationship with the rotating shaft under real operating conditions, including vibration, thermal expansion, and mechanical stress. By doing so, it enables reliable and repeatable measurement of key machine condition parameters such as vibration amplitude, shaft position, and dynamic movement, which are essential for equipment protection and condition monitoring.

Q2: Where is this housing assembly typically used?

A: This component is typically installed on critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, large pumps, and generator sets. It is mounted on machine casings, bearing housings, or structural frames where proximity probes are required to monitor shaft behavior. In Bently Nevada monitoring systems, it forms part of the mechanical installation infrastructure that supports continuous online condition monitoring and predictive maintenance strategies in heavy industrial environments.

Q3: Why is a dedicated housing assembly necessary for proximity probes?

A: Proximity probes rely on extremely precise gap measurement between the probe tip and the rotating target surface. Without a dedicated housing assembly, it would be very difficult to maintain the required mechanical stability in industrial environments where vibration, thermal growth, and structural movement are constantly present. A properly designed housing eliminates these risks by providing a standardized, rigid mounting platform that keeps the probe fixed in the correct position. This ensures consistent signal quality, reduces installation variability, and significantly improves long-term measurement reliability.

Q4: What are the key considerations during installation?

A: During installation, mechanical rigidity, alignment accuracy, and probe positioning are the most critical factors. The housing must be securely fastened to a stable structural surface that does not shift under operating vibration. The probe must be installed according to system-defined gap specifications, as incorrect positioning can lead to inaccurate readings or false alarms. Care must also be taken to avoid introducing mechanical stress into the probe or its cable, as this may affect signal integrity or cause long-term damage. Proper routing and protection of cabling is also essential to avoid electromagnetic interference and thermal exposure.

Q5: Does this housing assembly affect measurement accuracy?

A: Although the housing itself does not directly generate measurement signals, it has a direct impact on measurement accuracy through its mechanical role. The proximity probe’s output depends entirely on maintaining a stable and precise physical gap between the probe and the rotating shaft. Any loosening, misalignment, or structural deformation of the housing can alter this gap, resulting in measurement drift or inconsistent vibration readings. Therefore, the mechanical integrity of the housing is a critical factor in ensuring the overall accuracy and reliability of the monitoring system.

Q6: How does this component perform in harsh industrial environments?

A: The housing assembly is designed for demanding industrial conditions and is capable of operating in environments with high vibration, elevated temperatures, oil mist, dust, and moisture exposure. Its rugged metal construction provides strong mechanical durability, while its sealed design helps protect the probe installation area from environmental contamination. For long-term reliability, periodic inspection is recommended to ensure that mounting bolts remain tight, no structural deformation has occurred, and that environmental buildup does not interfere with mechanical stability.

Q7: Is recalibration required after replacing the housing assembly?

A: In most cases, full recalibration is not required if the probe position relative to the shaft remains unchanged during replacement. However, it is strongly recommended to perform a post-installation verification of probe gap settings and signal baseline values. This ensures that no subtle mechanical deviations were introduced during maintenance. In critical machinery applications, a short observation period is often used to compare new readings with historical trends to confirm system stability before returning to full operational duty.

Q8: What role does this housing assembly play in predictive maintenance systems?

A: In predictive maintenance systems, this housing assembly plays a foundational role by ensuring that proximity probes remain mechanically stable and accurately positioned over long periods of operation. Reliable vibration and displacement data depend entirely on consistent sensor geometry. By maintaining this stability, the housing enables continuous, high-quality data collection that supports condition trend analysis, early fault detection, and machinery health assessment. This ultimately helps maintenance teams identify developing issues such as imbalance, misalignment, bearing wear, or rotor instability at an early stage, reducing unplanned downtime and improving overall equipment reliability.
