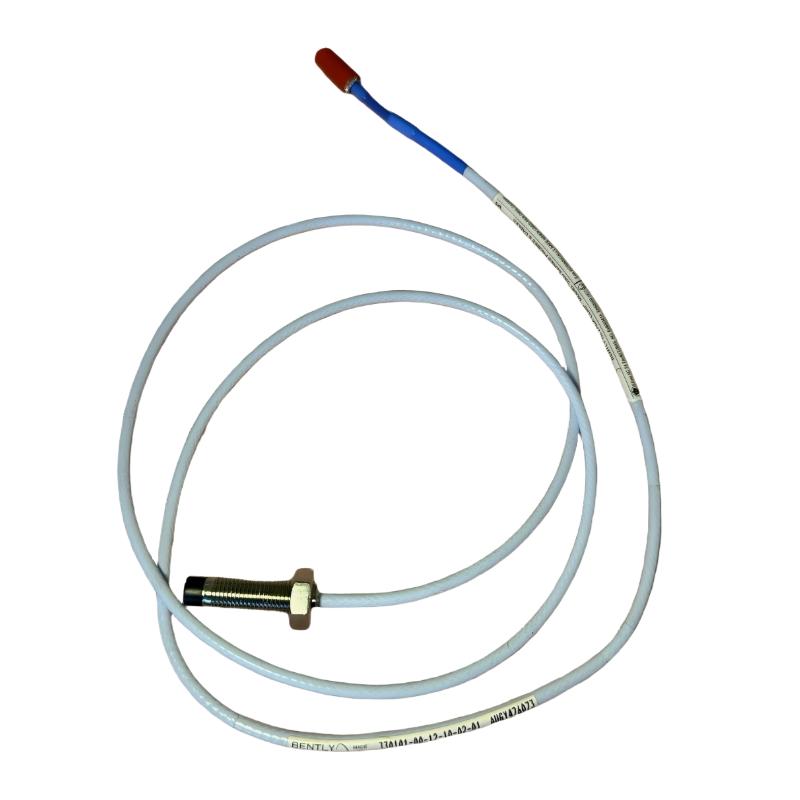

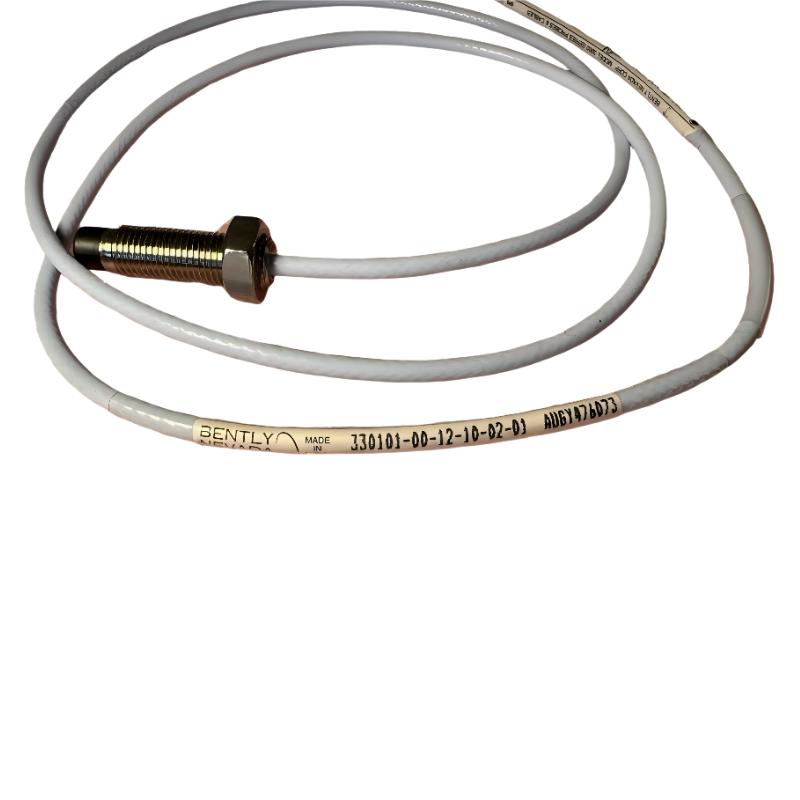

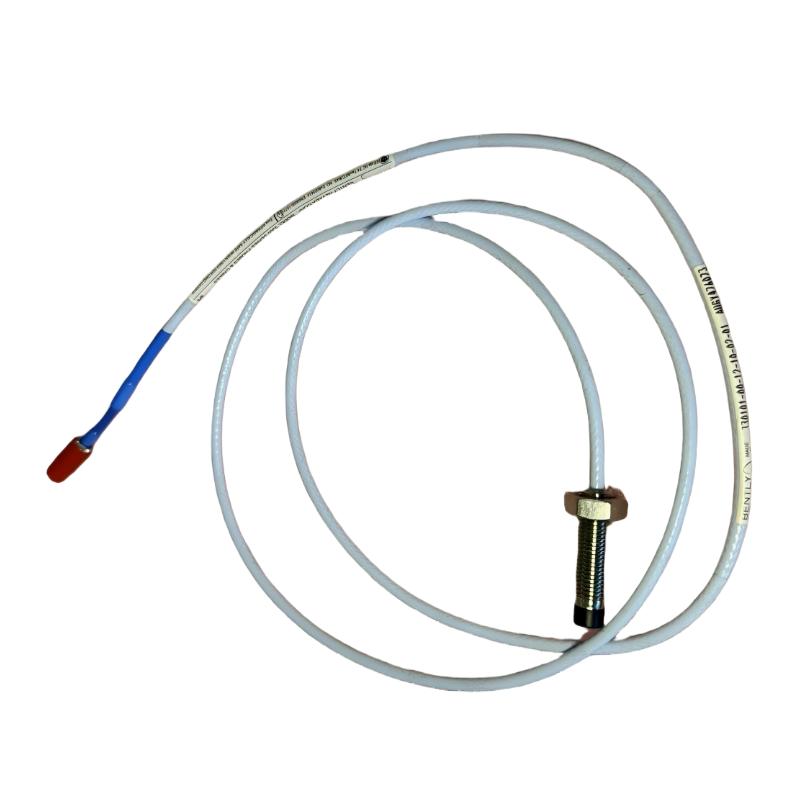

Q1: What is the main function of the Bently Nevada 330101-00-12-10-02-01 proximity probe?

A: The primary function of this 8 mm proximity probe is to measure the relative displacement between a rotating shaft and a stationary machine component without physical contact. It uses eddy current technology to detect changes in the distance between the probe tip and the conductive target surface. This allows continuous monitoring of shaft vibration, axial movement, and radial position. It is a critical component in machinery protection and condition monitoring systems because it provides highly accurate real-time data that reflects the actual mechanical behavior of rotating equipment.

Q2: How does eddy current technology work in this probe?

A: Eddy current proximity probes operate by generating a high-frequency electromagnetic field at the probe tip. When this field interacts with a conductive target surface, such as a rotating shaft, eddy currents are induced in the material. The strength of these eddy currents varies depending on the distance between the probe and the target. The probe measures these variations and converts them into a proportional electrical signal. This signal represents precise displacement changes, allowing the monitoring system to track vibration and position with high accuracy.

Q3: What types of machinery typically use this probe?

A: This probe is widely used in critical rotating machinery where accurate shaft monitoring is essential. Common applications include steam turbines, gas turbines, centrifugal compressors, pumps, electric motors, and gearboxes. In these systems, the probe is typically installed close to the rotating shaft to continuously monitor its dynamic behavior. It is especially important in high-speed and high-value equipment where early detection of mechanical issues can prevent costly failures and unplanned downtime.

Q4: Why is non-contact measurement important in rotating machinery monitoring?

A: Non-contact measurement is essential because it eliminates physical wear and mechanical loading on both the sensor and the rotating equipment. Contact-based sensors would be impractical in high-speed or high-temperature environments due to friction, wear, and potential damage. The eddy current probe provides accurate measurements without touching the shaft, ensuring long-term stability, minimal maintenance, and reliable operation even under extreme industrial conditions.

Q5: How does this probe contribute to machinery protection systems?

A: The probe provides real-time displacement and vibration data that is used by monitoring systems to detect abnormal machine behavior. If the shaft deviates from its normal operating position due to imbalance, misalignment, or bearing wear, the probe immediately detects these changes. The monitoring system then uses this information to trigger alarms or protective actions such as controlled shutdowns. This early warning capability is essential for preventing mechanical damage and ensuring safe machine operation.

Q6: What factors can affect the accuracy of the probe measurements?

A: Several factors can influence measurement accuracy, including probe-to-target distance, target surface condition, temperature variations, electromagnetic interference, and improper installation alignment. For example, rough or non-conductive surfaces can distort the eddy current field, while incorrect probe gap settings can lead to inaccurate readings. Proper installation practices, shielding, and calibration are essential to maintain high measurement accuracy and signal stability.

Q7: What maintenance practices are recommended for this probe?

A: Although the probe itself is designed for long-term operation with minimal maintenance, periodic inspection is still important. Recommended practices include checking probe mounting stability, verifying cable integrity, ensuring proper connector tightness, and inspecting for physical damage or contamination. It is also important to periodically validate system calibration and ensure that signal outputs remain within expected operating ranges. These practices help maintain measurement reliability over time.

Q8: In which industries is this proximity probe commonly used?

A: This probe is commonly used in power generation, oil and gas, petrochemical processing, and heavy industrial manufacturing industries. It plays a critical role in monitoring high-value rotating equipment such as turbines and compressors. These industries rely heavily on continuous condition monitoring to ensure operational safety, maximize equipment lifespan, and minimize unplanned downtime. The probe is a key component in predictive maintenance and machinery protection strategies across these sectors.
