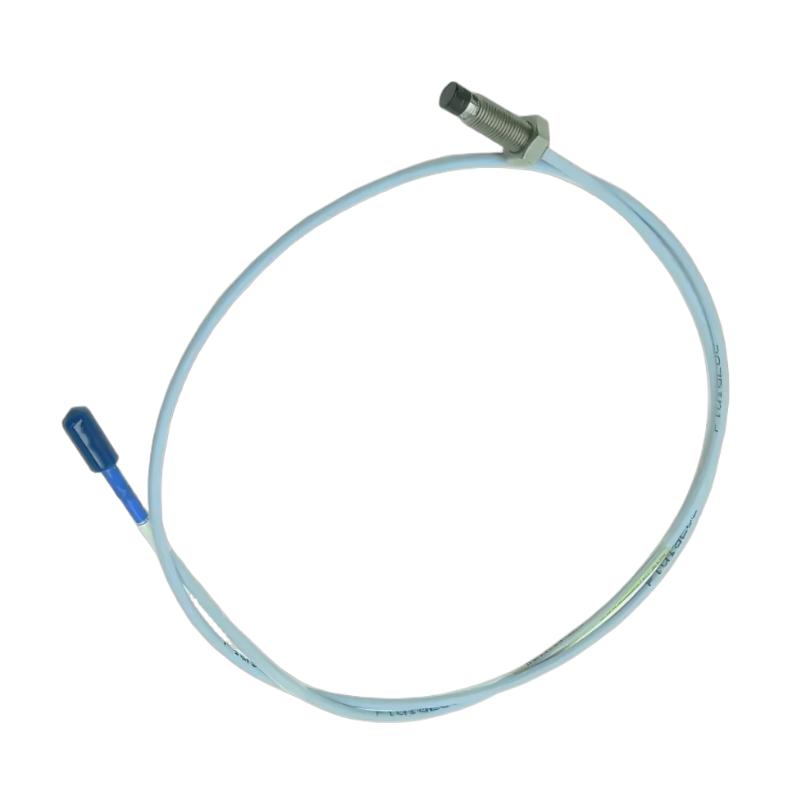

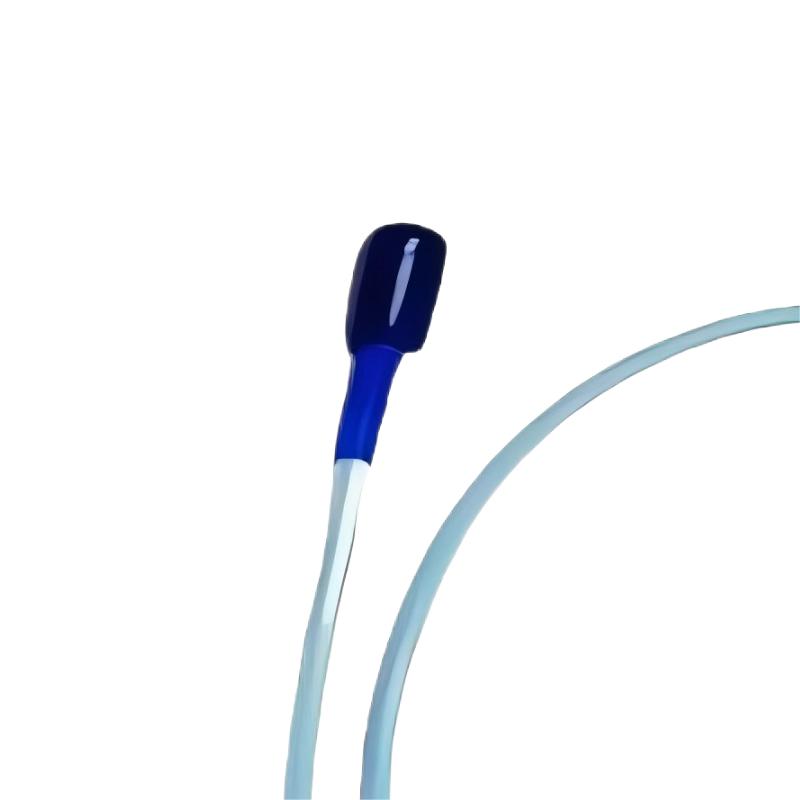

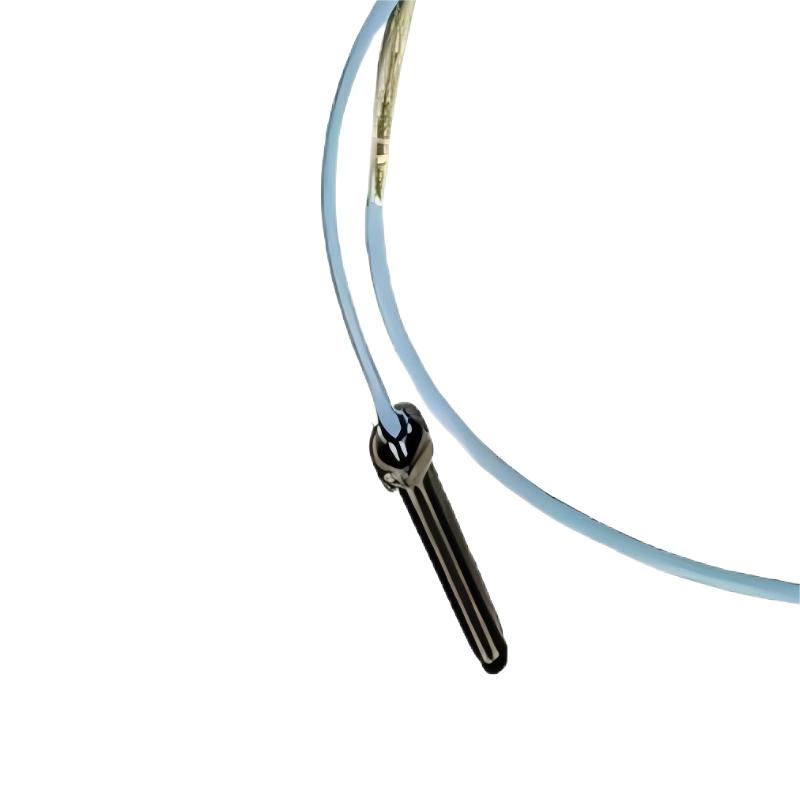

Q1: What is the primary function of the Bently Nevada 330101-00-12-50-01-05 proximity probe?

A: The primary function of this 3300 XL 8 mm proximity probe is to perform non-contact measurement of shaft vibration and position in rotating machinery. It continuously monitors the relative distance between the probe tip and the conductive shaft surface using eddy current technology. This allows the system to capture extremely small changes in shaft movement, including radial vibration, axial displacement, and overall shaft dynamic behavior. These measurements are essential for machinery protection systems, condition monitoring programs, and predictive maintenance strategies in critical industrial equipment.

Q2: How does eddy current technology enable accurate displacement measurement?

A: Eddy current sensing works by generating a high-frequency electromagnetic field at the probe tip. When this field interacts with a conductive target such as a rotating shaft, eddy currents are induced in the surface of the metal. The strength of these currents changes depending on the gap between the probe and the shaft. The probe detects these variations and converts them into a precise analog voltage signal proportional to the distance. Because this method does not rely on physical contact, it provides highly stable and repeatable measurements even in high-speed, high-temperature, or high-vibration environments.

Q3: Why is this type of probe widely used in rotating machinery monitoring systems?

A: This type of proximity probe is widely used because it provides direct, real-time measurement of shaft motion without physical contact, which is critical in high-speed rotating machinery. Traditional contact-based sensors would wear out quickly or fail under such conditions. In contrast, eddy current probes offer long-term stability, high resolution, and immunity to mechanical wear. They are especially valuable in turbines, compressors, and pumps where even minor deviations in shaft behavior can indicate early-stage mechanical problems.

Q4: How does this probe contribute to machinery protection systems?

A: The probe plays a central role in machinery protection by continuously feeding accurate shaft position and vibration data into the monitoring system. If abnormal conditions occur—such as shaft imbalance, misalignment, bearing wear, or rub events—the probe immediately detects the change in displacement patterns. The monitoring system then evaluates this data against predefined alarm thresholds and can initiate protective actions such as alarms, load reduction, or emergency shutdown. This early detection capability helps prevent catastrophic equipment failures and reduces unplanned downtime.

Q5: What environmental factors can affect probe performance and measurement accuracy?

A: Several environmental and installation-related factors can influence measurement accuracy, including probe gap setting, shaft surface condition, material conductivity, temperature variations, and electromagnetic interference. For example, improper probe gap calibration can lead to offset errors, while rough or oxidized shaft surfaces may distort the eddy current field. Strong electromagnetic noise from nearby equipment can also introduce signal disturbances. Proper installation practices, shielding, grounding, and calibration are essential to ensure consistent and reliable measurements.

Q6: What happens if the probe is not functioning correctly?

A: If the probe fails or operates incorrectly, the monitoring system may receive inaccurate or unstable signals, or in some cases no signal at all. This can result in loss of critical vibration or position data, which may trigger system diagnostics or alarm conditions. In safety-critical applications, this loss of signal integrity is treated as a serious fault because it compromises the system’s ability to detect early mechanical issues. Immediate inspection is required to verify cable integrity, probe alignment, and system calibration, and replacement may be necessary if the probe is damaged.

Q7: What maintenance practices are recommended for long-term reliable operation?

A: Although the probe itself is designed for long-term operation with minimal maintenance, periodic inspection of the entire measurement chain is essential. Recommended practices include checking probe mounting stability, verifying cable insulation and connector condition, ensuring correct gap setting, and confirming stable signal output trends. It is also important to monitor historical vibration data for inconsistencies that may indicate probe drift or installation issues. Preventive maintenance of the sensor system helps ensure long-term measurement accuracy and reduces the risk of unexpected monitoring failures.

Q8: In which industrial applications is this proximity probe typically used?

A: This proximity probe is widely used in industries that rely on large, high-speed rotating machinery. Typical applications include power generation plants (steam and gas turbines), oil and gas facilities (compressors and pumps), petrochemical processing plants, and heavy industrial manufacturing systems. In these environments, continuous monitoring of shaft vibration and displacement is essential for operational safety and efficiency. The probe is a key component in predictive maintenance systems, helping operators detect early signs of mechanical degradation and avoid costly unplanned outages.
