1. What is the primary function of the Bently Nevada 74712-06-05-02-01?

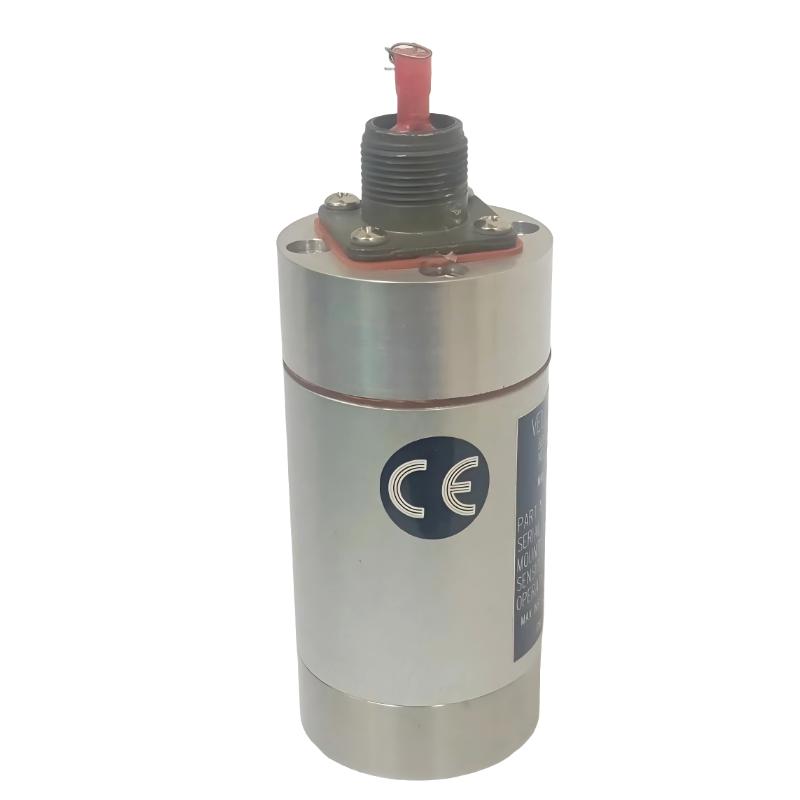

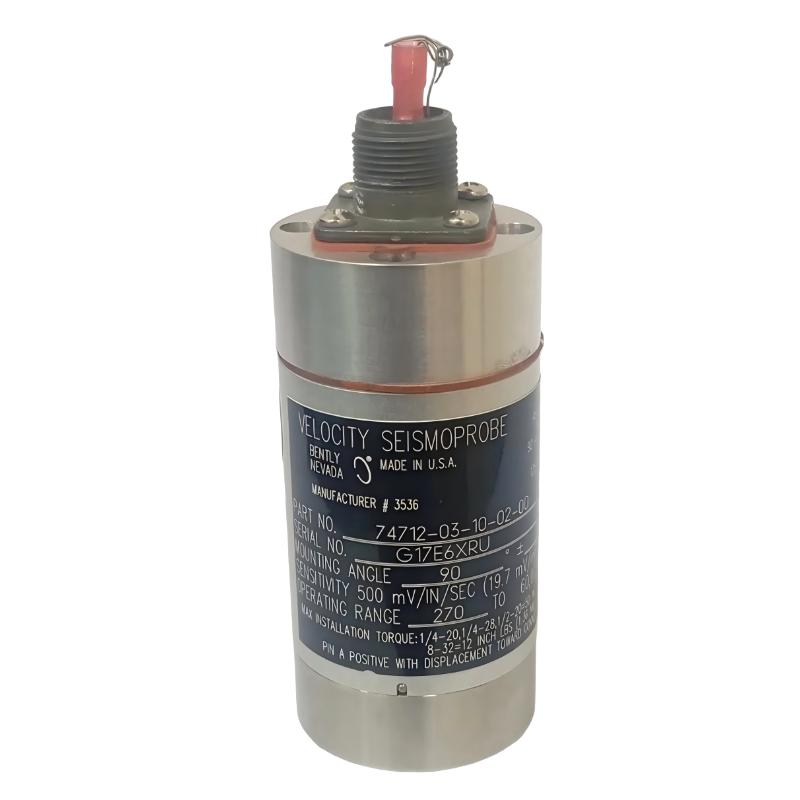

The Bently Nevada 74712-06-05-02-01 is a high-temperature Seismoprobe velocity sensor designed to measure absolute vibration velocity on bearing housings, machine casings and other mechanical structures. It uses moving-coil technology to generate a voltage output directly proportional to the vibration velocity of the monitored structure. The sensor is intended for industrial rotating machinery where reliable casing or bearing housing vibration information is required. Typical applications include steam turbines, gas turbines, pumps, compressors and other large rotating equipment. By monitoring changes in vibration velocity over time, the sensor can provide useful information for machine condition monitoring, maintenance planning and early detection of abnormal mechanical behavior.

2. What measurement principle does the 74712-06-05-02-01 use?
The sensor uses a moving-coil electromagnetic measurement principle. When the sensor body moves together with the machine structure, the internal coil moves relative to a magnetic field and generates a voltage proportional to the vibration velocity. This allows the sensor to provide a direct velocity signal without requiring an external integration circuit to convert acceleration into velocity. The two-wire design also means that an external power supply is not required for normal vibration signal generation. Because the measurement depends on the mechanical movement transmitted from the machine to the sensor, correct mounting is important. A rigid mounting point with a reliable vibration transmission path will generally provide more representative measurement results than a flexible or unstable mounting location.

3. What are the main vibration measurement characteristics of this sensor?
The 74712-06-05-02-01 has a nominal sensitivity of 20 mV/mm/s, equivalent to 500 mV/in/s, with a specified tolerance of ±5% when properly terminated and oriented at the calibration angle. This configuration has a minimum operating frequency of 10 Hz and a typical frequency response extending from 10 Hz to 1000 Hz. The sensor is designed for a velocity range of 25 mm/s and has a dynamic operating range of up to 2.54 mm peak-to-peak displacement. Its amplitude linearity is specified at ±5% over the applicable velocity range at 100 Hz. These characteristics make it suitable for monitoring overall structural vibration on industrial rotating equipment and for tracking changes in machine vibration behavior.

4. Is the 74712-06-05-02-01 suitable for high-temperature environments?
Yes. The 74712 series is the high-temperature version of the Seismoprobe velocity transducer family. The specified operating and storage temperature range for the 74712 is -29 to +204°C. This makes the sensor suitable for applications where the measurement point is exposed to elevated temperatures, such as certain steam turbine, gas turbine and other rotating machinery installations. However, the complete installation must be considered when evaluating temperature suitability. Connecting cables, terminal connections, mounting hardware and monitoring equipment must also be rated for the actual site conditions. Proper cable routing is especially important near high-temperature equipment because the sensor may be rated for the environment while a connected cable may have a lower temperature limit.

5. What type of mounting does the 74712-06-05-02-01 use?

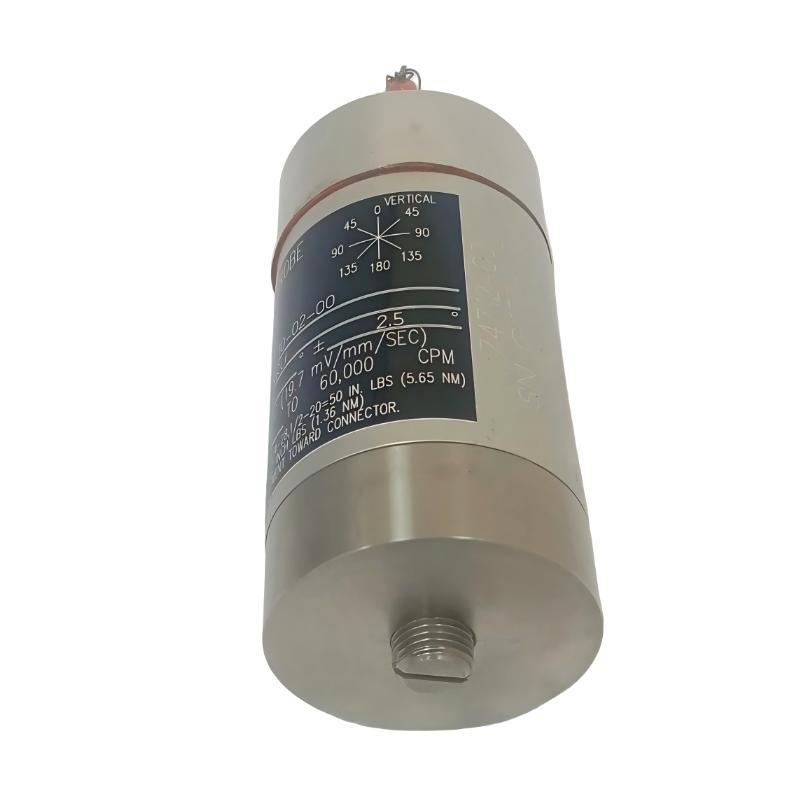

The 74712-06-05-02-01 uses a no-base mounting configuration with a 1/2-20 UNF-3A stud. This configuration allows the sensor to be attached directly to a suitably prepared mounting location on the monitored machine. The specified mounting orientation for this configuration is 0° ±10°. During installation, the mounting surface should be clean, rigid and mechanically stable so that vibration is transferred effectively from the machine structure to the sensor. The mounting stud should be tightened according to the applicable installation requirements, and the sensor should not be installed on a loose or flexible surface. Proper orientation and mechanical attachment are particularly important when the sensor is being used for long-term vibration trending because installation differences can affect measurement consistency.

6. What should be considered when connecting the 74712-06-05-02-01 to a monitoring system?
The sensor uses a two-wire electrical configuration and does not require an external power supply. Its nominal sensitivity is 20 mV/mm/s, and the specified calibration condition uses a 10 kΩ load. The output polarity should also be considered during installation: Pin A becomes positive relative to Pin B when the sensor case velocity is directed toward the connector. The connecting cable should be selected according to the installation environment and the required transmission distance. For long cable runs, cable characteristics and the frequency response of the complete measurement system should be evaluated. Correct terminal connections and appropriate cable routing are important to prevent signal errors, electrical interference and mechanical damage. After wiring, the output should be verified under normal machine operating conditions before using the measurement as a condition-monitoring baseline.

7. What should be checked if the vibration reading suddenly increases?
A sudden increase should first be investigated from both the sensor and machine perspectives. Check whether the sensor remains firmly mounted and inspect the cable, connector, terminals and monitoring system input for loose connections or abnormal conditions. If the measurement chain is functioning normally, compare the machine’s current speed, load and operating conditions with the established baseline. If the operating conditions are similar but vibration remains elevated, possible mechanical causes include rotor imbalance, shaft misalignment, mechanical looseness, coupling problems, bearing deterioration or structural changes. Historical vibration trends should be reviewed to determine whether the increase is temporary or part of a continuing trend. A persistent increase is generally more significant than an isolated transient event. If the increased vibration occurs together with unusual noise, temperature changes or unstable operation, additional mechanical inspection should be considered.

8. How can the 74712-06-05-02-01 support condition monitoring and predictive maintenance?
The 74712-06-05-02-01 can be used as a vibration velocity measurement point in a rotating machinery condition monitoring system. During normal operation, vibration measurements can be recorded at known machine speeds and load conditions to establish a reliable baseline. Future measurements can then be compared with this baseline to identify gradual deterioration or abnormal changes in machine behavior. A sustained increase in vibration velocity may indicate developing conditions such as imbalance, misalignment, mechanical looseness, coupling deterioration or bearing problems. Maintenance personnel can use these trends to determine when further inspection or corrective action is appropriate. Because the 74712 is designed for high-temperature applications, it can be installed in demanding machinery environments where temperature is an important consideration. Combining vibration data with machine speed, load, temperature and historical operating information can provide a stronger basis for condition-based maintenance and help reduce unexpected equipment downtime.
