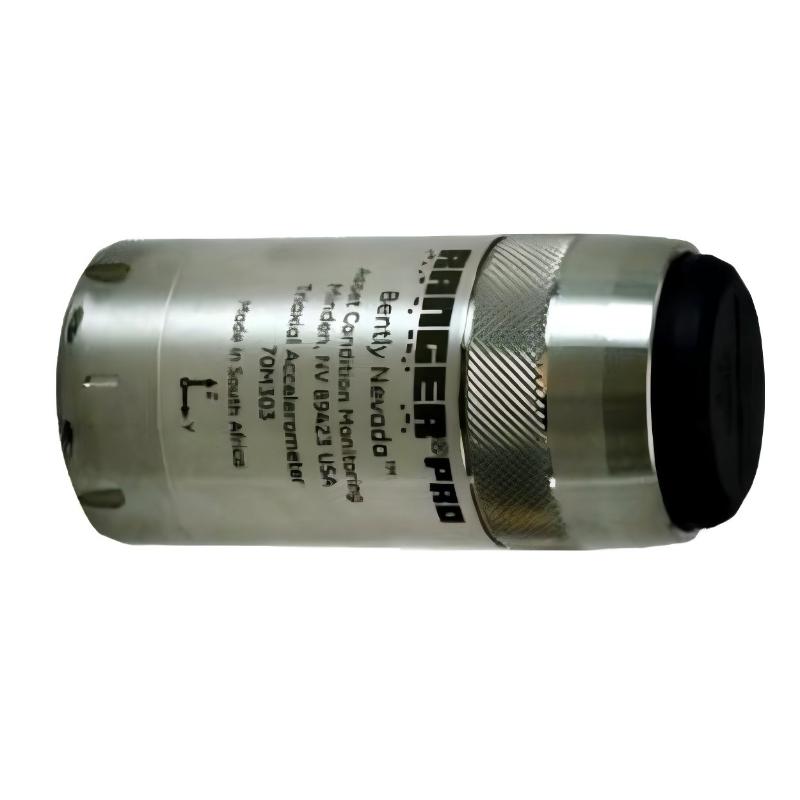

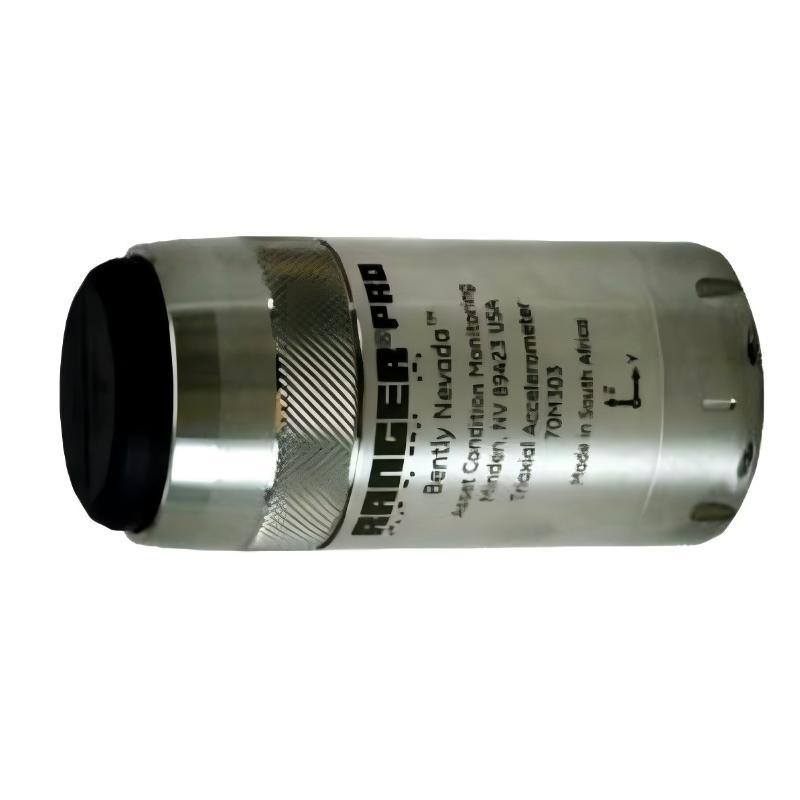

1. What is the primary function of the Bently Nevada 70M301?
The 70M301 is a Ranger Pro single-axis wireless vibration sensor designed for machinery condition monitoring. It combines a wireless accelerometer with an integral temperature sensor and is intended to monitor the operating condition of industrial equipment. The sensor can collect vibration acceleration, velocity-related information, and temperature data, allowing maintenance personnel to evaluate changes in machine condition without installing traditional wired monitoring connections. It is particularly useful for low- and medium-criticality rotating machinery where continuous or periodic wireless monitoring can provide additional condition information.

2. What vibration measurements can the 70M301 perform?
The 70M301 can measure vibration acceleration and provide velocity-related monitoring information. Its acceleration measurement range is 0–200 m/s², equivalent to 0–20 g, with an acceleration frequency range of approximately 5 Hz to 10 kHz. Velocity measurements cover a frequency range of 5–1000 Hz and an amplitude range of 0–50 mm/s. These capabilities allow the sensor to monitor a variety of machinery vibration conditions. The actual measurement configuration, frequency limits, sampling settings, and reported values depend on the selected monitoring application and system configuration.

3. Does the 70M301 measure temperature as well as vibration?
Yes. The 70M301 includes an integral temperature sensor in addition to its single-axis vibration accelerometer. The temperature measurement range is -40°C to 120°C, with a resolution of 0.1°C. Temperature data can provide useful supplementary information when evaluating machinery condition because changes in bearing, housing, or equipment temperature can sometimes accompany changes in operating condition. When used together with vibration measurements, temperature trends can help maintenance personnel identify developing abnormalities and determine whether further inspection is required.

4. What wireless technology does the 70M301 use?
The 70M301 uses the ISA100.11a industrial wireless communication protocol and operates using the IEEE 802.15.4 radio standard in the 2.45 GHz ISM frequency band. Wireless communication uses 128-bit AES encryption. The sensor can be provisioned and configured through the wireless network, reducing the need for direct physical configuration at the sensor location. For industrial installations, wireless network planning remains important because machinery, metal structures, walls, and other obstacles can affect radio communication quality and reliability.

5. What is the expected battery life of the 70M301?
The 70M301 can provide battery operation for up to approximately five years, depending on operating mode and system configuration. Actual battery life can vary according to measurement frequency, wireless communication activity, environmental temperature, network conditions, and other operating parameters. Extreme temperatures can also affect battery performance. For long-term condition monitoring installations, battery status should be included in the maintenance plan. Replacing the battery before the expected end of service life can help prevent unexpected loss of wireless monitoring data.

6. Can the 70M301 be installed in hazardous industrial environments?
The Ranger Pro platform provides configurations suitable for certain hazardous-area applications. The 70M301 is available with agency approval options covering applicable hazardous-area requirements, depending on the exact ordered configuration. The sensor housing uses a 316 stainless steel body with impact-resistant PPS components, and the device provides IP67 protection. Before installation in a classified area, the exact part number and certification must be verified against the site’s hazardous-area classification. Installation must also comply with the applicable electrical, mounting, battery, and safety requirements.

7. How should the 70M301 be installed for reliable vibration measurement?
The sensor should be mounted firmly to the monitored machine at a location that provides a representative vibration signal. The mounting surface should be clean, mechanically stable, and free from excessive looseness or contamination. The appropriate mounting hardware should be selected according to the machine and measurement location. Because the 70M301 is a single-axis sensor, its measurement axis should be aligned with the vibration direction that is most important for the application. After installation, the wireless connection and measurement values should be checked to confirm that the sensor is communicating correctly and producing stable data.

8. What should be checked if the 70M301 stops transmitting vibration data?
Troubleshooting should begin by checking the sensor’s battery condition and confirming that the device remains powered. Next, verify the wireless network connection and confirm that the sensor is correctly provisioned within the monitoring system. The communication path between the sensor and wireless gateway should be evaluated, particularly if machinery, metal structures, or other equipment have recently been added or relocated. The sensor mounting and physical condition should also be inspected. If communication is available but the measurement data is abnormal, check the sensor orientation, mounting condition, measurement configuration, and associated gateway or monitoring software before considering hardware replacement.
