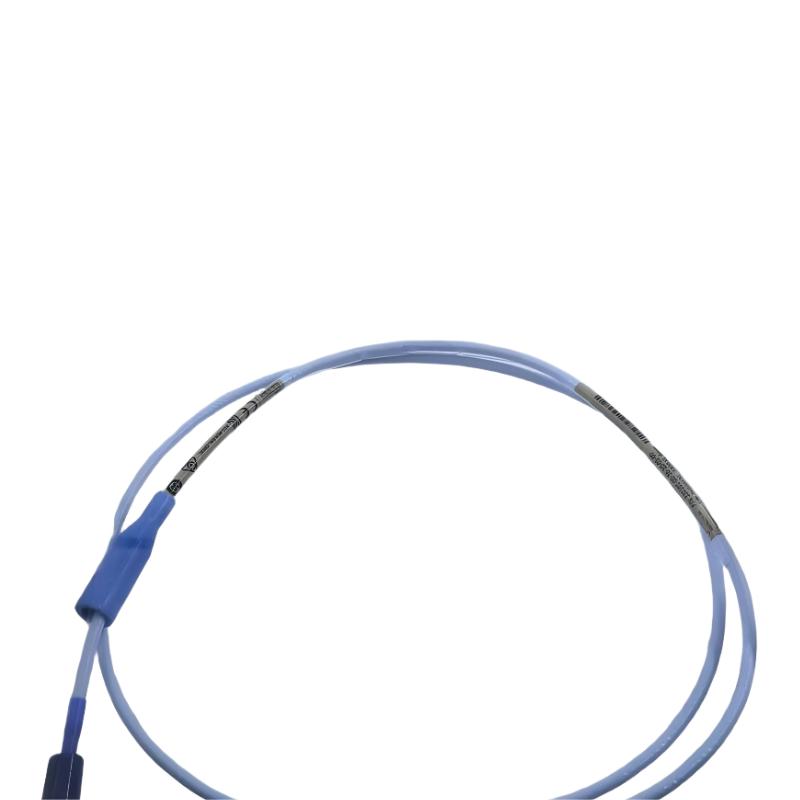

Q1: What is the primary function of the Bently Nevada 330101-00-15-10-01-00 proximity probe?

A: The primary function of this 3300 XL 8 mm proximity probe is to measure shaft vibration and position in rotating machinery using a non-contact method. It continuously monitors the distance between the probe tip and the conductive shaft surface, converting microscopic changes in that gap into an electrical signal. This signal represents real-time shaft behavior, including radial vibration, axial displacement, and overall dynamic movement. These measurements are essential for machinery protection systems because they provide early indication of mechanical issues such as imbalance, misalignment, or bearing wear.

Q2: How does eddy current technology enable accurate measurement in this probe?

A: The probe operates based on eddy current displacement sensing. It generates a high-frequency electromagnetic field at the probe tip. When a conductive metal target, such as a rotating shaft, enters this field, eddy currents are induced in the surface. The strength of these eddy currents changes with the distance between the probe and the shaft. The probe detects these variations and converts them into a calibrated analog voltage signal. Because this process is highly sensitive and contactless, it allows extremely precise measurement even in high-speed, high-temperature environments.

Q3: What types of equipment commonly use this proximity probe?

A: This probe is widely used in critical rotating machinery across multiple industries. Typical applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, electric motors, and gear systems. These machines operate under high load and speed conditions, where continuous monitoring of shaft dynamics is essential. The probe plays a key role in ensuring safe operation by providing real-time data for condition monitoring and protection systems.

Q4: Why is non-contact measurement preferred in rotating machinery applications?

A: Non-contact measurement is preferred because it eliminates physical interaction between the sensor and the rotating shaft. This prevents mechanical wear, friction, and potential damage that would occur with contact-based sensors. In high-speed machinery, contact sensors would quickly degrade or fail. Eddy current probes provide stable, long-term measurement without affecting machine operation, making them ideal for continuous monitoring in harsh industrial environments.

Q5: How does this probe contribute to machinery protection systems?

A: The probe continuously feeds vibration and displacement data into the monitoring system, which evaluates machine health in real time. If abnormal conditions such as shaft imbalance, misalignment, or excessive vibration occur, the system detects these changes immediately. Based on predefined thresholds, it can trigger alarms or initiate protective actions such as load reduction or emergency shutdown. This early detection capability helps prevent catastrophic equipment failure and reduces downtime.

Q6: What factors can affect measurement accuracy?

A: Several factors can influence accuracy, including probe gap setting, shaft surface condition, material properties, temperature variation, and electromagnetic interference. Incorrect installation or improper calibration can lead to offset errors or unstable readings. Surface roughness or non-conductive coatings on the shaft can also distort the eddy current field. Proper installation practices and regular system verification are essential to maintain measurement reliability.

Q7: What maintenance practices are recommended for long-term performance?

A: Although the probe itself is designed for long service life with minimal maintenance, periodic inspection of the entire measurement chain is recommended. This includes checking probe mounting stability, verifying cable integrity, inspecting connectors for looseness or corrosion, and ensuring signal stability over time. Regular review of vibration trends can also help identify early signs of sensor degradation or installation issues.

Q8: In which industries is this proximity probe typically used?

A: This proximity probe is widely used in power generation, oil and gas, petrochemical processing, and heavy industrial manufacturing. It is especially important in applications involving high-value rotating equipment where continuous condition monitoring is required. By providing accurate shaft vibration and position data, it supports predictive maintenance strategies and helps operators improve equipment reliability, safety, and operational efficiency.
