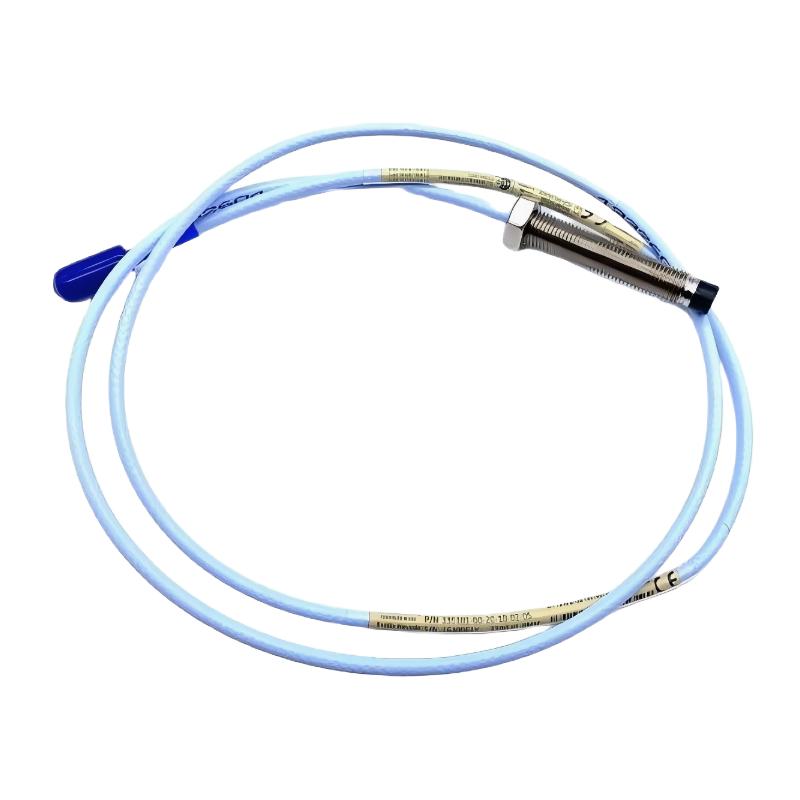

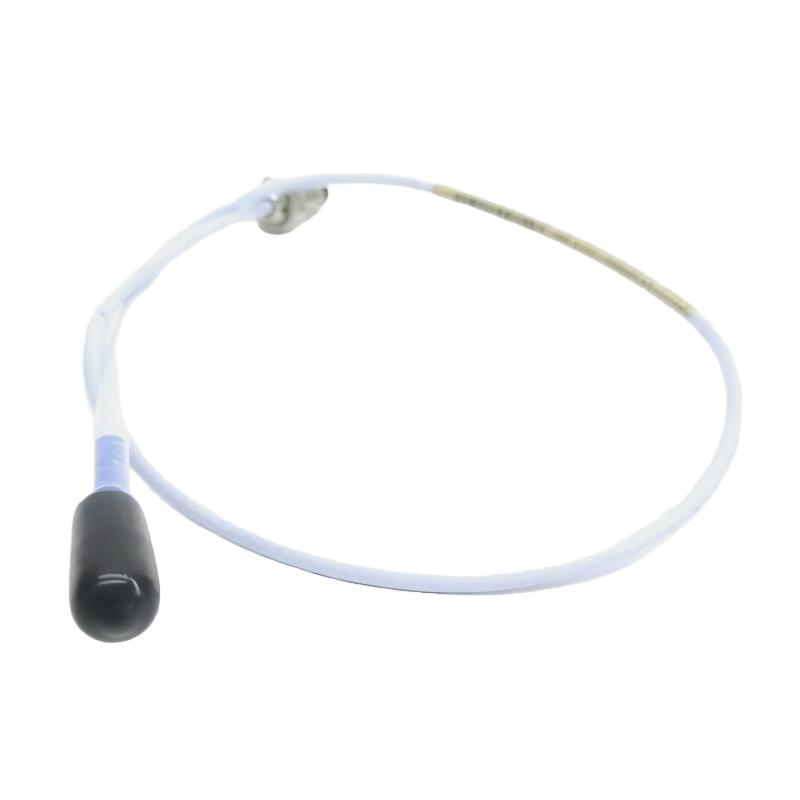

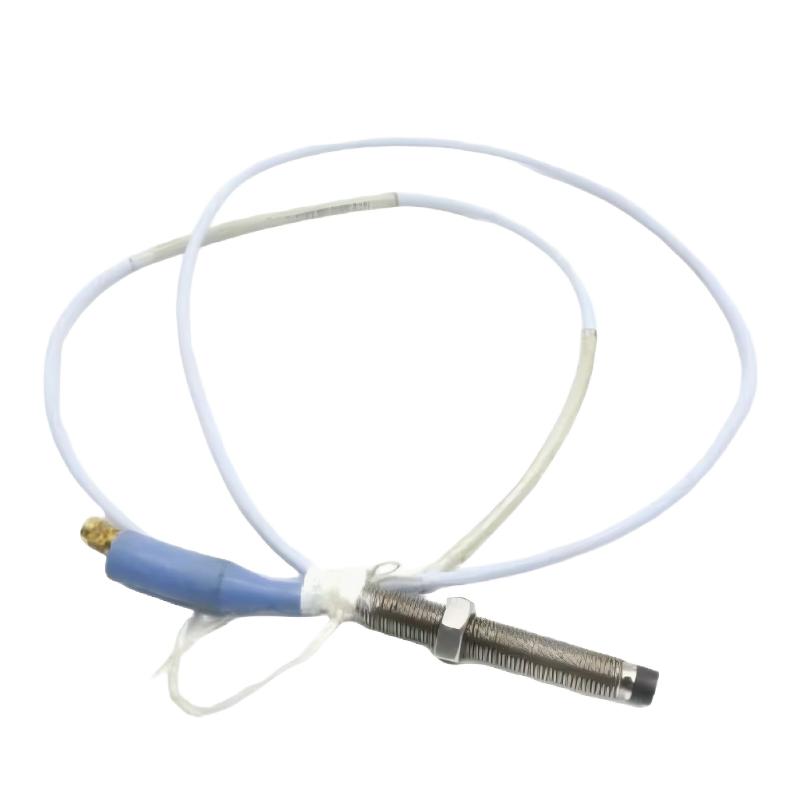

Q1: What is the primary function of the Bently Nevada 330101-00-15-15-02-05 proximity probe?

A: The primary function of this 3300 XL 8 mm proximity probe is to provide continuous, non-contact measurement of shaft vibration and position in rotating machinery. It monitors the dynamic distance between the probe tip and the shaft surface, converting microscopic displacement changes into a precise electrical signal. This enables real-time tracking of shaft behavior, including vibration amplitude, radial movement, and axial position. The data is critical for machinery protection systems, as it allows early detection of mechanical issues such as imbalance, misalignment, or bearing degradation.

Q2: How does eddy current sensing work in this probe?

A: The probe operates using eddy current technology, where a high-frequency electromagnetic field is generated at the probe tip. When this field interacts with a conductive metallic shaft, eddy currents are induced on the surface. The strength of these currents changes based on the distance between the probe and the shaft. The probe measures these variations and converts them into a calibrated analog voltage signal proportional to displacement. This method provides extremely accurate, stable, and non-contact measurement suitable for high-speed rotating equipment.

Q3: What types of machinery typically use this proximity probe?

A: This probe is widely used in critical rotating machinery across industries such as power generation, oil and gas, petrochemicals, and heavy manufacturing. Common applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, electric motors, and gearboxes. These machines require continuous monitoring of shaft dynamics to ensure safe and efficient operation under high load and high-speed conditions.

Q4: Why is non-contact measurement essential in rotating machinery monitoring?

A: Non-contact measurement is essential because it eliminates physical interaction between the sensor and the rotating shaft. This prevents mechanical wear, friction, and potential damage that would occur with contact-based sensors. In high-speed machinery, even minimal contact could lead to rapid sensor failure or measurement distortion. Eddy current probes provide reliable long-term operation while maintaining high precision, making them ideal for continuous industrial monitoring.

Q5: How does this probe contribute to machinery protection systems?

A: The probe continuously supplies real-time vibration and displacement data to the monitoring system. When abnormal conditions such as shaft imbalance, misalignment, or excessive vibration occur, the system detects these changes immediately. Based on predefined alarm thresholds, it can trigger warnings or initiate protective actions such as load reduction or emergency shutdown. This helps prevent severe mechanical damage and ensures operational safety of critical equipment.

Q6: What factors can influence measurement accuracy?

A: Measurement accuracy can be affected by several factors, including probe gap setting, shaft surface condition, material conductivity, temperature variation, and electromagnetic interference. Improper installation or calibration can lead to signal drift or offset errors. Surface imperfections or non-conductive coatings may also distort the eddy current field. Proper installation procedures and periodic verification are essential to maintain stable and accurate measurements.

Q7: What maintenance practices are recommended for this probe?

A: Although the probe is designed for long-term operation with minimal maintenance, periodic inspection of the entire measurement system is recommended. This includes checking probe mounting stability, verifying cable integrity, inspecting connectors for looseness or corrosion, and ensuring stable signal output. Reviewing historical vibration trends can also help identify early signs of sensor degradation or installation issues, ensuring continued measurement reliability.

Q8: In which industries is this proximity probe commonly used?

A: This proximity probe is commonly used in industries that rely on large, high-value rotating machinery. These include power generation plants, oil and gas facilities, petrochemical processing plants, and heavy industrial manufacturing sectors. It plays a key role in predictive maintenance systems by providing accurate shaft vibration and position data, helping operators improve equipment reliability, reduce downtime, and ensure safe operation.
