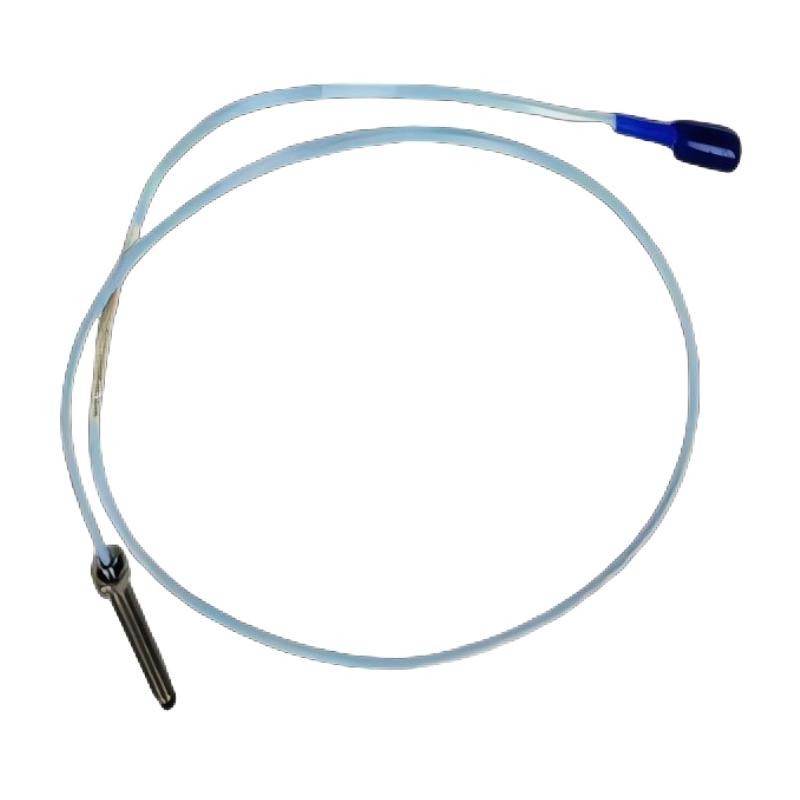

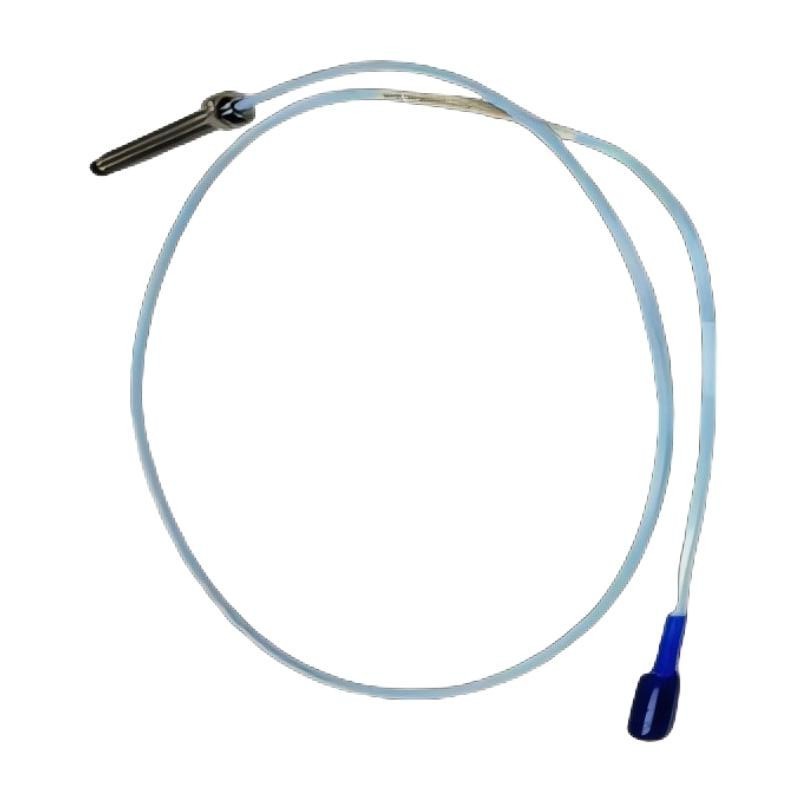

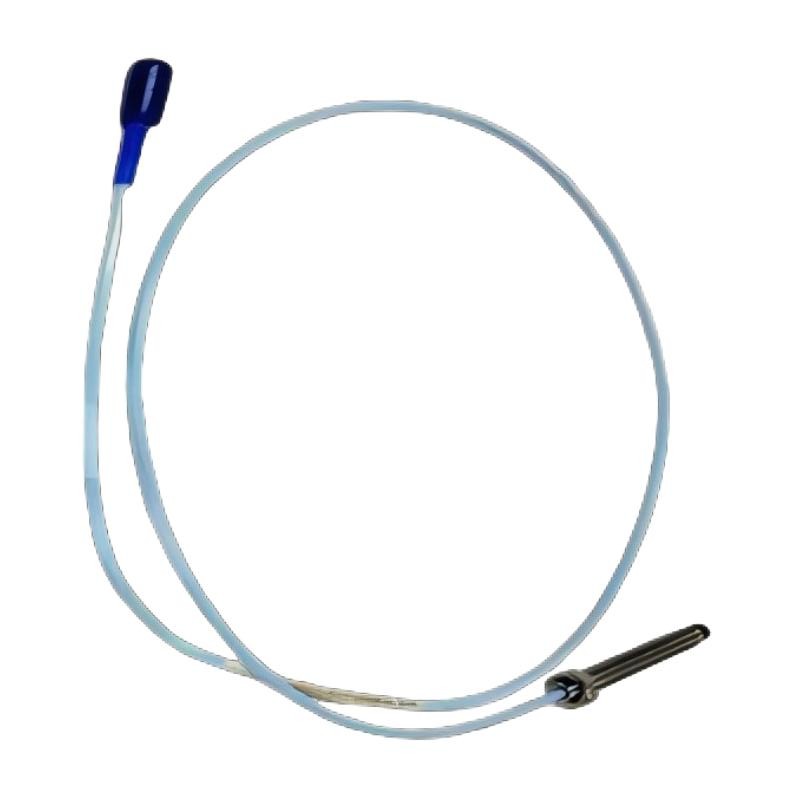

Q1: What is the primary function of the Bently Nevada 330101-0024-01-0205 proximity probe?

A: The primary function of this 3300 XL 8 mm proximity probe is to provide accurate, continuous, non-contact measurement of shaft vibration and position in rotating machinery. It monitors the microscopic distance changes between the probe tip and the conductive shaft surface and converts these variations into a proportional electrical signal. This enables real-time tracking of rotor behavior, including radial vibration, axial displacement, and overall shaft dynamics. These measurements are essential for machinery protection systems, condition monitoring programs, and predictive maintenance strategies in critical industrial applications.

Q2: How does eddy current technology work in this probe?

A: The probe operates using eddy current displacement sensing. A high-frequency electromagnetic field is generated at the probe tip. When this field interacts with a conductive metal shaft, eddy currents are induced on the surface. The strength of these currents varies depending on the distance between the probe and the target. The probe detects these changes and converts them into a calibrated analog voltage signal. Because this process is non-contact and highly sensitive, it provides stable and precise measurements even in harsh industrial environments.

Q3: What types of equipment typically use this proximity probe?

A: This probe is widely used in critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, pumps, electric motors, and gearboxes. These machines operate under high speed, high load, and continuous duty conditions, where accurate monitoring of shaft behavior is essential for safe and efficient operation. The probe provides the primary measurement input for vibration and displacement monitoring systems used in these applications.

Q4: Why is non-contact measurement important in rotating machinery?

A: Non-contact measurement eliminates physical interaction between the sensor and the rotating shaft, which prevents wear, friction, and mechanical degradation. In high-speed machinery, any physical contact would quickly damage both the sensor and the machine. Eddy current probes allow long-term stable operation while maintaining high measurement accuracy, making them ideal for continuous monitoring in demanding industrial environments.

Q5: How does this probe contribute to machinery protection systems?

A: The probe continuously provides real-time vibration and displacement data to the monitoring system. If abnormal conditions occur—such as imbalance, misalignment, shaft rub, or bearing wear—the signal changes immediately. The system evaluates these changes against predefined alarm thresholds and can trigger warnings or automatic protective actions such as load reduction or emergency shutdown. This helps prevent catastrophic equipment failure and reduces downtime risk.

Q6: What factors can affect measurement accuracy?

A: Several factors can influence accuracy, including probe gap setting, shaft surface condition, material conductivity, temperature variation, and electromagnetic interference. Incorrect installation or calibration can introduce offset errors or signal instability. Surface imperfections or coatings on the shaft may also distort the eddy current field. Proper installation practices and periodic system verification are essential to maintain reliable measurement performance.

Q7: What maintenance practices are recommended for this probe?

A: Although the probe is designed for long-term operation with minimal maintenance, periodic inspection of the measurement system is recommended. This includes checking probe mounting stability, verifying cable integrity, inspecting connectors for looseness or corrosion, and ensuring stable signal output trends. Reviewing historical vibration data can also help identify early signs of sensor drift or installation issues.

Q8: In which industries is this proximity probe commonly used?

A: This proximity probe is widely used in power generation, oil and gas, petrochemical processing, and heavy industrial manufacturing industries. It is especially important in applications involving large, high-value rotating machinery where continuous condition monitoring is required. By providing accurate shaft vibration and position data, it supports predictive maintenance strategies, improves operational safety, and helps reduce unplanned downtime.
