Technical Specifications

FAQ

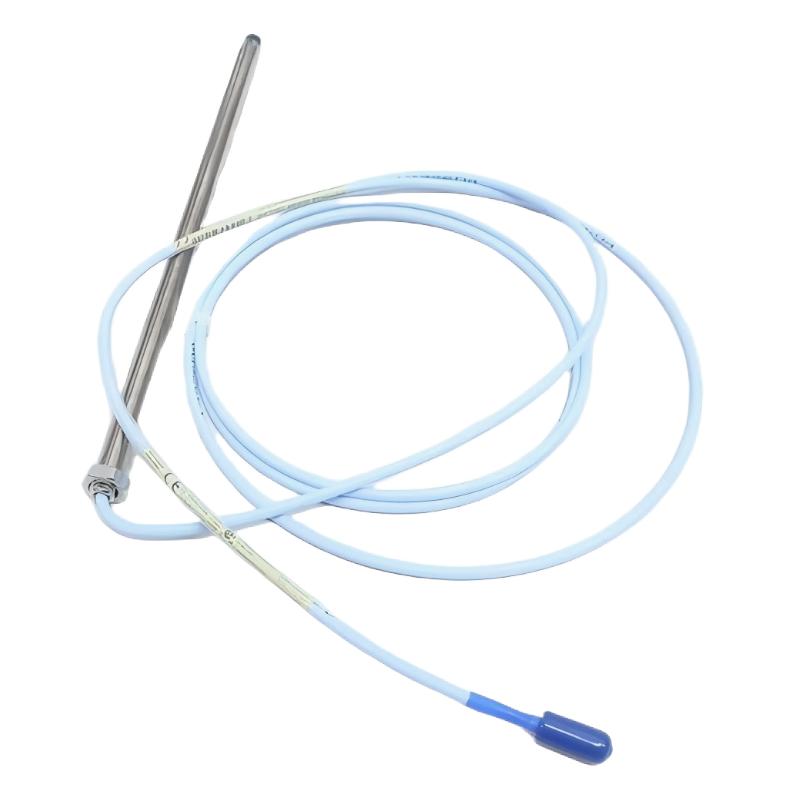

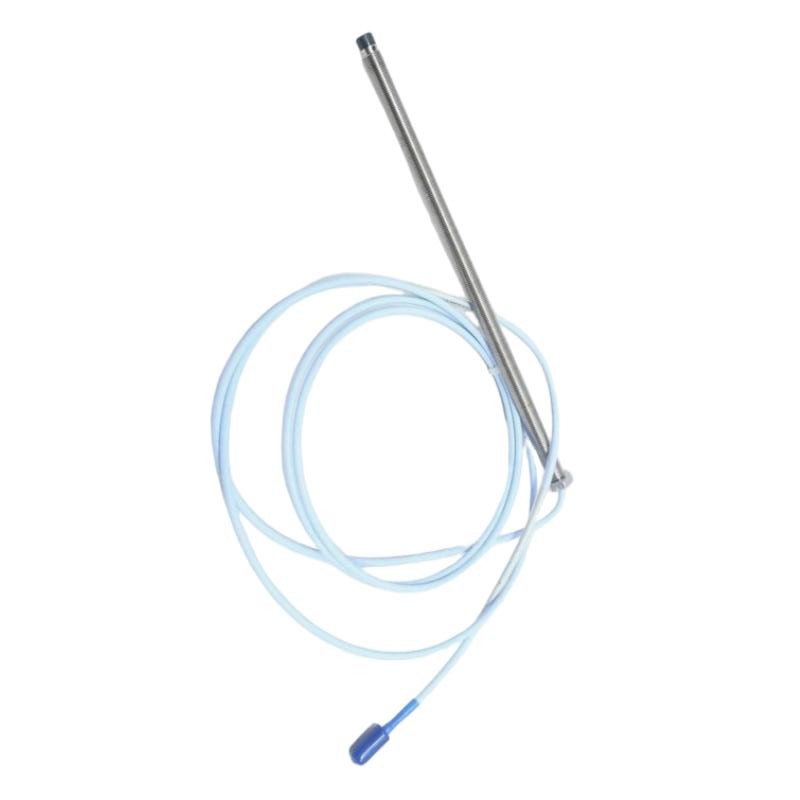

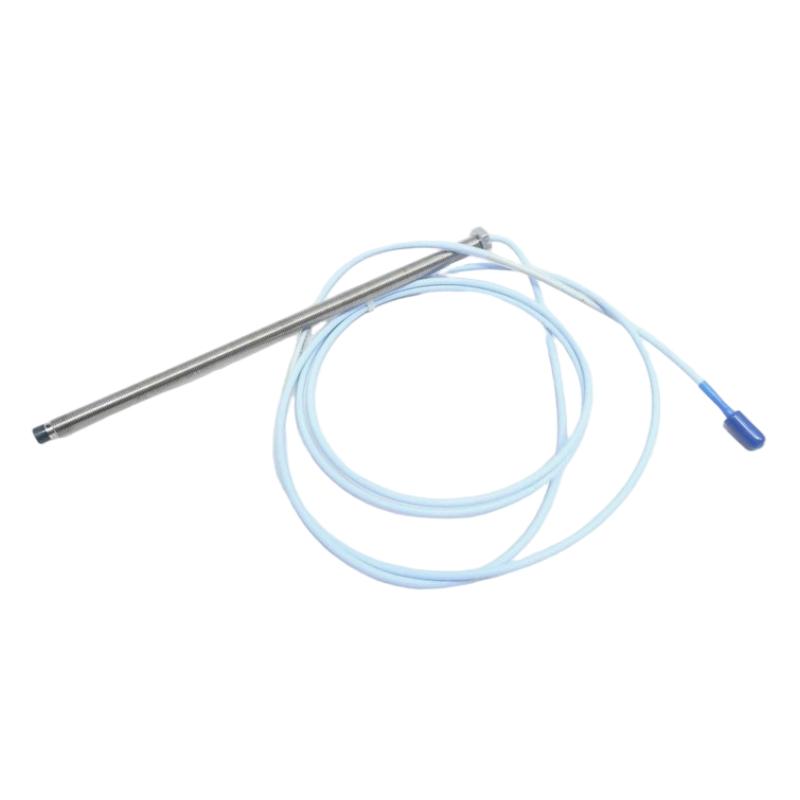

Q1: What is the main function of the 3300 XL 8 mm Proximity Probe?
A1: The primary function of this probe is to measure the relative distance between the probe tip and a conductive rotating surface, typically a shaft. It provides continuous, non-contact monitoring of shaft vibration and position. This data is essential for understanding the mechanical condition of rotating equipment. By detecting subtle changes in displacement, the probe helps identify early-stage faults such as imbalance, misalignment, shaft bow, or bearing degradation before they escalate into serious failures.

Q2: How does the eddy current measurement principle work in this probe?
A2: The probe generates a high-frequency electromagnetic field at its tip. When a conductive metallic target enters this field, eddy currents are induced within the surface of the material. These eddy currents cause a measurable change in the electrical impedance of the probe coil. The system converts this impedance variation into a stable voltage signal that is directly proportional to the distance between the probe and the target, enabling highly accurate displacement measurement.

Q3: What types of machinery commonly use this probe?
A3: This probe is widely used in large and critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, pumps, and industrial electric motors. It is especially important in industries like power generation, oil and gas, petrochemicals, and heavy manufacturing, where continuous monitoring of rotating equipment is essential for safe and efficient operation.

Q4: What parameters can this probe measure?
A4: The probe is used to measure radial vibration, shaft position, axial displacement, and rotor eccentricity. When integrated into a full monitoring system, it provides detailed insight into rotor behavior, allowing engineers to detect issues such as unbalance, misalignment, thermal distortion, and bearing wear. It also supports long-term trend analysis for predictive maintenance applications.

Q5: How is the probe integrated into a monitoring system?
A5: The probe works together with a Bently Nevada Proximitor sensor and monitoring modules. The probe generates raw displacement signals, which are then conditioned and converted into standardized electrical outputs by the Proximitor. These signals are transmitted to monitoring systems for real-time analysis, alarm generation, and historical trend recording, forming a complete machinery protection system.

Q6: Why is non-contact measurement important in this application?
A6: Non-contact measurement eliminates physical wear between the sensor and the rotating shaft, ensuring long-term stability and reliability. It also allows accurate measurement at very high rotational speeds where mechanical contact would not be feasible. This method improves measurement accuracy, reduces maintenance requirements, and ensures consistent performance in harsh industrial environments.

Q7: What operating conditions can this probe withstand?
A7: The probe is designed for demanding industrial environments, including high temperatures, heavy vibration, oil contamination, and strong electromagnetic interference. Its rugged construction ensures stable and accurate performance in continuous-duty applications such as turbines and compressors, even under fluctuating operating conditions.

Q8: How does this probe support predictive maintenance?
A8: The probe continuously collects real-time vibration and displacement data, which is used to analyze machine behavior over time. By identifying gradual changes such as increasing vibration trends or shifting shaft position, maintenance teams can detect early signs of mechanical deterioration. This enables maintenance to be planned in advance, reducing unexpected downtime, improving equipment reliability, and extending overall asset life.
