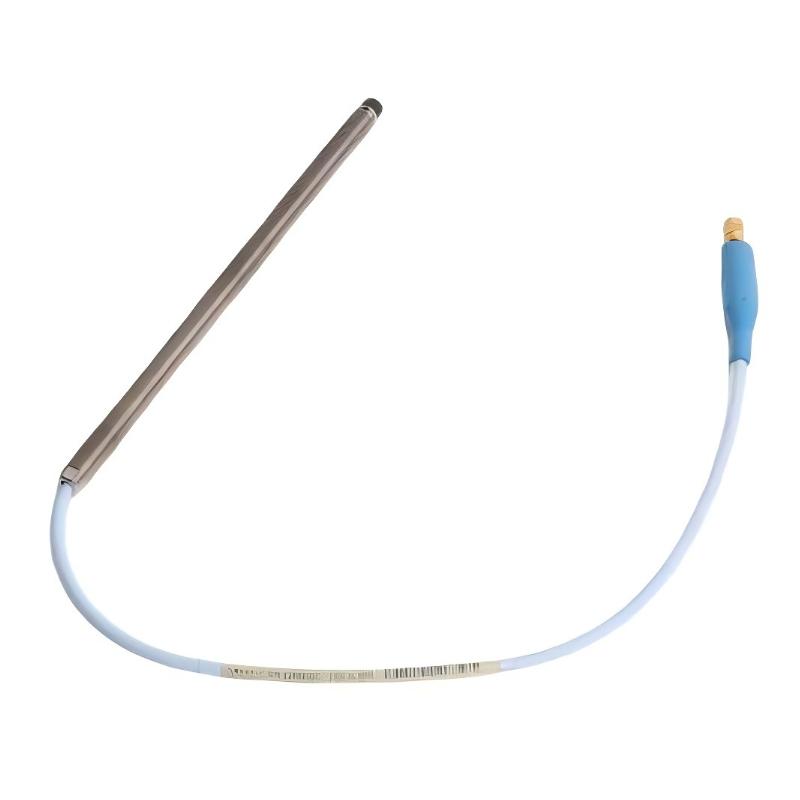

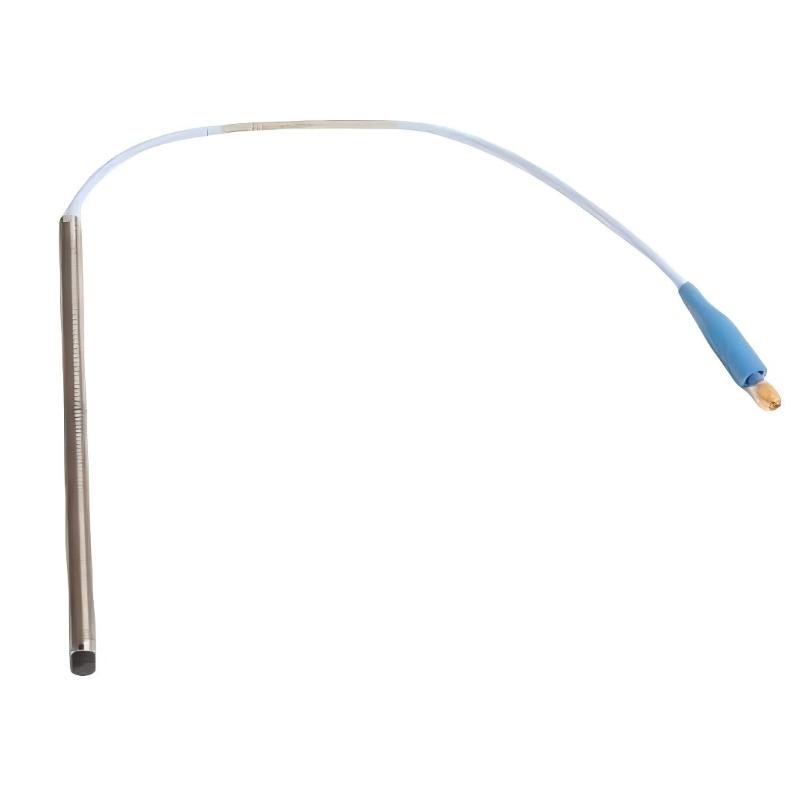

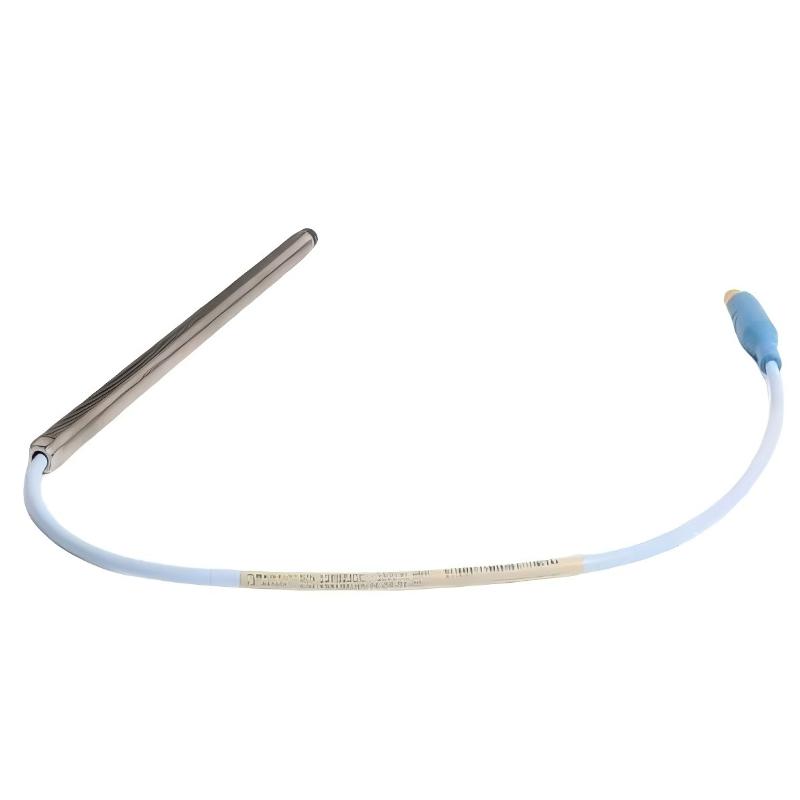

Q1: What is the main function of the 3300 XL 8 mm Proximity Probe?
A1: The primary function of this probe is to measure the relative distance between the probe tip and a conductive rotating shaft without physical contact. It continuously tracks shaft vibration, position, and dynamic movement in rotating machinery. This information is critical for condition monitoring systems because it allows operators to detect early signs of mechanical issues such as imbalance, misalignment, shaft bow, or bearing wear before they develop into serious failures or cause unplanned shutdowns.

Q2: How does the eddy current measurement principle work in this probe?
A2: The probe generates a high-frequency electromagnetic field at its sensing tip. When a conductive metal target, such as a rotating shaft, enters this field, eddy currents are induced on the surface of the material. These eddy currents change the impedance of the probe coil. The system converts this impedance change into a stable voltage signal that is directly proportional to the distance between the probe and the target surface, enabling highly accurate, repeatable, and non-contact displacement measurement.

Q3: What types of machinery typically use this probe?
A3: This probe is widely used in large rotating machinery such as steam turbines, gas turbines, centrifugal compressors, pumps, and industrial electric motors. It is especially common in power generation, oil and gas, petrochemical, and heavy industrial applications, where continuous monitoring of rotating equipment is essential for safety, reliability, and operational efficiency.

Q4: What parameters does this probe measure?
A4: The probe is used to measure radial vibration, shaft position, axial displacement, and rotor eccentricity. When integrated into a monitoring system, it provides detailed insights into rotor dynamics, allowing engineers to identify conditions such as imbalance, misalignment, thermal growth, shaft bow, and bearing degradation. These measurements are essential for both real-time protection and long-term performance analysis.

Q5: How is the probe integrated into a monitoring system?
A5: The probe works together with a Bently Nevada Proximitor sensor and monitoring modules. The probe generates raw displacement signals, which are then conditioned and converted into standardized electrical outputs by the Proximitor. These outputs are sent to monitoring systems for real-time analysis, alarm generation, and historical trend recording, forming a complete machinery protection and condition monitoring chain.

Q6: Why is non-contact measurement important in this application?
A6: Non-contact measurement eliminates physical wear between the sensor and the rotating shaft, ensuring long-term stability and reliability. It also allows accurate measurements at very high rotational speeds where mechanical contact would be impractical or unsafe. This approach reduces maintenance requirements and improves measurement accuracy, making it ideal for critical rotating equipment operating under continuous load.

Q7: What operating conditions can this probe withstand?
A7: The probe is designed for harsh industrial environments, including high temperature, strong vibration, oil contamination, and electromagnetic interference. Its rugged construction ensures stable and accurate performance in demanding applications such as turbines and compressors, even during long-term continuous operation.

Q8: How does this probe support predictive maintenance strategies?
A8: The probe continuously collects real-time vibration and displacement data, which is used to analyze machine behavior over time. By identifying gradual changes such as increasing vibration trends, shaft position drift, or unstable rotor patterns, maintenance teams can detect early signs of mechanical deterioration. This enables maintenance to be planned proactively rather than reactively, reducing unexpected downtime, improving equipment reliability, and extending overall asset life.
