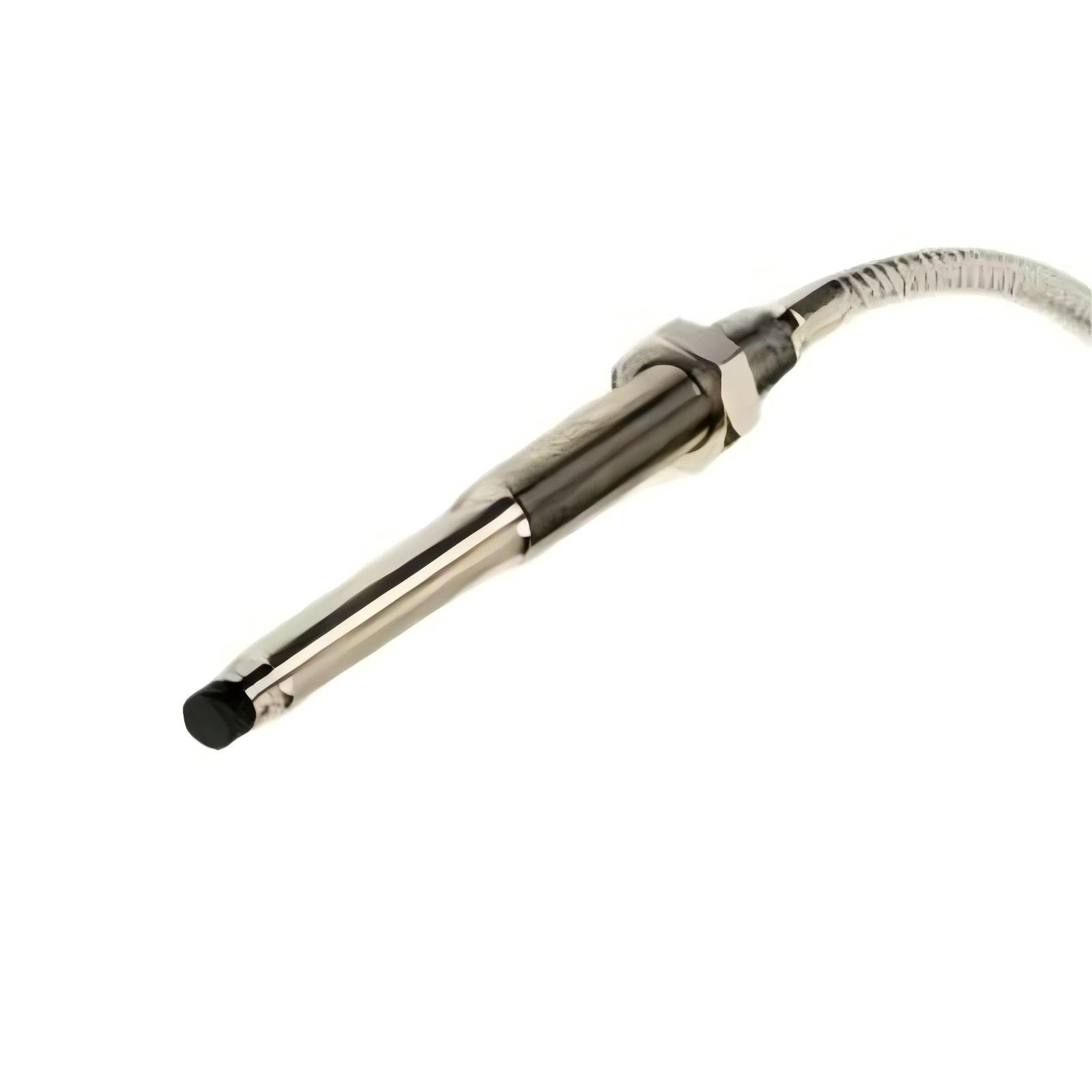

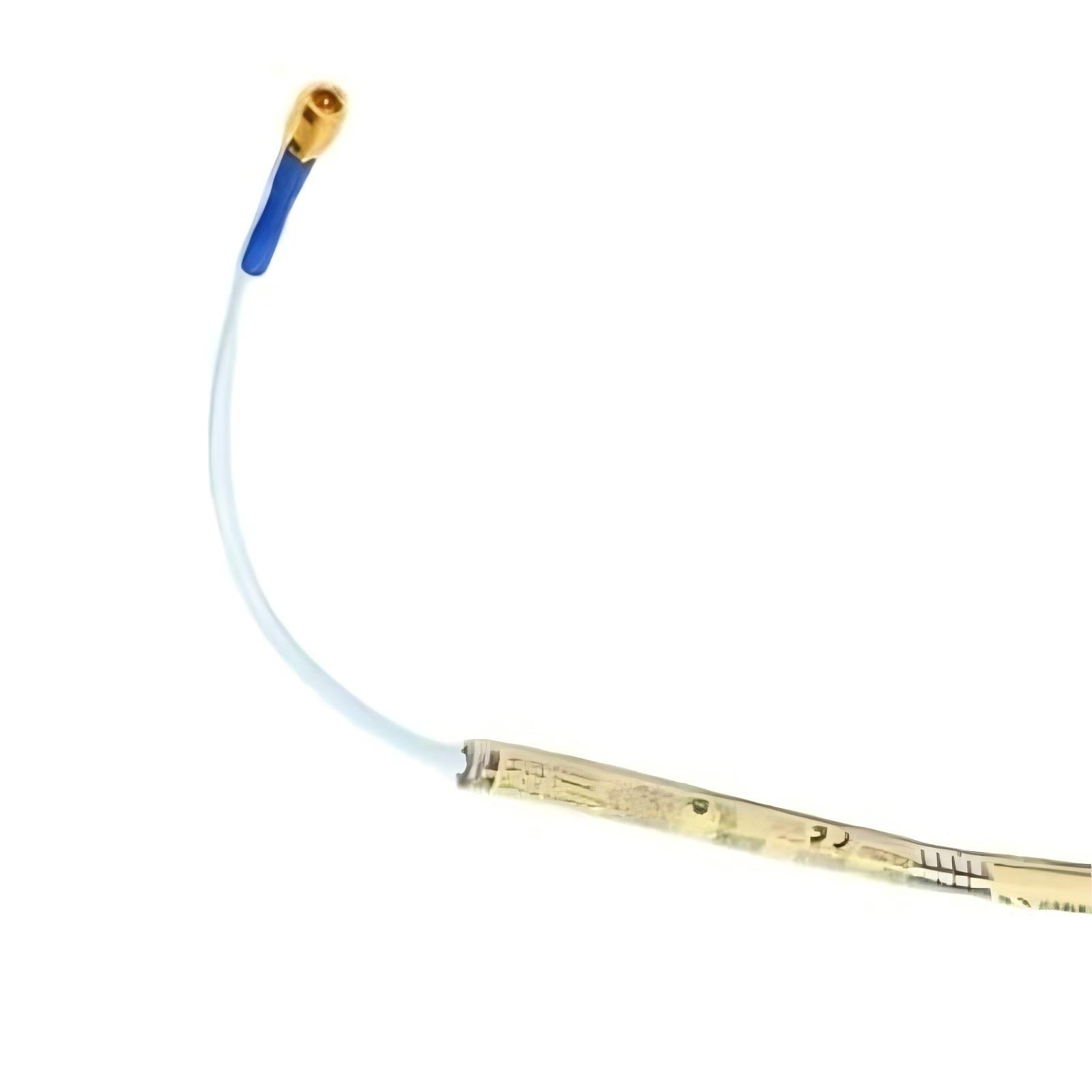

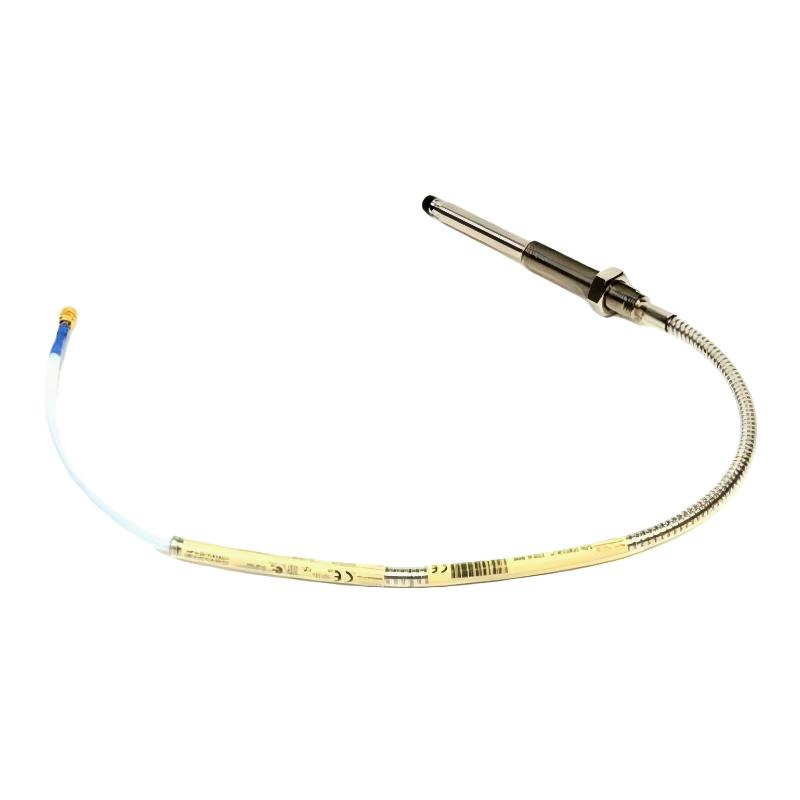

Q1: What is the main function of the 330102-XX-XX-05-02-05 proximity probe?
A: The primary function of this 8 mm proximity probe is to provide continuous, real-time measurement of shaft vibration, displacement, and position in rotating machinery. It works on the eddy current principle, detecting extremely small changes in the distance between the probe tip and a conductive target surface such as a rotating shaft. These changes are converted into electrical signals that represent mechanical movement. The probe itself does not directly produce a usable monitoring output; instead, it must work together with a Proximitor module, which conditions and linearizes the signal before it is used by the monitoring system. This makes it a core sensing element in machinery protection and condition monitoring systems.

Q2: Where is this proximity probe typically used?
A: This probe is widely used in critical rotating machinery applications such as steam turbines, gas turbines, centrifugal compressors, pumps, generators, and large industrial motors. These machines often operate under high speed, high load, and harsh environmental conditions, where even small changes in shaft behavior can indicate early-stage mechanical problems. The probe is commonly deployed in power generation, oil and gas, petrochemical, and heavy industrial sectors where continuous condition monitoring is essential for operational safety and reliability.

Q3: How does the eddy current measurement principle work?
A: The probe generates a high-frequency electromagnetic field at its tip through an internal coil. When this field interacts with a conductive target like a steel shaft, eddy currents are induced on the surface of the metal. As the distance between the probe and the target changes, the strength of these eddy currents changes proportionally. The system converts this variation into a voltage signal that corresponds precisely to displacement. This allows accurate, non-contact measurement without physical contact or mechanical wear.

Q4: How does the probe integrate with the 3300 XL monitoring system?
A: The probe is part of a three-component measurement chain: the probe, the Proximitor (signal conditioning unit), and the monitoring system. The probe generates a raw signal based on shaft movement, which is transmitted through a coaxial cable to the Proximitor. The Proximitor then amplifies, linearizes, and conditions the signal into a stable output. This processed signal is sent to the monitoring system, where it is analyzed for vibration amplitude, shaft position, and dynamic behavior. This architecture ensures high accuracy and reliable machine protection.

Q5: What are the signs of probe malfunction?
A: A malfunctioning probe may present unstable readings, signal noise, intermittent signal loss, or complete signal failure. In monitoring systems, this may appear as sudden jumps in vibration values, inconsistent trends, or flat-line signals. Common causes include cable damage, loose connections, contamination, improper installation, or internal coil degradation. Because the probe operates with very small signal variations, even minor physical or electrical issues can significantly affect performance.

Q6: What factors affect measurement accuracy?
A: Measurement accuracy can be influenced by several factors, including incorrect probe-to-target gap, shaft surface condition (roughness or coating), electromagnetic interference, temperature variations, and mechanical instability. Improper alignment or loose mounting can also introduce signal drift or nonlinear response. Maintaining correct installation geometry and stable operating conditions is essential for reliable and repeatable measurements in industrial environments.

Q7: How can technicians verify proper operation of the probe?
A: Technicians typically verify operation by monitoring signal stability under known operating conditions and comparing readings with expected machine behavior. A properly functioning probe should produce a smooth, linear, and repeatable response as shaft position changes. Calibration checks using reference gap values can also confirm accuracy. Any sudden deviation from baseline trends, increased noise, or inconsistent output may indicate installation issues or probe degradation.

Q8: How can long-term reliability be improved?
A: Long-term reliability depends on correct installation, stable mechanical mounting, and proper cable management with effective shielding. Regular inspection of connectors, probe positioning, and cable integrity is essential, especially in high-vibration environments. Keeping the installation area clean and free from oil contamination or moisture also helps maintain signal stability. Periodic calibration and preventive maintenance further ensure consistent performance and extend the operational life of both the probe and the overall monitoring system.
