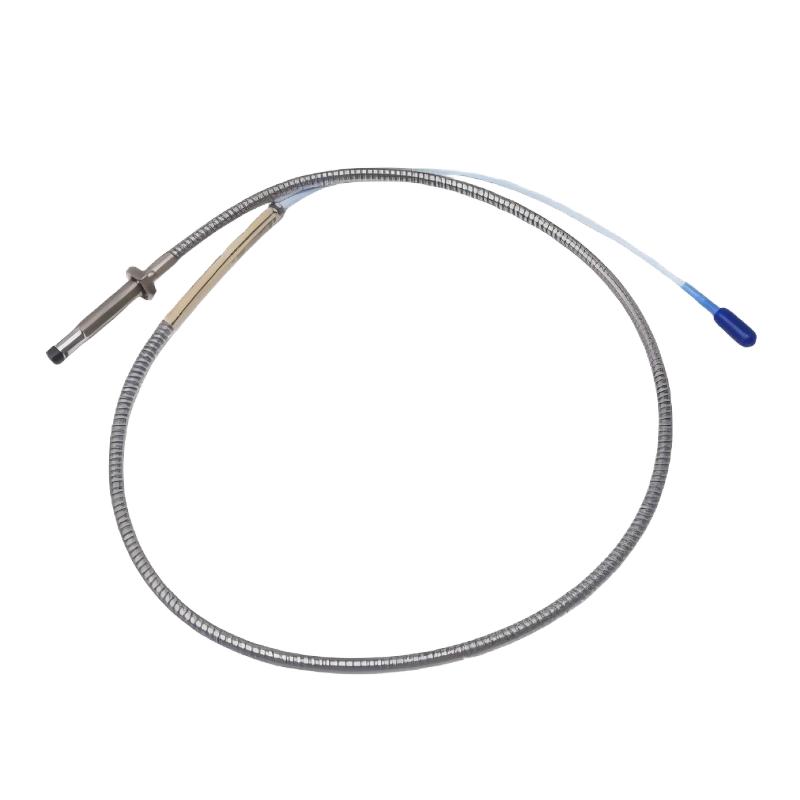

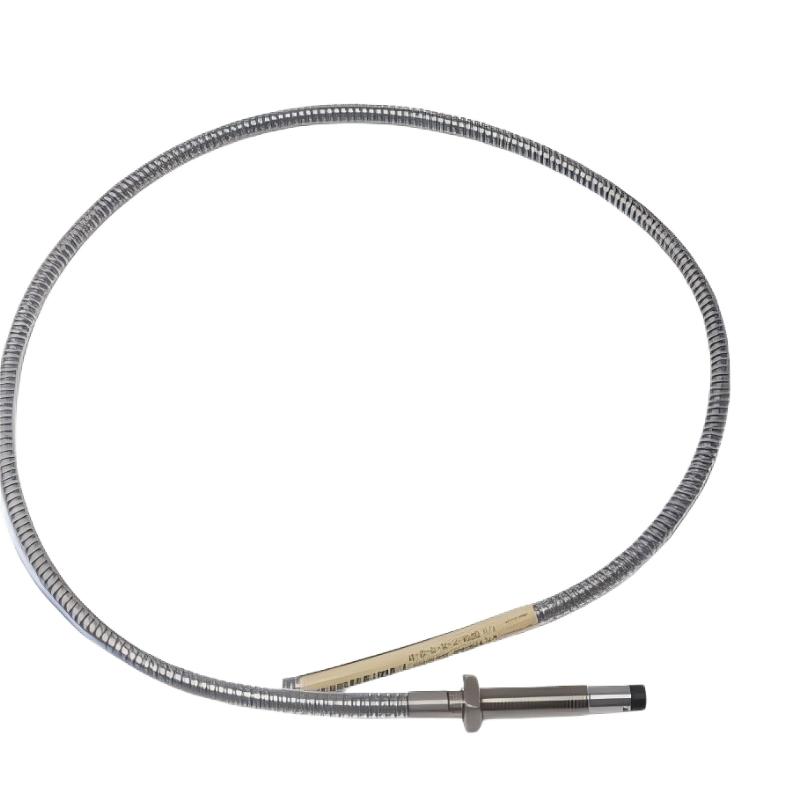

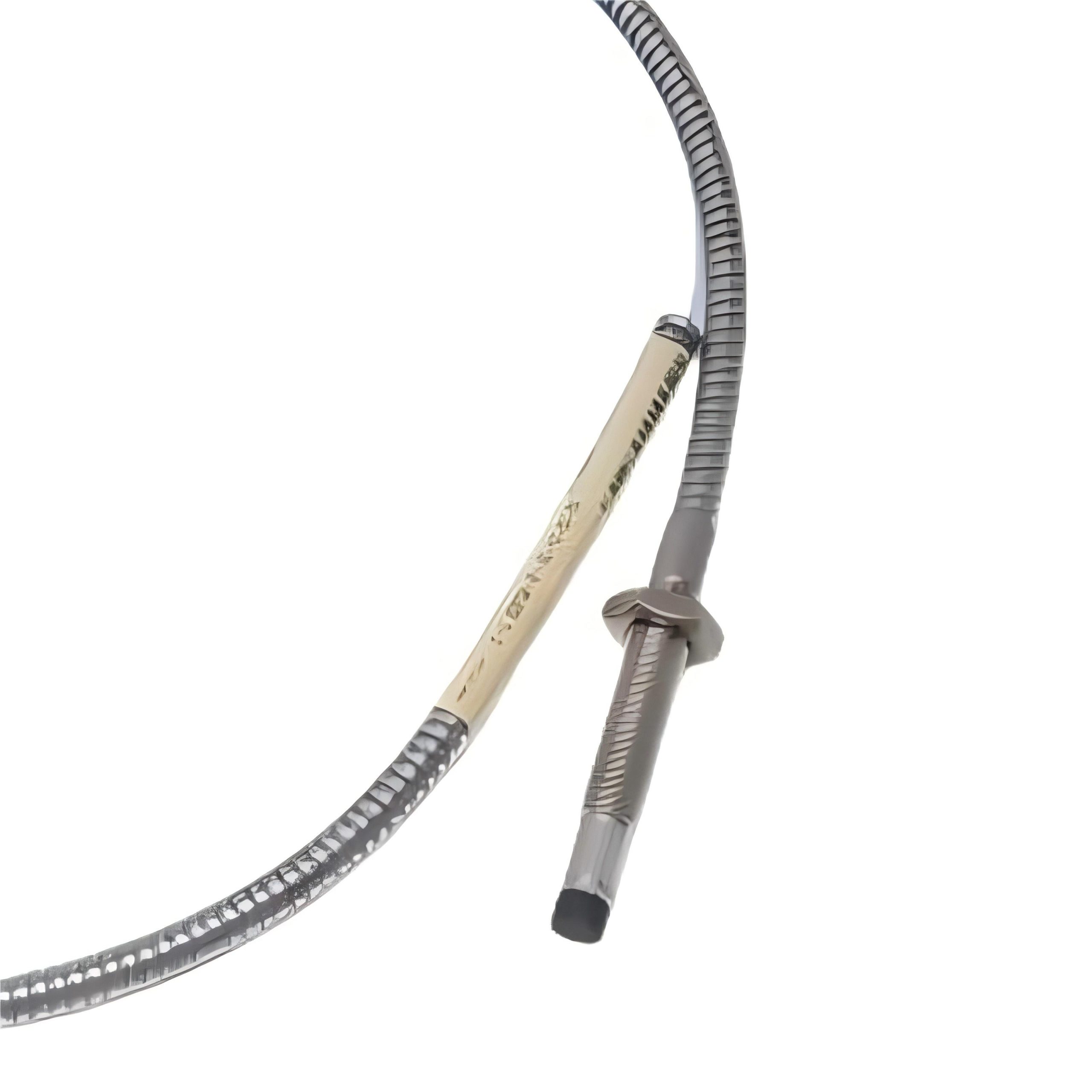

Q1: What is the primary function of the 330104-01-04-15-02-05 proximity probe?
A: The primary function of this 8 mm metric proximity probe is to provide continuous, non-contact measurement of shaft vibration, displacement, and position in rotating machinery. It operates as part of the Bently Nevada 3300 XL eddy current measurement system, where it detects extremely small changes in the distance between the probe tip and a conductive target surface such as a rotating shaft. These variations are converted into electrical signals that represent mechanical motion. This enables precise monitoring of rotor dynamics, early fault detection, and real-time machinery protection in critical industrial systems.

Q2: Where is this probe typically used in industrial applications?
A: This probe is widely used in high-value rotating equipment across industries such as power generation, oil and gas, petrochemical processing, and heavy manufacturing. Typical applications include steam turbines, gas turbines, centrifugal compressors, large industrial pumps, and generators. In these systems, shaft vibration and displacement must be continuously monitored to prevent catastrophic failures, making this probe a key component in predictive maintenance and condition-based monitoring strategies.

Q3: How does the eddy current measurement principle work in this probe?
A: The probe operates by generating a high-frequency electromagnetic field at its sensing tip. When this field interacts with a conductive material such as a steel shaft, eddy currents are induced on the surface of the target. As the distance between the probe and the shaft changes, the strength of these eddy currents varies proportionally. The system converts these variations into a linear voltage signal, which is then processed by a Proximitor module. This allows highly accurate, non-contact measurement without physical wear or mechanical interference.

Q4: How does the probe integrate into the 3300 XL monitoring system?
A: The probe is part of a three-component measurement chain consisting of the probe, a Proximitor signal conditioner, and a monitoring system. The probe captures raw displacement data from the rotating shaft. This signal is transmitted through a coaxial cable to the Proximitor, which amplifies, linearizes, and conditions the signal. The processed output is then sent to the monitoring system for analysis, trend recording, and alarm generation. This architecture ensures stable and accurate measurement even in harsh industrial environments.

Q5: What are the typical signs of probe malfunction?
A: A malfunctioning probe may exhibit unstable output signals, increased noise levels, signal drift, intermittent signal loss, or complete signal failure. In a monitoring system, these issues may appear as erratic vibration readings, flat-line signals, or sudden unexplained changes in trend data. Common root causes include cable damage, connector corrosion, improper installation, electromagnetic interference, or internal degradation of the sensing coil. Because the probe operates with very small signal variations, even minor faults can significantly impact measurement reliability.

Q6: What factors can affect measurement accuracy?
A: Measurement accuracy can be influenced by several mechanical and environmental conditions, including incorrect probe-to-target gap setting, shaft surface condition (such as roughness, oxidation, or coating), temperature variations, electromagnetic interference, and mechanical instability. Installation errors such as misalignment or loose mounting can also lead to nonlinear output or signal drift. Maintaining correct installation geometry and stable operating conditions is essential for ensuring consistent and accurate measurement performance.

Q7: How can technicians verify proper operation of the probe?
A: Technicians typically verify probe performance by monitoring signal stability under normal machine operation and comparing readings against expected vibration behavior. A properly functioning probe should produce a smooth, linear, and repeatable response as shaft position changes. Calibration checks using reference gap values are also commonly performed to confirm system accuracy. Any sudden deviation from baseline trends, increased signal noise, or inconsistent output may indicate installation issues or hardware degradation requiring inspection.

Q8: How can long-term reliability of the probe be improved?
A: Long-term reliability depends heavily on correct installation practices, stable mechanical mounting, and proper cable management. Ensuring secure probe positioning reduces mechanical stress and signal variation. Proper shielding and grounding help minimize electromagnetic interference, which is critical for low-level signal integrity. Regular inspection of connectors, cables, and mounting hardware is recommended, especially in high-vibration environments. Additionally, keeping the installation area free from oil contamination, moisture, and debris helps maintain consistent performance and extends operational lifespan.
