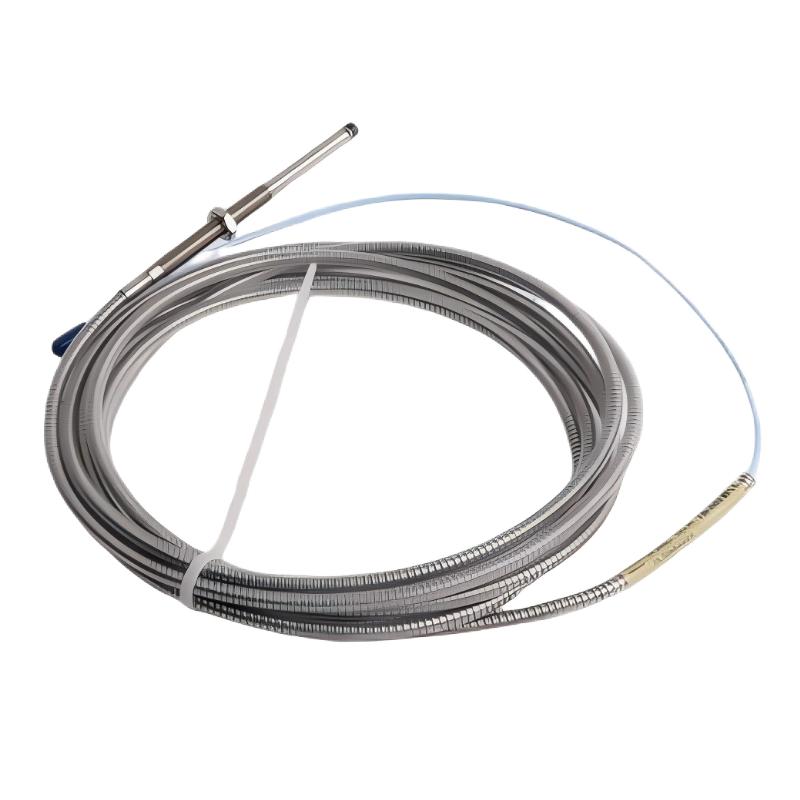

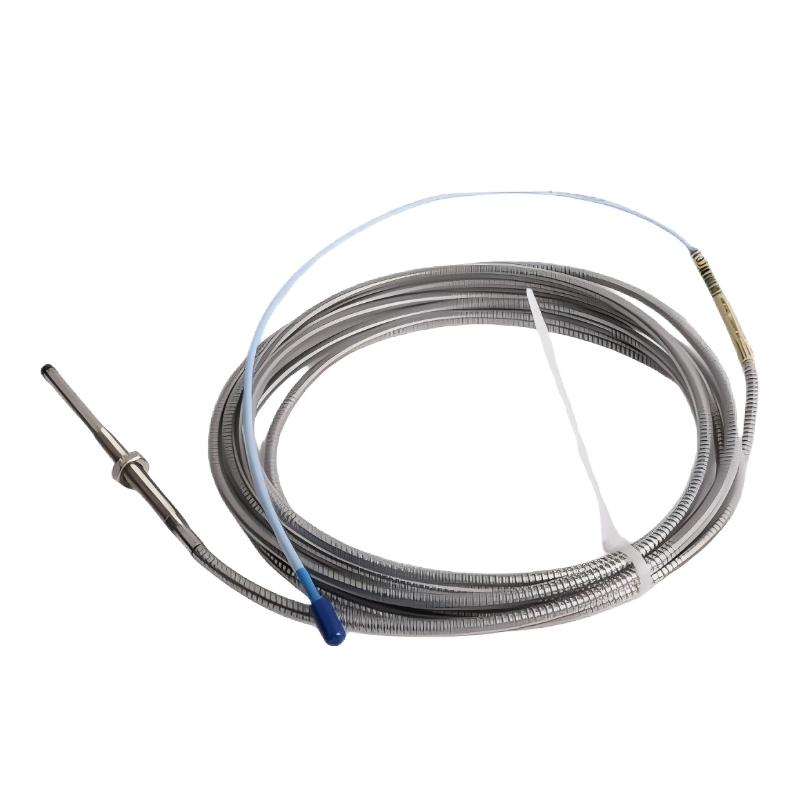

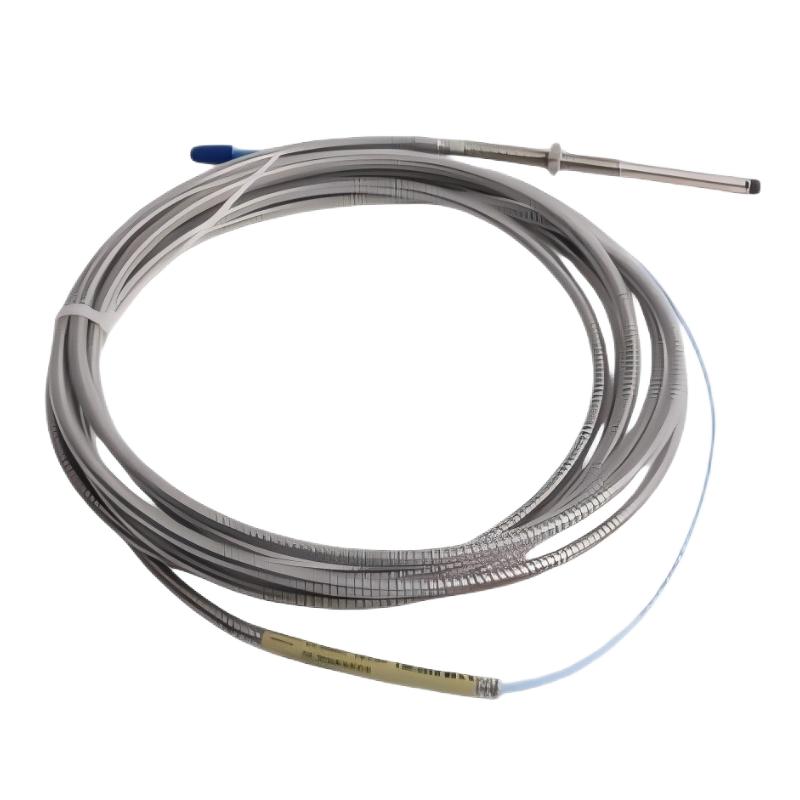

1. What are the main applications of the Bently Nevada 330104-00-09-10-01-05 3300 XL 8 mm Proximity Probe?

The Bently Nevada 330104-00-09-10-01-05 3300 XL 8 mm Proximity Probe is designed for monitoring the operating condition of critical industrial rotating machinery. It is mainly used to measure shaft vibration, shaft displacement, and rotational position changes in equipment such as steam turbines, gas turbines, compressors, pumps, generators, and large motors.

In high-speed rotating machinery, accurate monitoring of shaft movement is essential for preventing mechanical failures and maintaining safe operation. The proximity probe continuously detects changes in the distance between the probe tip and the rotating shaft surface, converting mechanical movement into electrical signals that can be analyzed by machinery monitoring systems.

By collecting continuous vibration and displacement data, maintenance engineers can identify early warning signs such as rotor imbalance, shaft misalignment, bearing deterioration, and abnormal mechanical movement. This helps reduce unexpected downtime and supports predictive maintenance strategies.

2. How does the Bently Nevada 330104-00-09-10-01-05 Proximity Probe work?

The Bently Nevada 330104-00-09-10-01-05 operates using eddy current sensing technology, which allows accurate non-contact measurement of shaft movement.

The probe generates a high-frequency electromagnetic field through its sensing coil. When the probe is positioned near a conductive rotating shaft, changes in the distance between the probe and the shaft affect the electromagnetic field characteristics.

The sensor detects these changes and converts them into an electrical output signal proportional to the shaft position. The signal is then processed by a compatible Proximitor module and monitoring system for vibration and displacement analysis.

Because the probe does not physically contact the rotating component, it eliminates mechanical wear and provides reliable performance for long-term operation in demanding industrial environments.

3. What should be considered when installing the Bently Nevada 330104-00-09-10-01-05?

Proper installation is essential for achieving accurate and stable measurement results with the Bently Nevada 330104-00-09-10-01-05 Proximity Probe.

Before installation, the probe tip should be inspected to ensure that there is no contamination from oil, dust, or metallic particles. The mounting position should be stable, and the probe should be correctly aligned with the monitored shaft surface.

During wiring, the signal cable should be properly connected and protected from mechanical damage, strong vibration, and electromagnetic interference sources such as high-voltage power cables.

The probe is designed for standard industrial installation applications. Correct installation procedures help maintain reliable signal quality, improve measurement accuracy, and reduce false alarms in machinery protection systems.

4. What are the common causes of abnormal signals from the Bently Nevada 330104-00-09-10-01-05?

Abnormal signals from the Bently Nevada 330104-00-09-10-01-05 may be caused by incorrect installation, cable problems, improper probe positioning, mechanical faults, or monitoring system issues.

The first step in troubleshooting is to verify that the probe installation condition has not changed and that the probe maintains the correct measurement relationship with the rotating shaft.

The signal cable should also be checked for damage, loose connections, insulation problems, or signal interruptions. In addition, the connected Proximitor module and monitoring equipment should be inspected to confirm proper operation.

Mechanical conditions should also be considered. Excessive shaft vibration, rotor imbalance, bearing wear, shaft deformation, or coupling problems may cause abnormal measurement signals. A complete diagnosis should combine sensor inspection with mechanical equipment analysis.

5. How does the Bently Nevada 330104-00-09-10-01-05 integrate with the 3300 XL monitoring system?

The Bently Nevada 330104-00-09-10-01-05 3300 XL 8 mm Proximity Probe is designed to work with the Bently Nevada 3300 XL monitoring system to provide continuous machinery condition monitoring.

The proximity probe detects shaft displacement and vibration changes, then sends the measurement signal to a Proximitor module. The module processes the signal and transfers the information to the machinery protection system for analysis.

The monitoring system can evaluate vibration trends, shaft position changes, and abnormal operating conditions. This allows maintenance personnel to identify potential equipment problems before they develop into serious failures.

This integrated monitoring solution is widely used in industries where equipment reliability and continuous operation are critical.

6. How can you verify whether the Bently Nevada 330104-00-09-10-01-05 is operating correctly?

To verify whether the Bently Nevada 330104-00-09-10-01-05 Proximity Probe is operating correctly, users should check the sensor signal output, installation condition, and monitoring system feedback.

A properly functioning probe should provide stable and consistent signals that correspond to actual shaft movement. If the signal shows unexpected fluctuations, sudden loss, or abnormal deviation during normal machine operation, further inspection is required.

Maintenance personnel can review real-time monitoring values and historical trend data to compare current equipment behavior with normal operating conditions.

If abnormal signal behavior occurs, the probe installation, cable connection, Proximitor module, and monitoring configuration should be checked to ensure the complete measurement system is functioning correctly.

7. What advantages does the Bently Nevada 330104-00-09-10-01-05 provide for predictive maintenance?

The Bently Nevada 330104-00-09-10-01-05 provides reliable measurement performance for predictive maintenance applications due to its advanced eddy current non-contact sensing technology.

The probe can continuously monitor shaft vibration and displacement without physical contact with rotating components. This eliminates mechanical wear and allows reliable operation in high-speed industrial machinery.

By collecting long-term operating data, maintenance teams can analyze equipment condition trends and identify early signs of mechanical degradation. Problems such as rotor imbalance, shaft movement abnormalities, and bearing-related issues can be detected before causing major equipment damage.

Using continuous monitoring data improves maintenance planning, reduces unexpected shutdowns, and increases the service life of critical rotating equipment.

8. How can measurement reliability be improved when using the Bently Nevada 330104-00-09-10-01-05?

To improve measurement reliability of the Bently Nevada 330104-00-09-10-01-05 Proximity Probe, users should ensure correct installation, stable electrical connections, and proper operating conditions.

During installation, the probe should be positioned according to system requirements, and the signal cable should be protected from mechanical stress, vibration, and electromagnetic interference.

Regular maintenance should include checking the probe condition, cable integrity, and monitoring system performance. Any abnormal signal changes should be investigated promptly to prevent incorrect equipment condition evaluation.

In addition, machinery health assessments should be based on long-term trend analysis rather than individual measurements. Proper installation, routine inspection, and continuous monitoring allow the probe to provide accurate and dependable data for industrial machinery protection and predictive maintenance systems.
