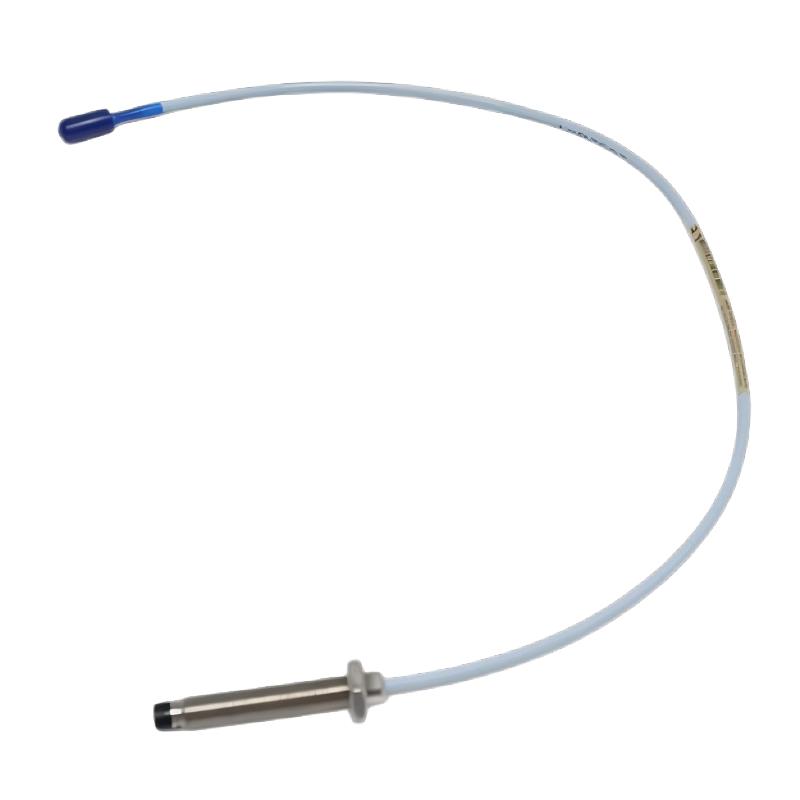

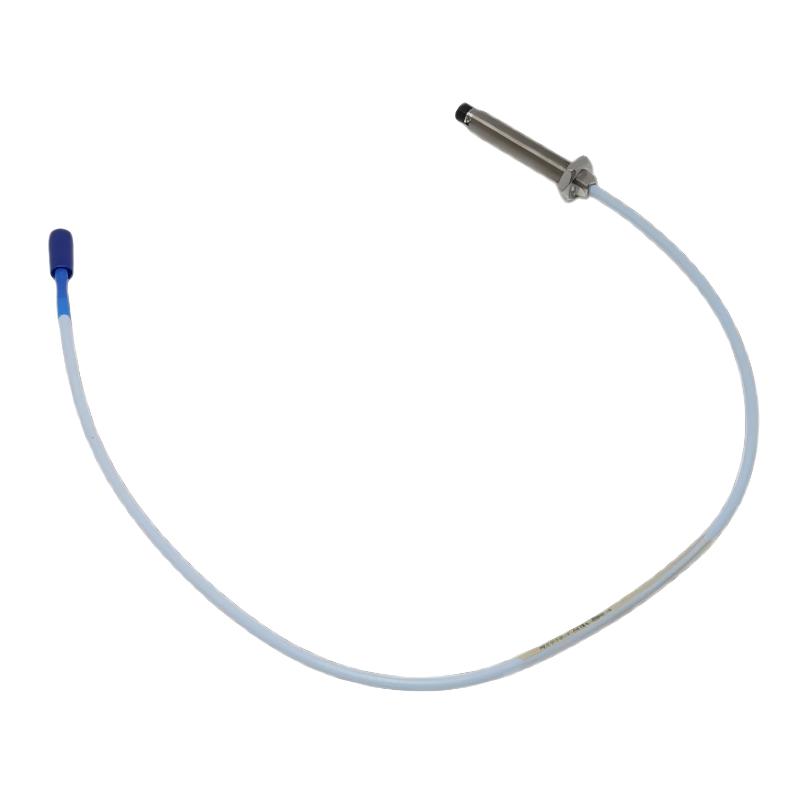

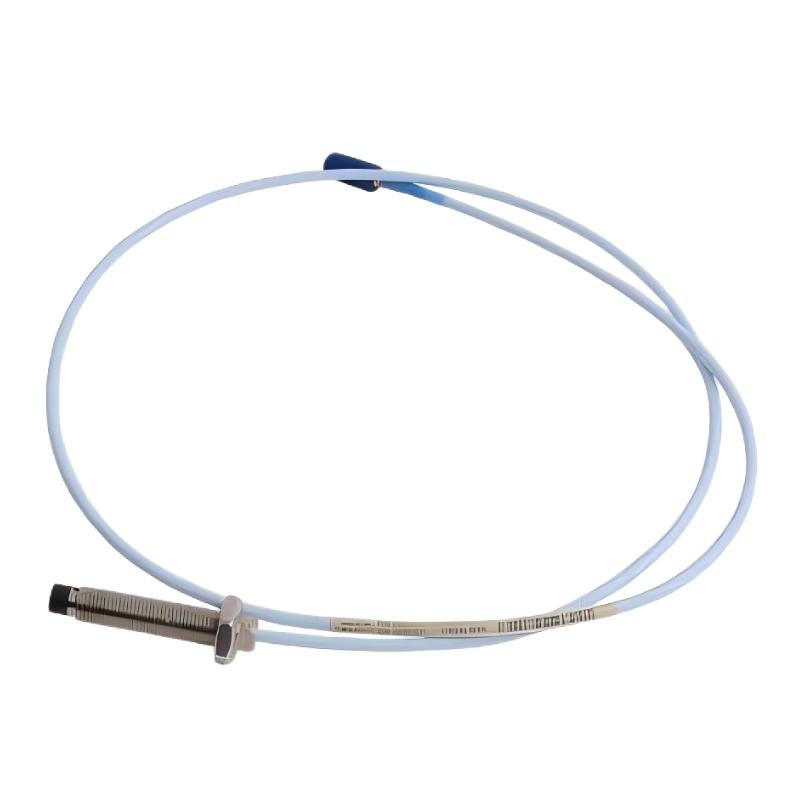

1. What are the main applications of the Bently Nevada 330707-00-10-10-02-00 3300 XL 11 mm Proximity Probe?

The Bently Nevada 330707-00-10-10-02-00 3300 XL 11 mm Proximity Probe is mainly used for monitoring the operating condition of large industrial rotating machinery. It is designed to measure shaft vibration, shaft displacement, and rotational position changes in critical equipment.

This proximity probe is commonly applied in steam turbines, gas turbines, compressors, pumps, generators, and other large mechanical systems where accurate shaft monitoring is required. The condition of rotating shafts directly affects equipment reliability, and continuous monitoring helps prevent unexpected mechanical failures.

The probe detects changes in the distance between the sensor tip and the rotating shaft surface, converting mechanical movement into electrical signals. These signals are analyzed by compatible monitoring systems to evaluate machine health.

By tracking vibration and displacement trends, maintenance teams can identify early problems such as rotor imbalance, shaft misalignment, bearing degradation, or abnormal operating conditions, allowing timely maintenance actions.

2. How does the Bently Nevada 330707-00-10-10-02-00 Proximity Probe work?

The Bently Nevada 330707-00-10-10-02-00 operates based on eddy current sensing technology, which enables accurate non-contact measurement of shaft movement.

The probe generates a high-frequency electromagnetic field through its internal sensing element. When the probe is positioned near a conductive rotating shaft, the electromagnetic field changes according to the distance between the probe and the shaft surface.

The sensor detects these changes and converts them into an electrical output signal proportional to shaft displacement. The signal is then transmitted to a compatible Proximitor module for processing and monitoring.

Because the probe does not physically contact the rotating component, it avoids mechanical wear and provides stable operation in high-speed industrial environments. This makes it suitable for continuous machinery protection and condition monitoring applications.

3. What should be considered when installing the Bently Nevada 330707-00-10-10-02-00?

Proper installation is essential to ensure accurate measurement performance of the Bently Nevada 330707-00-10-10-10-02-00 Proximity Probe.

Before installation, the probe surface should be checked to ensure it is clean and free from oil, dust, or metallic contamination that may affect signal quality. The probe should be securely installed and correctly positioned relative to the monitored shaft.

The signal cable should be connected properly and protected from mechanical damage, excessive vibration, and electromagnetic interference sources such as high-voltage equipment.

The installation environment should also meet industrial operating requirements to maintain stable performance. Correct installation helps improve measurement accuracy, reduce signal instability, and ensure reliable operation of the complete monitoring system.

4. What are the common causes of abnormal signals from the Bently Nevada 330707-00-10-10-02-00?

Abnormal signals from the Bently Nevada 330707-00-10-10-02-00 Proximity Probe may be caused by installation problems, cable faults, mechanical conditions, or monitoring system issues.

A common cause is incorrect probe positioning, which can result in unstable or inaccurate measurement signals. The probe mounting condition should be checked to ensure that it has not shifted during equipment operation.

Cable problems such as damaged insulation, loose connections, or signal interruption can also affect measurement reliability. The connected Proximitor module and monitoring system should be inspected to confirm proper operation.

Mechanical problems including excessive shaft vibration, rotor imbalance, bearing wear, or shaft movement abnormalities may also produce unusual signals. Effective troubleshooting requires checking both the sensor system and the mechanical equipment condition.

5. How does the Bently Nevada 330707-00-10-10-02-00 work with the 3300 XL monitoring system?

The Bently Nevada 330707-00-10-10-02-00 3300 XL 11 mm Proximity Probe is designed to operate with the Bently Nevada 3300 XL monitoring system for continuous machinery condition monitoring.

The probe collects shaft vibration and displacement information and sends the signal to a Proximitor module. The module processes the signal and provides accurate measurement data to the machinery protection system.

The monitoring system analyzes vibration levels, shaft movement trends, and abnormal operating conditions. Engineers can use this information to evaluate machine health and determine whether maintenance actions are required.

This integrated solution provides reliable protection for critical rotating equipment and helps improve operational safety, equipment availability, and maintenance efficiency.

6. How can you verify whether the Bently Nevada 330707-00-10-10-02-00 is operating correctly?

To verify whether the Bently Nevada 330707-00-10-10-02-00 Proximity Probe is operating correctly, users should check the probe signal output, installation condition, and monitoring system response.

A properly functioning probe should provide stable and consistent output signals corresponding to actual shaft movement. If abnormal fluctuations, signal loss, or unexpected changes occur, the sensor system should be inspected.

Maintenance personnel can review real-time measurements and historical trend data to determine whether the signal behavior matches normal equipment operation.

If problems are detected, the probe installation, cable connection, Proximitor module, and monitoring configuration should be checked carefully. Regular inspection helps ensure reliable operation of the entire machinery monitoring system.

7. What advantages does the Bently Nevada 330707-00-10-10-02-00 provide for industrial predictive maintenance?

The Bently Nevada 330707-00-10-10-02-00 provides important advantages for industrial predictive maintenance because of its reliable non-contact measurement capability.

The probe continuously monitors shaft vibration and displacement without physical contact with rotating components. This reduces mechanical wear and allows long-term operation in demanding industrial environments.

The collected data helps maintenance teams analyze equipment condition trends and identify potential issues before they lead to major failures. Problems such as rotor instability, shaft movement changes, and abnormal vibration patterns can be detected at an early stage.

Using continuous condition monitoring improves maintenance planning, reduces unexpected downtime, and helps extend the service life of critical rotating machinery.

8. How can measurement reliability be improved when using the Bently Nevada 330707-00-10-10-02-00?

To improve the measurement reliability of the Bently Nevada 330707-00-10-10-02-00 Proximity Probe, users should ensure proper installation, stable electrical connections, and suitable operating conditions.

During installation, the probe position should be adjusted according to system requirements, and the signal cable should be protected from vibration, mechanical stress, and electromagnetic interference.

Regular maintenance should include checking the probe condition, cable integrity, and monitoring system performance. Any unusual signal changes should be investigated promptly to prevent incorrect equipment condition evaluation.

In addition, machinery analysis should be based on long-term monitoring trends rather than individual measurements. Proper installation, routine inspection, and continuous data analysis allow the probe to provide accurate and reliable information for machinery protection and predictive maintenance systems.
