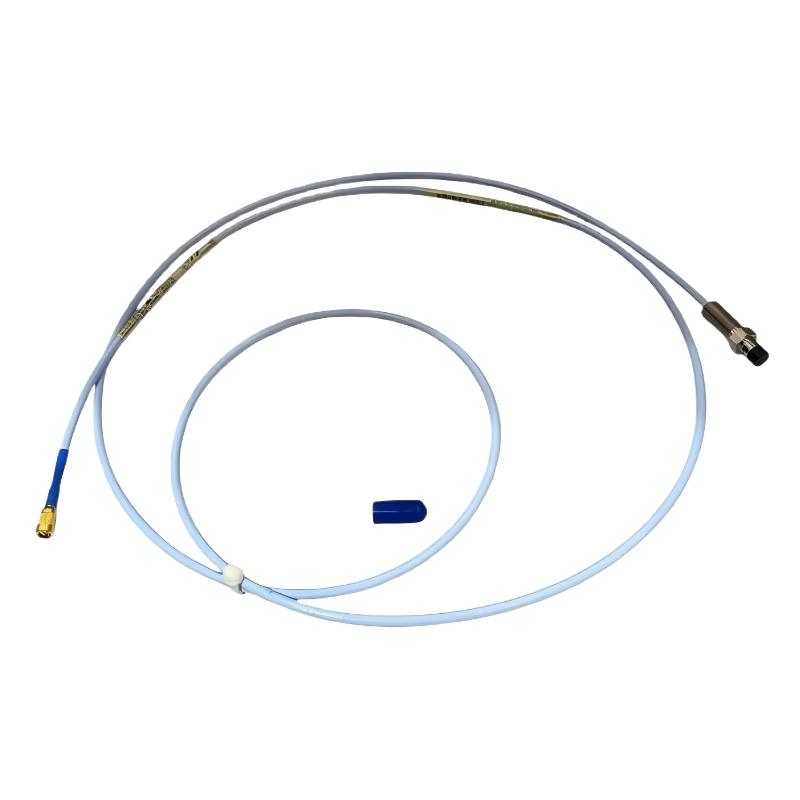

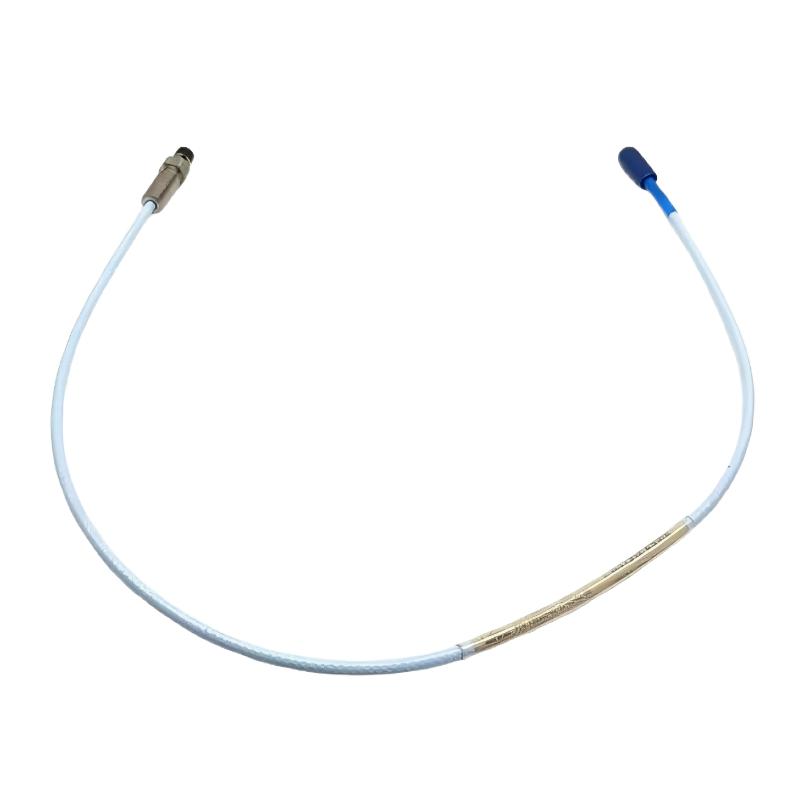

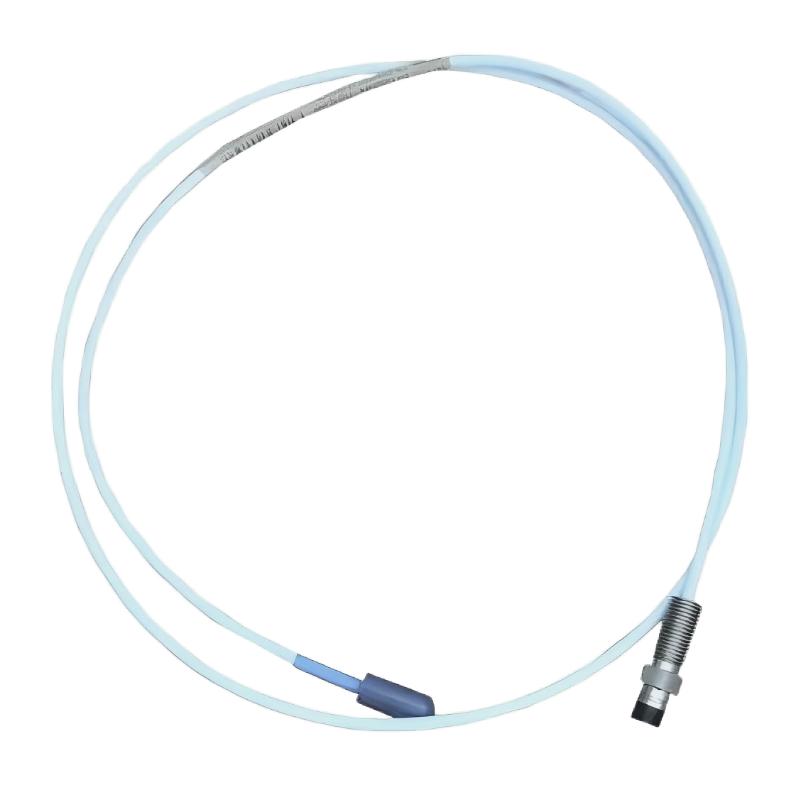

Q1: What is the primary function of the Bently Nevada 3300 XL 8 mm Reverse Mount Probe?
A1: The primary function of this probe is to provide high-precision, non-contact measurement of the gap between the probe tip and a conductive rotating shaft. It uses eddy current technology to convert extremely small changes in shaft position into a calibrated analog voltage signal. This allows continuous monitoring of shaft vibration, radial displacement, and axial movement in rotating machinery. In industrial protection systems, the probe serves as a critical sensor that enables early detection of abnormal mechanical conditions such as imbalance, misalignment, rotor instability, bearing wear, or thermal growth, helping prevent unexpected equipment failures.

Q2: Where is this reverse mount probe typically used?
A2: This probe is widely used in heavy industrial sectors including power generation, oil and gas, petrochemical processing, steel production, pulp and paper manufacturing, and marine propulsion systems. It is commonly installed on critical rotating equipment such as turbines, compressors, pumps, and large electric motors. The reverse mount configuration is particularly useful in applications where space constraints or mechanical obstructions prevent conventional probe installation.

Q3: What does “Reverse Mount” mean in practical installation?
A3: Reverse Mount refers to an installation method where the probe is mounted from the opposite direction compared to standard probe configurations. In practical terms, this allows engineers to install the probe in tight or obstructed spaces where direct access to the shaft is not available. It provides greater flexibility in mechanical design integration while maintaining measurement accuracy and system reliability.

Q4: How does this probe operate within a condition monitoring system?
A4: In a condition monitoring system, the probe continuously measures real-time shaft motion including vibration, radial displacement, and axial position changes. The analog signal is transmitted to monitoring modules where it is processed and analyzed. The system compares real-time data with baseline conditions to detect abnormal trends. When predefined thresholds are exceeded, alarms or automatic protection actions can be triggered, enabling predictive maintenance and preventing costly machinery failures.

Q5: What factors can affect measurement accuracy and stability?
A5: Several factors can influence performance, including probe-to-shaft gap accuracy, shaft material properties, surface finish, electromagnetic interference, temperature variations, and mechanical vibration. Installation quality is also critical; misalignment or unstable mounting can introduce measurement errors. In addition, poor grounding or damaged cable shielding may lead to noise or signal drift. Proper installation, calibration, and regular inspection are essential for maintaining stable and accurate measurements.

Q6: Can this probe operate continuously in harsh industrial environments?
A6: Yes, the probe is specifically designed for continuous 24/7 operation in demanding industrial environments. It is built using rugged materials and industrial-grade electronics capable of withstanding vibration, heat, humidity, and electrical noise over long periods. This makes it suitable for mission-critical machinery where uninterrupted monitoring is required. When correctly installed and maintained, it delivers stable and reliable performance throughout long operational lifecycles.

Q7: What are the key installation best practices?
A7: Proper installation requires accurate positioning of the probe relative to the rotating shaft to ensure correct measurement of the gap. The mounting structure must be rigid to avoid vibration-induced movement. Cable routing should avoid sharp bends, mechanical stress, and proximity to high-voltage equipment to minimize electromagnetic interference. Proper grounding and shielding are essential to maintain signal integrity. After installation, system calibration and verification should be performed to ensure accurate signal conversion.

Q8: How can long-term reliability of the probe system be ensured?
A8: Long-term reliability depends on correct installation, stable operating conditions, and preventive maintenance. The probe should be periodically inspected to ensure secure mounting and correct alignment. Cable conditions should be checked for wear or damage, and signal trends should be monitored for early signs of drift. Maintaining a clean environment free from oil contamination, moisture, and excessive temperature variation also improves service life. Regular calibration and system validation further ensure consistent long-term performance.
