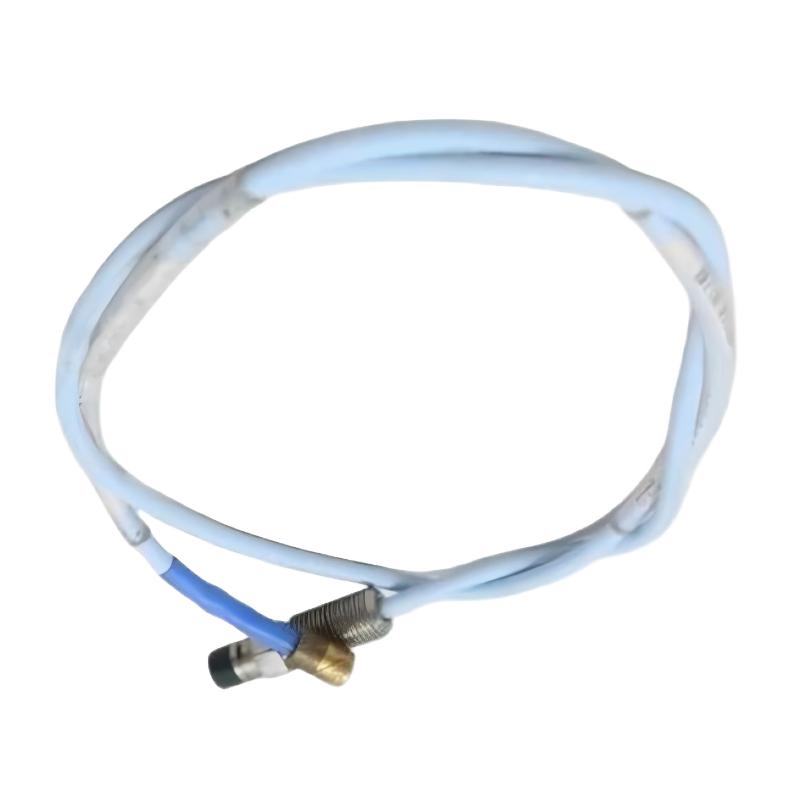

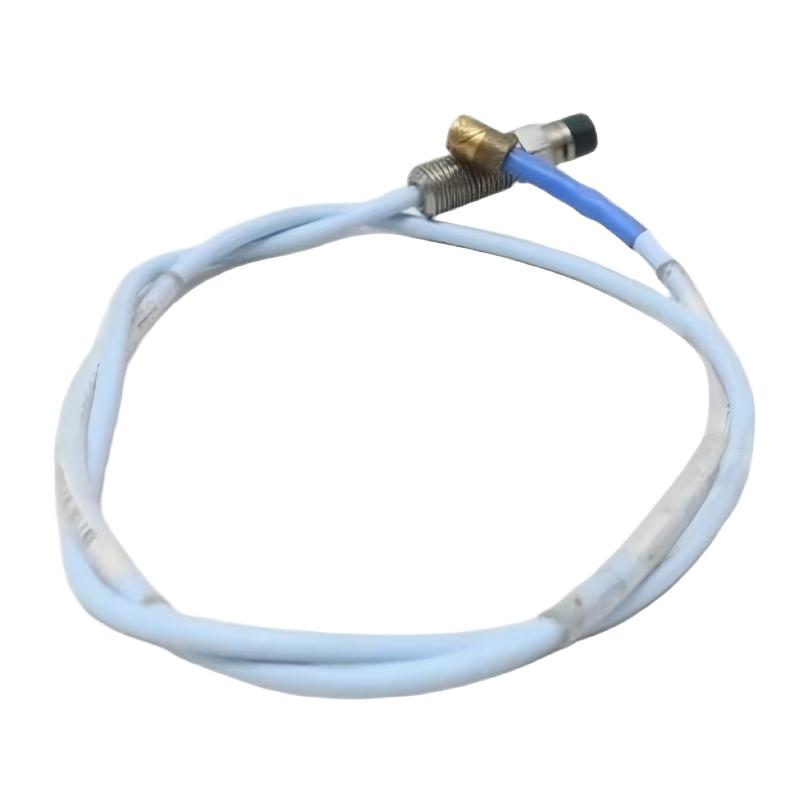

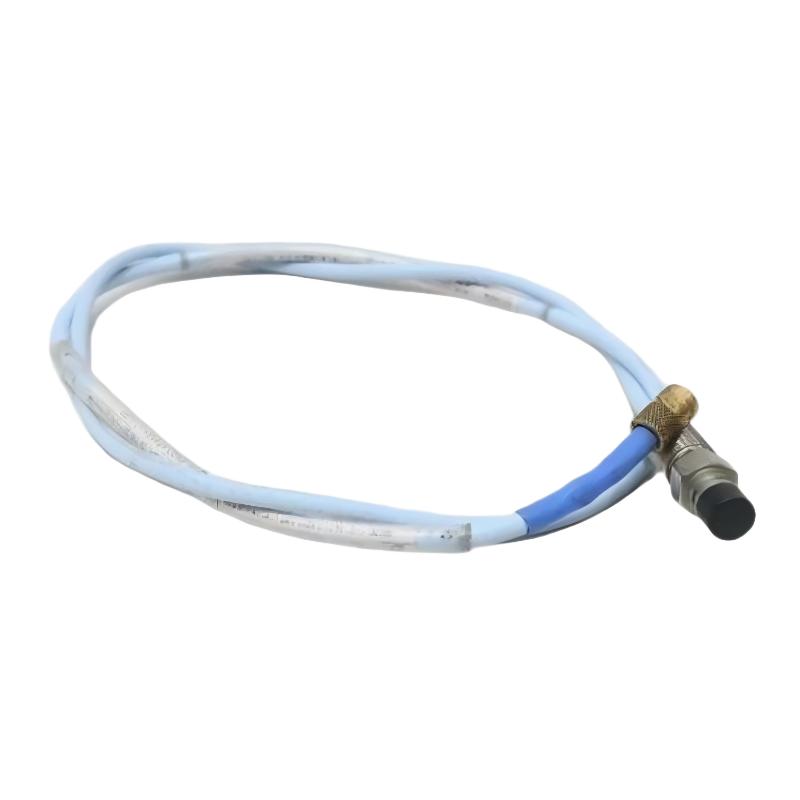

Q1: What is the primary function of the Bently Nevada 3300 XL 8 mm Reverse Mount Probe?
A1: The primary function of this probe is to provide highly accurate, non-contact measurement of the gap between the probe tip and a conductive rotating shaft using eddy current technology. It converts very small changes in shaft position into a calibrated analog voltage signal. This signal is used by machinery monitoring systems to track shaft vibration, radial displacement, and axial movement in real time. In industrial protection applications, it serves as a critical sensor that enables early detection of abnormal mechanical conditions such as imbalance, misalignment, bearing wear, rotor instability, or thermal growth, helping prevent unexpected equipment failures and costly downtime.

Q2: Where is this reverse mount probe typically used?
A2: This probe is widely used in heavy industrial environments including power generation plants, oil and gas facilities, petrochemical refineries, steel production, pulp and paper mills, and marine propulsion systems. It is typically installed on critical rotating equipment such as turbines, compressors, pumps, and large electric motors. The reverse mount design is especially useful in installations where space is limited or where direct access to the measurement point is obstructed by mechanical structures.

Q3: What does “Reverse Mount” mean in practical engineering terms?
A3: Reverse Mount refers to a probe installation method where the sensor is mounted from the opposite direction compared to standard forward-facing configurations. In practical engineering terms, this allows the probe to be installed in confined spaces or complex machine geometries where conventional installation is not possible. It provides greater flexibility in mechanical design and ensures that accurate measurement can still be achieved even in structurally constrained environments.

Q4: How does this probe operate within a condition monitoring system?
A4: Within a condition monitoring system, the probe continuously measures real-time shaft motion, including vibration, radial displacement, and axial position changes. The analog signal generated by the probe is transmitted to monitoring modules for processing and analysis. The system compares current measurements against baseline operating conditions to identify abnormal trends. When thresholds are exceeded, alarms or automatic protective actions can be triggered. This supports predictive maintenance strategies and enhances overall equipment reliability and safety.

Q5: What factors can affect measurement accuracy and stability?
A5: Several factors can influence measurement performance, including probe-to-shaft gap accuracy, shaft material properties, surface condition, electromagnetic interference, temperature fluctuations, and mechanical vibration. Installation quality is also critical; misalignment or unstable mounting can introduce errors. In addition, poor grounding or damaged cable shielding may introduce electrical noise or signal drift. Proper installation practices, calibration, and periodic inspection are essential to ensure long-term measurement stability and accuracy.

Q6: Can this probe operate continuously in harsh industrial environments?
A6: Yes, this probe is specifically designed for continuous 24/7 operation in demanding industrial environments. It is built using rugged materials and industrial-grade electronics capable of withstanding long-term exposure to vibration, heat, humidity, and electrical noise. It is widely used in mission-critical machinery where uninterrupted monitoring is essential. When properly installed and maintained, it delivers stable performance over long operational lifecycles.

Q7: What are the key installation best practices for this probe?
A7: Proper installation requires precise positioning of the probe relative to the rotating shaft to ensure correct measurement of the gap. The mounting structure must be rigid and stable to avoid vibration-induced movement. Cable routing should avoid sharp bends, mechanical stress, and proximity to high-voltage equipment to minimize electromagnetic interference. Proper grounding and shielding are essential for maintaining signal integrity. After installation, system calibration and verification should be performed to ensure accurate conversion of signal output into physical displacement values.

Q8: How can long-term reliability of the probe system be ensured?
A8: Long-term reliability depends on correct installation, stable operating conditions, and regular preventive maintenance. The probe should be periodically inspected to ensure secure mounting and correct alignment. Cable condition should be checked for wear, insulation damage, or connector looseness. Monitoring signal trends over time helps detect early signs of drift or instability. Maintaining a clean operating environment free from moisture, oil contamination, and excessive temperature variation also improves service life. Routine calibration and system validation further ensure consistent performance throughout its lifecycle.
