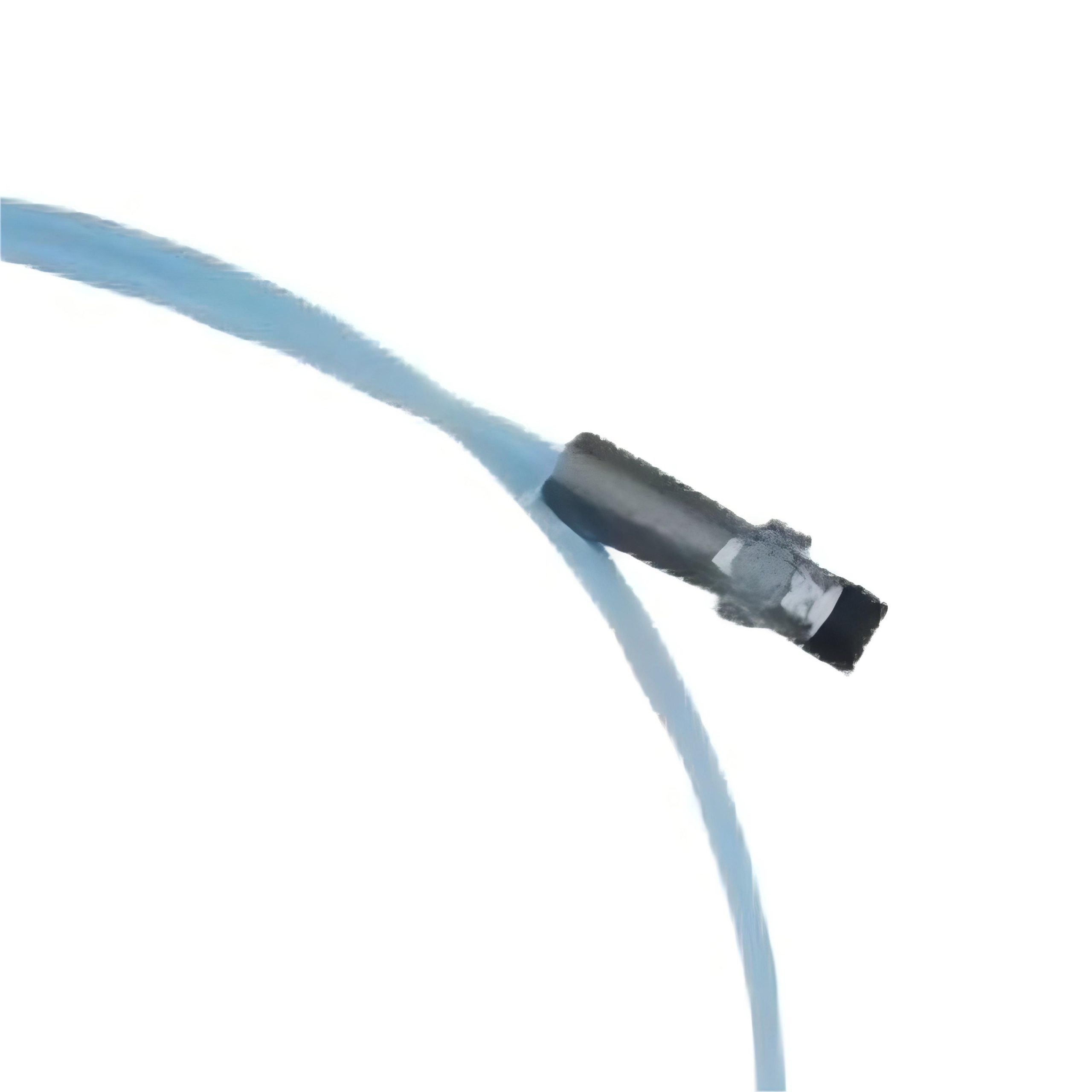

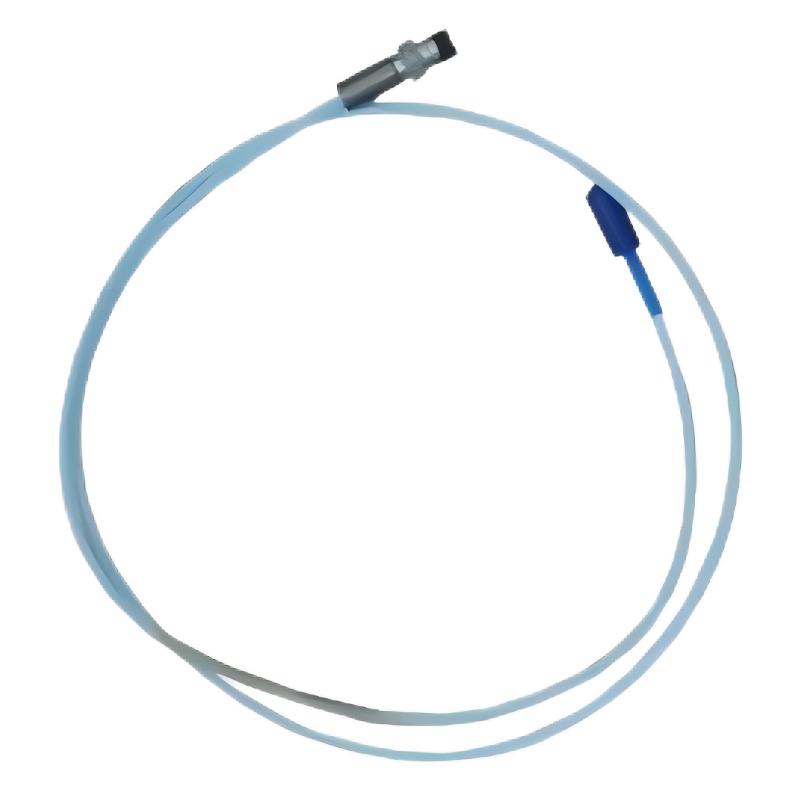

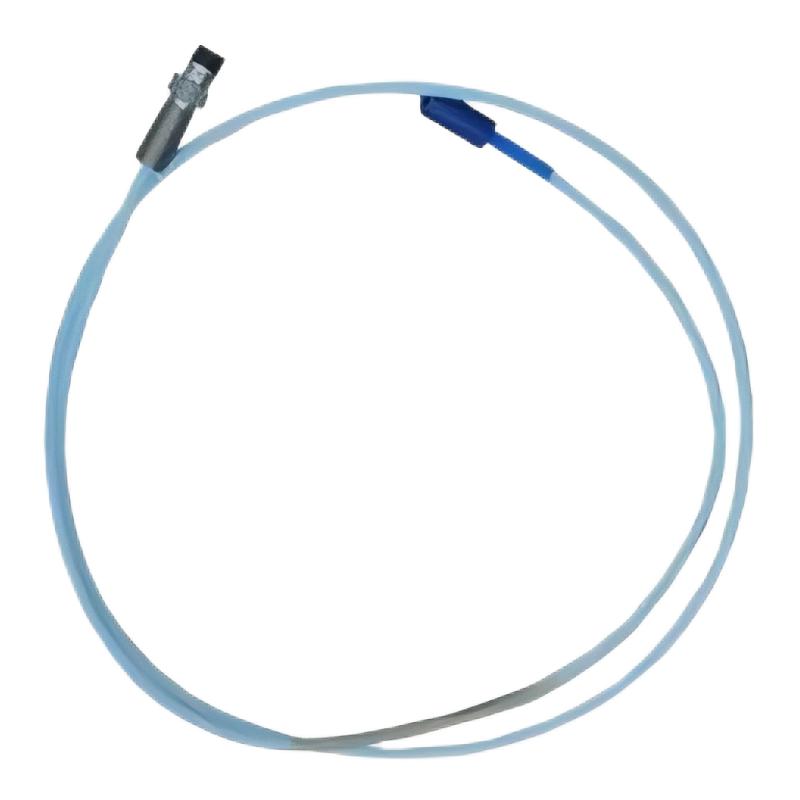

Q1: What is the primary function of the Bently Nevada 330171-00-47-10-01-05 proximity probe?
A: The primary function of this proximity probe is to provide highly accurate, continuous, non-contact measurement of shaft vibration, shaft displacement, and clearance (gap) variation in rotating machinery. It operates based on eddy current technology, where a high-frequency electromagnetic field is generated at the probe tip and interacts with the conductive shaft surface. As the shaft moves dynamically during operation, even at a microscopic level, the electromagnetic field changes proportionally. These changes are converted into a voltage signal that represents real-time mechanical motion. This signal is then processed by a Bently Nevada 3300 proximitor system to deliver reliable condition monitoring data, which is essential for machinery protection and diagnostic analysis.

Q2: Where is this probe typically used in industrial environments?
A: This probe is widely deployed in critical rotating equipment across industries such as power generation, oil and gas, petrochemical processing, metallurgy, pulp and paper, and heavy industrial manufacturing. Typical applications include steam turbines, gas turbines, centrifugal compressors, large industrial pumps, electric motors, and cooling fans. These machines operate continuously under high mechanical and thermal stress, where even small deviations in vibration or shaft position can indicate early-stage mechanical degradation. The probe provides continuous real-time data that is essential for early fault detection, condition-based maintenance strategies, and overall asset reliability management.

Q3: What are the advantages of eddy current measurement technology compared to contact-based sensors?
A: Eddy current technology offers several significant advantages over traditional contact-based sensing methods. First, it is completely non-contact, meaning there is no physical wear between the sensor and the rotating shaft, which greatly improves long-term reliability. Second, it provides extremely high resolution and fast dynamic response, allowing detection of very small displacement changes in real time. Third, it performs exceptionally well in harsh industrial environments, including high temperature, oil contamination, vibration, and pressure variations. These characteristics make it particularly suitable for continuous monitoring of high-speed rotating machinery where accuracy and durability are critical.

Q4: What factors can cause unstable or inaccurate measurement signals?
A: Signal instability can result from several mechanical, electrical, or environmental factors. Common mechanical causes include incorrect probe gap setting, loose mounting, or physical misalignment with the shaft. Surface conditions such as oil buildup, corrosion, or mechanical wear on the shaft can also affect signal linearity. On the electrical side, poor cable shielding, loose connectors, or damaged insulation can introduce noise or signal drift. Additionally, strong electromagnetic interference from nearby high-power equipment, variable frequency drives, or improper grounding practices can significantly impact measurement stability. A systematic diagnostic approach is required to isolate and correct the root cause.

Q5: What are the key installation requirements for this probe?
A: Proper installation is critical to ensure accurate and stable performance. The probe must be installed with a precisely controlled air gap relative to the shaft surface, as this gap defines the measurement sensitivity and linearity. It must be rigidly fixed to prevent movement caused by vibration or thermal expansion during operation. Cable routing should avoid proximity to high-voltage power lines or switching equipment to minimize electromagnetic interference. In addition, correct axial alignment is required so that the probe measures the intended direction of motion. Even small installation deviations can lead to significant measurement errors or signal distortion over time.

Q6: Is this probe compatible with other monitoring systems outside Bently Nevada?
A: This probe is specifically engineered for use within the Bently Nevada 3300 system ecosystem, including its matched proximitor and monitoring modules. Its calibration characteristics, output behavior, and electrical response curves are tightly integrated with the system design. While it may physically connect to other systems in some cases, such usage is not recommended because it can result in incorrect scaling, inaccurate displacement readings, or unstable signal behavior. For reliable and certified performance, it should always be used within its intended system architecture.

Q7: How can long-term operational reliability of the probe be improved?
A: Long-term reliability depends on correct installation practices, stable operating conditions, and regular inspection. The probe must always operate within its specified measurement range to avoid saturation or loss of sensitivity. Mechanical protection is important to prevent impact, vibration-induced loosening, or misalignment over time. Electrical connections should be periodically checked for corrosion, looseness, or insulation degradation. In harsh industrial environments, additional protective routing or shielding may be required. Monitoring long-term signal trends can also help detect early degradation before it impacts system performance.

Q8: Why is this proximity probe critical in predictive maintenance systems?
A: In predictive maintenance systems, the proximity probe plays a foundational role because it provides direct measurement of the mechanical behavior of rotating machinery. Most developing faults—such as bearing wear, rotor imbalance, misalignment, or mechanical looseness—first manifest as subtle changes in vibration or shaft displacement patterns. By continuously capturing these high-resolution signals, the probe enables early detection of abnormal trends long before catastrophic failure occurs. This allows maintenance teams to schedule repairs proactively, reduce unplanned downtime, extend equipment life, and significantly improve overall plant safety and operational efficiency.
