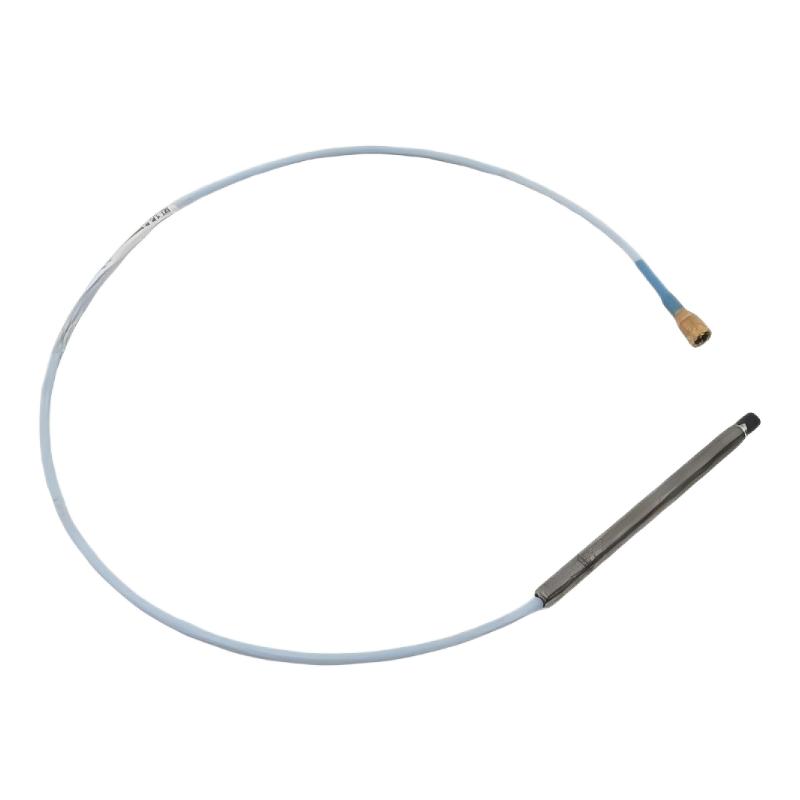

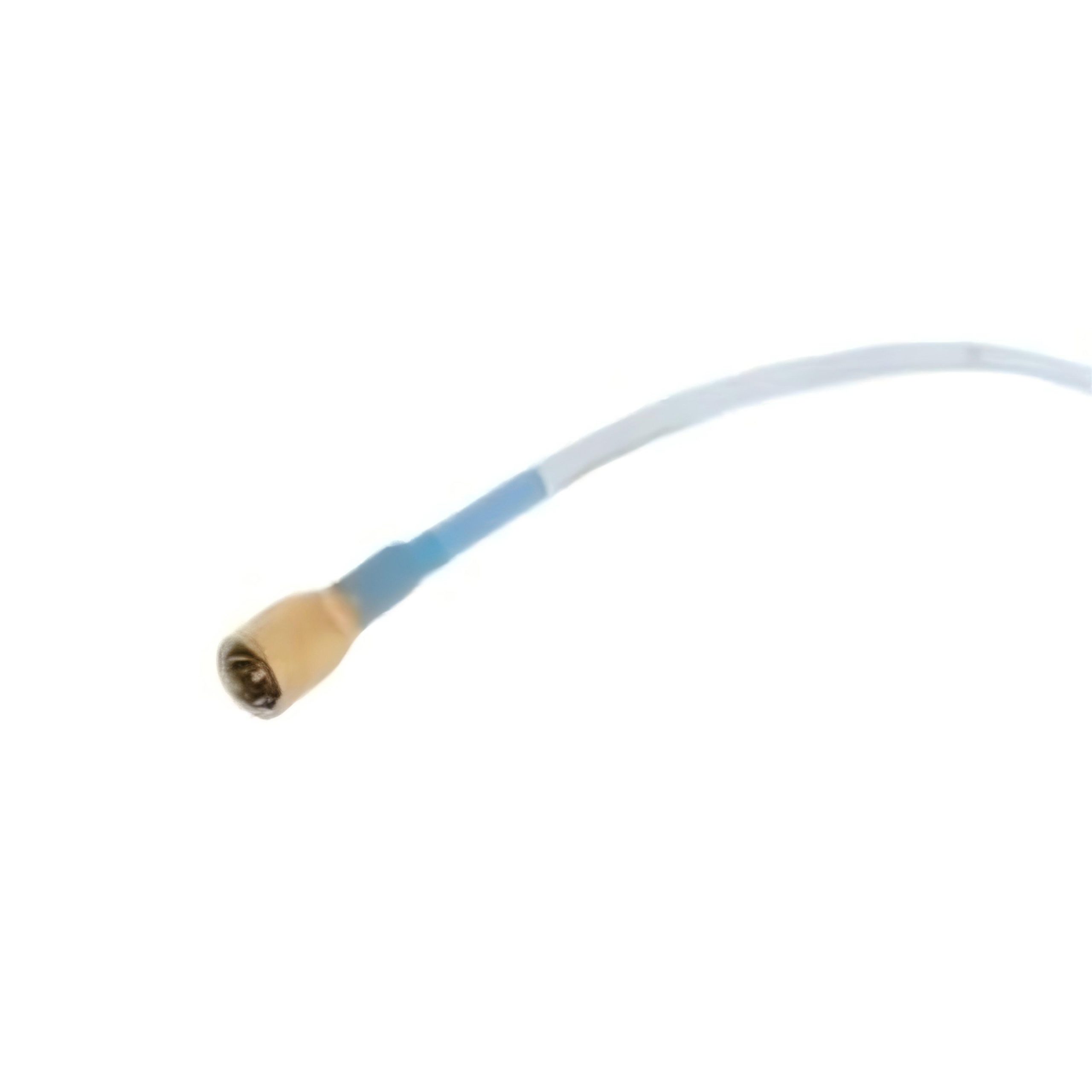

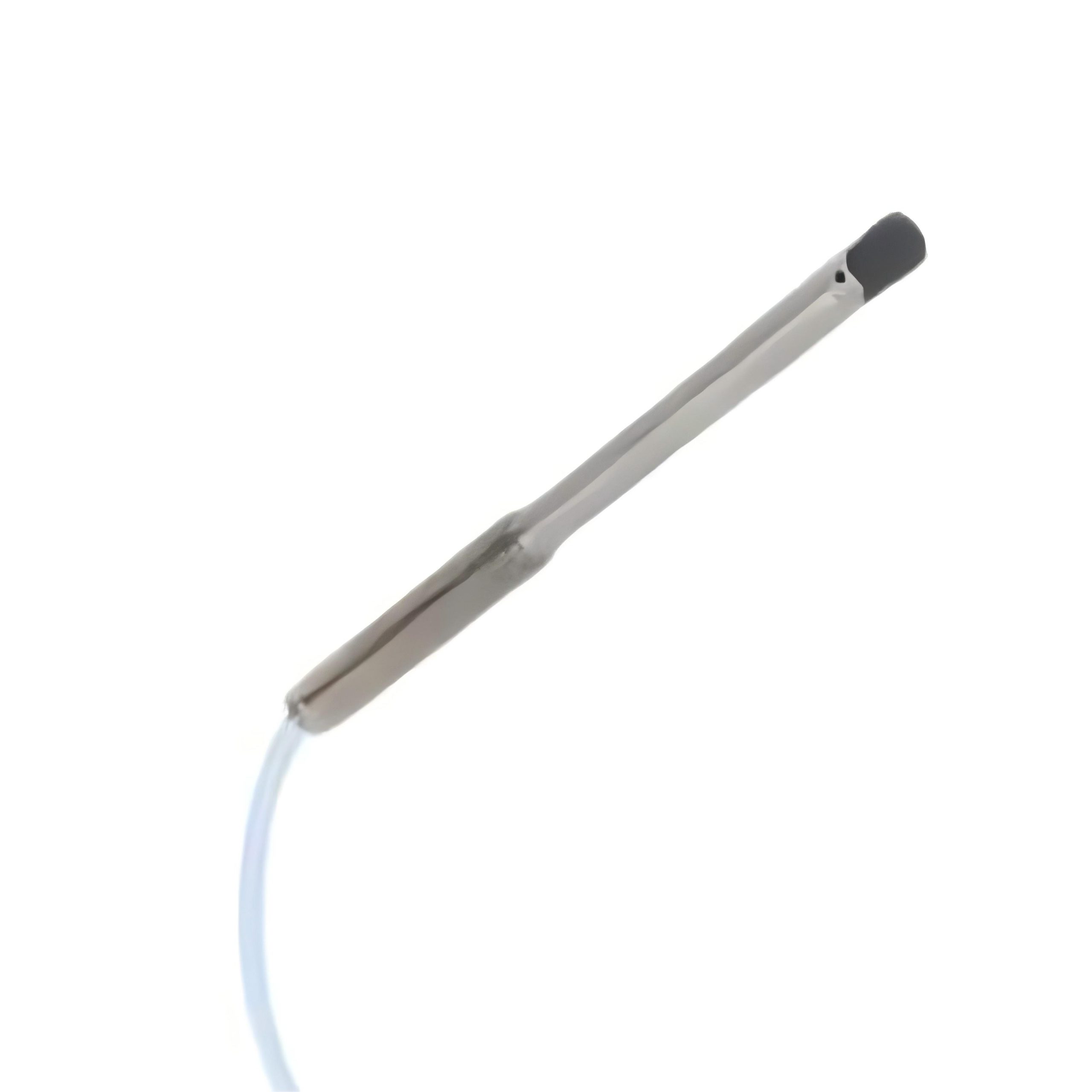

Q1: What is the primary function of the Bently Nevada 330171-XX-XX-10-01-05 proximity probe?
A: The primary function of this proximity probe is to provide highly accurate, continuous, non-contact measurement of shaft vibration, shaft displacement, and clearance (gap) variations in rotating machinery. It works on the eddy current principle, where a high-frequency electromagnetic field is generated at the probe tip and interacts with the conductive target surface (typically a rotating shaft). As the shaft moves dynamically—even at microscopic levels—the electromagnetic field changes proportionally. These changes are converted into a voltage signal that is processed by a Bently Nevada 3300 proximitor system. The result is precise real-time data used for machinery protection, condition monitoring, and diagnostic analysis, making it a core element in predictive maintenance strategies.

Q2: Where is this probe typically used in industrial environments?
A: This probe is widely used in critical rotating machinery across industries such as power generation, oil and gas, petrochemical processing, metallurgy, pulp and paper, and heavy industrial manufacturing. Typical applications include steam turbines, gas turbines, centrifugal compressors, large industrial pumps, electric motors, and cooling fans. These machines operate under continuous load and harsh conditions, where even small changes in vibration or shaft position can indicate early-stage mechanical issues. The probe provides continuous real-time data that supports early fault detection, condition-based maintenance, and long-term asset reliability management.

Q3: What are the advantages of eddy current measurement technology?
A: Eddy current technology offers several important advantages over contact-based sensing methods. First, it is completely non-contact, eliminating mechanical wear and extending service life. Second, it provides extremely high resolution and fast dynamic response, enabling detection of very small displacement changes in real time. Third, it performs reliably in harsh environments such as high temperature, oil contamination, vibration, and pressure fluctuations. These characteristics make it especially suitable for continuous monitoring of high-speed rotating machinery where stability and accuracy are critical.

Q4: What can cause unstable or abnormal measurement signals?
A: Signal instability may result from mechanical, electrical, or environmental factors. Common mechanical causes include incorrect probe gap setting, loose mounting, or misalignment with the shaft. Surface issues such as oil buildup, corrosion, or wear on the shaft can also distort the eddy current field. On the electrical side, poor grounding, damaged shielding, loose connectors, or cable degradation may introduce noise or signal drift. Additionally, strong electromagnetic interference from nearby high-power equipment, variable frequency drives, or improper system calibration can significantly affect signal stability. A structured troubleshooting process is required to identify the root cause accurately.

Q5: What are the key installation requirements for this probe?
A: Proper installation is essential for accurate and stable measurement. The probe must be installed with a precisely controlled air gap relative to the shaft surface, as this defines the measurement sensitivity and linearity. It must be rigidly mounted to prevent movement caused by vibration or thermal expansion. Cable routing should avoid proximity to high-voltage power lines, motors, and switching equipment to reduce electromagnetic interference. Correct axial alignment is also required so that the probe measures the intended vibration direction. Even small installation deviations can significantly impact signal accuracy and long-term reliability.

Q6: Is this probe compatible with other monitoring systems?
A: This probe is specifically designed for use within the Bently Nevada 3300 system ecosystem, including matched proximitor and monitoring modules. Its calibration characteristics, electrical response, and signal behavior are optimized for this platform. While physical connection may appear possible in some cases, using it outside its intended system is not recommended. Doing so may result in incorrect scaling, unstable output, or inaccurate displacement readings. For reliable and certified performance, it should always be used within the designated Bently Nevada system architecture.

Q7: How can long-term reliability of the probe be improved?
A: Long-term reliability depends on correct installation, stable operating conditions, and regular inspection. The probe must always operate within its specified measurement range to avoid signal distortion or sensitivity loss. Mechanical protection is necessary to prevent impact, vibration-induced loosening, or misalignment over time. Electrical connections should be periodically checked for corrosion, looseness, or insulation degradation. In harsh environments, additional protective routing or shielding may be required. Monitoring long-term signal trends can also help detect early degradation before it affects system performance.

Q8: Why is this proximity probe critical in predictive maintenance systems?
A: In predictive maintenance systems, the proximity probe plays a foundational role because it directly measures the mechanical behavior of rotating equipment. Most developing faults—such as bearing wear, rotor imbalance, misalignment, or mechanical looseness—first appear as subtle changes in vibration or shaft displacement patterns. By continuously capturing these high-resolution signals, the probe enables early detection of abnormal trends long before catastrophic failure occurs. This allows maintenance teams to take corrective actions proactively, reduce unplanned downtime, extend equipment lifespan, and significantly improve overall plant safety and operational efficiency.
