Technical Specifications

FAQ

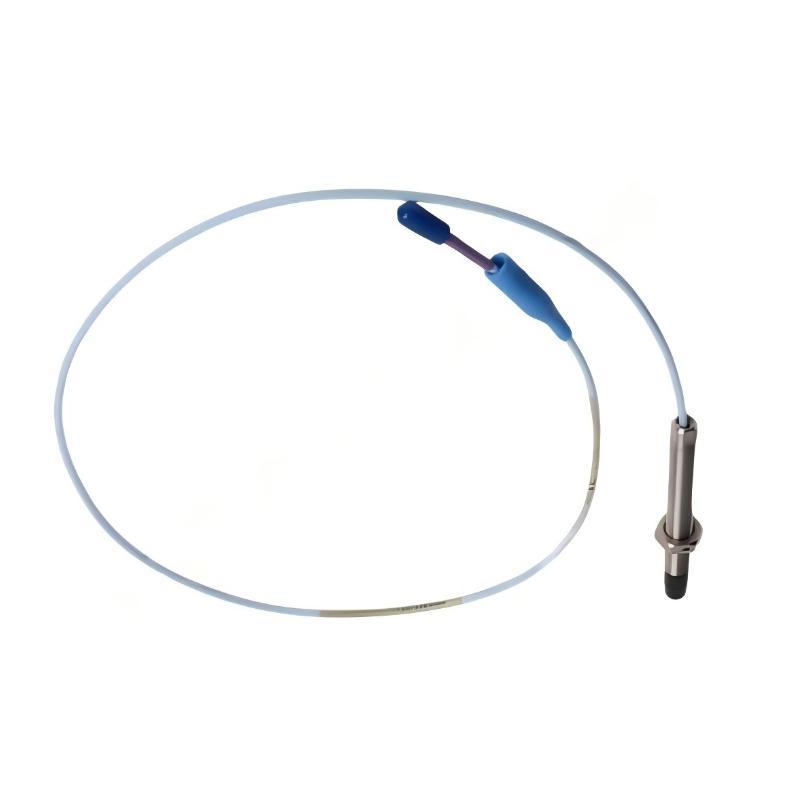

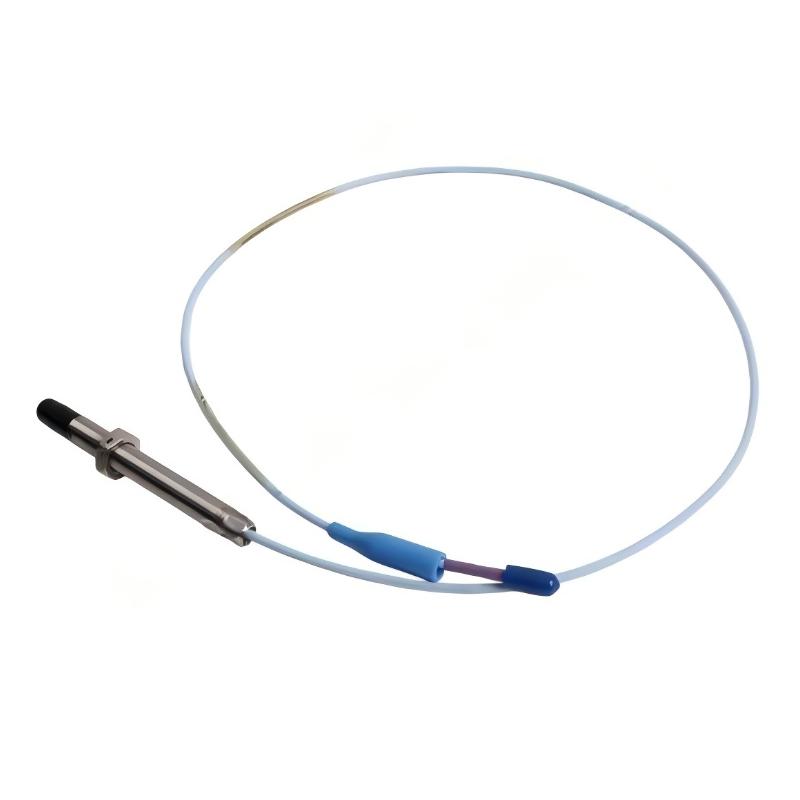

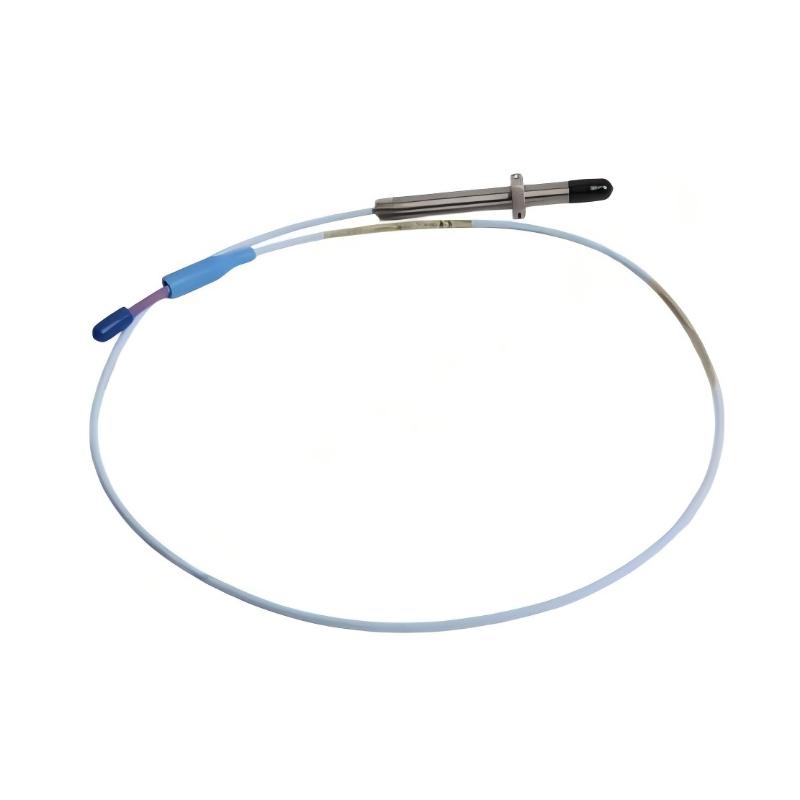

1. What is the main function of the 330701-00-15-10-02-05 Eddy Current Probe?
The 330701-00-15-10-02-05 probe is designed to provide precise, non-contact measurement of the distance between a rotating shaft and the probe tip. It uses eddy current technology to convert small changes in the gap into a proportional electrical voltage signal. This allows continuous monitoring of shaft vibration, radial displacement, and axial movement in high-speed rotating machinery. The data generated by the probe is essential for identifying early-stage mechanical issues such as imbalance, misalignment, shaft bow, or bearing wear. In industrial monitoring systems, this type of measurement is a core input for condition-based maintenance and machinery protection strategies.

2. What types of equipment typically use this probe?
This probe is widely used in critical rotating equipment such as steam turbines, gas turbines, centrifugal compressors, pumps, and large generators. These machines operate under demanding conditions including high speed, heavy load, and continuous operation. Because even small deviations in shaft position can indicate serious mechanical problems, precise monitoring is required. The probe is commonly deployed in power generation, oil and gas, petrochemical, and heavy industrial facilities where equipment reliability and uptime are essential.

3. How does eddy current measurement technology work in this probe?
The probe generates a high-frequency electromagnetic field at its sensing tip. When the probe is positioned near a conductive metal surface such as a rotating shaft, eddy currents are induced in the material. The strength of these eddy currents changes depending on the distance between the probe and the target surface. The system measures this variation and converts it into a voltage signal proportional to the gap. This allows highly accurate displacement measurement without physical contact, even in harsh environments with oil, vibration, or temperature variation.

4. How does this probe integrate into the 3300 XL system?
Within the Bently Nevada 3300 XL system, the probe works together with an extension cable and a proximitor driver. The probe collects raw displacement data from the shaft surface, the cable transmits the signal with minimal loss, and the proximitor converts it into a standardized output signal for monitoring and protection systems. This architecture ensures accurate, real-time monitoring of shaft dynamics and forms a complete machinery protection solution.

5. Why is non-contact measurement important in rotating machinery monitoring?
Non-contact measurement is critical because it eliminates mechanical wear and avoids interference with high-speed rotating components. Contact-based sensors would degrade quickly and could affect machine performance or safety. Eddy current probes provide stable long-term operation, unaffected by oil contamination, dust, or high vibration levels. This makes them particularly suitable for continuous monitoring of critical machinery operating under harsh industrial conditions.

6. What are the key installation considerations for this probe?
Proper installation requires precise calibration of the probe-to-shaft gap to ensure accurate signal output. The probe must be mounted on a rigid, vibration-free structure to avoid measurement errors. Alignment is important to ensure the probe is correctly oriented toward the shaft surface. Installation is typically performed near bearings where shaft motion best represents overall machine condition. Proper grounding and shielding of the cable system are also required to minimize electrical noise and signal distortion.

7. How is the probe used in machinery protection systems?
The probe continuously monitors shaft displacement in real time. When measured values exceed predefined alarm or shutdown thresholds, the protection system can initiate warnings or automatic trip actions. This helps prevent severe mechanical failures caused by conditions such as rotor instability, excessive vibration, or bearing damage. It plays a key role in ensuring safe operation of critical rotating machinery and reducing the risk of catastrophic downtime.

8. What is the industrial value of using this proximity probe?
The industrial value of this probe lies in its ability to deliver accurate, continuous, non-contact measurement of shaft behavior in real time. This enables early detection of mechanical abnormalities and supports predictive maintenance strategies. By improving visibility into machine condition, it reduces unplanned outages, extends equipment lifespan, and enhances operational reliability. In modern asset management systems, it is a foundational component for ensuring safe and efficient operation of high-value rotating equipment.
