1. What is the main function of the 330701-00-15-50-01-CN Eddy Current Probe?

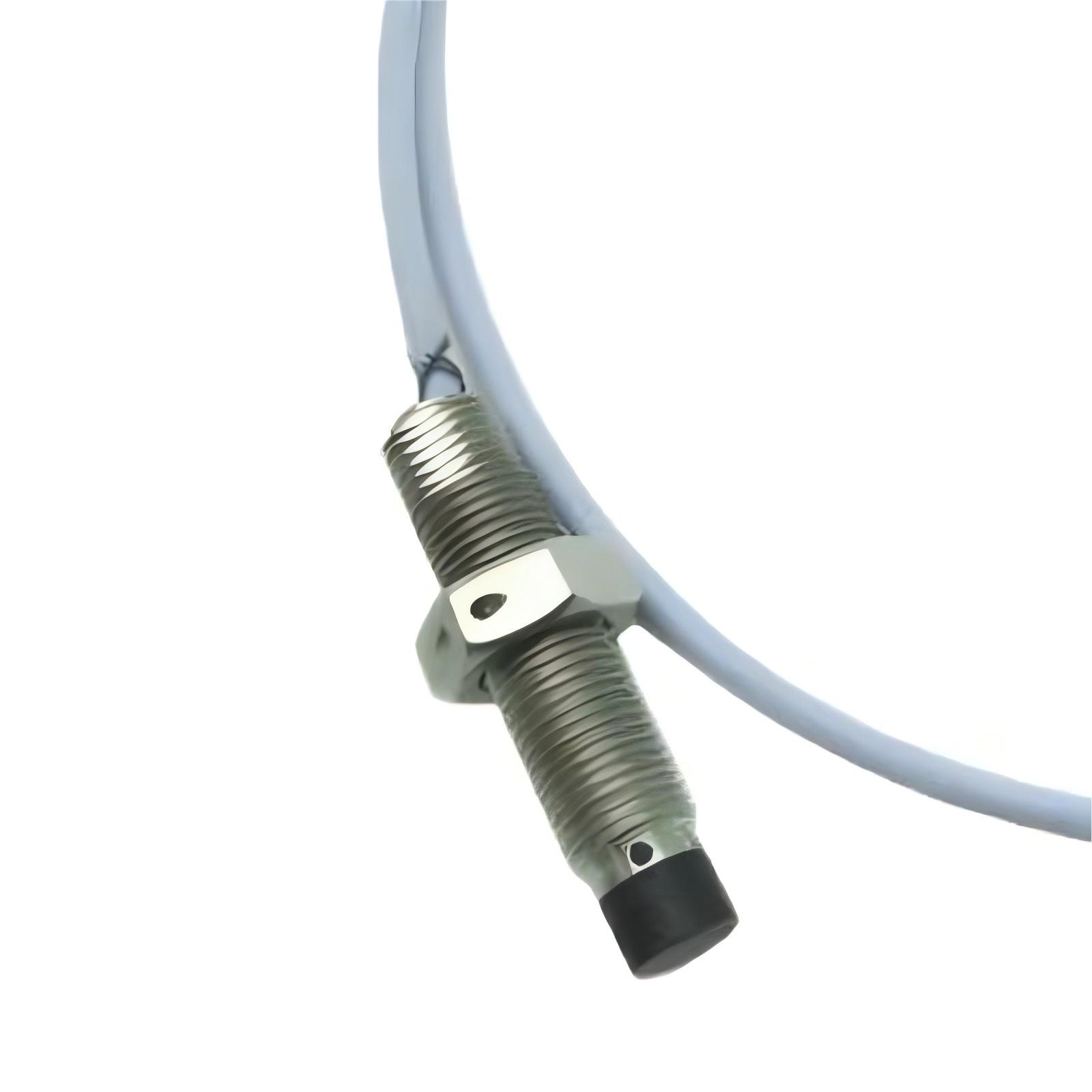

The 330701-00-15-50-01-CN probe is designed to measure the relative displacement between a rotating shaft and a fixed probe tip without physical contact. It uses eddy current technology to convert variations in the gap distance into a proportional electrical voltage signal. This enables continuous monitoring of shaft vibration, radial position, and axial movement in rotating machinery. In industrial applications, this measurement is essential for detecting early mechanical abnormalities such as imbalance, misalignment, shaft bow, or bearing wear. By providing real-time shaft behavior data, it supports both condition monitoring and machinery protection strategies, helping operators prevent unexpected equipment failures.

2. What types of equipment typically use this probe?
This probe is commonly installed on critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, pumps, and large generators. These machines operate under high speed, high load, and continuous duty conditions, where even small changes in shaft position can indicate serious mechanical issues. It is widely used in industries including power generation, oil and gas, petrochemical processing, and heavy manufacturing, where equipment reliability and uptime are essential for safe and efficient operations.

3. How does eddy current measurement technology work in this probe?
The probe generates a high-frequency electromagnetic field at its sensing tip. When placed near a conductive metal surface such as a rotating shaft, eddy currents are induced within the material. The intensity of these eddy currents varies depending on the distance between the probe and the target surface. The system detects this variation and converts it into a voltage signal proportional to the gap. This non-contact measurement method allows highly accurate displacement sensing even in harsh environments with oil contamination, vibration, or temperature fluctuations.

4. How does this probe integrate into the 3300 XL system architecture?
Within the Bently Nevada 3300 XL system, the probe operates as part of a three-component measurement chain. The probe collects raw displacement data from the shaft surface, the extension cable transmits the signal with minimal loss, and the proximitor driver converts the signal into a calibrated output for monitoring systems. This integrated architecture ensures accurate, real-time monitoring of shaft dynamics and forms a complete machinery protection solution used in critical industrial applications.

5. Why is non-contact measurement important in rotating machinery monitoring?
Non-contact measurement is essential because it eliminates physical wear and mechanical interference between the sensor and the rotating shaft. In high-speed machinery, any physical contact would quickly degrade sensor performance and potentially affect machine operation. Eddy current probes provide stable, long-term operation and remain unaffected by oil, dust, or high vibration levels. This makes them ideal for continuous monitoring of critical assets where reliability and measurement consistency are required over long operating periods.

6. What are the key installation considerations for this probe?
Proper installation requires precise calibration of the probe-to-target gap to ensure accurate measurement output. The probe must be mounted on a rigid, vibration-free structure to avoid signal distortion. It is typically installed near bearings, where shaft motion best represents overall machine condition. Correct alignment is essential to maintain linear measurement behavior. In addition, proper grounding and shielding of the cable system are required to minimize electrical noise and ensure signal integrity in industrial environments.

7. How is the probe used in machinery protection systems?
The probe continuously monitors shaft displacement in real time and feeds this data into protection systems. When measured values exceed predefined alarm or trip thresholds, the system can trigger warnings or automatically shut down equipment. This helps prevent severe mechanical failures caused by conditions such as rotor instability, excessive vibration, or bearing damage. It plays a critical role in safeguarding high-value rotating machinery and ensuring safe plant operation under demanding industrial conditions.

8. What is the industrial value of using this proximity probe?
The industrial value of this probe lies in its ability to provide precise, continuous, non-contact measurement of shaft behavior. This enables early detection of mechanical degradation trends before they develop into serious failures. By improving visibility into machine condition, it supports predictive maintenance strategies that reduce unplanned downtime, extend equipment lifespan, and optimize maintenance scheduling. In modern industrial asset management systems, it serves as a foundational sensing element for ensuring reliability, safety, and operational efficiency of rotating machinery.
