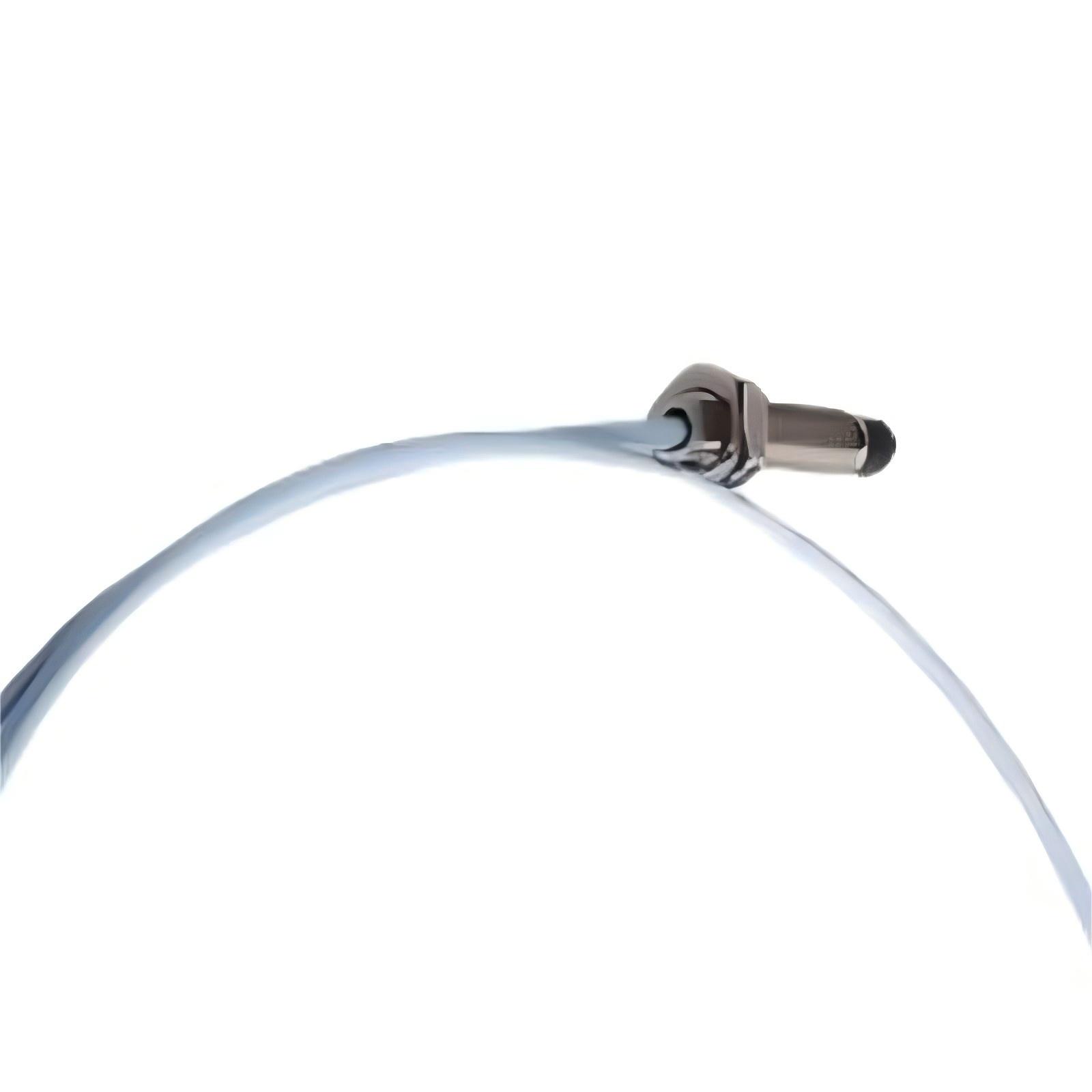

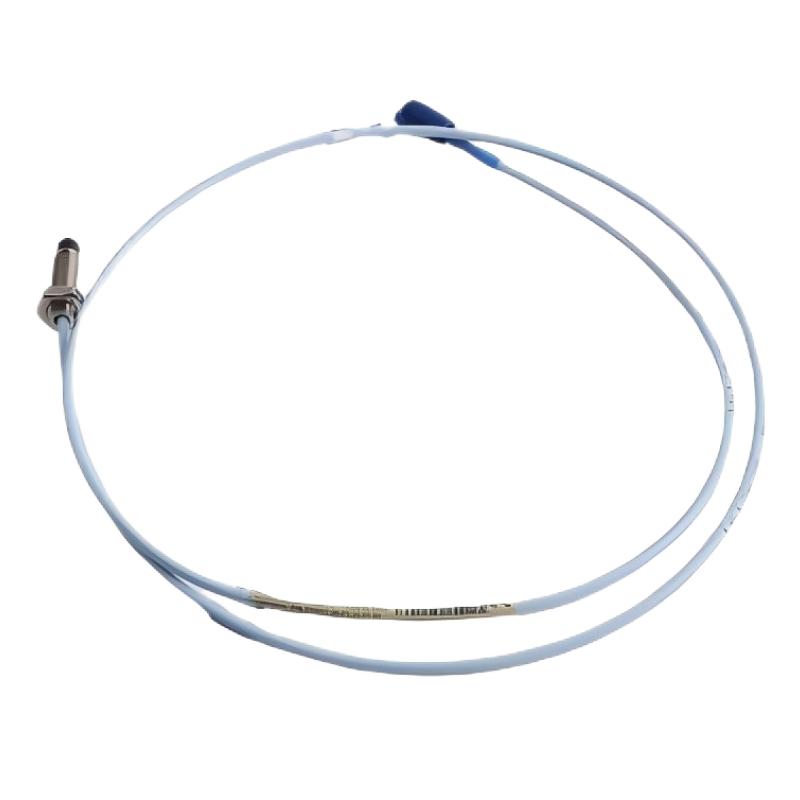

1. What is the main function of the 330703-000-040-10-02-CN proximity probe?
This probe is designed for continuous non-contact measurement of shaft vibration, displacement, and position in rotating machinery. It monitors extremely small changes in the gap between the probe tip and a conductive metal shaft surface. These changes are converted into electrical signals that reflect real-time rotor behavior. In industrial machinery protection systems, this data is essential for detecting early mechanical issues such as imbalance, misalignment, shaft bow, or bearing wear before they develop into serious failures.

2. How does the eddy current measurement principle work in this probe?
The probe operates by generating a high-frequency electromagnetic field at its sensing tip. When a conductive shaft enters this field, eddy currents are induced on the surface of the metal. These currents generate an opposing magnetic field, which changes the electrical impedance of the probe coil. The system detects this impedance variation and converts it into a proportional voltage signal. This signal directly represents the distance between the probe and the shaft, enabling extremely accurate vibration and displacement measurement without physical contact.

3. What types of machinery typically use this probe?
This probe is widely used in critical rotating machinery where continuous condition monitoring is required. Common applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, gearboxes, and large electric motors. These machines operate under high load and high speed conditions, where even very small changes in shaft position or vibration can indicate early-stage mechanical degradation. The probe provides the real-time data needed for protection systems to prevent unexpected failures and costly downtime.

4. Why is non-contact measurement preferred in this application?
Non-contact measurement is essential because it eliminates physical interaction between the sensor and the rotating shaft. In high-speed machinery, physical contact would cause wear, heat generation, and mechanical interference, which could damage both the sensor and the equipment. By using electromagnetic sensing instead, the probe can operate continuously for long periods without degradation. It also ensures stable signal output even under harsh conditions such as vibration, temperature fluctuations, and contamination, making it highly reliable for industrial environments.

5. How does this probe integrate into the 3300 XL monitoring system?
The probe is part of a complete measurement chain consisting of the probe, extension cable, and proximitor signal conditioner. The probe detects shaft displacement and converts it into an analog signal, which is transmitted through the cable to the proximitor. The proximitor then conditions and calibrates the signal into a standardized output used by monitoring or protection systems. This modular architecture ensures accurate signal transmission, flexibility in installation, and consistent performance across industrial applications.

6. What role does this probe play in predictive maintenance strategies?
In predictive maintenance systems, this probe provides continuous real-time monitoring of shaft vibration and position trends. By analyzing these trends over time, maintenance teams can identify abnormal patterns that indicate developing faults such as imbalance, misalignment, lubrication issues, or bearing wear. Instead of relying on fixed maintenance schedules, operators can make data-driven decisions based on actual equipment condition. This approach significantly reduces unplanned downtime, extends equipment lifespan, and improves overall operational efficiency.

7. What factors can influence measurement accuracy and stability?
Several factors can affect measurement performance, including installation gap, shaft material properties, surface condition, and electromagnetic interference. If the probe is not installed within its calibrated operating range, the signal may become nonlinear or less accurate. Electrical noise, poor grounding, or inadequate shielding can also introduce instability or signal distortion. For this reason, correct installation practices, proper calibration, and robust electromagnetic protection are essential to ensure reliable long-term operation in industrial environments.

8. Why is the 3300 XL series widely adopted in industrial condition monitoring systems?
The 3300 XL series is widely used because it delivers consistent accuracy, long-term stability, and proven reliability in demanding industrial environments. It performs reliably under harsh conditions such as high temperature, strong vibration, and electromagnetic interference, which are common in power generation, oil and gas, and heavy industry. Its modular design and compatibility with standardized monitoring systems also simplify integration into existing infrastructures. These advantages make it a trusted solution for protecting critical rotating machinery and supporting advanced asset management strategies.
