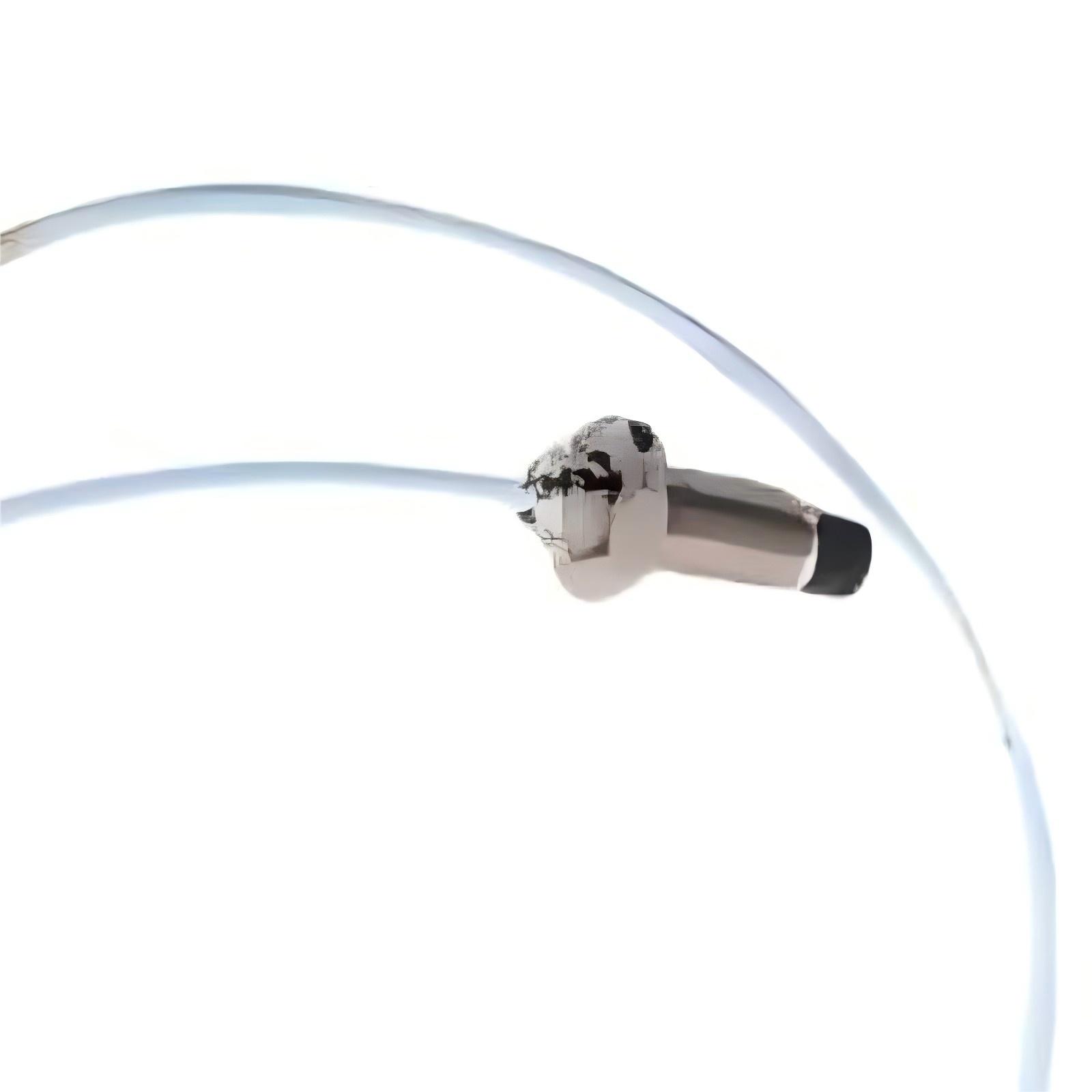

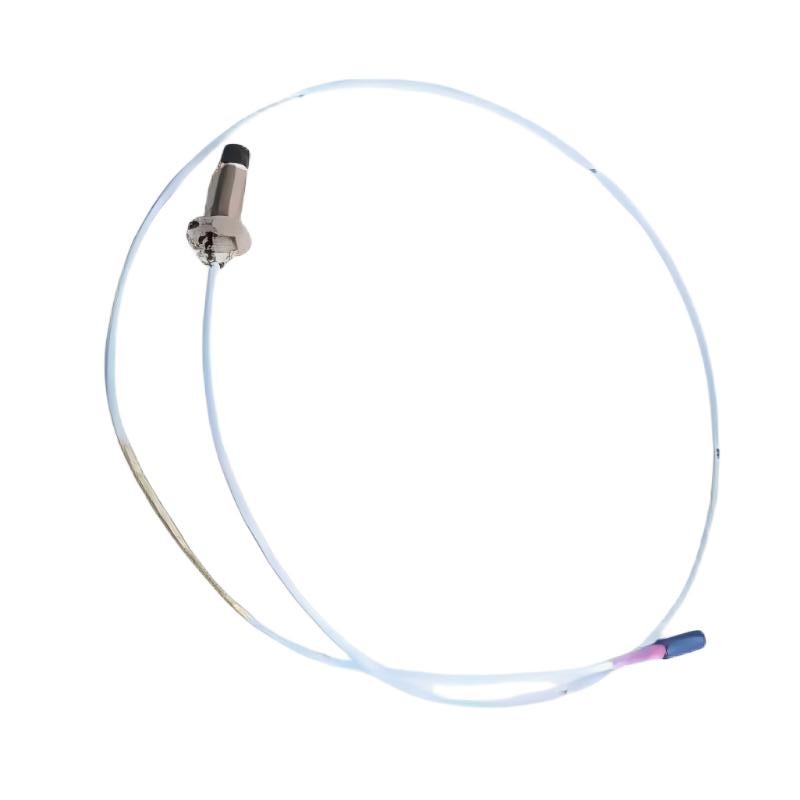

1. What is the main function of the 330703-000-040-50-12-00 proximity probe?
This probe is designed for continuous, high-precision monitoring of shaft vibration, radial displacement, and axial position in rotating machinery. It works by detecting extremely small variations in the distance between the probe tip and a conductive metal shaft surface. These variations are converted into electrical signals that reflect real-time rotor behavior. In industrial protection systems, this data is critical because it allows early detection of mechanical issues such as imbalance, misalignment, shaft bow, and bearing degradation before they escalate into serious failures or equipment shutdowns.

2. How does the eddy current measurement principle work in practical applications?
The probe generates a high-frequency electromagnetic field at its sensing tip. When a conductive shaft enters this field, eddy currents are induced on the surface of the metal. These currents create an opposing magnetic field that changes the electrical impedance of the probe coil. The system detects this impedance change and converts it into a proportional voltage signal. This signal directly represents the distance between the probe and the shaft, allowing highly accurate, real-time displacement measurement without any physical contact.

3. What types of industrial equipment typically use this probe?
This probe is commonly installed in critical rotating machinery where continuous condition monitoring is essential. Typical applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, gearboxes, and large electric motors. These machines often operate under high load, high speed, and continuous duty cycles. Even very small changes in shaft behavior can indicate early-stage mechanical degradation, so continuous monitoring is essential to prevent unexpected failures and costly downtime in industrial operations.

4. Why is non-contact measurement essential in rotating machinery monitoring?
Non-contact measurement is essential because it eliminates physical interaction between the sensor and the rotating shaft. In high-speed machinery environments, any physical contact would introduce wear, heat, and mechanical interference, which could affect both measurement accuracy and equipment reliability. By using electromagnetic sensing instead, the probe can operate continuously over long periods without degradation. It also ensures stable signal output even under harsh conditions such as vibration, temperature fluctuations, and contamination.

5. How does this probe integrate into the 3300 XL monitoring system architecture?
The probe is part of a complete measurement chain consisting of the probe itself, an extension cable, and a proximitor signal conditioning module. The probe captures shaft displacement signals and transmits them through the cable to the proximitor. The proximitor then conditions and calibrates the signal into a standardized output used by monitoring and protection systems. This modular architecture ensures high signal integrity, flexible installation options, and reliable long-term performance in industrial environments.

6. What role does this probe play in predictive maintenance strategies?
In predictive maintenance systems, this probe provides continuous real-time monitoring of shaft vibration and displacement trends. By analyzing these trends over time, maintenance teams can detect early indicators of mechanical problems such as imbalance, misalignment, lubrication issues, or bearing wear. Instead of relying on fixed maintenance schedules, operators can base decisions on actual equipment condition, which significantly reduces unexpected downtime, improves maintenance efficiency, and extends the operational life of critical assets.

7. What factors can affect measurement accuracy and long-term stability?
Measurement accuracy can be influenced by several factors, including installation gap, shaft material properties, surface condition, and electromagnetic interference. If the probe is installed outside its calibrated range, signal linearity may be affected. Electrical noise, poor grounding, or insufficient shielding can also introduce instability or distortion in the signal. For this reason, proper installation procedures, correct calibration, and robust electromagnetic protection are essential to ensure long-term stable and accurate performance in demanding industrial environments.

8. Why is the 3300 XL series widely adopted in industrial condition monitoring applications?
The 3300 XL series is widely used because it offers proven reliability, high measurement accuracy, and excellent long-term stability in harsh industrial environments. It performs consistently under conditions such as high temperature, vibration, and strong electromagnetic interference, which are common in power generation, oil and gas, and heavy industrial applications. Its modular design and standardized architecture make it easy to integrate into existing monitoring systems. These advantages make it a trusted solution for protecting critical rotating machinery and supporting advanced predictive maintenance strategies.
