Q1: What is the primary function of the 3300 XL Proximity Probe?

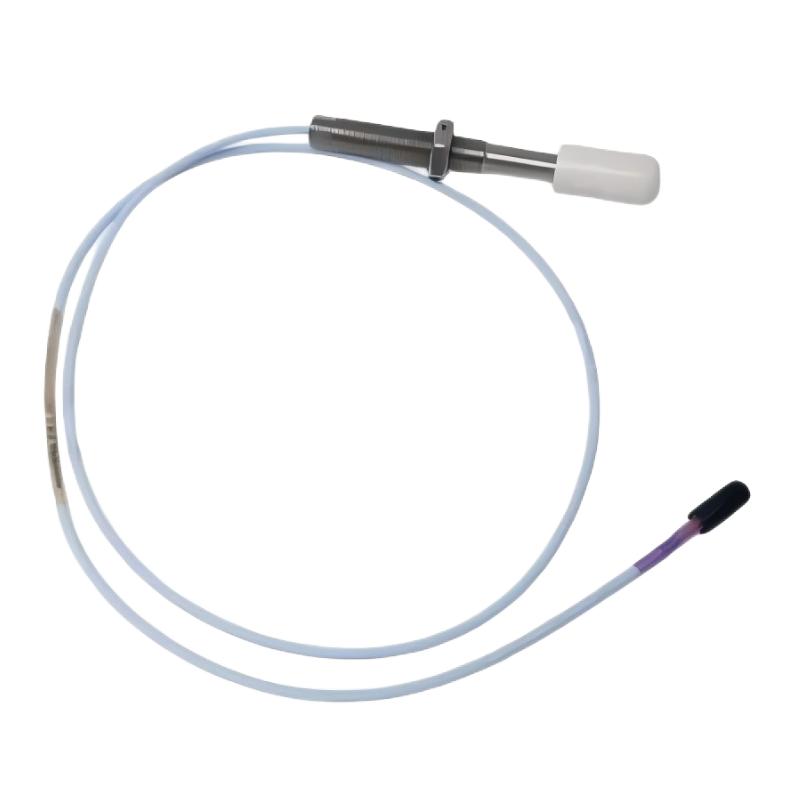

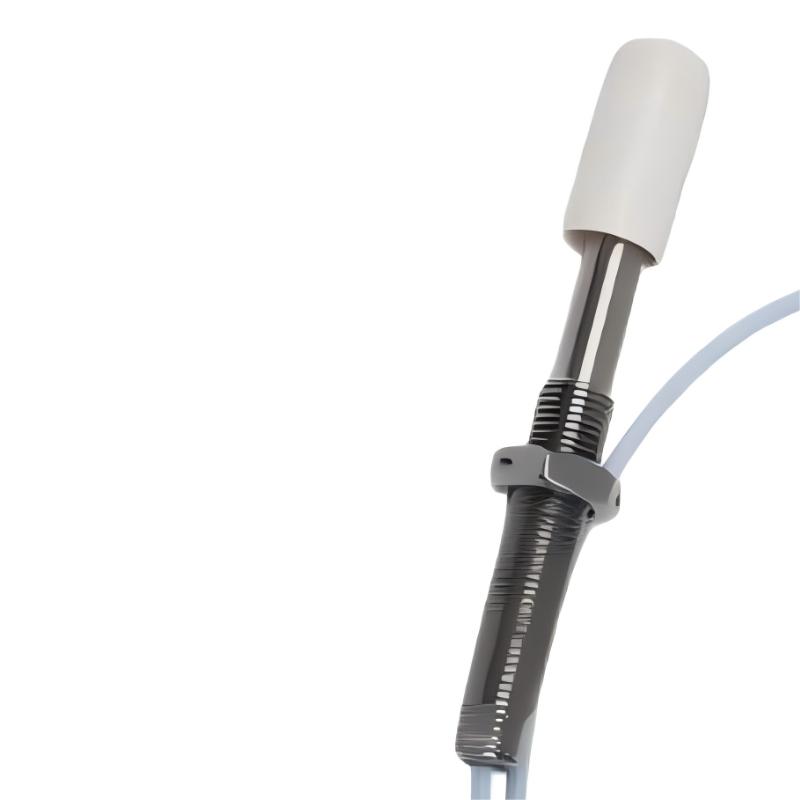

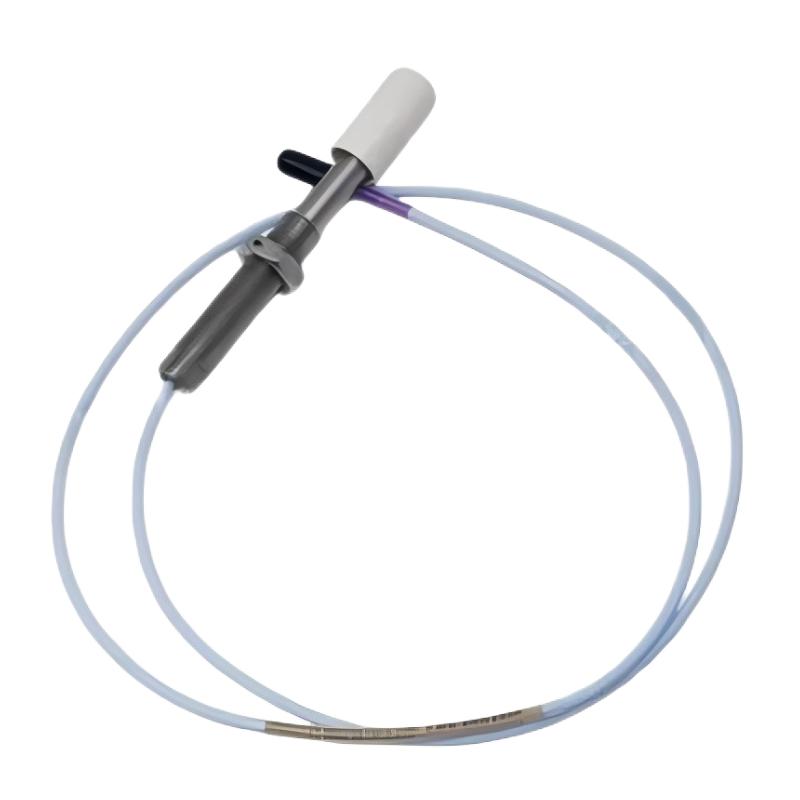

The 3300 XL proximity probe is designed to measure shaft vibration, shaft displacement, and axial position in rotating machinery using eddy current technology. It operates by generating a high-frequency electromagnetic field at the probe tip. When a conductive target such as a rotating shaft enters this field, eddy currents are induced on the surface, which alter the electrical characteristics of the probe signal. These changes are then converted into precise displacement measurements by the monitoring system. This non-contact measurement approach allows continuous, real-time monitoring of machine dynamics without interfering with equipment operation, making it essential for machinery protection and condition monitoring systems.

Q2: Why is eddy current technology widely used in industrial monitoring?

Eddy current technology is widely used because it provides non-contact measurement, high response speed, and strong reliability in harsh industrial environments. Since the probe does not physically touch the shaft, there is no mechanical wear, which ensures long-term stability and reduces maintenance requirements. It can accurately detect very small shaft movements and vibrations with high resolution. Additionally, it performs well in challenging conditions such as high temperature, oil contamination, and high-speed rotation, which makes it especially suitable for critical rotating machinery in power plants, petrochemical facilities, and heavy industry applications.

Q3: What types of equipment are typically monitored using this probe?

This probe is commonly used on high-value rotating equipment where continuous condition monitoring is essential. Typical applications include steam turbines, gas turbines, centrifugal compressors, electric motors, industrial pumps, and large ventilation fans. These machines operate under high speed and high load conditions, where even small deviations in shaft movement can indicate developing faults. The probe provides continuous data that helps detect issues such as imbalance, misalignment, bearing wear, shaft bow, or lubrication problems before they escalate into serious mechanical failures.

Q4: What are the key installation requirements for reliable operation?

Proper installation is critical for accurate measurement. The probe must be installed with a precisely controlled gap between the probe tip and the shaft surface. Mechanical stability is essential to prevent vibration-induced signal drift. The mounting position should ensure that the probe is perpendicular to the shaft surface for optimal sensitivity. Cable routing must maintain proper shielding integrity and avoid proximity to high-voltage or high-noise electrical lines. Any damage or improper connection in the extension cable can significantly affect signal quality, so secure and correctly shielded connections are required throughout the system.

Q5: What are common causes of signal instability or abnormal readings?

Signal instability can result from several factors. Incorrect probe gap setting is one of the most common causes, as it directly affects the linearity of the measurement. Loose or damaged cables, especially in the coaxial extension path, can introduce noise or signal loss. Electromagnetic interference from nearby power equipment may also distort readings. Mechanical issues such as probe misalignment or shaft surface irregularities can further affect accuracy. On the system side, problems in the Proximitor signal conditioning module or incorrect calibration settings may also lead to unstable or inaccurate output signals. A systematic diagnostic approach is required to isolate the root cause.

Q6: How does the probe contribute to machinery protection?

The probe plays a key role in early fault detection for rotating machinery. By continuously monitoring shaft vibration and displacement, it provides real-time data that reflects machine health conditions. Trends in vibration amplitude or shaft movement can indicate developing issues such as bearing wear, rotor imbalance, misalignment, or lubrication failure. The monitoring system can use this data to trigger alarms or automatic shutdowns when predefined thresholds are exceeded. This predictive capability helps prevent catastrophic failures, reduce unplanned downtime, and significantly improve operational safety and asset reliability.

Q7: Is the 3300 XL proximity probe suitable for continuous operation?

Yes. The probe is specifically designed for continuous, long-term operation in industrial environments. Its non-contact measurement principle eliminates mechanical wear, allowing it to operate reliably over extended periods. It is engineered to withstand harsh conditions including temperature fluctuations, vibration, and industrial contamination. When properly installed and maintained, it provides stable and consistent signal output in 24/7 monitoring applications. Proper cable protection, correct installation geometry, and periodic system checks further enhance long-term reliability.

Q8: What should be checked after replacing or servicing the probe?

After replacement or maintenance, a full system verification is required. This includes confirming correct probe gap calibration, checking signal output stability, and validating proper communication with the monitoring system. Calibration should ensure that the output response remains linear across the operating range. The extension cable integrity and shielding continuity must also be verified to prevent noise interference. During machine startup, vibration and displacement trends should be compared with historical baseline data to ensure consistency. Only after confirming stable readings and absence of alarm conditions should the system be returned to normal operation.
