Technical Specifications

FAQ

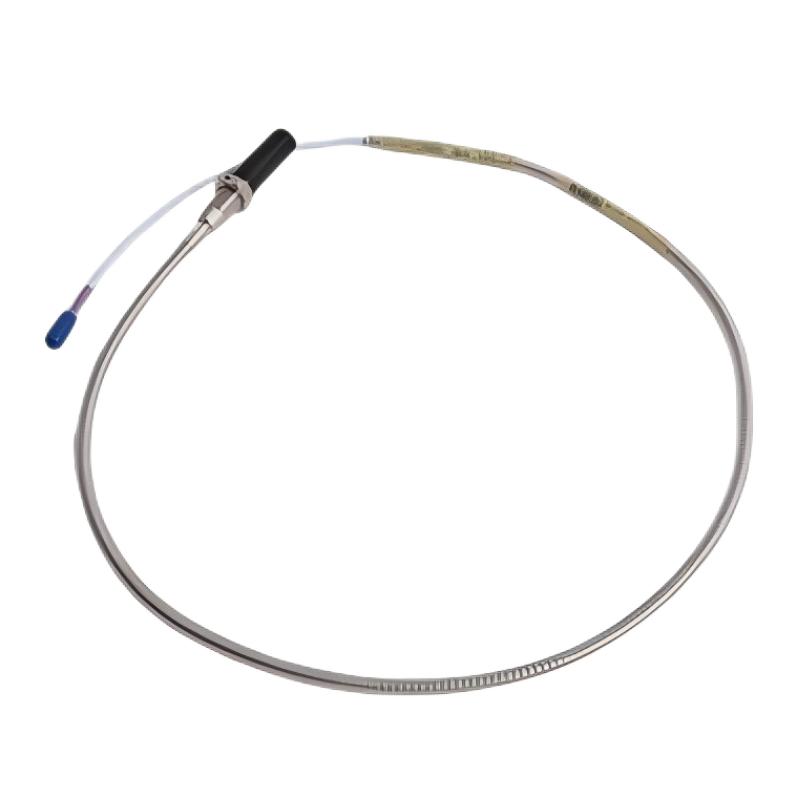

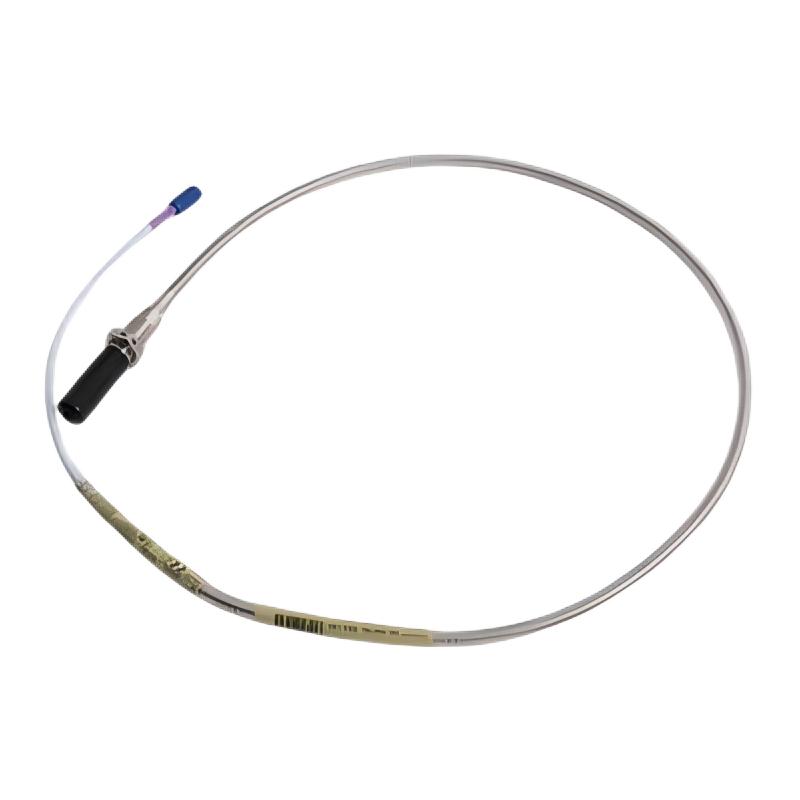

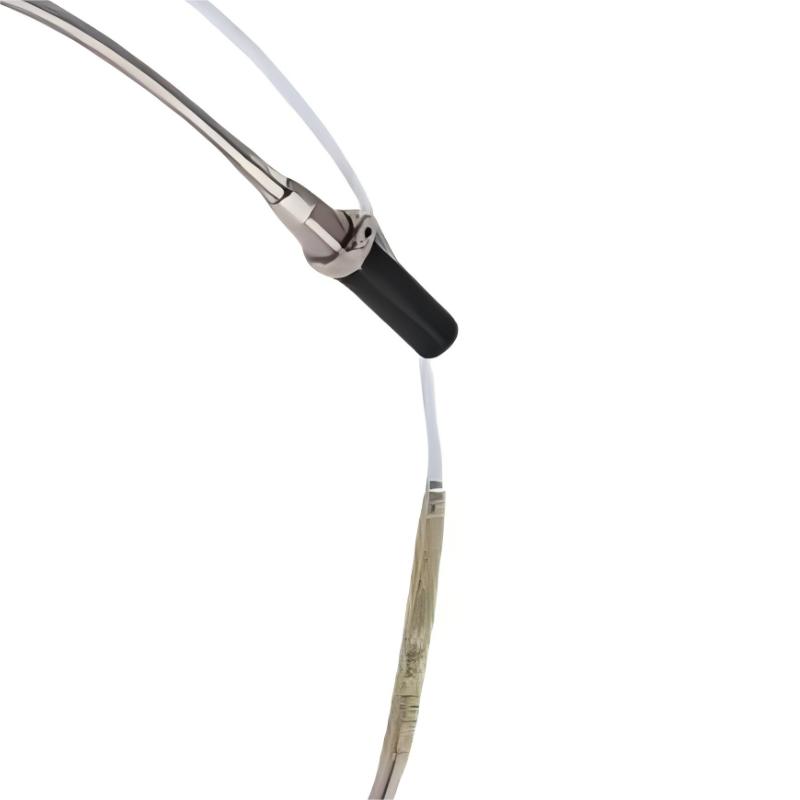

Q1: What is the main function of the 3300 XL proximity probe?

The 3300 XL proximity probe is designed to provide continuous, high-precision measurement of shaft vibration, shaft displacement, and axial position in rotating machinery. It works based on the eddy current principle, where a high-frequency electromagnetic field is generated at the probe tip. When a conductive shaft moves within this field, it induces eddy currents that alter the electrical impedance of the probe. These changes are converted into precise displacement signals by the monitoring system. This allows real-time tracking of shaft behavior without physical contact, making it highly reliable for critical machinery protection and condition monitoring applications.

Q2: Why is eddy current technology widely used in rotating machinery monitoring?

Eddy current technology is widely adopted because it provides a combination of non-contact operation, high sensitivity, and excellent stability in harsh environments. Since there is no physical contact between the probe and the shaft, there is no mechanical wear or friction, which ensures long-term measurement consistency. It can detect very small changes in shaft position and vibration with high resolution, making it ideal for early fault detection. Additionally, it performs reliably in environments with oil mist, high temperatures, and industrial contamination, which are common in power generation and heavy industry.

Q3: What types of equipment typically use this probe?

This probe is commonly installed on high-value rotating equipment where continuous condition monitoring is essential for safe and efficient operation. Typical applications include steam turbines, gas turbines, centrifugal compressors, electric motors, large industrial pumps, and ventilation fans. These machines operate under high rotational speeds and heavy loads, where even minor deviations in shaft motion can indicate developing mechanical problems. The probe provides continuous data that helps identify issues such as rotor imbalance, misalignment, bearing wear, shaft bow, or lubrication problems before they escalate into serious failures.

Q4: What are the most critical installation requirements?

Correct installation is essential for accurate and stable measurements. The probe must be installed with a precisely controlled gap between the probe tip and the shaft surface, as this directly affects signal linearity. Mechanical rigidity is also important to prevent vibration-induced measurement drift. The probe must be aligned perpendicular to the shaft surface to ensure optimal sensitivity. Cable routing should maintain proper shielding integrity and avoid proximity to high-voltage power cables or strong electromagnetic sources. Any compromise in shielding or connection quality can introduce noise and reduce measurement accuracy.

Q5: What are common causes of signal instability or inaccurate readings?

Signal instability can be caused by several factors. Incorrect probe gap setup is one of the most common issues, as it directly impacts calibration accuracy. Loose, damaged, or poorly shielded cables can introduce noise or signal loss. Electromagnetic interference from nearby electrical equipment can also distort measurements. Mechanical issues such as probe misalignment or shaft surface irregularities may affect signal consistency. On the system side, faults in the Proximitor signal conditioning module or incorrect calibration settings can also lead to abnormal readings. A systematic troubleshooting approach is required to isolate the root cause.

Q6: How does this probe contribute to machinery protection systems?

The probe plays a critical role in predictive maintenance and machinery protection strategies. By continuously monitoring shaft vibration and displacement, it provides early warning signs of developing mechanical faults. Trends in vibration amplitude or shaft position can indicate issues such as bearing degradation, rotor imbalance, misalignment, or lubrication failure. Protection systems use this data to trigger alarms or automatic shutdowns when thresholds are exceeded. This helps prevent catastrophic equipment failure, reduces downtime, and improves overall plant safety and reliability.

Q7: Is the 3300 XL proximity probe suitable for continuous operation?

Yes, the probe is specifically designed for continuous, long-term industrial operation. Its non-contact measurement principle eliminates mechanical wear, allowing stable performance over extended service periods. It is engineered to withstand harsh industrial environments, including temperature fluctuations, vibration, and contamination. When properly installed and maintained, it can deliver stable and accurate signals in 24/7 monitoring applications. Proper installation practices, cable protection, and periodic system checks further enhance long-term reliability.

Q8: What should be verified after replacing or servicing the probe?

After replacement or maintenance, a full system verification is required to ensure measurement integrity. This includes confirming correct probe gap calibration, validating signal output stability, and checking proper communication with the monitoring system. The linear response of the signal must be verified across the operating range. Cable integrity and shielding continuity should also be inspected to prevent noise interference. During machine startup, vibration and displacement trends should be compared with historical baseline data to ensure consistency. Only after stable readings and absence of alarm conditions should the system be returned to normal operation.
