Technical Specifications

FAQ

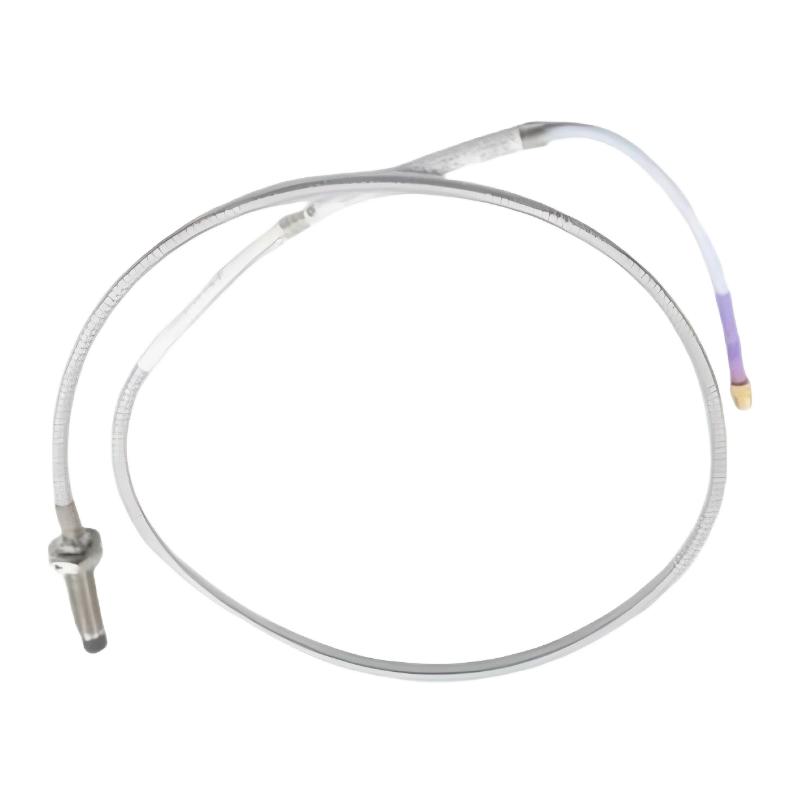

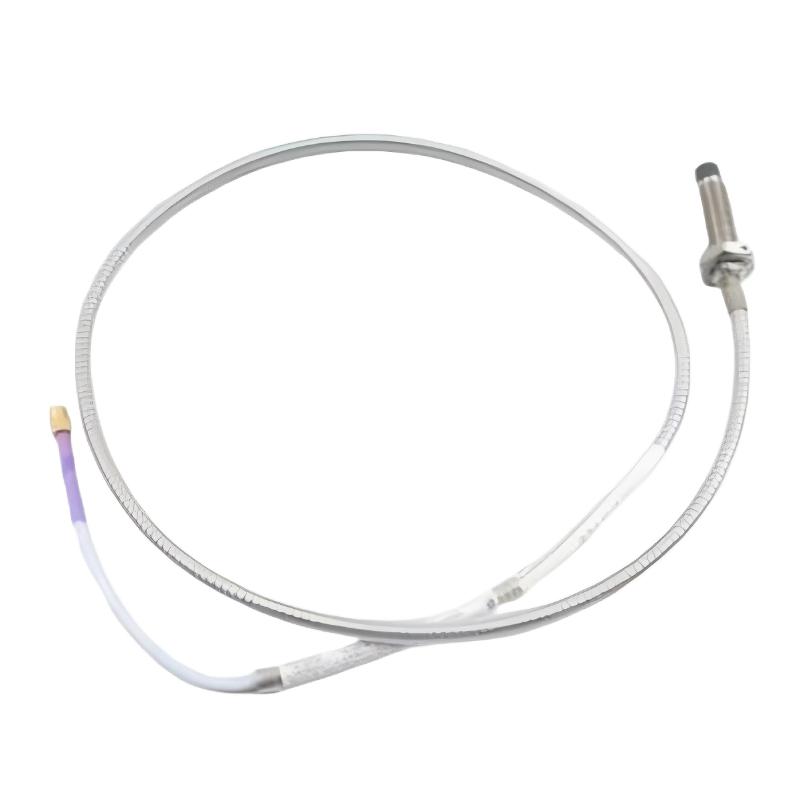

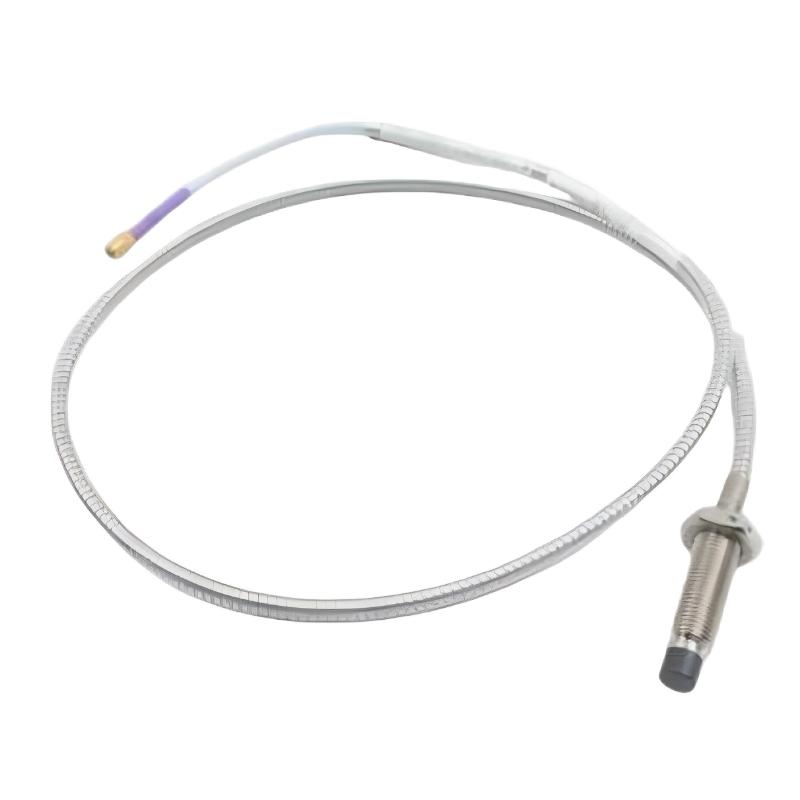

Q1: What is the primary function of the 3300 XL proximity probe?

The 3300 XL proximity probe is designed to continuously monitor the dynamic behavior of rotating machine shafts, including vibration, displacement, and axial position. It operates using the eddy current principle, where a high-frequency electromagnetic field is generated at the probe tip. When a conductive target such as a rotating shaft enters this field, eddy currents are induced on its surface, which change the electrical impedance of the probe system. These changes are processed by the monitoring system and converted into precise displacement measurements. This non-contact measurement method allows highly accurate, real-time monitoring without interfering with machine operation, making it essential for machinery protection systems.

Q2: What are the advantages of eddy current measurement technology in industrial applications?

Eddy current technology offers several key advantages that make it ideal for industrial rotating machinery monitoring. First, it is a non-contact measurement method, which eliminates mechanical wear and ensures long-term stability. Second, it provides very high sensitivity, capable of detecting extremely small shaft movements and vibration changes. Third, it performs reliably in harsh environments, including high temperature, oil mist, and heavy industrial contamination. In addition, it offers fast response times, which is critical for detecting transient events in rotating equipment. These advantages make it one of the most widely used technologies in power generation, petrochemical, and heavy industry monitoring systems.

Q3: What types of equipment typically use this probe?

This probe is commonly installed on critical rotating machinery where continuous condition monitoring is required. Typical applications include steam turbines, gas turbines, centrifugal compressors, large electric motors, industrial pumps, and ventilation fans. These machines operate under high speed and high load conditions, where even minor shaft deviations can indicate developing mechanical issues. The probe provides continuous data that helps detect early-stage faults such as rotor imbalance, misalignment, bearing wear, shaft bow, or lubrication issues, enabling predictive maintenance strategies and preventing unexpected failures.

Q4: What are the most important installation considerations?

Proper installation is essential for achieving accurate and stable measurements. The most critical factor is maintaining the correct probe-to-shaft gap, as this directly affects signal linearity and calibration accuracy. The probe must be rigidly mounted to prevent movement or vibration-induced signal drift. Cable integrity is equally important; the coaxial cable must maintain full shielding to prevent electromagnetic interference. The installation location should avoid proximity to high-voltage cables or strong electromagnetic fields. Additionally, the probe must be installed perpendicular to the shaft surface to ensure optimal signal response and measurement consistency.

Q5: What are common causes of unstable or inaccurate signals?

Signal instability can result from several factors. Incorrect probe gap setup is one of the most common causes, leading to non-linear or offset readings. Cable-related issues such as loose connections, shielding damage, or internal conductor wear can introduce noise or signal loss. Electromagnetic interference from nearby electrical equipment may also distort the signal. Mechanical issues such as probe misalignment or changes in shaft surface condition (e.g., scratches or corrosion) can further affect accuracy. On the system side, faults in the Proximitor module or incorrect calibration parameters can also lead to abnormal readings. A structured diagnostic approach is required to isolate and resolve the root cause effectively.

Q6: How does this probe contribute to machinery protection systems?

The probe plays a critical role in predictive maintenance and machinery protection strategies by continuously monitoring shaft motion parameters. Changes in vibration and displacement patterns often indicate early-stage mechanical problems such as imbalance, misalignment, bearing degradation, or lubrication failure. These trends are analyzed by protection systems, which can trigger alarms or automatic shutdown actions when thresholds are exceeded. This early warning capability helps prevent catastrophic failures, reduces unplanned downtime, and significantly improves operational safety. It also supports condition-based maintenance strategies, allowing operators to schedule maintenance before severe damage occurs.

Q7: Is the 3300 XL proximity probe suitable for continuous operation?

Yes, the probe is specifically designed for continuous industrial operation in demanding environments. Its non-contact measurement principle eliminates mechanical wear, allowing stable long-term performance. It is engineered to withstand harsh conditions such as vibration, temperature variation, and industrial contamination. When properly installed and maintained, it can operate reliably in 24/7 monitoring systems without performance degradation. Ensuring correct installation geometry, proper grounding, and high-quality cable shielding further enhances long-term stability and measurement accuracy.

Q8: What should be checked after replacing or servicing the probe?

After replacement or servicing, a full system validation process is required to ensure measurement integrity. This includes verifying correct probe gap calibration, confirming signal linearity across the operating range, and checking overall signal stability. Cable continuity and shielding integrity must also be inspected to eliminate potential noise sources. During machine startup, vibration and displacement trends should be compared against historical baseline data to ensure consistency. Any deviation should be investigated before returning the system to normal operation. Only after stable readings and the absence of alarms are confirmed should the equipment be fully released for production use.
