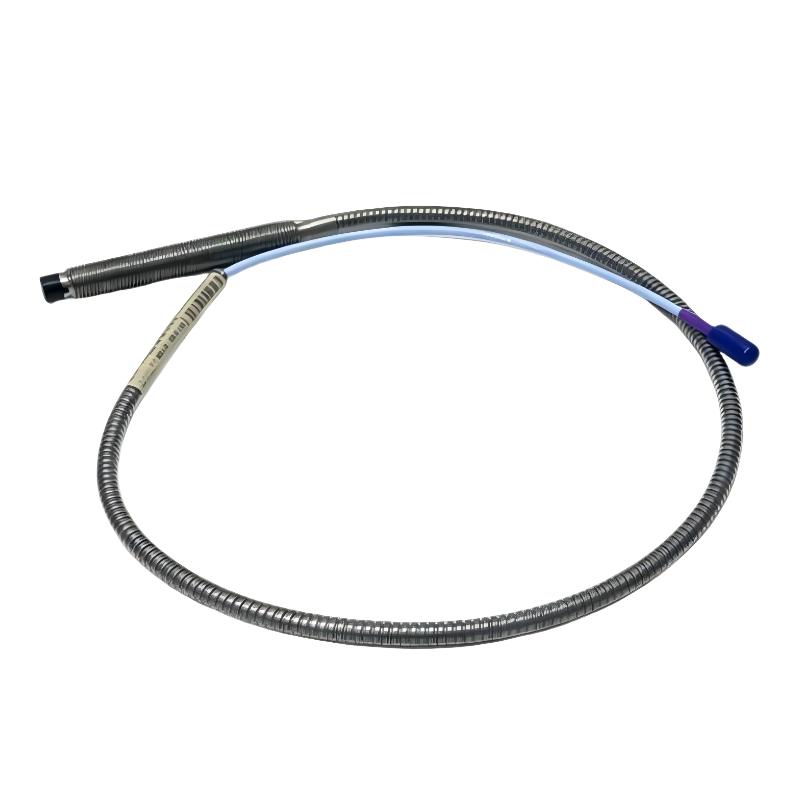

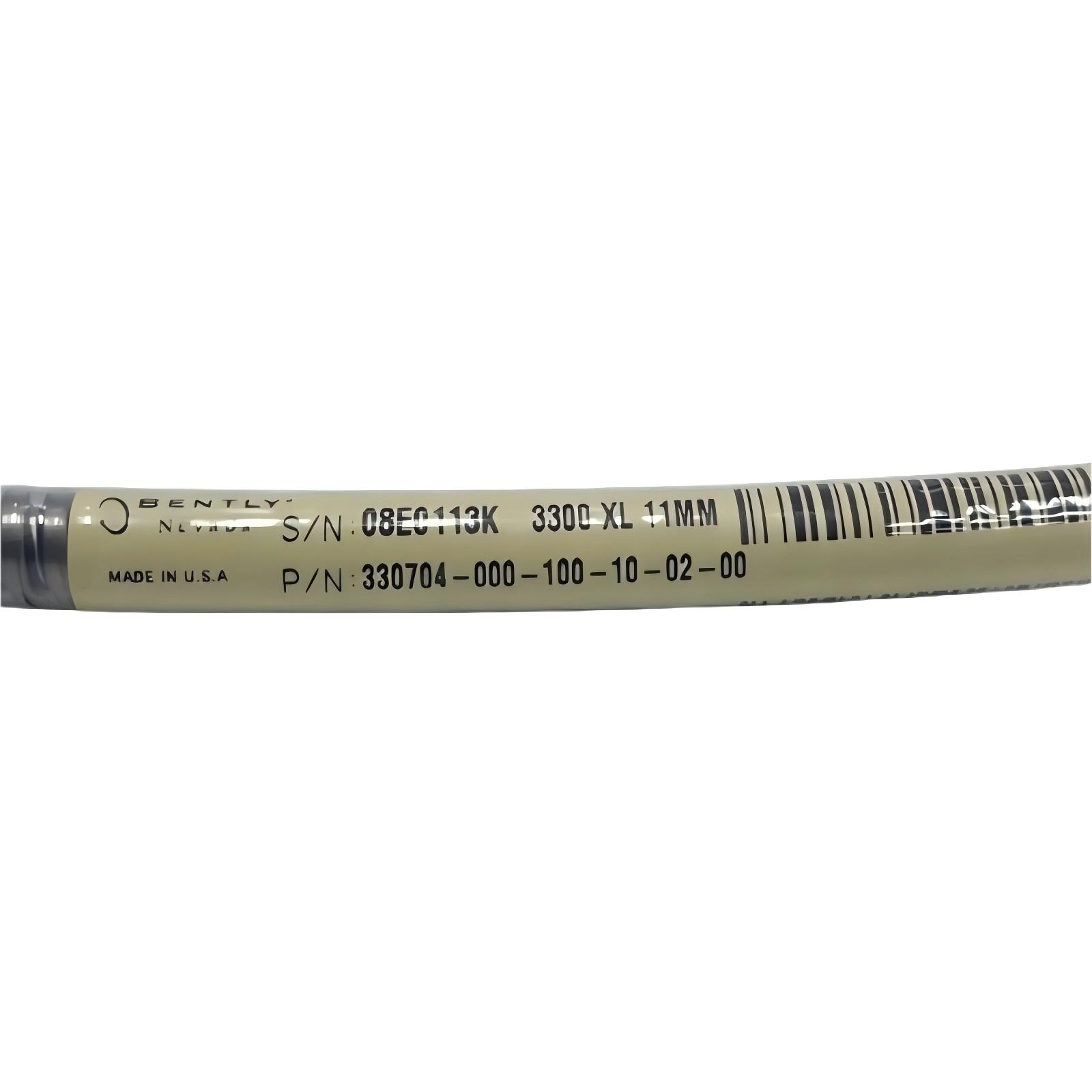

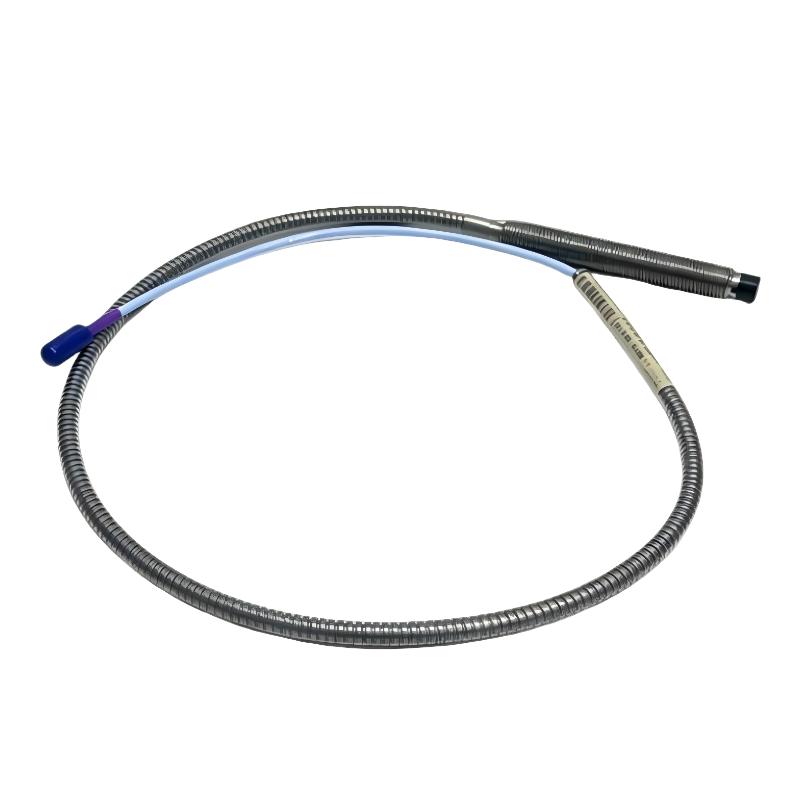

1. What is the Bently Nevada 330704-000-100-10-02-00 3300 XL 11 mm Proximity Probe mainly used for?

The Bently Nevada 330704-000-100-10-02-00 3300 XL 11 mm Proximity Probe is mainly used for online condition monitoring of large industrial rotating machinery. It is designed to measure shaft vibration, shaft displacement, and rotor operating conditions.

This proximity probe is widely applied in steam turbines, gas turbines, compressors, generators, and other high-speed rotating equipment. In these critical machines, small changes in shaft movement and vibration characteristics can indicate developing mechanical problems, making accurate monitoring essential.

The 330704-000-100-10-02-00 uses eddy current measurement technology to detect the distance variation between the probe tip and the rotating shaft surface without physical contact. The measured signal is transmitted to the Bently Nevada monitoring system for analysis.

By continuously collecting operating data, maintenance engineers can evaluate vibration trends, identify potential issues such as rotor imbalance, bearing wear, shaft misalignment, and mechanical looseness, helping improve equipment reliability and prevent unexpected failures.

2. How does the Bently Nevada 3300 XL 11 mm Proximity Probe work?

The Bently Nevada 3300 XL 11 mm Proximity Probe operates based on eddy current sensing technology to provide non-contact displacement measurement.

When the probe is connected with a compatible Proximitor Sensor, it generates a high-frequency electromagnetic field at the probe tip. When a conductive metal target, such as a rotating shaft, enters this field, eddy currents are generated on the target surface.

The probe detects changes in these eddy currents and converts the distance variation between the probe and the target into an electrical output signal.

Because the measurement is performed without physical contact, the probe avoids mechanical wear and can operate reliably in high-speed rotating machinery applications. When integrated with the 3300 XL monitoring system, it provides continuous vibration monitoring, alarm functions, and equipment protection capabilities.

3. What should be considered when installing the 330704-000-100-10-02-00 proximity probe?

Proper installation of the 330704-000-100-10-02-00 proximity probe is essential to achieve accurate measurement performance.

Before installation, the probe tip and mounting area should be checked and cleaned to remove oil, dust, or metal particles that may affect measurement accuracy. The probe should be securely installed to prevent position changes caused by machine vibration.

The gap between the probe tip and the rotating shaft is a critical parameter. Incorrect installation conditions may result in unstable output signals, inaccurate measurements, or false alarms in the monitoring system.

After mechanical installation, the connection between the probe, extension cable, Proximitor Sensor, and monitoring module should be inspected carefully. A complete signal verification should be performed to confirm that the system is operating correctly.

4. What are the common causes of abnormal signals from the 330704-000-100-10-02-00 proximity probe?

Abnormal signals from the Bently Nevada 330704-000-100-10-02-00 proximity probe may be caused by installation issues, electrical connection problems, or actual machine operating conditions.

First, the probe installation condition should be checked. Incorrect probe positioning or an improper measurement gap can affect signal stability and accuracy.

The cable and connection points should also be inspected. Damaged cables, loose connections, poor contact, or Proximitor Sensor issues may result in unstable signals or signal loss.

In addition, the condition of the measured shaft surface can influence measurement results. Surface contamination, scratches, excessive runout, or mechanical deformation may create abnormal readings.

Troubleshooting should include checking monitoring alarms, reviewing historical vibration data, and inspecting the complete measurement chain to identify the actual cause.

5. What are the advantages of using the Bently Nevada 330704-000-100-10-02-00 proximity probe?

The Bently Nevada 330704-000-100-10-02-00 3300 XL 11 mm Proximity Probe provides reliable and accurate measurement for critical rotating machinery monitoring applications.

The probe uses proven eddy current technology to provide precise shaft displacement and vibration measurements. Since it operates without physical contact with rotating components, it offers excellent durability and long-term stability.

For large industrial machines, reliable vibration data is essential for equipment protection and predictive maintenance. When combined with a Bently Nevada monitoring system, this probe allows engineers to continuously monitor machine conditions and identify abnormal trends.

The probe supports early fault detection by providing accurate vibration information, helping reduce unexpected downtime and improve maintenance efficiency.

6. What types of equipment faults can the 330704-000-100-10-02-00 detect?

The Bently Nevada 330704-000-100-10-02-00 proximity probe is mainly used to monitor shaft vibration and displacement changes, helping detect various mechanical problems in rotating equipment.

Typical faults that can be identified include rotor imbalance, bearing deterioration, mechanical looseness, shaft misalignment, excessive axial movement, and abnormal rotor behavior.

For large rotating machines such as turbines and compressors, these problems often develop gradually before causing serious damage. Continuous monitoring allows maintenance teams to identify abnormal vibration patterns at an early stage.

By analyzing shaft movement data together with monitoring system information, engineers can make better maintenance decisions and improve equipment operating safety.

7. How is the Bently Nevada 330704-000-100-10-02-00 connected to the 3300 XL monitoring system?

The Bently Nevada 330704-000-100-10-02-00 proximity probe is normally used together with a 3300 XL Proximitor Sensor and monitoring module.

The probe detects changes in the distance between the rotating shaft and the probe tip, then generates a corresponding electrical signal. This signal is transmitted through the connection cable to the Proximitor Sensor, which processes and converts the measurement data.

The processed signal is then sent to the monitoring system for vibration display, alarm configuration, and machine condition analysis.

During installation, it is important to ensure correct connections between the probe, cable, Proximitor Sensor, and monitoring module while minimizing the influence of electrical interference.

A properly configured system provides continuous monitoring data for machine protection and predictive maintenance applications.

8. What should be considered when replacing the Bently Nevada 330704-000-100-10-02-00 proximity probe?

When replacing the Bently Nevada 330704-000-100-10-02-00 proximity probe, the replacement unit should first be confirmed to be compatible with the existing 3300 XL monitoring system.

Before removing the existing probe, technicians should record the original installation condition, connection method, and monitoring parameters to ensure a smooth replacement process.

After installing the new probe, all connections should be checked carefully, and the output signal should be tested through the monitoring system.

The machine should then be observed during operation to confirm that vibration data is stable and that no abnormal alarms or signal fluctuations occur.

Following a correct replacement procedure helps prevent measurement errors and monitoring interruptions, ensuring reliable protection of critical rotating equipment.
