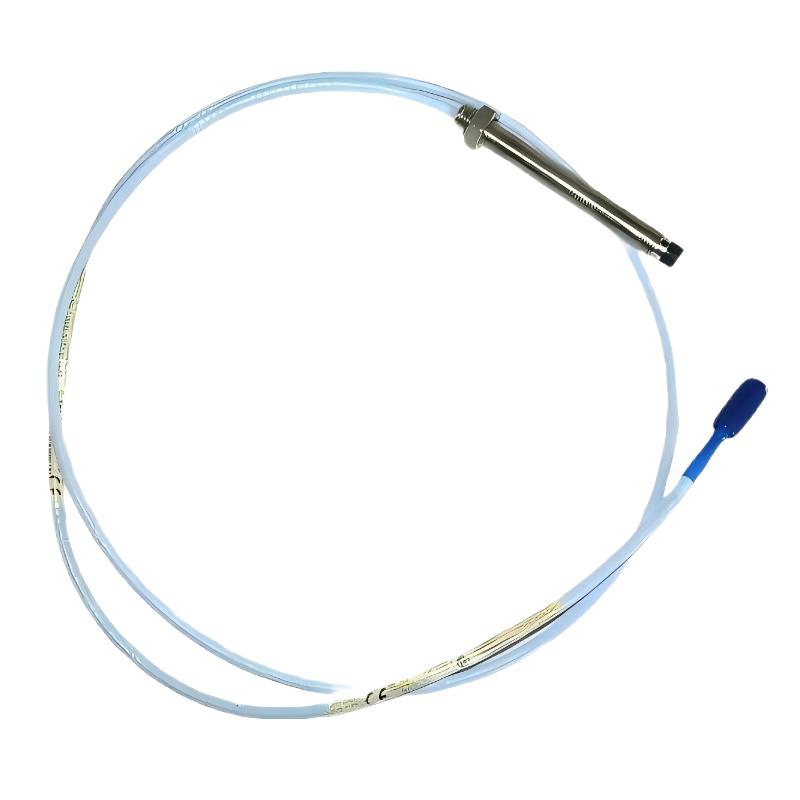

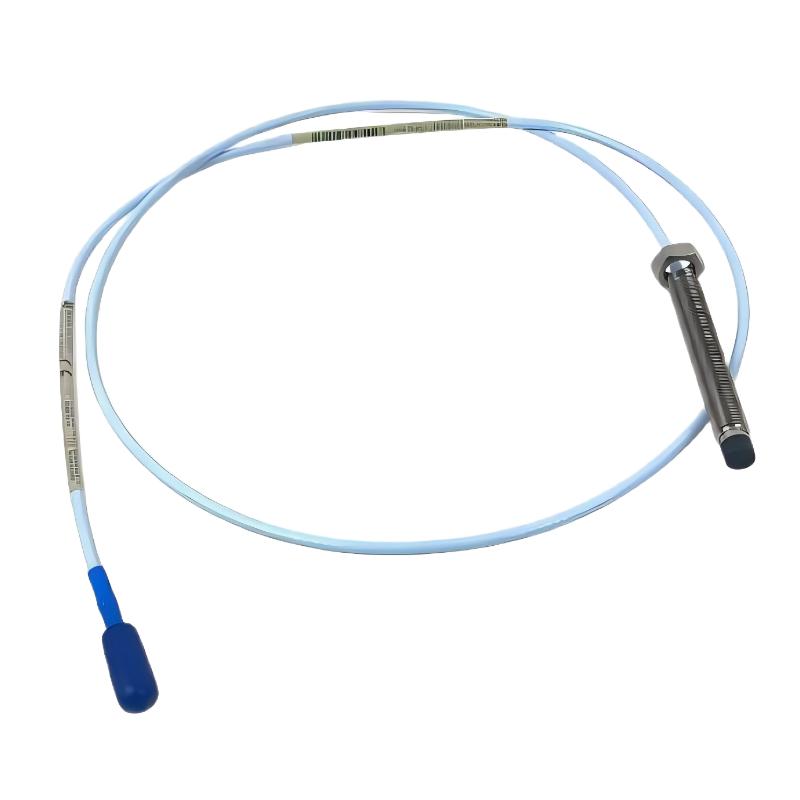

1. What is the Bently Nevada 330704-00-050-10-02-05 3300 XL 11 mm Proximity Probe mainly used for?

The Bently Nevada 330704-00-050-10-02-05 3300 XL 11 mm Proximity Probe is mainly used for monitoring the operating condition of large rotating machinery by measuring shaft vibration and displacement.

This proximity probe is commonly installed on critical industrial equipment such as steam turbines, gas turbines, compressors, generators, and other high-speed rotating machines. During operation, changes in shaft movement can indicate mechanical problems, making accurate vibration and displacement measurement important for equipment protection.

The probe uses eddy current technology to detect the distance between the probe tip and the rotating shaft surface without physical contact. The measurement signal is then transmitted to a compatible Bently Nevada monitoring system for analysis.

By continuously monitoring shaft movement, the system can identify abnormal operating conditions such as rotor imbalance, shaft misalignment, bearing problems, and mechanical looseness, helping maintenance teams reduce unexpected failures and improve equipment reliability.

2. How does the Bently Nevada 3300 XL 11 mm Proximity Probe operate?

The Bently Nevada 330704-00-050-10-02-05 proximity probe operates using eddy current sensing technology to perform non-contact displacement measurement.

When connected with a compatible Proximitor Sensor, the probe generates a high-frequency electromagnetic field at the sensing tip. When a conductive target such as a rotating shaft enters this field, eddy currents are created on the surface of the target.

The probe detects changes in the electromagnetic field caused by the distance variation between the probe and the target. These changes are converted into an electrical signal representing shaft displacement and vibration movement.

Because there is no physical contact between the probe and the rotating component, the system provides reliable operation with minimal wear. This makes it suitable for continuous monitoring of high-speed rotating machinery where accurate shaft position measurement is required.

3. What should be considered when installing the 330704-00-050-10-02-05 proximity probe?

Correct installation is essential for ensuring accurate measurement performance of the Bently Nevada 330704-00-050-10-02-05 proximity probe.

Before installation, the mounting area and probe tip should be inspected to ensure they are clean and free from contamination. The probe must be securely installed to prevent movement caused by machine vibration.

The measurement gap between the probe tip and the rotating shaft must be adjusted according to system requirements. Incorrect gap settings may cause unstable output signals, inaccurate measurements, or monitoring system alarms.

The connection between the probe, cable, Proximitor Sensor, and monitoring module should also be checked carefully. Proper cable routing is recommended to reduce the influence of electromagnetic interference from nearby power equipment.

After installation, the complete measurement circuit should be tested to confirm stable signal output and correct system operation.

4. What are the common causes of abnormal signals from the 330704-00-050-10-02-05 probe?

Abnormal signals from the Bently Nevada 330704-00-050-10-02-05 proximity probe may result from installation errors, cable problems, sensor issues, or actual mechanical conditions.

One common cause is an incorrect measurement gap between the probe and the rotating shaft. If the gap is outside the recommended operating range, the output signal may become unstable or inaccurate.

Cable damage, loose connections, poor connector contact, or Proximitor Sensor problems can also affect signal quality and cause intermittent readings.

In addition, abnormal machine conditions such as excessive shaft runout, rotor imbalance, or mechanical looseness may create unusual vibration signals.

Troubleshooting should include checking the probe installation, cable condition, signal output, and machine operating data to determine whether the problem originates from the sensor system or the equipment itself.

5. What are the advantages of using the Bently Nevada 330704-00-050-10-02-05 proximity probe?

The Bently Nevada 330704-00-050-10-02-05 3300 XL 11 mm Proximity Probe provides accurate and reliable shaft vibration monitoring for critical industrial equipment.

Its main advantage is the use of eddy current technology, which enables precise non-contact measurement of shaft displacement and vibration. This allows the sensor to operate reliably in demanding rotating machinery environments.

The probe provides stable measurement signals that can be integrated with Bently Nevada monitoring systems for continuous equipment protection and condition analysis.

By detecting abnormal vibration trends at an early stage, the probe helps maintenance personnel identify developing mechanical problems, optimize maintenance schedules, and reduce the risk of unexpected equipment shutdowns.

6. What types of faults can be detected using the 330704-00-050-10-02-05 proximity probe?

The Bently Nevada 330704-00-050-10-02-05 proximity probe can help detect various mechanical problems by monitoring shaft vibration and displacement changes.

Typical detectable conditions include rotor imbalance, shaft misalignment, bearing degradation, mechanical looseness, excessive axial movement, and abnormal rotor behavior.

In large rotating machinery, many mechanical failures develop gradually and produce changes in vibration characteristics before serious damage occurs.

By continuously collecting shaft position and vibration data, the monitoring system can analyze operating trends and provide early warnings. This enables maintenance teams to take corrective actions before equipment performance is seriously affected.

The probe is therefore widely used in machinery protection systems and predictive maintenance applications.

7. How is the 330704-00-050-10-02-05 proximity probe integrated into a Bently Nevada monitoring system?

The Bently Nevada 330704-00-050-10-02-05 proximity probe is designed to work with a compatible Proximitor Sensor and Bently Nevada monitoring module.

During operation, the probe detects changes in the distance between the rotating shaft and the probe tip. The generated signal is transmitted to the Proximitor Sensor, where it is processed and converted into usable monitoring information.

The monitoring system then displays vibration and displacement data, allowing engineers to configure alarms, review trends, and perform equipment condition analysis.

Correct system integration requires proper connection, suitable installation conditions, and accurate configuration of monitoring parameters. When properly installed, the system provides continuous and reliable protection for critical rotating equipment.

8. What should be checked when replacing the Bently Nevada 330704-00-050-10-02-05 proximity probe?

When replacing the Bently Nevada 330704-00-050-10-02-05 proximity probe, the replacement unit should first be verified to ensure compatibility with the existing 3300 XL monitoring system.

Before removing the old probe, technicians should record the original installation position, connection method, and monitoring settings. This information helps prevent incorrect installation and reduces commissioning time.

After installing the new probe, all connections should be inspected carefully, and the signal output should be tested through the monitoring system.

The machine should then be operated under normal conditions while checking vibration data, alarm status, and signal stability.

A proper replacement process ensures accurate measurement performance, prevents unnecessary alarms, and maintains reliable operation of the rotating machinery protection system.
