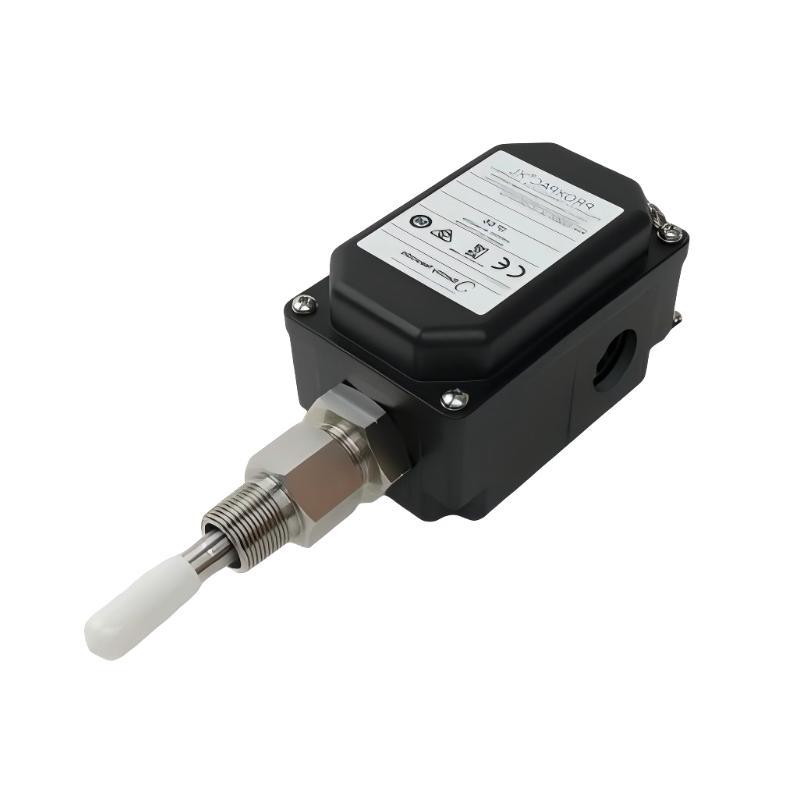

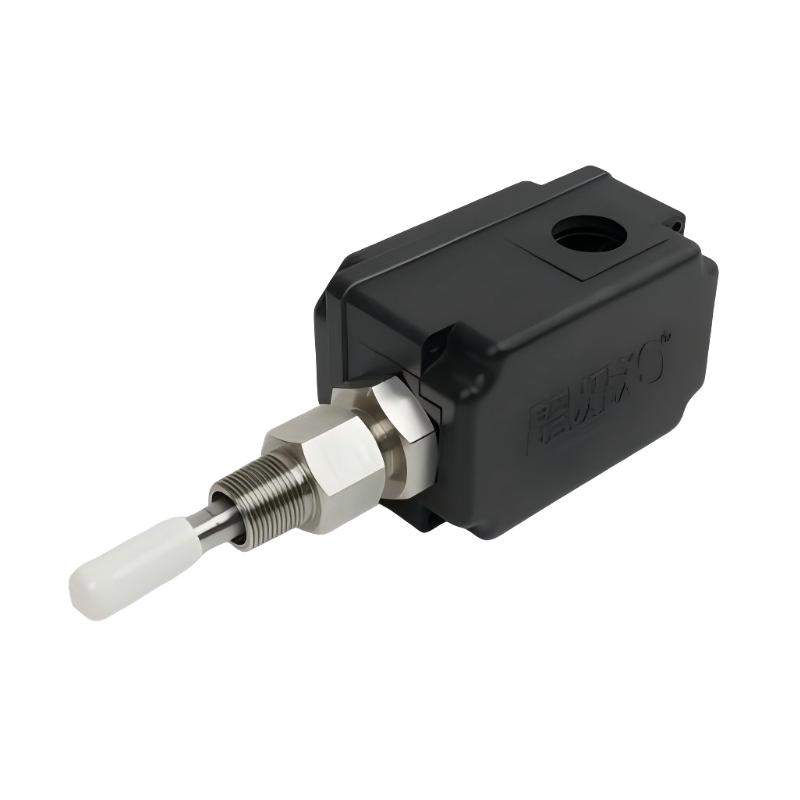

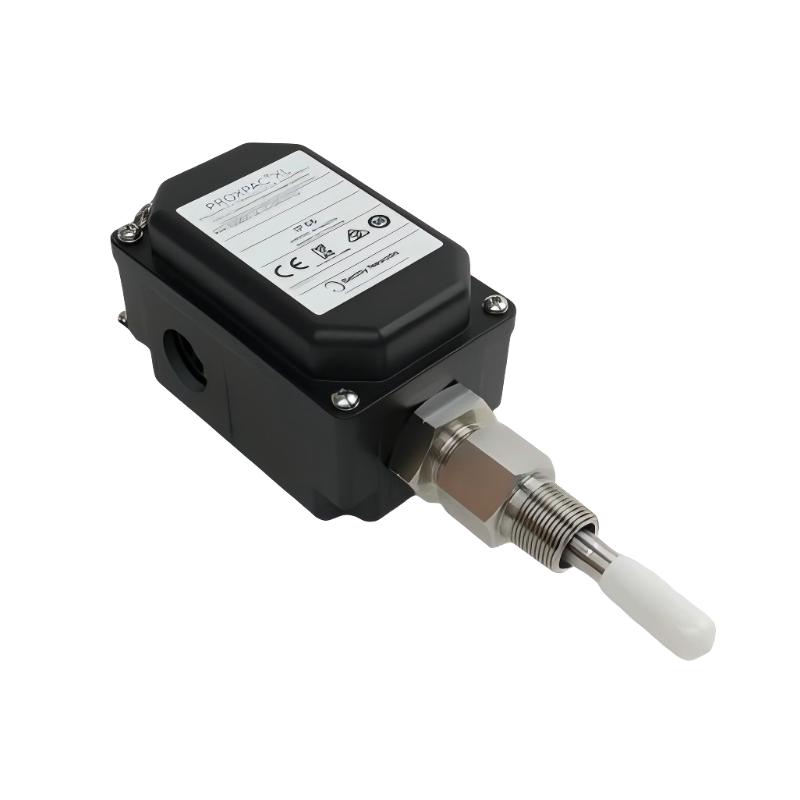

1. What are the main applications of the Bently Nevada 330800-28-15-042-00-02 PROXPAC XL Proximity Sensor?

The Bently Nevada 330800-28-15-042-00-02 PROXPAC XL Proximity Sensor is mainly used for industrial machinery condition monitoring, especially for measuring shaft vibration, radial displacement, and axial position of rotating equipment. It is commonly installed on critical rotating machinery such as turbines, compressors, pumps, generators, and large motors. The sensor uses eddy current technology to detect the distance between the probe tip and the conductive rotating shaft, converting mechanical movement into an electrical signal for monitoring systems. In industrial environments, it helps operators identify abnormal shaft movement, imbalance, misalignment, mechanical wear, and other potential equipment problems before serious failures occur. When integrated with Bently Nevada monitoring platforms, the sensor provides continuous condition data that supports predictive maintenance strategies, reduces unexpected downtime, and improves the reliability of critical rotating assets.

2. How does the Bently Nevada 330800-28-15-042-00-02 proximity sensor work?

The 330800-28-15-042-00-02 PROXPAC XL Proximity Sensor operates based on eddy current measurement technology. The sensor generates a high-frequency electromagnetic field through the probe tip. When the probe approaches a conductive metal target, such as a rotating machine shaft, eddy currents are generated on the surface of the target. The sensor detects changes in these currents and converts the variation into an electrical output signal that represents the distance between the probe and the shaft. As the shaft moves due to vibration or displacement, the output signal changes accordingly, allowing monitoring systems to calculate vibration amplitude and shaft position. This non-contact measurement method eliminates mechanical wear between the sensor and rotating components, providing high reliability and long-term stability for continuous machinery monitoring applications.

3. What problems can be detected by the Bently Nevada 330800-28-15-042-00-02 sensor?

The Bently Nevada 330800-28-15-042-00-02 sensor can detect various mechanical conditions related to rotating equipment operation. It is commonly used for monitoring shaft vibration, radial displacement, axial movement, and changes in rotor position. By continuously measuring shaft movement, the sensor can help identify problems such as rotor imbalance, shaft misalignment, bearing wear, excessive mechanical clearance, oil film instability, and abnormal operating conditions. In high-speed rotating machinery, early detection of these issues is essential because small mechanical changes can develop into serious equipment failures. When connected to a compatible monitoring system, the sensor provides real-time condition information that allows maintenance teams to analyze machine health, schedule repairs in advance, and reduce the risk of unexpected shutdowns.

4. How should the 330800-28-15-042-00-02 proximity sensor be installed correctly?

Proper installation of the 330800-28-15-042-00-02 proximity sensor is important to ensure accurate measurement performance. Before installation, the mounting surface should be cleaned and checked to ensure that the sensor is securely positioned. The probe should be installed according to the recommended gap distance between the sensor tip and the rotating shaft surface. Incorrect positioning may cause inaccurate readings, unstable signals, or reduced measurement sensitivity. The cable routing should also be carefully planned to avoid strong electromagnetic interference, excessive bending, or mechanical damage. During commissioning, technicians should verify the sensor output signal and confirm that the monitoring system receives stable vibration and position data. Correct installation procedures help maximize measurement accuracy and ensure reliable operation in demanding industrial environments.

5. What are the common causes of signal problems with the Bently Nevada 330800-28-15-042-00-02 sensor?

Signal problems with the 330800-28-15-042-00-02 proximity sensor can be caused by several factors, including incorrect installation, wiring issues, electrical interference, improper gap settings, or sensor damage. One common cause is an incorrect distance between the probe tip and the shaft, which can result in unstable output signals or incorrect vibration measurements. Cable problems such as loose connections, damaged insulation, or poor grounding can also affect signal quality. In industrial environments with high electromagnetic interference, nearby power cables or electrical equipment may introduce unwanted noise into the measurement signal. Troubleshooting should include checking sensor wiring, verifying gap voltage, inspecting cable condition, and comparing measured values with expected operating conditions. A systematic inspection can help identify the source of signal instability and restore accurate monitoring performance.

6. Can the 330800-28-15-042-00-02 sensor be used for predictive maintenance systems?

Yes, the Bently Nevada 330800-28-15-042-00-02 PROXPAC XL Proximity Sensor is suitable for predictive maintenance applications. By continuously monitoring shaft displacement and vibration characteristics, the sensor provides valuable condition data that can be analyzed to evaluate machine health. Predictive maintenance systems use this information to identify early warning signs of mechanical problems, allowing maintenance teams to take corrective action before major failures occur. For critical rotating equipment such as turbines, compressors, and generators, continuous vibration monitoring is essential for maintaining operational safety and reliability. When combined with Bently Nevada monitoring systems, the sensor supports advanced diagnostics, trend analysis, and condition-based maintenance strategies that help reduce maintenance costs and improve equipment availability.

7. What should be checked when replacing an existing proximity sensor with the 330800-28-15-042-00-02 model?

When replacing an existing proximity sensor with the 330800-28-15-042-00-02 model, several technical factors should be verified to ensure compatibility and proper operation. First, confirm that the replacement sensor has the correct electrical characteristics, measurement range, and output requirements for the existing monitoring system. The installation position and probe alignment should also match the original setup to maintain accurate measurements. During replacement, technicians should inspect the sensor cable, connectors, and mounting components for possible damage or wear. After installation, calibration checks and signal verification should be performed to confirm that the monitoring system receives correct vibration and position data. Proper replacement procedures help prevent measurement errors and ensure continuous protection of rotating machinery.

8. How can the service life and reliability of the Bently Nevada 330800-28-15-042-00-02 sensor be improved?

To improve the service life and reliability of the 330800-28-15-042-00-02 PROXPAC XL Proximity Sensor, proper installation, regular inspection, and suitable operating conditions are essential. The sensor should be installed securely and protected from unnecessary mechanical impact, excessive vibration, and environmental contamination. Periodic maintenance should include checking cable conditions, verifying signal stability, and reviewing monitoring data for abnormal changes. The connected monitoring system should also be configured correctly to ensure accurate data processing and alarm functions. Avoiding improper handling during installation and maintaining stable operating conditions can significantly reduce the risk of sensor failure. Through preventive maintenance and regular condition checks, the proximity sensor can provide reliable measurement performance and support long-term protection of critical industrial machinery.
