1. What is the main function of this proximity probe in rotating machinery systems?

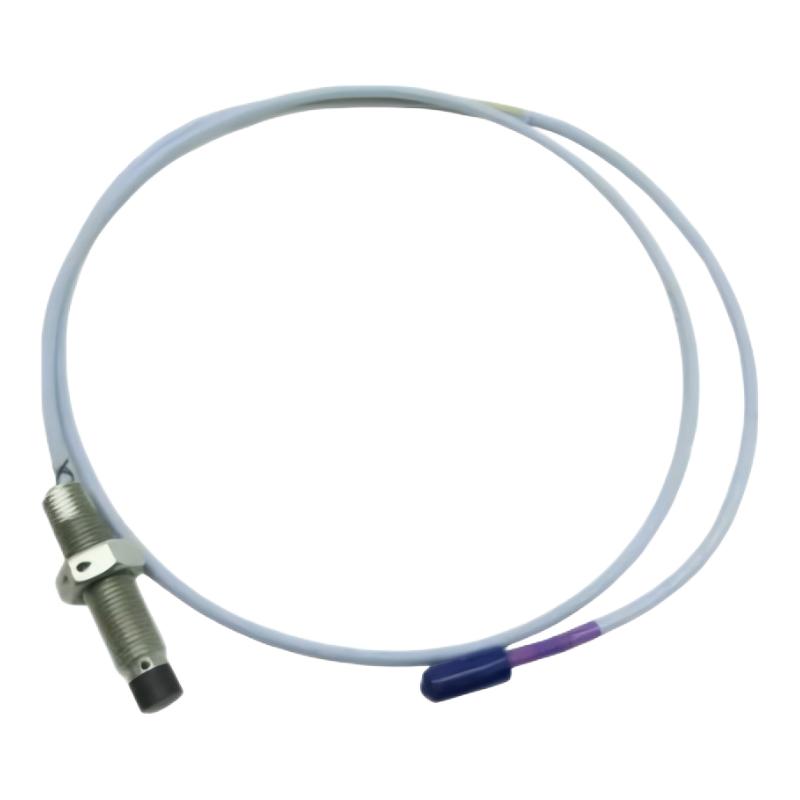

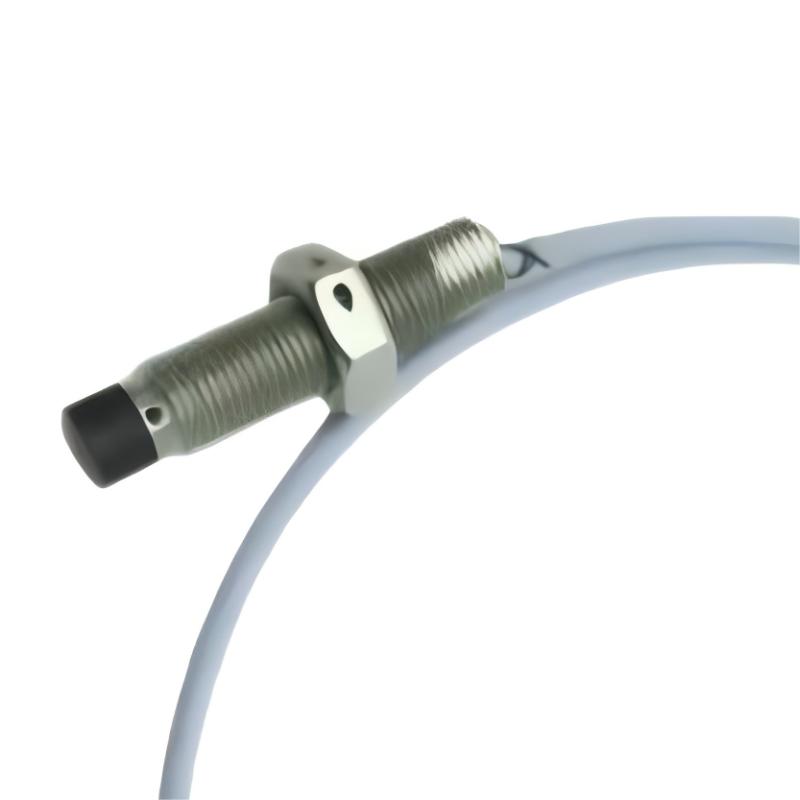

This proximity probe is used to measure the relative displacement between a rotating shaft and the probe tip using eddy current technology. It continuously converts small changes in the electromagnetic field into a proportional electrical signal that represents shaft vibration, axial movement, and dynamic position. In industrial rotating machinery such as turbines, compressors, and generators, this data is critical for real-time condition monitoring. It allows operators to detect early mechanical abnormalities such as imbalance, misalignment, shaft bow, or bearing wear. Because the measurement is non-contact, it ensures continuous monitoring without affecting machine operation, making it highly suitable for predictive maintenance and protection systems.

2. Why is eddy current non-contact measurement widely used in industrial environments?

Eddy current non-contact measurement is widely adopted because it provides accurate and stable displacement sensing without physical contact with the rotating shaft. This eliminates wear, friction, and mechanical loading, which are major concerns in high-speed machinery. The method uses electromagnetic induction to detect very small changes in distance, enabling high-precision measurement even under harsh operating conditions. It also offers excellent dynamic response, allowing it to capture both steady-state vibration trends and rapid transient events. These advantages make it especially suitable for continuous monitoring of critical rotating equipment in demanding industrial environments.

3. What installation factors have the greatest impact on measurement accuracy?

Measurement accuracy depends strongly on correct probe positioning, stable mounting conditions, and proper target surface characteristics. The probe must operate within its calibrated linear range; otherwise, the output signal may become nonlinear or distorted. Correct alignment is essential, as the probe should face the shaft surface perpendicularly to ensure consistent electromagnetic coupling. The shaft material, surface finish, and any coatings also affect signal behavior. In addition, mechanical stability is crucial—any vibration, looseness, or thermal expansion of the mounting structure can introduce drift or long-term measurement deviation. Proper installation and calibration are therefore essential for reliable performance.

4. What are the most common causes of unstable or noisy signals?

Unstable or noisy signals are typically caused by a combination of electrical interference, grounding issues, and mechanical variability. Poor shielding or improper grounding of the extension cable can allow electromagnetic noise to enter the measurement circuit. Loose or oxidized connectors may create intermittent resistance changes, resulting in fluctuating signals. On the mechanical side, abnormal shaft vibration, lubrication instability, or process fluctuations can disturb the eddy current field. Temperature variation can also slightly change mechanical spacing, contributing to slow signal drift. A complete diagnosis must consider both electrical and mechanical factors together rather than treating them separately.

5. How can long-term measurement stability be maintained?

Long-term stability relies on correct installation practices, stable electrical conditions, and consistent maintenance routines. The probe must remain firmly secured to prevent movement caused by vibration or thermal expansion. Cable shielding and grounding must remain intact to minimize electromagnetic interference. It is also important to keep the probe tip clean, as oil, dust, or debris can gradually affect signal consistency. Continuous monitoring of baseline trends helps identify early drift or degradation. Maintaining stable environmental conditions, especially temperature stability around the installation area, further improves measurement reliability over long operating periods.

6. Is recalibration required after replacing the probe?

Yes, recalibration is strongly recommended after replacing the probe, even if the replacement is the same model. Each probe has small manufacturing tolerances that can affect its electrical response characteristics. The full measurement chain—including probe, extension cable, and proximitor—must be verified to ensure correct gap voltage, linearity, and signal stability. Without recalibration, historical trend data may become inconsistent, which can reduce the accuracy of condition monitoring analysis. Proper recalibration ensures continuity of measurement data and maintains reliable long-term machinery diagnostics.

7. How do cable and connection issues affect system performance?

Cable and connection integrity is critical because the system operates using very small voltage variations that are highly sensitive to interference. Any damage to insulation or shielding can introduce electromagnetic noise, leading to unstable or distorted signals. Loose connectors may cause intermittent contact resistance changes, resulting in signal dropouts or erratic behavior. In severe cases, signal attenuation may reduce system sensitivity, making it difficult to detect small but important vibration changes. Because of this sensitivity, even minor degradation in wiring or grounding quality can significantly impact overall measurement performance.

8. What are the key maintenance practices for proximity probe systems?

Key maintenance practices focus on mechanical integrity, electrical reliability, and signal trend analysis. Regular inspection of probe mounting hardware is necessary to ensure it has not shifted due to vibration or thermal stress. Cable routing should be checked for physical damage, excessive bending, or exposure to harsh environmental conditions such as heat, oil, or moisture. Grounding systems must be verified to maintain a stable electrical reference. Monitoring long-term signal trends is also important, as gradual changes may indicate early mechanical degradation or sensor drift. In demanding industrial environments, preventive maintenance is essential to ensure long-term accuracy and system reliability.
