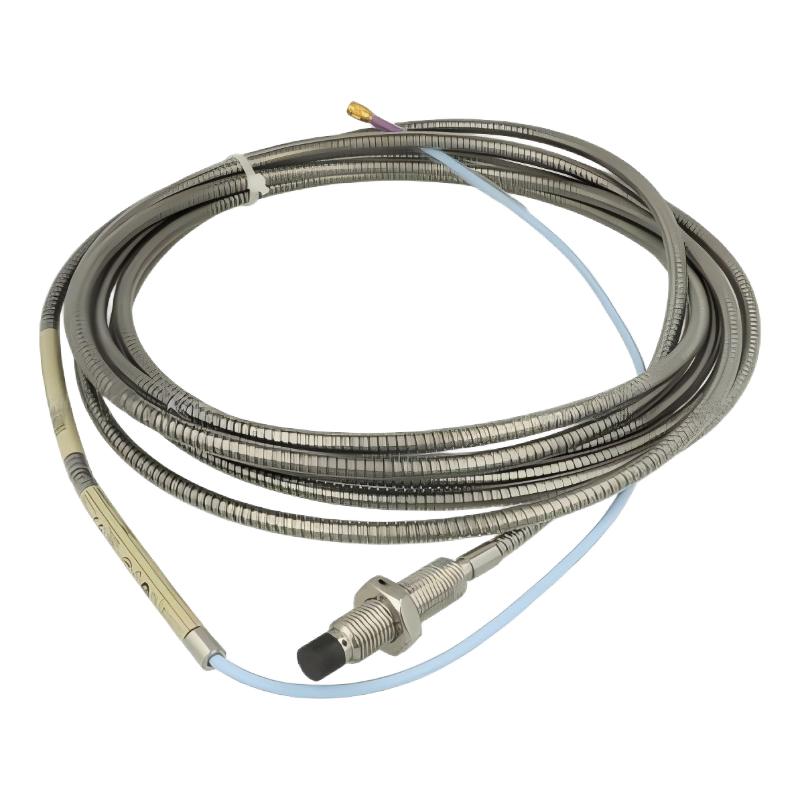

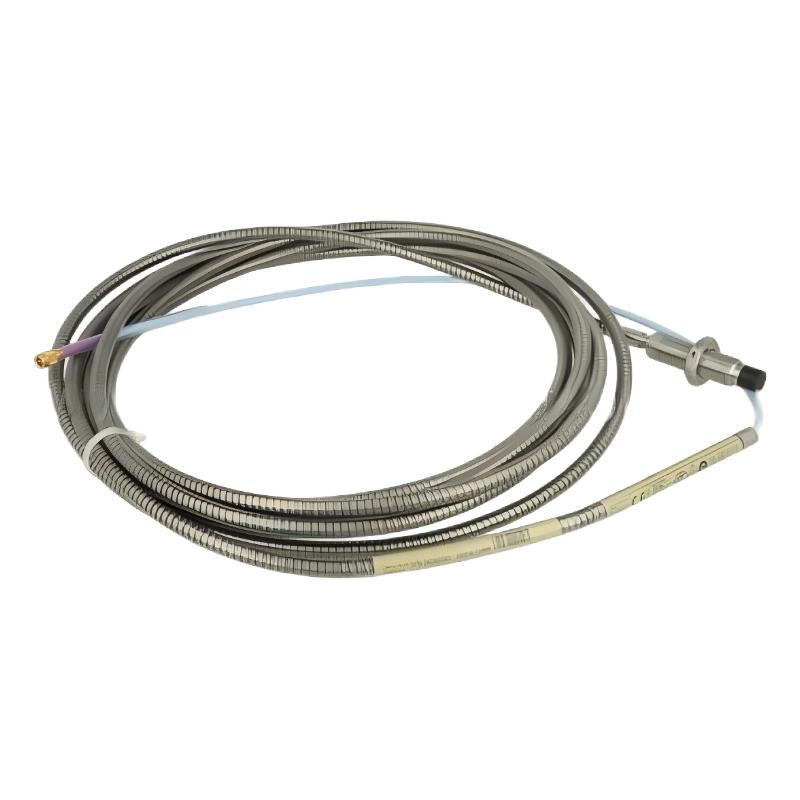

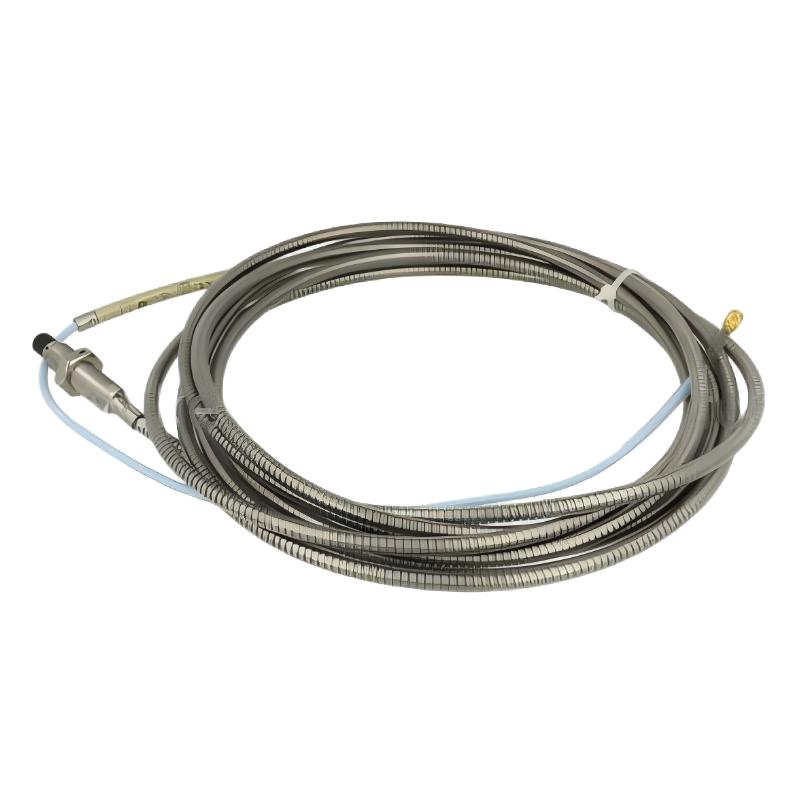

Q1: What is the main function of the Bently Nevada 330710-00-05-50-02-05 proximity probe?

A: This proximity probe is designed for precise non-contact measurement of shaft displacement, vibration, and position in rotating machinery. It uses eddy current technology to detect small changes in distance between the probe tip and a conductive target surface. In condition monitoring systems, it plays a critical role in tracking rotor behavior, identifying imbalance, misalignment, shaft rub, and other early-stage mechanical faults. By providing continuous real-time displacement data, it enables protection systems to prevent severe machinery damage and unplanned downtime in critical industrial assets such as turbines, compressors, pumps, and motors.

Q2: How does the eddy current measurement principle work in this probe?

A: The probe generates a high-frequency electromagnetic field at its sensing tip. When this field interacts with a conductive metal surface, it induces circulating eddy currents in the target material. These eddy currents create an opposing magnetic field that changes the electrical characteristics of the probe system. The monitoring electronics convert these changes into a voltage signal that is directly proportional to the distance between the probe and the target surface. This non-contact measurement method allows extremely precise detection of shaft movement without physical wear or mechanical interference.

Q3: What types of machinery commonly use this probe?

A: The probe is widely used in high-speed and high-value rotating equipment where vibration monitoring is essential for safe operation. Typical applications include steam turbines, gas turbines, centrifugal compressors, pumps, gearboxes, and large industrial motors. These machines are commonly found in power generation plants, oil and gas facilities, petrochemical industries, and heavy manufacturing plants. In these environments, continuous monitoring of shaft displacement is essential to ensure operational stability and to prevent catastrophic mechanical failure.

Q4: How is the probe installed in industrial systems?

A: The probe is mounted inside the machine housing, positioned close to a rotating shaft or conductive target surface. It must be installed with a carefully controlled air gap to ensure correct linear response. Proper alignment is critical because angular deviation can affect measurement accuracy and signal linearity. The probe is fixed in place using a rigid mounting structure to prevent movement caused by vibration. It works as part of a complete measurement chain that includes a driver module and monitoring system for signal conditioning and analysis.

Q5: What factors can affect measurement accuracy?

A: Several factors can influence measurement accuracy, including incorrect gap setting, probe misalignment, surface irregularities on the target shaft, and electromagnetic interference from nearby electrical equipment. Mechanical instability of the mounting structure can also introduce measurement drift. Temperature variations and improper calibration pairing with the driver system may further affect signal stability. Maintaining correct installation geometry and stable mechanical conditions is essential for accurate and repeatable measurements.

Q6: What role does this probe play in machinery protection systems?

A: In machinery protection systems, the probe provides real-time vibration and displacement data that is continuously analyzed to detect abnormal operating conditions. If vibration levels exceed predefined alarm thresholds or displacement patterns indicate mechanical issues such as imbalance or misalignment, the system can trigger alarms or automatic shutdowns. This early detection capability is essential for preventing severe damage to rotating machinery and minimizing unplanned downtime in critical industrial operations.

Q7: How does the probe interact with the monitoring system?

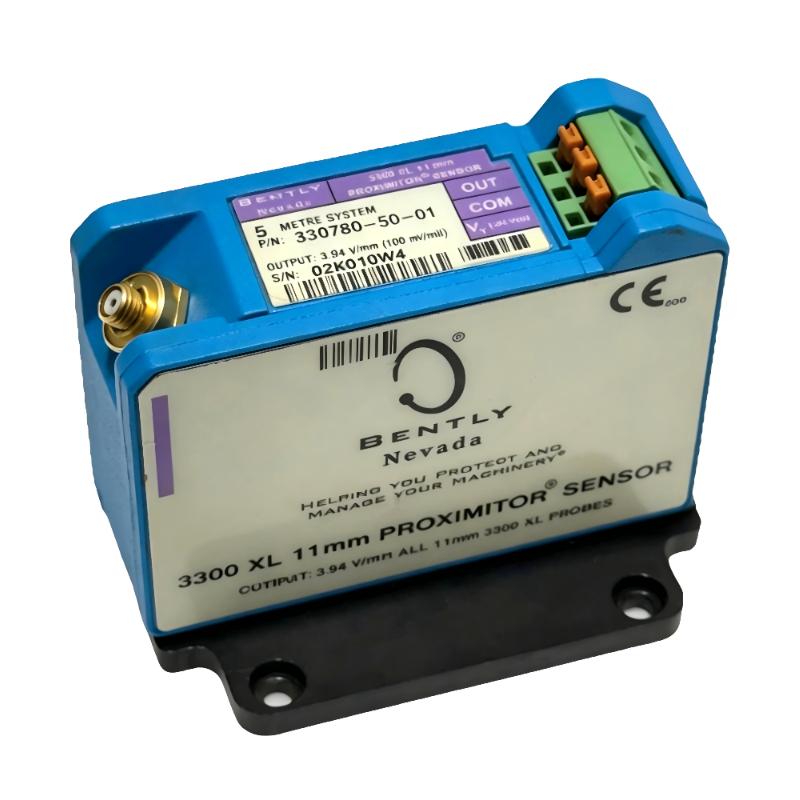

A: The probe operates as part of a complete eddy current measurement chain. It generates raw analog signals based on shaft displacement, which are processed by a dedicated driver module. The driver converts these signals into calibrated voltage outputs that are transmitted to a monitoring system such as a Bently Nevada 3300 XL rack. The monitoring system then analyzes these signals in real time to produce vibration trends, alarm conditions, and diagnostic information used by maintenance and operations teams.

Q8: In which industries is this probe most commonly used?

A: This probe is commonly used in industries where rotating machinery reliability is critical. These include power generation, oil and gas production, petrochemical refining, mining operations, and large-scale manufacturing facilities. In these industries, continuous monitoring of shaft behavior is essential for ensuring safe, stable, and efficient operation of high-speed rotating equipment. The probe provides essential measurement data for predictive maintenance and machinery protection systems.
