FAQ

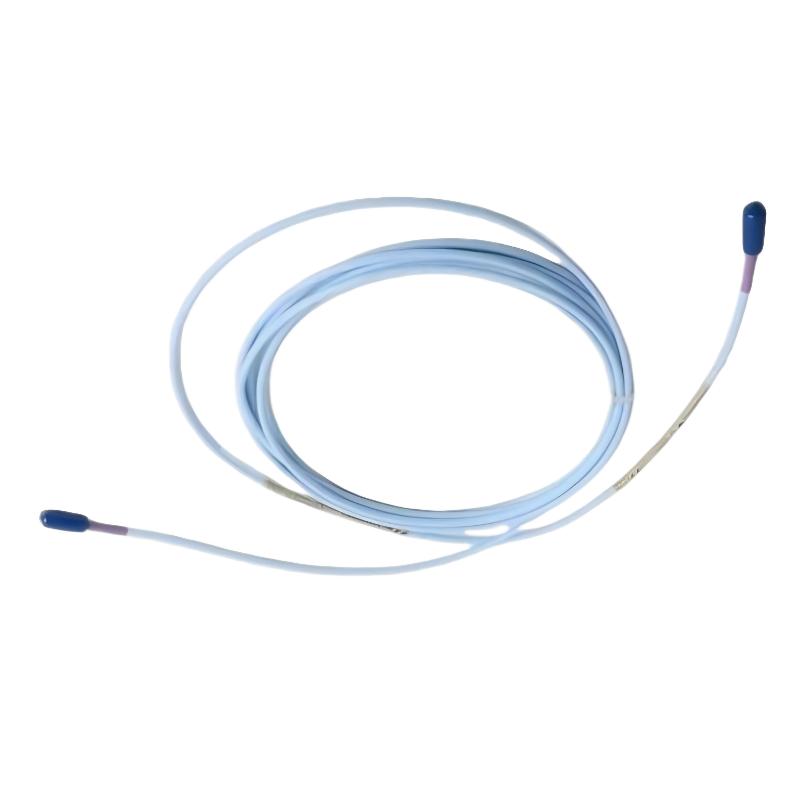

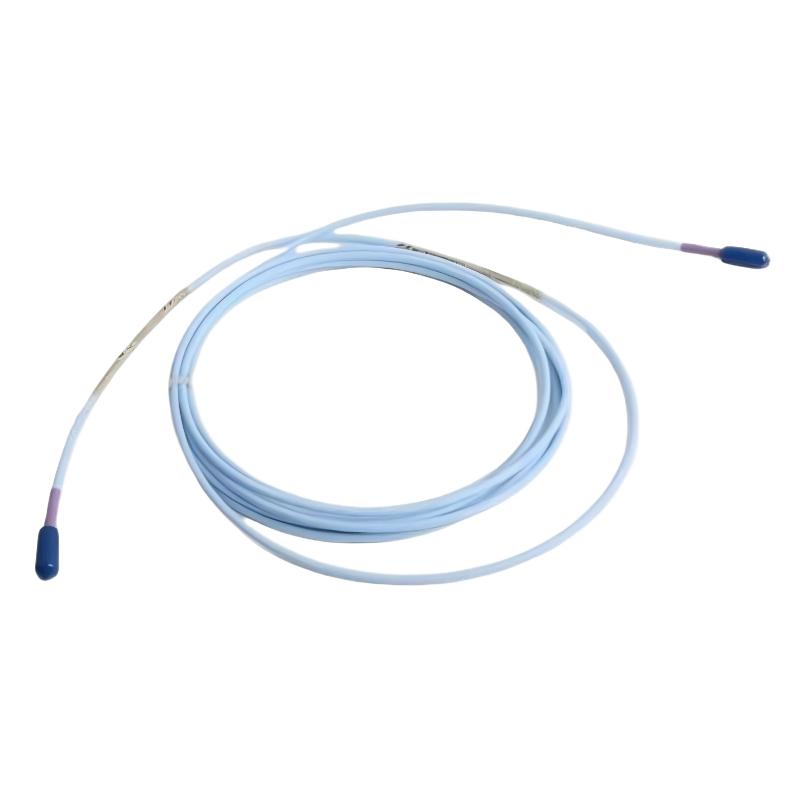

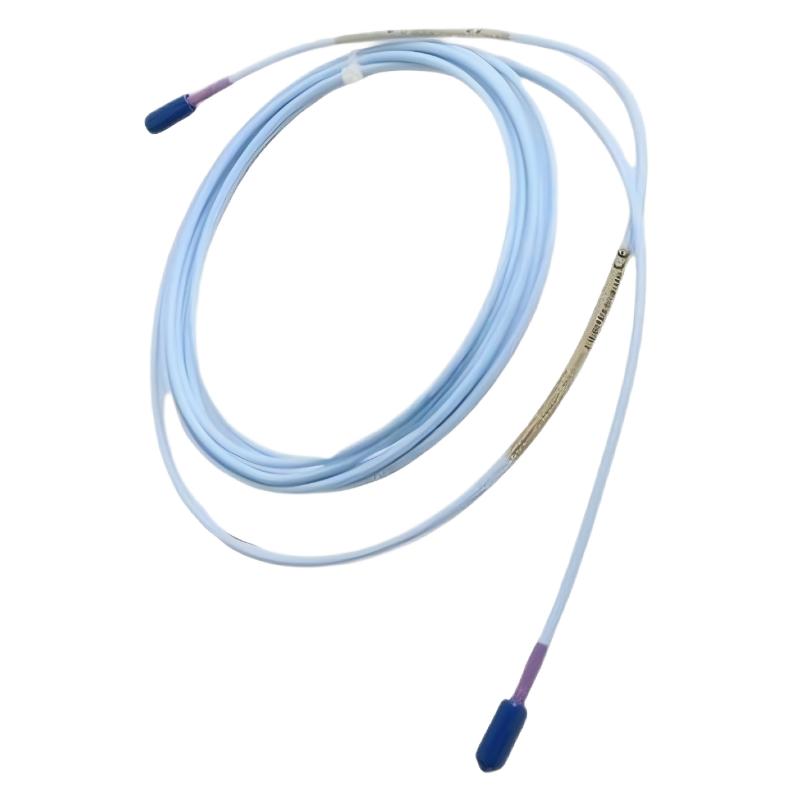

Q1: What is the main function of the Bently Nevada 330730-040-00-CN extension cable?

A: The primary function of this extension cable is to connect the proximity probe to the driver module within the Bently Nevada 3300 XL vibration monitoring system. It transmits the low-level analog signals generated by the eddy current probe, which represent precise shaft displacement data. These signals must be carried with high fidelity to ensure accurate vibration measurement and machinery condition monitoring. The cable is specifically designed to minimize signal loss and noise interference during transmission.

Q2: Why is a dedicated extension cable necessary in proximity measurement systems?

A: Proximity measurement systems operate with extremely sensitive analog signals that are highly susceptible to noise and interference. A dedicated extension cable ensures controlled impedance, consistent shielding, and stable transmission characteristics. Using non-certified cables can introduce signal distortion, calibration drift, or electromagnetic interference. The dedicated design ensures compatibility with both the probe and driver, maintaining system accuracy and long-term reliability.

Q3: How does shielding improve performance in industrial environments?

A: Shielding protects the signal conductor from external electromagnetic interference generated by motors, transformers, and switching devices commonly found in industrial plants. The high-density shielding used in this cable forms a protective barrier that reduces noise coupling into the signal path. This ensures that the weak analog signal from the probe remains stable, allowing the monitoring system to accurately detect vibration and displacement changes.

Q4: How is the extension cable integrated into the measurement system?

A: The cable is installed between the proximity probe and the driver module. The probe generates an analog signal based on shaft displacement, and this signal is transmitted through the cable to the driver. The driver then processes and converts the signal into a calibrated output used by monitoring systems. This makes the cable a critical link in the measurement chain, ensuring accurate data transmission from sensor to analysis system.

Q5: What factors can affect signal quality in this cable?

A: Signal quality can be affected by improper installation, mechanical stress, poor grounding, cable bending beyond specification, or exposure to strong electromagnetic fields. Routing the cable too close to high-voltage power lines can also introduce noise. To maintain performance, proper installation practices such as correct grounding, secure connectors, and separation from power cables are essential.

Q6: Can this cable operate reliably in harsh industrial environments?

A: Yes, the cable is engineered for demanding industrial environments such as power plants, refineries, and heavy manufacturing facilities. It is designed with durable materials and robust shielding to withstand electrical noise, vibration, and temperature variations. This ensures stable signal transmission even under continuous mechanical and electrical stress conditions.

Q7: What are the consequences of cable damage or degradation?

A: If the cable is damaged or degraded, it can lead to increased noise, signal attenuation, intermittent readings, or complete loss of measurement data. In vibration monitoring systems, this may result in incorrect condition assessment or failure to detect early signs of machinery faults. In critical applications, such issues can compromise equipment protection and increase the risk of unplanned downtime.

Q8: In which industries is this extension cable commonly used?

A: This extension cable is widely used in industries that rely on rotating machinery condition monitoring, including power generation, oil and gas, petrochemical processing, mining, and heavy manufacturing. It is commonly applied in monitoring turbines, compressors, pumps, and large industrial motors where accurate vibration and displacement measurement is essential for safe and reliable operation.
