Technical Specifications

FAQ

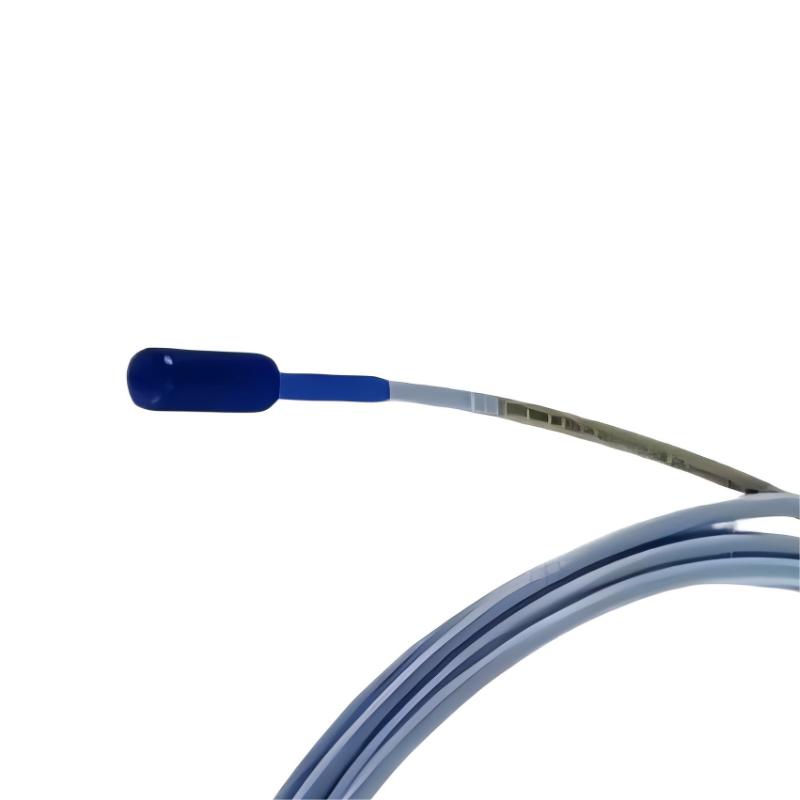

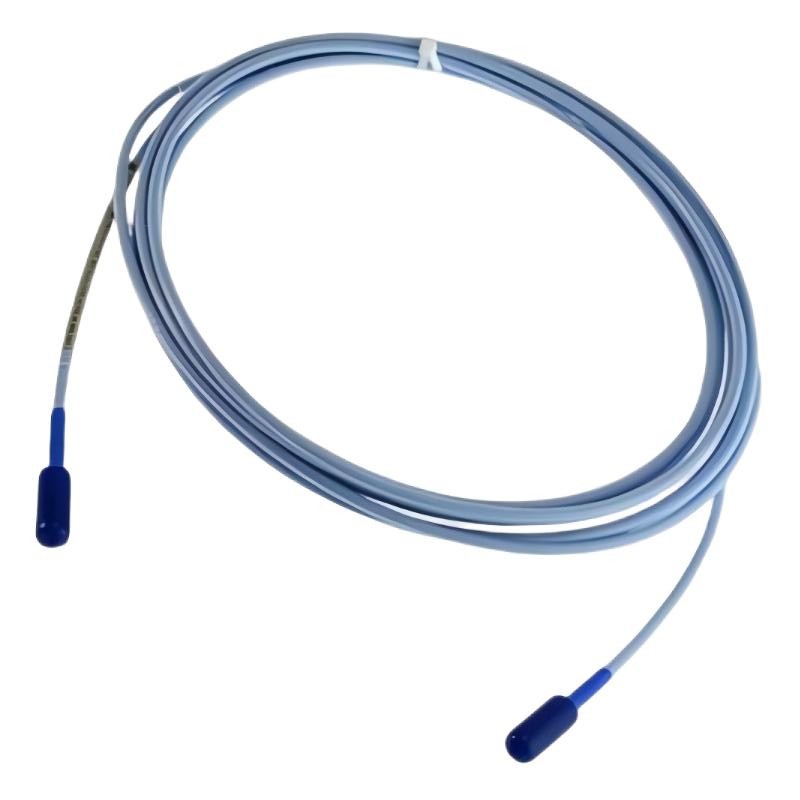

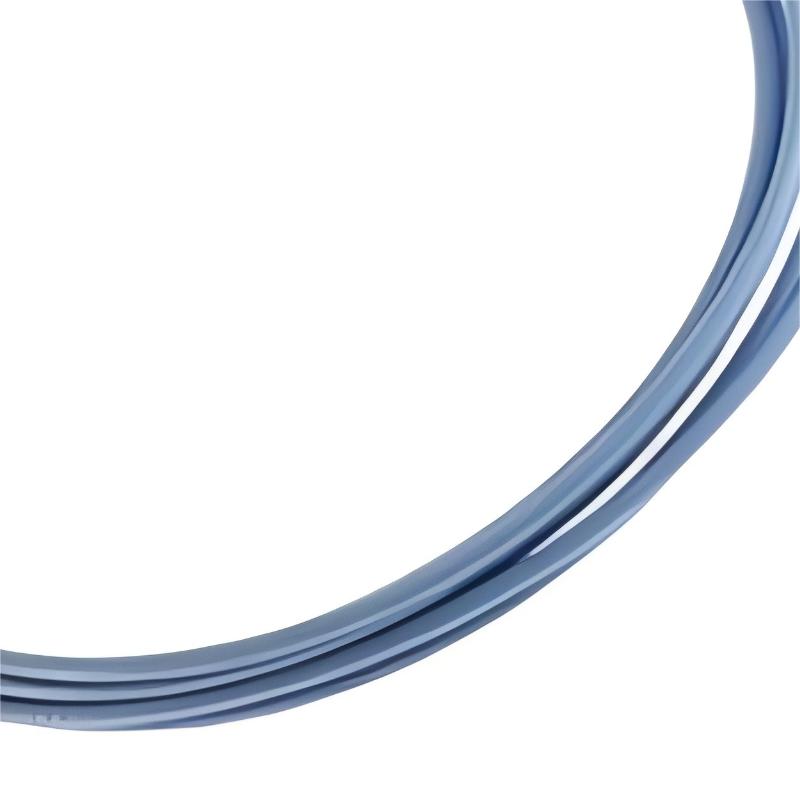

Q1: What is the main function of the Bently Nevada 330730-040-02-CN extension cable?

A: The primary function of this extension cable is to transmit low-level eddy current probe signals from the proximity probe to the driver module in a Bently Nevada 3300 XL measurement system. It serves as the critical communication link in the vibration monitoring chain, ensuring that displacement signals are transferred accurately without distortion or loss. Because the signals generated by proximity probes are extremely sensitive to noise and attenuation, the cable plays a vital role in preserving signal integrity over distance. It is designed specifically for industrial vibration monitoring applications where reliability and accuracy are essential.

Q2: Why is shielding important in this extension cable?

A: Shielding is essential because proximity probe signals are very low voltage and highly sensitive to electromagnetic interference (EMI). In industrial environments, electrical noise is generated by motors, variable frequency drives, switching equipment, and power distribution systems. Without proper shielding, these external noise sources could distort or corrupt the measurement signal, leading to inaccurate vibration readings. The cable uses high-performance shielding to minimize EMI effects, ensuring that the signal reaching the driver module remains stable and accurate even in harsh electrical environments.

Q3: How does this cable integrate into the 3300 XL measurement system?

A: The cable is an integral part of the 3300 XL eddy current measurement chain, which includes the proximity probe, extension cable, and driver module. It connects directly between the probe and the driver, forming a continuous signal path. Once installed, it carries the raw analog signal generated by the probe without modification. The driver module then processes this signal into a calibrated output used by monitoring systems. Proper integration ensures accurate displacement measurement and reliable vibration monitoring performance.

Q4: What factors can affect signal quality in the extension cable?

A: Signal quality can be affected by several factors including improper grounding, excessive electromagnetic interference, physical damage to the cable, or poor connector installation. Bending the cable beyond its recommended radius can also degrade shielding effectiveness and signal integrity. Additionally, routing the cable too close to high-voltage power lines or switching equipment can introduce noise. Proper installation practices, including correct grounding and separation from power cables, are essential to maintain high-quality signal transmission.

Q5: What role does the cable play in machinery protection systems?

A: The extension cable is a critical component in machinery protection systems because it ensures accurate transmission of vibration and displacement data from the probe to the monitoring system. Any signal distortion or interruption could lead to incorrect vibration readings, potentially masking early warning signs of mechanical issues. By maintaining signal integrity, the cable helps ensure that protection systems can reliably detect conditions such as imbalance, misalignment, or shaft instability, enabling timely corrective actions.

Q6: Can the cable be replaced independently in a system?

A: Yes, the extension cable can be replaced independently, provided that system compatibility is maintained. However, replacement must be done carefully to ensure that connector integrity, shielding continuity, and routing conditions are preserved. It is important to use a compatible cable with the same specifications to avoid signal mismatch or calibration issues. After replacement, system verification and signal validation are recommended to ensure correct operation within the measurement chain.

Q7: How does cable routing affect system performance?

A: Proper cable routing is essential for maintaining accurate signal transmission. The cable should be routed away from high-power electrical lines, transformers, and switching devices to minimize electromagnetic interference. It should also be secured to prevent mechanical stress or vibration-induced wear. Sharp bends or excessive tension should be avoided, as they can damage internal shielding and conductors. Correct routing ensures long-term stability and reliable performance of the vibration monitoring system.

Q8: In which industrial applications is this cable commonly used?

A: This extension cable is widely used in industries that rely on rotating machinery monitoring, including power generation, oil and gas production, petrochemical processing, mining operations, and large-scale manufacturing. In these environments, turbines, compressors, pumps, and motors require continuous vibration monitoring for safe operation. The cable ensures reliable signal transmission within these systems, supporting predictive maintenance strategies and machinery protection programs that help prevent unexpected equipment failures.
