1. What is the primary function of the Bently Nevada 330851-02-00-08-50-01-CN Proximity Probe?

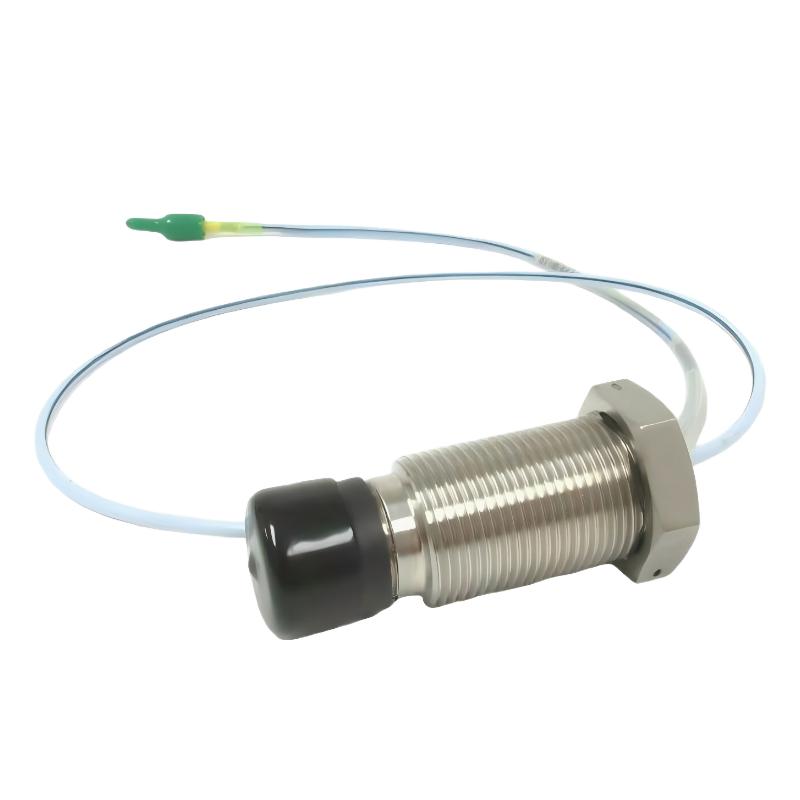

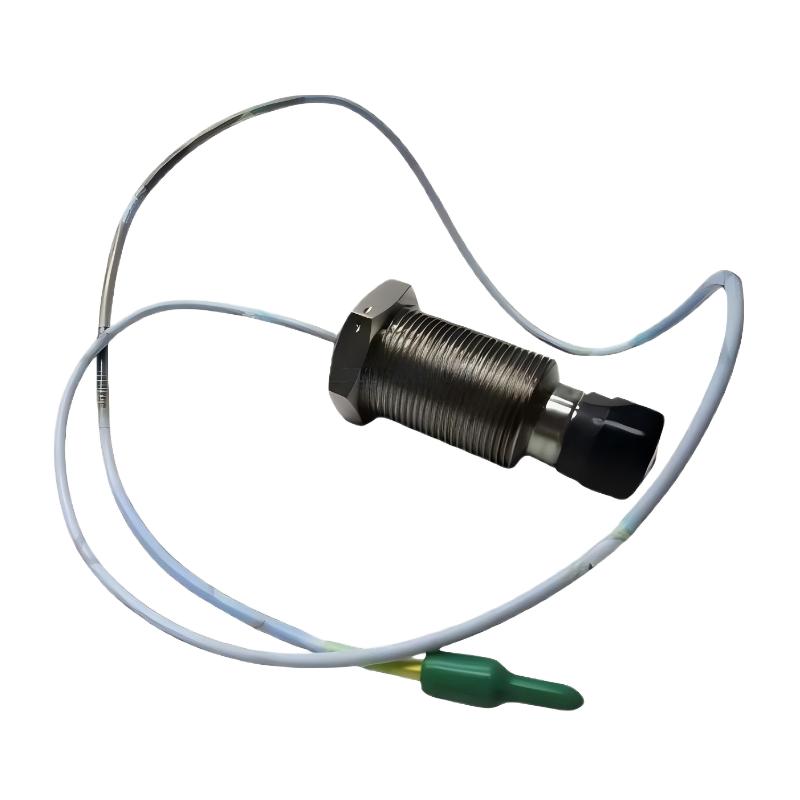

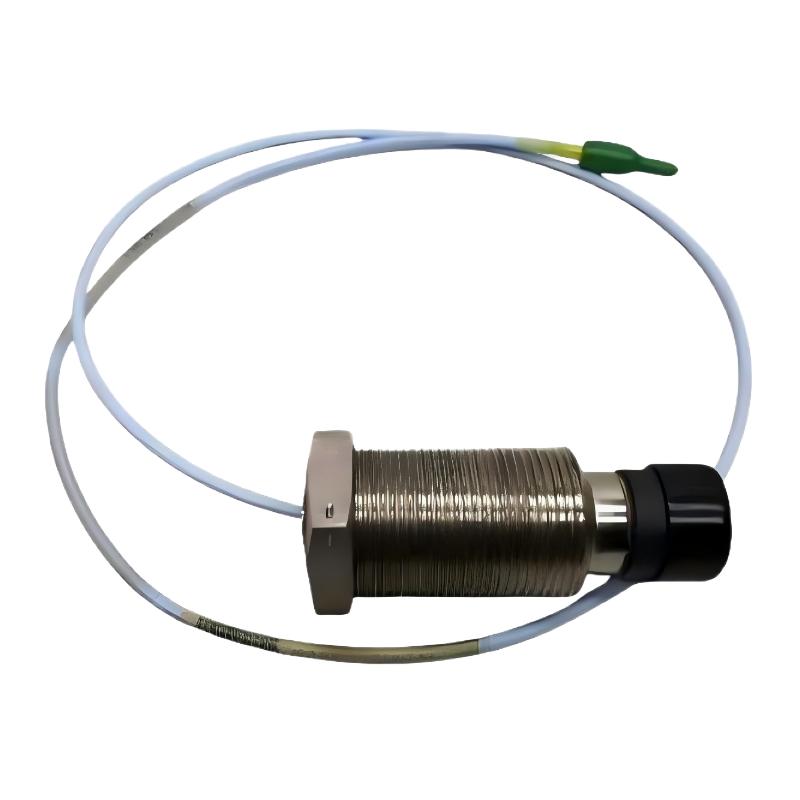

The Bently Nevada 330851-02-00-08-50-01-CN 3300 XL 25 mm Proximity Probe is a high-precision non-contact displacement sensor designed for monitoring the operating condition of rotating machinery. Its main function is to measure shaft vibration, shaft position, and displacement changes by using advanced eddy current sensing technology.

During machine operation, the probe creates an electromagnetic field near the conductive shaft surface. When the distance between the probe and the rotating shaft changes due to vibration or movement, the electrical characteristics of the sensor signal also change. The monitoring system analyzes these signals to determine machine operating conditions and identify potential mechanical problems.

This type of probe is widely used in critical rotating equipment such as turbines, compressors, pumps, and industrial motors. By providing continuous and accurate shaft monitoring data, it helps improve equipment reliability, reduce unexpected failures, and support predictive maintenance programs.

2. What should be checked before installing the 330851-02-00-08-50-01-CN proximity probe?

Before installing the Bently Nevada 330851-02-00-08-50-01-CN proximity probe, technicians should verify that the probe model and configuration match the requirements of the existing Bently Nevada monitoring system. Incorrect model selection or incompatible system components may result in inaccurate measurement signals or monitoring failures.

The probe should be inspected before installation to ensure there are no physical damages, including cable damage, connector problems, contamination on the probe tip, or mechanical deformation. The mounting location on the machine should also be checked to ensure the installation surface is clean and suitable for accurate measurement.

During installation, technicians must correctly adjust the probe gap according to system requirements. Incorrect probe clearance may cause signal instability or inaccurate vibration readings. After installation, the output signal should be tested through the monitoring system to confirm that the probe is operating correctly before the equipment is returned to service.

3. Why does the 3300 XL 25 mm proximity probe produce unstable signals?

Unstable signals from the Bently Nevada 330851-02-00-08-50-01-CN proximity probe can be caused by several factors, including incorrect installation gap, damaged extension cable, poor electrical connections, electromagnetic interference, improper target surface conditions, or monitoring system problems.

The probe gap is one of the most important factors affecting measurement accuracy. If the distance between the probe tip and the rotating shaft is outside the recommended operating range, the output signal may become unstable or inaccurate. Cable damage, loose connectors, or grounding problems can also introduce signal noise.

Troubleshooting should begin by checking the probe installation condition, cable integrity, connection points, and system diagnostic information. Technicians should also confirm that the rotating shaft surface is suitable for eddy current measurement. If external conditions are normal, further testing of the probe and monitoring channel should be performed.

4. How does the Bently Nevada 330851-02-00-08-50-01-CN measure shaft vibration?

The Bently Nevada 330851-02-00-08-50-01-CN proximity probe measures shaft vibration through eddy current sensing technology. Unlike contact-type sensors, the probe does not physically touch the rotating shaft. Instead, it generates an electromagnetic field that changes according to the distance between the probe tip and the conductive shaft surface.

When the shaft moves during operation, the distance variation changes the electromagnetic field around the probe. The sensor converts these changes into electrical signals that represent shaft displacement. The connected monitoring system processes these signals to calculate vibration levels, shaft position, and other mechanical operating parameters.

This non-contact measurement method provides high accuracy and reliability, making the probe suitable for high-speed and high-value rotating machinery where continuous condition monitoring is required.

5. Can the 330851-02-00-08-50-01-CN proximity probe be replaced while equipment is running?

The Bently Nevada 330851-02-00-08-50-01-CN proximity probe should generally not be replaced while the monitored equipment is operating. The probe is installed near rotating mechanical components and plays an important role in the machinery protection system, so replacement during operation may create safety risks and interrupt monitoring functions.

Before replacement, the machine should be shut down according to approved maintenance procedures. Technicians should ensure that rotating components have completely stopped and that the maintenance area is safe.

After installing a new probe, the installation gap must be adjusted correctly, electrical connections should be checked, and the monitoring system should be tested. Signal verification and functional testing are necessary to ensure accurate vibration and displacement monitoring before restarting the equipment.

6. How can the service life of the 330851-02-00-08-50-01-CN proximity probe be extended?

The service life of the Bently Nevada 330851-02-00-08-50-01-CN proximity probe can be extended through correct installation, proper environmental protection, and regular maintenance. Since the probe is often installed in industrial environments, protection from excessive vibration, contamination, moisture, and mechanical impact is important.

Regular inspection should include checking cable condition, connector reliability, signal stability, and monitoring system diagnostics. Any abnormal signal fluctuation should be investigated promptly because it may indicate installation problems or developing mechanical issues.

Maintaining correct probe installation settings and keeping the monitoring area clean can significantly improve measurement reliability. Preventive maintenance practices help ensure continuous and accurate monitoring of critical rotating equipment.

7. Does the 330851-02-00-08-50-01-CN proximity probe require calibration after replacement?

Yes, verification and adjustment are normally required after replacing the Bently Nevada 330851-02-00-08-50-01-CN proximity probe. Although replacement probes are manufactured according to strict specifications, proper installation conditions must still be confirmed to ensure accurate measurement performance.

After installation, technicians should check the probe gap, verify signal output, and confirm communication between the probe and the monitoring system. The displayed vibration and displacement values should be reviewed to ensure they match the actual equipment operating condition.

Proper calibration and verification help prevent incorrect readings, false alarms, or inaccurate machinery condition assessments. This ensures that the protection system continues providing reliable monitoring after probe replacement.

8. How can a faulty 330851-02-00-08-50-01-CN proximity probe be accurately diagnosed?

Accurate diagnosis of a Bently Nevada 330851-02-00-08-50-01-CN proximity probe fault requires checking the complete monitoring circuit, including the probe, cable, monitoring module, and installation conditions.

The troubleshooting process should begin with reviewing system alarms, signal trends, and monitoring data. Technicians should then inspect the probe body, cable connections, mounting condition, and probe gap adjustment. Many apparent probe failures are actually caused by incorrect installation, damaged cables, or external interference.

If all external conditions are confirmed to be normal, the probe can be tested using approved diagnostic equipment or replaced temporarily with a known working unit. If the system returns to normal operation after replacement, the original probe can be considered faulty.

A systematic diagnostic approach helps reduce unnecessary replacement, shortens maintenance time, and ensures that Bently Nevada machinery monitoring systems return to reliable operation.
