1. What is the primary function of the Bently Nevada 330851-04-000-015-10-00-05 proximity probe?

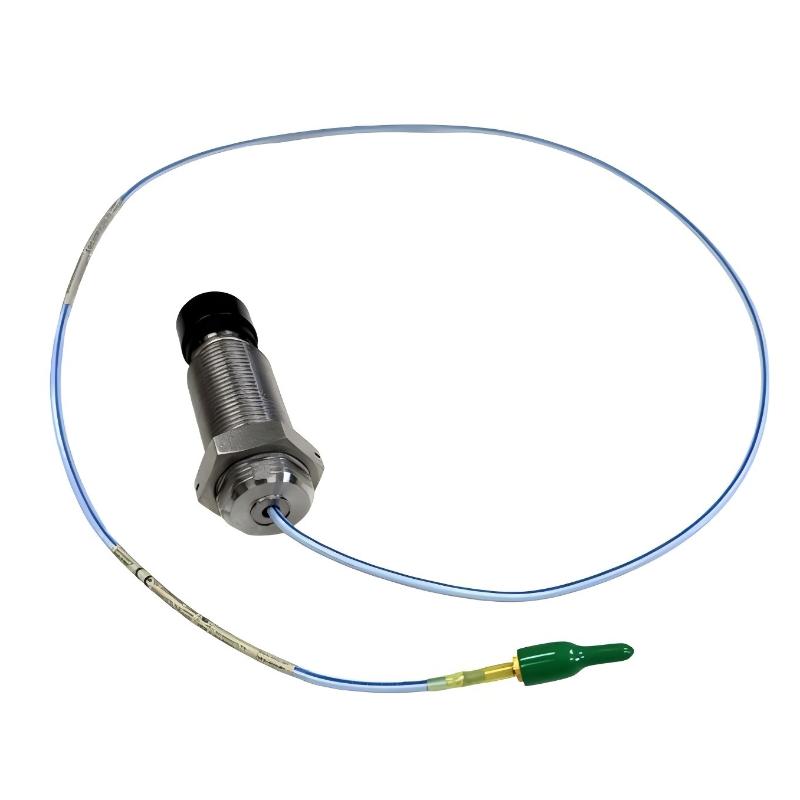

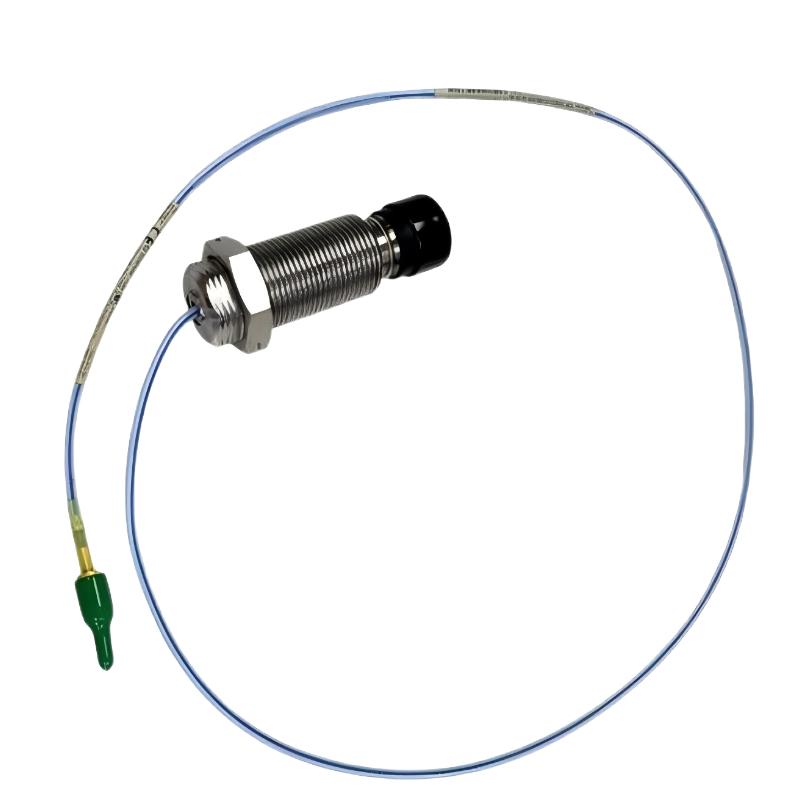

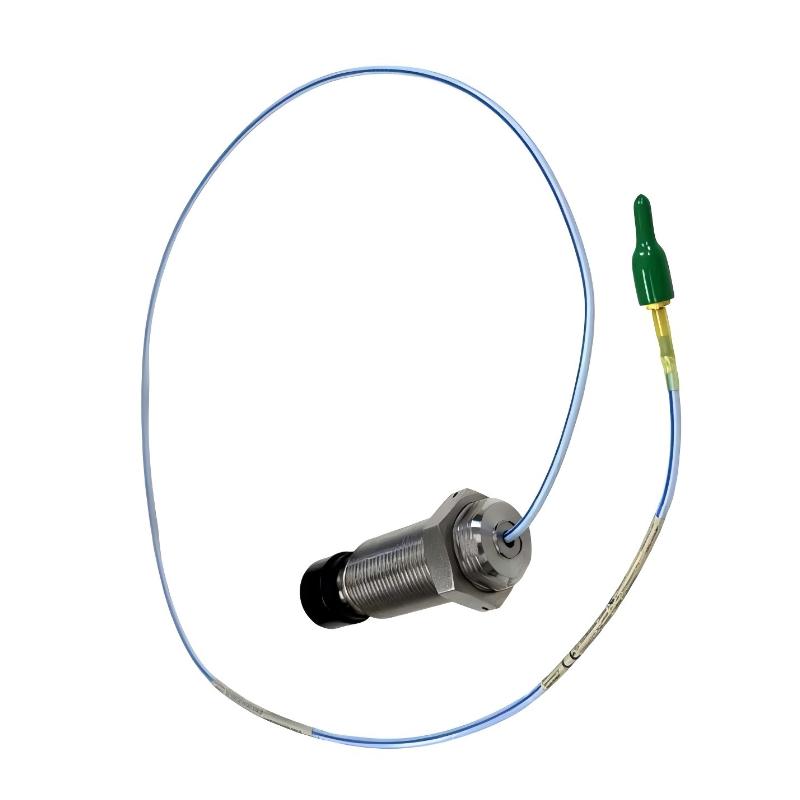

The Bently Nevada 330851-04-000-015-10-00-05 3300 XL 25 mm Proximity Probe is a high-precision non-contact displacement sensor designed for monitoring the operating condition of rotating machinery. Its main function is to measure shaft vibration, shaft displacement, and shaft position changes during equipment operation.

The probe uses advanced eddy current sensing technology to detect changes in the distance between the probe tip and the conductive shaft surface. When the rotating shaft moves due to vibration, imbalance, misalignment, or mechanical changes, the probe converts these physical movements into electrical signals that are transmitted to the monitoring system for analysis.

This proximity probe is commonly used in critical industrial equipment such as steam turbines, gas turbines, compressors, pumps, and large motors. By continuously providing accurate vibration and displacement information, it helps operators identify potential mechanical problems early, improve equipment reliability, and reduce unexpected downtime.

2. What should be checked before installing the 330851-04-000-015-10-00-05 proximity probe?

Before installing the Bently Nevada 330851-04-000-015-10-00-05 proximity probe, technicians should first verify that the probe model and configuration match the requirements of the existing Bently Nevada monitoring system. Incorrect selection may result in inaccurate measurement signals or failure of the monitoring system to operate correctly.

The probe should be visually inspected before installation to confirm that there are no physical damages, such as cable cracks, connector damage, contamination, or damage to the probe sensing tip. The installation location on the machine should also be checked to ensure that the mounting area is clean and suitable for accurate measurement.

During installation, the probe clearance must be adjusted according to system requirements. Proper installation distance is essential for accurate eddy current measurement. Incorrect clearance may cause unstable signals, inaccurate vibration readings, or false alarms.

After installation, technicians should verify signal output through the monitoring system and confirm that vibration and displacement values are stable before putting the equipment back into normal operation.

3. Why does the 3300 XL 25 mm proximity probe produce abnormal measurement signals?

Abnormal measurement signals from the Bently Nevada 330851-04-000-015-10-00-05 proximity probe can be caused by several factors, including incorrect probe gap adjustment, damaged cables, poor connections, electromagnetic interference, shaft surface problems, or issues within the monitoring system.

The installation gap between the probe and the rotating shaft is one of the most important factors affecting measurement accuracy. If the gap is outside the recommended operating range, the eddy current signal may become unstable, causing incorrect vibration or displacement data.

Other possible causes include aging extension cables, loose connectors, improper grounding, or external electrical interference. During troubleshooting, technicians should check the probe installation condition, cable integrity, connection status, and system diagnostic information.

If external conditions are confirmed to be normal, further testing of the probe and monitoring channel should be performed to determine whether the probe itself has failed.

4. How does the Bently Nevada 330851-04-000-015-10-00-05 achieve non-contact measurement?

The Bently Nevada 330851-04-000-015-10-00-05 proximity probe uses eddy current technology to achieve non-contact displacement measurement. During operation, the probe generates a high-frequency electromagnetic field near the surface of a conductive metal target.

When the distance between the probe and the rotating shaft changes, the electromagnetic field characteristics also change. The probe electronics convert these variations into electrical signals that represent the actual shaft displacement.

Because the measurement process does not require physical contact with the rotating component, the probe avoids mechanical wear and can operate reliably in high-speed rotating equipment applications. This technology provides fast response, high accuracy, and long-term stability, making it suitable for machinery protection and condition monitoring systems.

5. Can the 330851-04-000-015-10-00-05 probe be replaced while the equipment is operating?

In most applications, the Bently Nevada 330851-04-000-015-10-00-05 proximity probe should not be replaced while the equipment is running. The probe is installed near rotating machinery and is an important component of the machinery protection system, so replacement during operation may create safety risks.

Before replacement, the machine should be shut down following approved maintenance procedures. Technicians should ensure that all rotating components have stopped completely and that the maintenance environment is safe.

After installing a new probe, the installation clearance, cable connection, and signal output must be checked carefully. The monitoring system should be tested to confirm that vibration and displacement measurements are accurate before restarting the equipment.

Following proper replacement procedures helps prevent installation errors and ensures reliable operation of the protection system.

6. How can the service life of the 330851-04-000-015-10-00-05 proximity probe be improved?

The service life of the Bently Nevada 330851-04-000-015-10-00-05 proximity probe can be improved through correct installation, proper environmental protection, and regular preventive maintenance.

First, the probe must be installed according to technical requirements, including correct clearance adjustment, secure mounting, and proper cable routing. Incorrect installation may cause unstable signals and reduce long-term reliability.

The operating environment should also be controlled to minimize exposure to excessive vibration, moisture, dust, oil contamination, and corrosive substances. Regular inspections should include checking cable condition, connector reliability, and signal stability.

By maintaining proper installation conditions and monitoring the probe performance regularly, users can reduce unexpected failures, extend service life, and ensure continuous monitoring of critical rotating machinery.

7. Does the 330851-04-000-015-10-00-05 proximity probe require adjustment after replacement?

After replacing the Bently Nevada 330851-04-000-015-10-00-05 proximity probe, installation verification and system testing are required. Although replacement probes are manufactured according to standard specifications, field installation conditions may affect measurement performance.

After replacement, technicians should check the probe installation position, cable connection, and signal output. The monitoring system should be tested to confirm that vibration and displacement values correspond correctly with the actual equipment operating condition.

Proper adjustment and verification help prevent false alarms, incorrect measurement data, and unreliable machinery protection performance. Completing these checks ensures that the replacement probe can provide accurate and stable monitoring signals.

8. How can a faulty 330851-04-000-015-10-00-05 proximity probe be accurately identified?

Accurately identifying a faulty Bently Nevada 330851-04-000-015-10-00-05 proximity probe requires a complete inspection of the entire monitoring circuit, including the probe, cable, connectors, monitoring module, and installation conditions.

The troubleshooting process should begin by reviewing system alarms, vibration trends, and signal output behavior. Technicians should then inspect the probe condition, cable integrity, connection points, and installation clearance.

Some abnormal signals may not be caused by the probe itself. Problems such as loose connections, damaged cables, electrical interference, or monitoring module faults can create similar symptoms. Therefore, external factors should be eliminated before replacing the probe.

If all external conditions are confirmed to be normal, the probe can be tested using professional diagnostic equipment or replaced temporarily with a known working unit. This systematic approach helps reduce unnecessary replacement, improve maintenance efficiency, and restore reliable operation of the Bently Nevada machinery monitoring system.
