1. What is the main function of the Bently Nevada 330851-04-000-015-10-01-05 proximity probe?

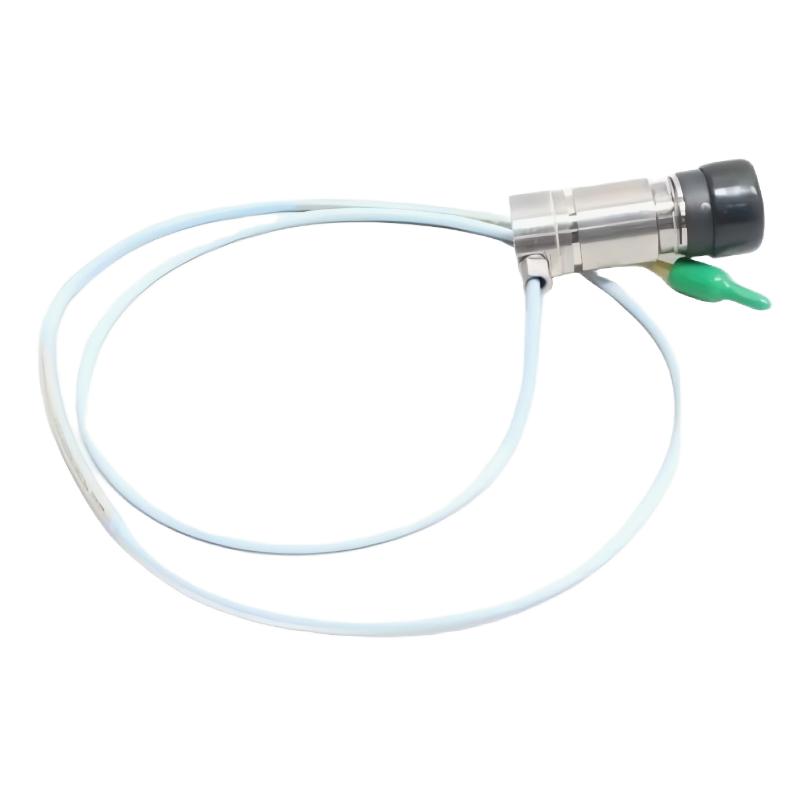

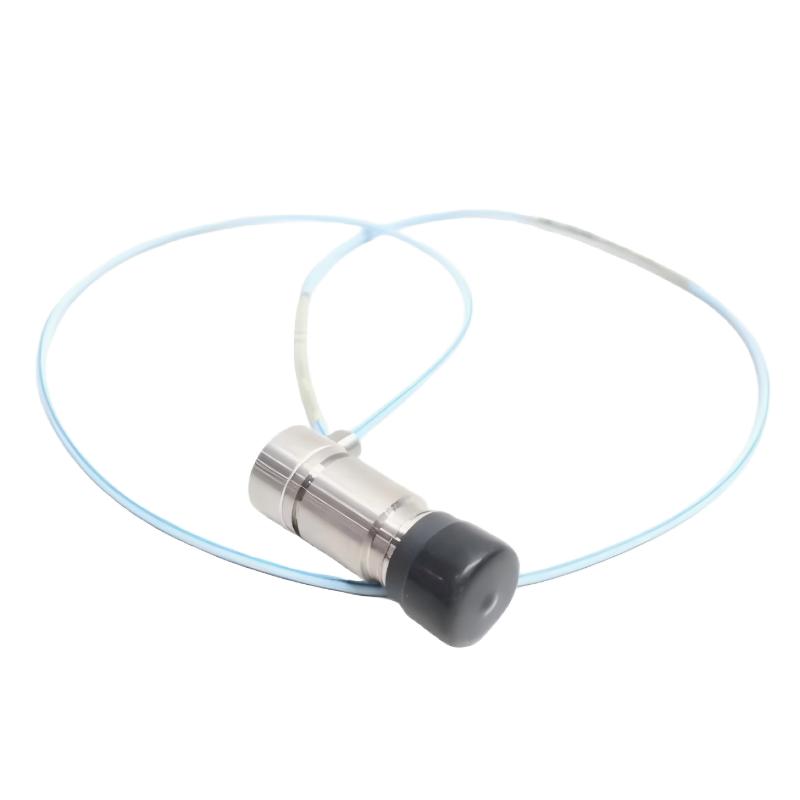

The Bently Nevada 330851-04-000-015-10-01-05 3300 XL 25 mm Proximity Probe is a high-precision non-contact displacement sensor designed for monitoring the operating condition of large rotating machinery. Its primary purpose is to measure shaft vibration, shaft displacement, and relative shaft position changes during equipment operation.

The probe uses advanced eddy current sensing technology to detect variations in the distance between the probe tip and the rotating shaft surface. When the shaft experiences vibration, misalignment, imbalance, or position changes, the probe converts these mechanical movements into electrical signals that are transmitted to the Bently Nevada monitoring system.

This proximity probe is widely used in critical industrial applications such as steam turbines, gas turbines, compressors, pumps, and large motors. By continuously collecting shaft condition data, it helps maintenance teams identify potential mechanical problems early, improve equipment reliability, and reduce unexpected downtime.

2. What should be considered when installing the 330851-04-000-015-10-01-05 probe?

Before installing the Bently Nevada 330851-04-000-015-10-01-05 proximity probe, technicians should confirm that the probe specification matches the existing 3300 XL monitoring system configuration. Using an incorrect model or incompatible component may result in inaccurate signals or failure of the monitoring system.

Before installation, the probe body, cable assembly, and connector should be inspected carefully to ensure there is no physical damage, contamination, cable wear, or connector failure. The installation location should also be checked to ensure the mounting area is clean and suitable for accurate measurement.

During installation, the probe clearance between the sensing tip and the rotating shaft must be adjusted according to system requirements. Proper clearance is essential for stable eddy current measurement. Incorrect installation conditions may cause unstable signals, inaccurate vibration readings, or incorrect alarms.

After installation, the output signal should be checked through the monitoring system to confirm that vibration and displacement measurements are stable and accurate before the equipment returns to normal operation.

3. Why does the 3300 XL 25 mm proximity probe experience unstable signals?

Unstable signals from the Bently Nevada 330851-04-000-015-10-01-05 proximity probe can be caused by several factors, including incorrect probe installation, cable problems, electrical interference, poor connections, or issues with the monitoring system.

One of the most common causes is incorrect probe clearance. The distance between the probe tip and the rotating shaft directly affects the eddy current measurement signal. If the clearance is outside the recommended range, the output signal may become unstable or inaccurate.

Other possible causes include damaged extension cables, loose connectors, improper grounding, excessive electromagnetic interference, or abnormal shaft surface conditions. During troubleshooting, technicians should check the probe installation condition, cable integrity, system diagnostics, and operating environment.

A complete inspection process helps identify the actual cause of signal problems and prevents unnecessary replacement of functional components.

4. How does the Bently Nevada 330851-04-000-015-10-01-05 detect mechanical vibration?

The Bently Nevada 330851-04-000-015-10-01-05 proximity probe detects mechanical vibration using eddy current sensing technology. The probe generates a high-frequency electromagnetic field at the sensing tip, which interacts with the conductive surface of the rotating shaft.

When the shaft moves during operation, the distance between the shaft surface and the probe changes. These distance variations affect the electromagnetic field and create corresponding changes in the electrical signal. The probe converts these changes into output signals that represent shaft movement.

Compared with contact measurement methods, eddy current technology provides non-contact operation, eliminating mechanical wear between the sensor and rotating components. This makes the probe highly suitable for high-speed rotating equipment requiring continuous and reliable condition monitoring.

5. Can the 330851-04-000-015-10-01-05 probe be replaced while the machine is running?

In most industrial applications, the Bently Nevada 330851-04-000-015-10-01-05 proximity probe should not be replaced while the equipment is operating. The probe is installed near rotating mechanical components and is an important part of the machinery protection system.

Replacing the probe during operation may introduce safety risks and may temporarily interrupt critical monitoring functions. Before replacement, the equipment should be shut down according to approved maintenance procedures, and all rotating components should be confirmed to be completely stopped.

After installing a replacement probe, technicians should check the probe installation condition, cable connection, and signal output. The monitoring system should be tested to confirm that vibration and displacement measurements are accurate before restarting the equipment.

Following proper replacement procedures ensures reliable operation and prevents incorrect installation or measurement errors.

6. How can the operating reliability of the 330851-04-000-015-10-01-05 probe be improved?

Improving the operating reliability of the Bently Nevada 330851-04-000-015-10-01-05 proximity probe requires correct installation, proper environmental protection, and regular maintenance inspections.

The probe should be installed according to technical requirements, including proper clearance adjustment, secure mounting, and correct cable routing. Incorrect installation may result in unstable measurements and reduce long-term reliability.

In industrial environments, the probe and cable should be protected from excessive vibration, moisture, dust, oil contamination, and mechanical damage. Regular maintenance should include checking signal stability, cable condition, and connection reliability.

By implementing preventive maintenance practices and monitoring system performance regularly, users can extend the service life of the probe and maintain accurate monitoring of critical rotating machinery.

7. Does the 330851-04-000-015-10-01-05 require commissioning after replacement?

Yes. After replacing the Bently Nevada 330851-04-000-015-10-01-05 proximity probe, installation verification and system commissioning checks should be performed to ensure proper operation.

Although replacement probes are manufactured according to standard specifications, actual field conditions may affect measurement performance. Technicians should verify the probe installation position, cable connection, signal output, and communication with the monitoring system.

The vibration and displacement readings should be reviewed to confirm that they correspond with the actual machine operating condition. Proper commissioning helps prevent false alarms, incorrect measurements, and unreliable machinery protection performance.

Completing these checks ensures that the replacement probe provides stable and accurate monitoring signals after installation.

8. How can a faulty 330851-04-000-015-10-01-05 proximity probe be diagnosed?

Accurately diagnosing a faulty Bently Nevada 330851-04-000-015-10-01-05 proximity probe requires checking the complete measurement system, including the probe, cable, connectors, monitoring module, and installation conditions.

The troubleshooting process should begin by reviewing system alarms, historical vibration trends, and current signal behavior. Technicians should then inspect the probe condition, cable integrity, connection points, and installation clearance.

It is important to note that abnormal probe signals are not always caused by a defective probe. Problems such as damaged cables, loose connections, grounding issues, electrical interference, or monitoring module faults can produce similar symptoms.

If all external conditions are confirmed to be normal, the probe can be tested with professional diagnostic equipment or replaced temporarily with a known working unit. A systematic diagnostic approach helps avoid unnecessary replacement, improves maintenance efficiency, and ensures reliable operation of the Bently Nevada machinery monitoring system.
