Q1. What is the operating principle of this 3300 XL proximity probe?

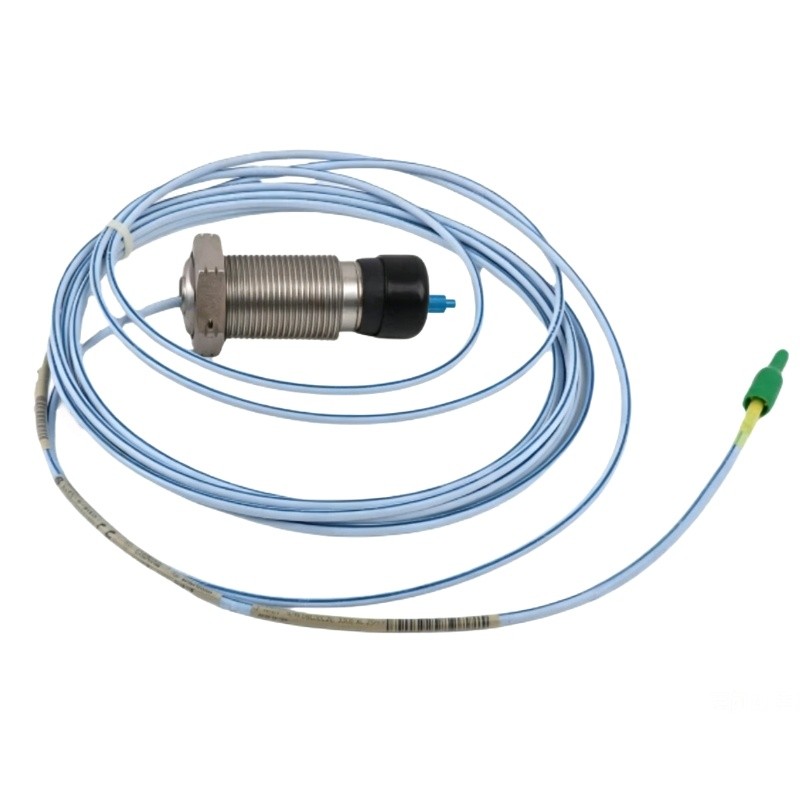

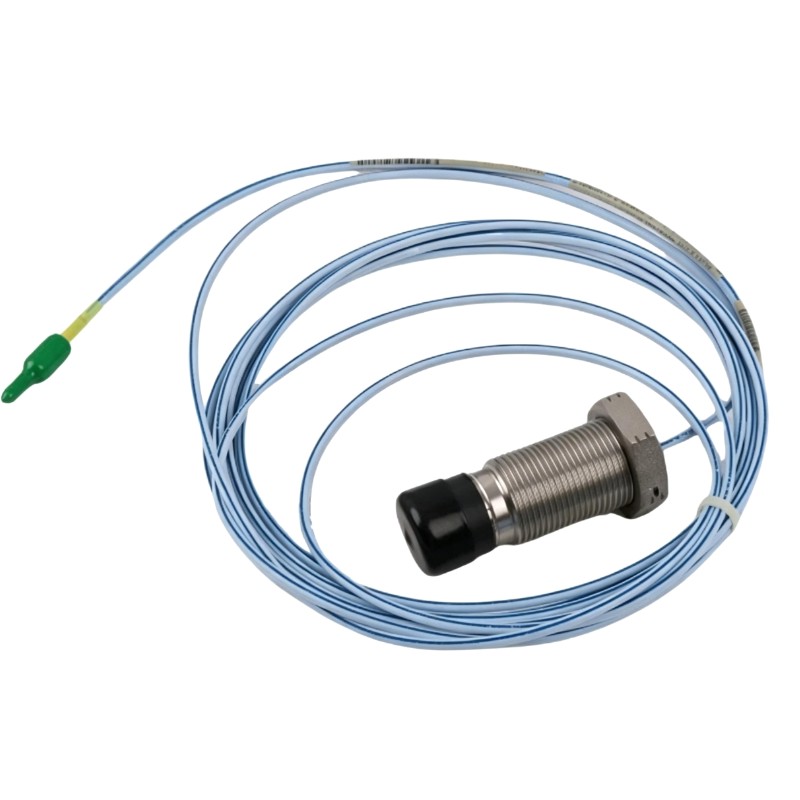

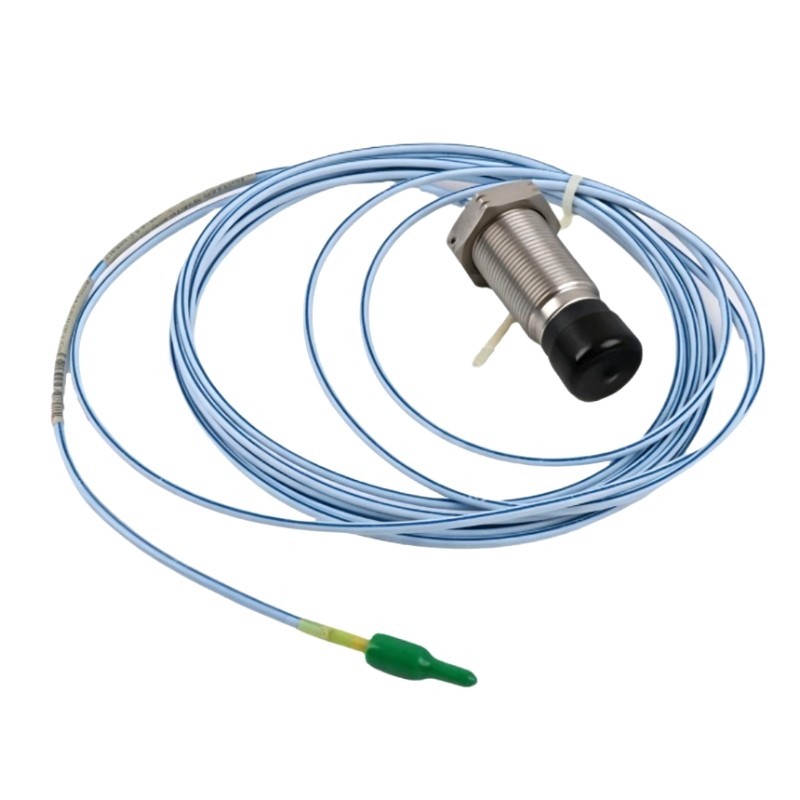

The Bently Nevada 330851-02-000-034-50-00-00 proximity probe operates based on eddy current technology, which enables highly accurate non-contact measurement of shaft displacement and vibration in rotating machinery. The probe generates a high-frequency electromagnetic field at its sensing tip. When this field approaches a conductive metal surface, such as a rotating shaft, it induces localized circulating currents known as eddy currents within the material. These eddy currents generate an opposing electromagnetic field that modifies the impedance characteristics of the probe coil. The system continuously measures these impedance variations and converts them into a calibrated, linear voltage output that corresponds precisely to the distance between the probe and the shaft surface. This mechanism allows the probe to capture extremely small dynamic movements without physical contact, making it ideal for high-speed, high-temperature, and harsh industrial environments.

Q2. What mechanical conditions can this probe detect in rotating machinery?
This probe is designed to continuously monitor critical mechanical behaviors of rotating equipment, including radial shaft vibration, axial displacement, and overall rotor position changes. These measurements are essential for identifying early-stage mechanical degradation such as rotor imbalance, shaft misalignment, bearing wear, mechanical looseness, and oil film instability. Because the probe provides real-time high-resolution displacement data, it allows engineers to observe both steady-state and transient conditions in machinery operation. This enables early detection of abnormal vibration patterns that could indicate developing faults long before they escalate into catastrophic failures.

Q3. Why is a Proximitor driver required in the measurement system?
The raw signal generated by the eddy current probe is not directly usable for industrial monitoring or control systems because it is unconditioned and non-linear. The Proximitor driver is required to supply excitation energy to the probe, process the raw signal, and convert it into a stable, standardized output. This includes signal amplification, linearization, temperature compensation, and noise filtering. Without the Proximitor, the probe would not be able to deliver consistent or accurate measurements under varying environmental conditions. The driver ensures system-wide measurement repeatability and compatibility across different machinery and operating environments.

Q4. What are the most critical installation requirements for this probe?
Proper installation is essential to ensure accurate and stable measurement performance. The most important requirement is maintaining the correct static gap between the probe tip and the rotating shaft, as the output signal is directly proportional to this distance. Even minor deviations can result in nonlinear measurement behavior or signal drift. The probe must be securely mounted using its threaded structure to ensure mechanical stability during operation. Correct alignment is also essential to ensure that the probe is oriented properly for radial or axial measurement depending on application requirements. Additionally, cable routing must avoid high-voltage equipment, VFDs, and other sources of electromagnetic interference to preserve signal integrity.

Q5. Which environmental factors can influence measurement stability?
Although the probe is designed for harsh industrial environments, several external factors can still affect measurement stability over time. Temperature variations can introduce slight signal drift due to changes in electronic component behavior. Contamination on the shaft surface, such as oil film, dust, or corrosion, can alter eddy current interaction and reduce measurement consistency. Electromagnetic interference from nearby electrical equipment can introduce noise into the signal path. Mechanical instability, such as loose mounting or vibration in the probe housing, can also lead to fluctuating readings. Proper installation practices and environmental control are essential for long-term stable operation.

Q6. How can probe signal abnormalities or faults be diagnosed?
Signal abnormalities are typically identified through symptoms such as unstable readings, sudden signal loss, drift, or inconsistent vibration trends. The diagnostic process should begin with a physical inspection of the probe, cable, and connectors to check for mechanical damage, corrosion, or loose connections. The probe gap should then be verified to ensure it is within the calibrated operating range. If the physical installation is correct, system-level testing using calibration equipment or a known reference target can help confirm probe response accuracy. If the issue persists after eliminating external factors, the probe or Proximitor driver may require replacement for further isolation of the fault.

Q7. Why is non-contact measurement essential in high-speed rotating machinery?
Non-contact measurement is critical in high-speed rotating machinery because it eliminates physical interaction between the sensor and the shaft, preventing wear, friction, and mechanical loading effects. At high rotational speeds, even minimal contact would introduce heat generation, sensor degradation, and potential mechanical instability. Eddy current probes allow continuous, real-time monitoring without affecting the dynamic behavior of the rotor system. They also remain reliable in harsh conditions such as high temperature, oil mist, and strong vibration, where contact-based sensors would fail quickly. This makes non-contact technology the industry standard for critical machinery monitoring applications.

Q8. What role does this probe play in predictive maintenance systems?
In predictive maintenance systems, this probe serves as a primary data source for evaluating the health condition of rotating equipment. By continuously monitoring shaft vibration and displacement trends, it provides early indicators of mechanical degradation such as imbalance, misalignment, bearing wear, and rotor instability. These trends can be analyzed over time to detect gradual performance deterioration before it becomes a serious fault. Maintenance teams can then use this information to schedule planned interventions instead of reacting to unexpected failures. This approach significantly reduces downtime, improves operational efficiency, and extends the service life of critical industrial assets.
