Q1. What is the operating principle of this 3300 XL proximity probe?

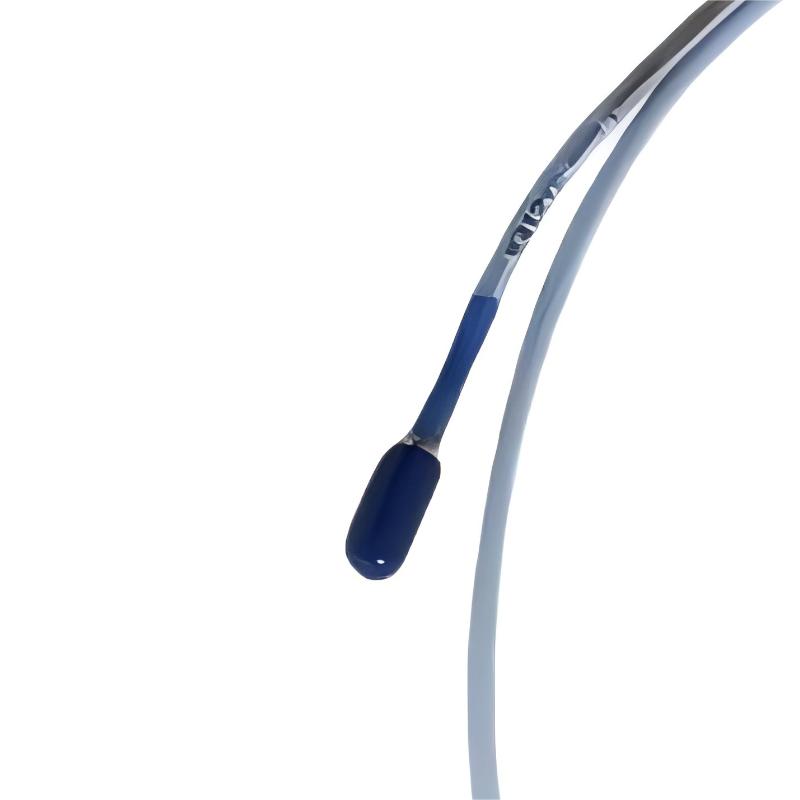

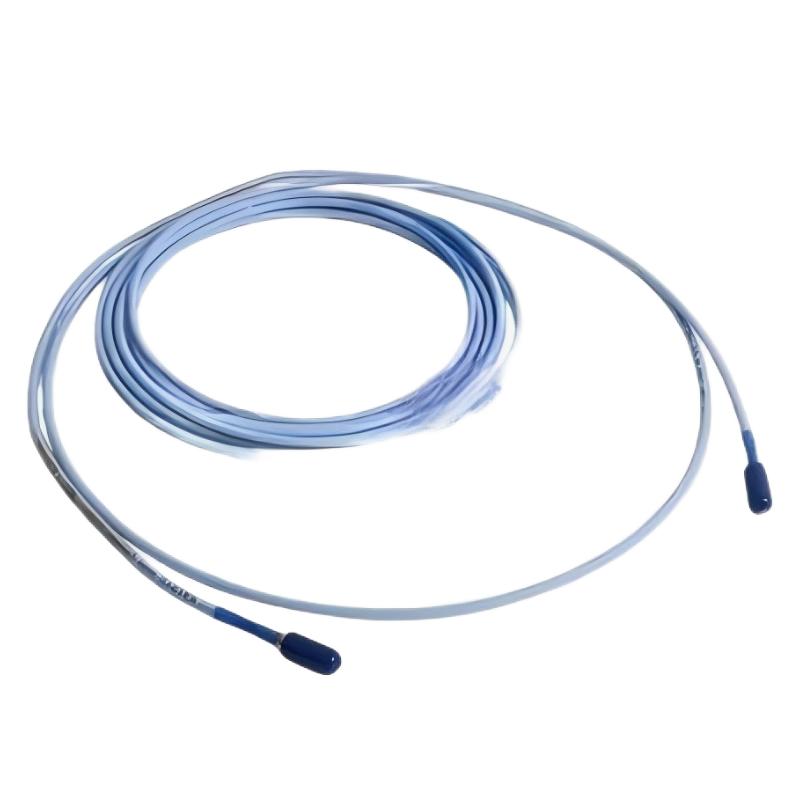

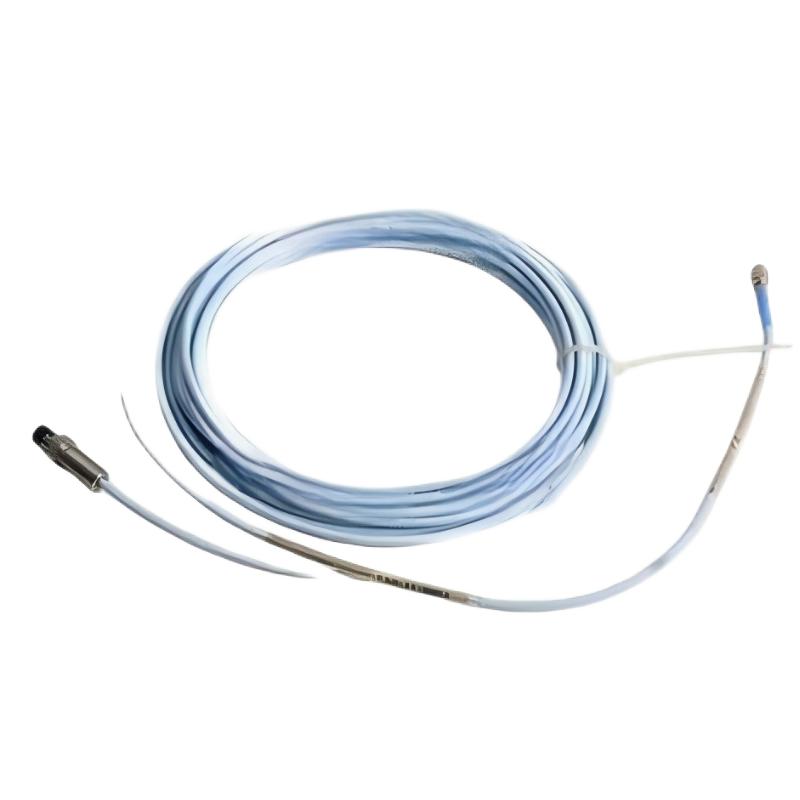

The Bently Nevada 330851-02-000-040-10-00-CN proximity probe operates using eddy current technology, which is a widely used method for high-precision, non-contact measurement of shaft displacement and vibration in rotating machinery. The probe generates a high-frequency electromagnetic field at its sensing tip. When this field interacts with a nearby conductive metal surface, such as a rotating shaft, it induces localized circulating currents known as eddy currents within the material. These eddy currents generate an opposing electromagnetic field that changes the impedance of the probe coil. The system continuously monitors these impedance variations and converts them into a calibrated, linear voltage output that corresponds precisely to the distance between the probe tip and the target surface. This allows extremely accurate detection of micro-level shaft movement without physical contact, making it ideal for high-speed, high-temperature, and harsh industrial environments where traditional contact sensors cannot operate reliably.

Q2. What mechanical conditions can this probe detect in rotating machinery?
This probe is designed to monitor a wide range of dynamic mechanical behaviors in rotating equipment. It continuously tracks radial shaft vibration, axial displacement, and overall rotor position changes relative to the machine housing. These measurements are essential for identifying early-stage mechanical degradation such as rotor imbalance, shaft misalignment, bearing wear, oil film instability, and mechanical looseness. Because it provides real-time high-resolution displacement data, it enables engineers to observe both steady-state and transient operating conditions. This makes it possible to detect abnormal vibration patterns at an early stage, long before they develop into serious equipment failures.

Q3. Why is a Proximitor driver required in the measurement system?
The raw signal generated by the eddy current probe is not suitable for direct use in industrial monitoring systems because it is unconditioned, nonlinear, and sensitive to environmental variations. A Proximitor driver is required to supply excitation energy to the probe and to process the raw signal into a usable form. It performs signal amplification, linearization, temperature compensation, and noise filtering. The result is a stable, standardized analog voltage output that accurately represents the probe-to-target gap. Without this signal conditioning stage, the probe would not deliver reliable or repeatable measurements under real-world operating conditions.

Q4. What are the most critical installation requirements for this probe?
Proper installation is essential to ensure accurate and stable performance. The most critical requirement is maintaining the correct static gap between the probe tip and the rotating shaft surface, as the output signal is directly dependent on this distance. Even small deviations can introduce measurement errors or nonlinear response. The probe must be securely mounted using its threaded structure to ensure mechanical stability and resistance to vibration. Correct orientation is also necessary depending on whether radial or axial measurement is being performed. Additionally, cable routing must be carefully planned to avoid proximity to high-voltage equipment, VFDs, and other electromagnetic interference sources.

Q5. Which environmental factors can affect measurement stability?
Although the probe is designed for harsh industrial environments, several factors can still influence long-term measurement stability. Temperature fluctuations may cause minor signal drift due to changes in electronic behavior. Contamination on the shaft surface, such as oil films, dust, or corrosion, can alter eddy current interaction and reduce signal consistency. Electromagnetic interference from nearby electrical systems can introduce noise into the signal chain. Mechanical instability, such as loose mounting or vibration in the probe housing, can also lead to inconsistent readings. Proper installation practices and environmental control are necessary to maintain measurement accuracy.

Q6. How can probe signal abnormalities be diagnosed?
Signal abnormalities typically appear as unstable readings, sudden signal loss, drift over time, or inconsistent vibration trends. The diagnostic process should begin with a physical inspection of the probe, cable, and connectors to check for damage, corrosion, or loose connections. Next, the probe gap should be verified to ensure it is within the calibrated operating range. If the physical installation is correct, system-level testing using calibration equipment or a reference target can help confirm probe response behavior. If issues persist after eliminating external causes, either the probe or the Proximitor driver may need replacement to isolate the fault.

Q7. Why is non-contact measurement essential in high-speed rotating machinery?
Non-contact measurement is essential because it eliminates physical interaction between the sensor and the rotating shaft, preventing wear, friction, and mechanical loading effects. In high-speed machinery, even minimal contact would introduce heat generation, mechanical stress, and potential sensor failure. Eddy current probes allow continuous real-time monitoring without affecting the dynamic behavior of the rotor system. They also remain reliable in harsh environments such as high temperature, oil mist, and strong vibration, where contact-based sensors would degrade quickly. This makes them the industry standard for critical rotating machinery monitoring.

Q8. What role does this probe play in predictive maintenance systems?
In predictive maintenance systems, this probe serves as a primary source of high-resolution dynamic data for evaluating machinery health. By continuously tracking shaft vibration and displacement trends, it provides early indicators of developing mechanical issues such as imbalance, misalignment, bearing degradation, and rotor instability. These trends can be analyzed over time to detect gradual deviations from normal operating conditions before they escalate into failures. Maintenance teams can then schedule corrective actions proactively instead of reacting to unexpected breakdowns. This data-driven approach significantly improves equipment reliability, reduces downtime, and extends the operational lifespan of critical industrial assets.
