Q1. What is the operating principle of this 3300 XL proximity probe?

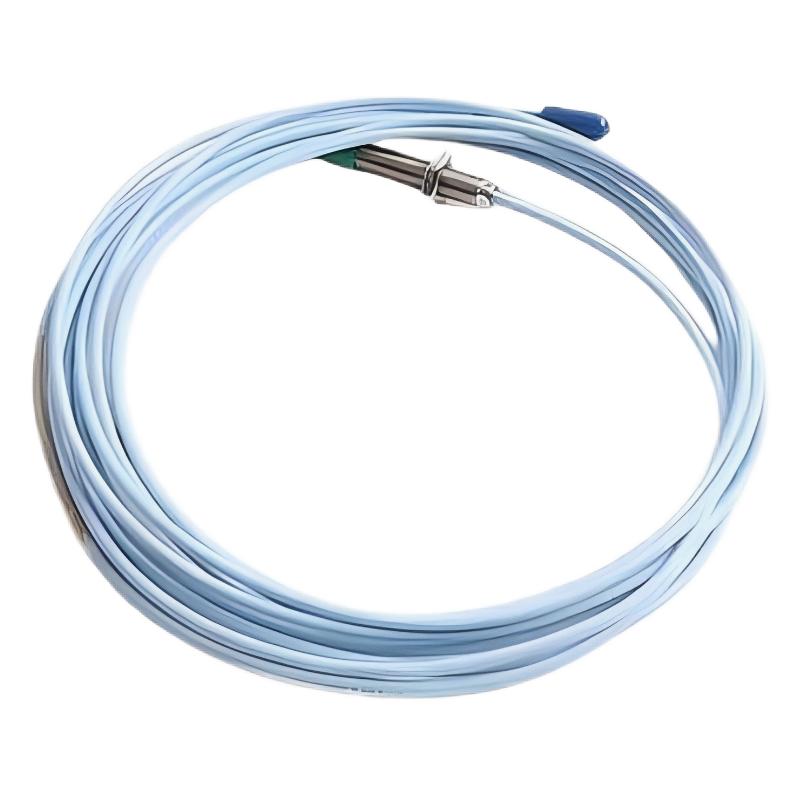

The Bently Nevada 330851-02-000-050-10-00-CN proximity probe operates using eddy current technology, which is a well-established method for high-precision, non-contact measurement of shaft displacement and vibration in industrial rotating machinery. The probe generates a high-frequency electromagnetic field at its sensing tip. When this field interacts with a nearby conductive metal surface such as a rotating shaft, eddy currents are induced within the material. These induced currents generate an opposing electromagnetic field that changes the impedance of the probe coil. The system continuously monitors these impedance variations and converts them into a calibrated, linear voltage output proportional to the distance between the probe and the shaft surface. This allows extremely accurate detection of micro-level motion without physical contact, ensuring stable performance in harsh environments such as high-speed rotation, high temperature, and strong vibration conditions.

Q2. What types of mechanical conditions can this probe detect?
This probe is designed to monitor key dynamic behaviors of rotating machinery, including radial shaft vibration, axial displacement, and overall rotor position changes. These parameters are critical because they directly reflect the mechanical health of the machine. For example, increased vibration levels may indicate rotor imbalance or misalignment, while axial displacement changes may suggest thrust bearing wear, thermal expansion effects, or axial instability. It can also help detect mechanical looseness, oil film instability, and early-stage bearing degradation. By continuously capturing high-resolution displacement data, the probe enables engineers to understand both steady-state and transient operating conditions, which is essential for accurate diagnostics and condition-based maintenance strategies.

Q3. Why is a Proximitor driver required in this measurement system?
The raw signal generated by the eddy current probe cannot be used directly in industrial monitoring systems because it is weak, nonlinear, and highly sensitive to environmental variations. The Proximitor driver is required to provide excitation energy to the probe and to convert the raw signal into a usable industrial output. It performs multiple critical functions including signal amplification, linearization, temperature compensation, and noise filtering. This ensures that the final output is a stable, standardized analog voltage signal that accurately represents the probe-to-target distance. Without the Proximitor, the measurement system would suffer from instability, poor repeatability, and significant accuracy degradation under real operating conditions.

Q4. What are the most important installation requirements for this probe?
Proper installation is essential to ensure accurate and reliable operation. The most critical requirement is maintaining the correct static gap between the probe tip and the rotating shaft surface, as the output signal is directly proportional to this distance. Even small deviations can lead to nonlinear measurement response or long-term drift. The probe must be securely mounted using its threaded structure to ensure mechanical stability under vibration and thermal cycling. Correct orientation is also necessary depending on whether radial or axial measurement is required. In addition, cable routing must be carefully designed to avoid electromagnetic interference sources such as VFDs, high-voltage cables, and switching devices, which can degrade signal quality.

Q5. Which environmental conditions can affect measurement stability?
Although the probe is designed for demanding industrial environments, several external factors can still influence measurement stability over time. Temperature fluctuations may introduce slight signal drift due to changes in electronic component characteristics. Contamination on the shaft surface, such as oil film, dust, or corrosion, can affect eddy current coupling efficiency and reduce measurement consistency. Strong electromagnetic interference from nearby electrical equipment can introduce noise into the signal path. Mechanical instability, such as loose mounting or structural vibration at the probe installation point, may also cause fluctuating readings. Proper grounding, shielding, and regular inspection are essential to maintain long-term accuracy and stability.

Q6. How can probe signal issues be diagnosed effectively?
Signal issues typically present as unstable readings, sudden signal loss, drift, or inconsistent vibration trends. The diagnostic process should begin with a physical inspection of the probe, cable, and connectors to check for damage, corrosion, or loose connections. Next, verify that the probe is installed within the correct operating gap range. If installation conditions are correct, system-level testing using a calibration reference or known target can help confirm probe response behavior. If issues persist after eliminating external factors, either the probe or the Proximitor driver may be faulty, and component substitution is often used to isolate the root cause.

Q7. Why is non-contact measurement essential in rotating machinery applications?
Non-contact measurement is essential because it eliminates physical interaction between the sensor and the rotating shaft, which is critical in high-speed machinery environments. Any physical contact would introduce friction, wear, heat generation, and mechanical interference, all of which can negatively affect both the sensor and the machine. Eddy current probes allow continuous real-time monitoring without disturbing rotor dynamics. They are also highly reliable in extreme conditions such as high temperature, oil mist, and strong vibration, where contact-based sensors would quickly degrade or fail. This makes non-contact technology the industry standard for monitoring critical rotating equipment in power generation, oil and gas, and heavy industrial applications.

Q8. What role does this probe play in predictive maintenance systems?
In predictive maintenance systems, this probe serves as a key data acquisition element for evaluating machinery health. By continuously tracking shaft vibration and displacement trends, it provides early indicators of developing mechanical issues such as rotor imbalance, misalignment, bearing wear, and instability. These trends can be analyzed over time to detect gradual deviations from normal operating conditions before they escalate into serious failures. Maintenance teams can then shift from reactive repairs to planned interventions, reducing unplanned downtime, improving operational efficiency, and extending the service life of critical rotating assets.
