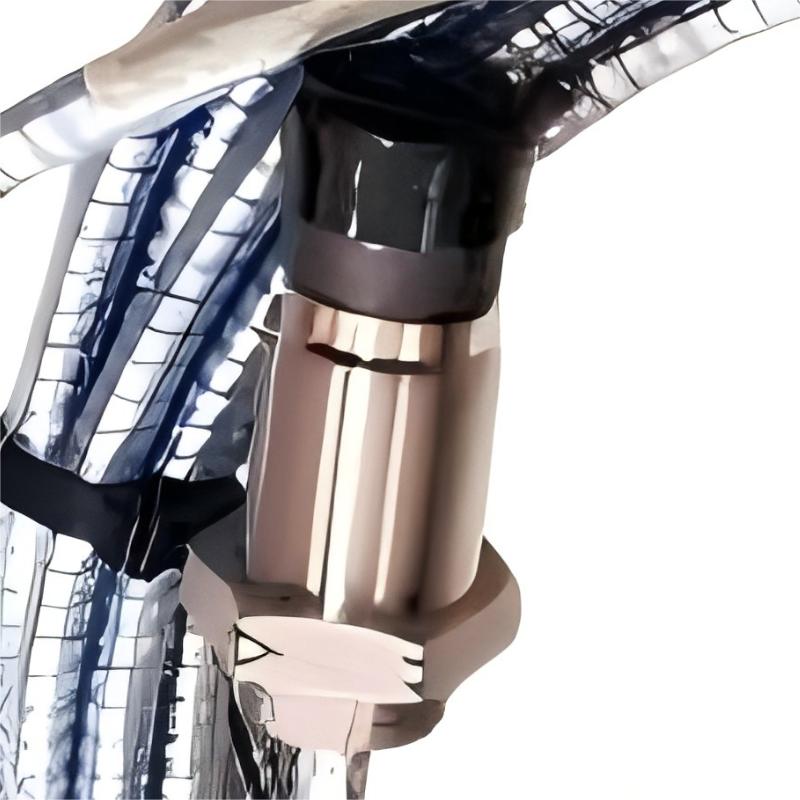

Q1. What is the operating principle of this 3300 XL proximity probe?
The Bently Nevada 330851-02-000-050-50-00-05 proximity probe operates using eddy current technology, which is widely used in industrial machinery protection and condition monitoring systems for precise, non-contact measurement of shaft displacement and vibration. The probe generates a high-frequency alternating electromagnetic field at its sensing tip. When this field interacts with a conductive metallic target such as a rotating shaft, it induces localized circulating currents known as eddy currents within the material. These eddy currents create an opposing electromagnetic field that alters the electrical impedance of the probe coil. The system continuously measures these impedance changes and converts them into a calibrated, linear voltage output that corresponds directly to the physical gap between the probe tip and the shaft surface. This allows extremely accurate detection of microscopic shaft movements without physical contact, even in harsh environments involving high speed, high temperature, and strong vibration.

Q2. What mechanical conditions can this probe detect in rotating machinery?
This probe is designed to monitor a wide range of critical dynamic behaviors in rotating equipment. It continuously measures radial shaft vibration, axial displacement, and rotor positional changes relative to the machine casing. These parameters are essential indicators of machine health because they reflect internal mechanical conditions such as rotor imbalance, misalignment, bearing wear, shaft bow, and oil film instability. For example, increasing vibration amplitudes may indicate imbalance or looseness, while abnormal axial movement can suggest thrust bearing degradation or thermal expansion issues. By capturing continuous high-resolution data, the probe enables engineers to observe both steady-state and transient operating behavior, which is crucial for diagnosing early-stage mechanical problems before they develop into severe failures.

Q3. Why is a Proximitor driver required in this measurement system?
The raw signal generated by the eddy current probe cannot be directly used for industrial monitoring because it is weak, nonlinear, and highly sensitive to environmental variations. The Proximitor driver is essential because it provides excitation energy to the probe and performs all necessary signal conditioning functions. These include amplification of the raw signal, linearization of the response curve, temperature compensation, and noise filtering. After processing, the output becomes a stable, standardized analog voltage signal that accurately represents the probe-to-target distance. Without the Proximitor driver, the system would suffer from poor accuracy, instability, and inconsistent readings, especially in demanding industrial environments with temperature fluctuations, vibration, and electromagnetic interference.

Q4. What are the most critical installation requirements for this probe?
Proper installation is essential to ensure reliable and accurate measurement performance. The most important requirement is maintaining the correct static gap between the probe tip and the rotating shaft surface, since the output signal is directly proportional to this distance. Even small deviations can introduce nonlinear response or long-term measurement drift. The probe must be firmly secured using its threaded mounting structure to withstand continuous vibration and thermal cycling in industrial environments. Proper alignment is also necessary depending on whether radial or axial displacement is being measured. Additionally, cable routing must be carefully planned to avoid electromagnetic interference sources such as variable frequency drives, high-voltage cables, and switching equipment, which can degrade signal quality if not properly controlled.

Q5. Which environmental conditions can affect measurement stability?
Although this probe is designed for harsh industrial environments, several external factors can still affect measurement stability over time. Temperature fluctuations may cause slight signal drift due to changes in electronic component characteristics. Contamination on the shaft surface, such as oil films, dust, or corrosion, can reduce eddy current coupling efficiency and affect signal consistency. Strong electromagnetic fields from nearby electrical equipment can introduce noise into the measurement signal. Mechanical instability, such as loose mounting or structural vibration at the installation point, may also lead to inconsistent readings. To ensure long-term stability, proper grounding, shielding, and regular inspection of installation conditions are necessary.

Q6. How can probe signal issues be diagnosed effectively?
Signal issues are typically identified through symptoms such as unstable readings, signal drift, sudden signal loss, or inconsistent vibration trends. The diagnostic process should begin with a physical inspection of the probe, cable, and connectors to check for damage, corrosion, or loose connections. Next, the probe-to-shaft gap should be verified to ensure it is within the calibrated operating range. If the installation is correct, system-level testing using a calibration reference or known target can help validate probe performance. If issues persist after eliminating external factors, either the probe or the Proximitor driver may be faulty, and component substitution is commonly used to isolate the root cause.

Q7. Why is non-contact measurement essential in rotating machinery applications?
Non-contact measurement is essential because it eliminates physical interaction between the sensor and the rotating shaft, which is critical in high-speed industrial machinery. Any physical contact would introduce friction, wear, heat generation, and mechanical loading effects, all of which can negatively impact both the sensor and the machine itself. Eddy current probes enable continuous real-time monitoring without affecting rotor dynamics. They also remain reliable in extreme operating conditions such as high temperature, oil mist, and strong vibration, where contact-based sensors would degrade rapidly or fail. This makes non-contact measurement technology the industry standard for monitoring critical rotating equipment in industries such as power generation, oil and gas, and heavy manufacturing.

Q8. What role does this probe play in predictive maintenance systems?
In predictive maintenance systems, this probe serves as a key data acquisition device for evaluating the health condition of rotating machinery. By continuously monitoring shaft vibration and displacement trends, it provides early indicators of mechanical degradation such as imbalance, misalignment, bearing wear, and rotor instability. These trends can be analyzed over time to detect gradual deviations from normal operating conditions before they escalate into serious failures. Maintenance teams can then shift from reactive maintenance to planned interventions, reducing unplanned downtime, improving operational efficiency, and extending the service life of critical industrial assets while enhancing overall plant reliability and safety.
